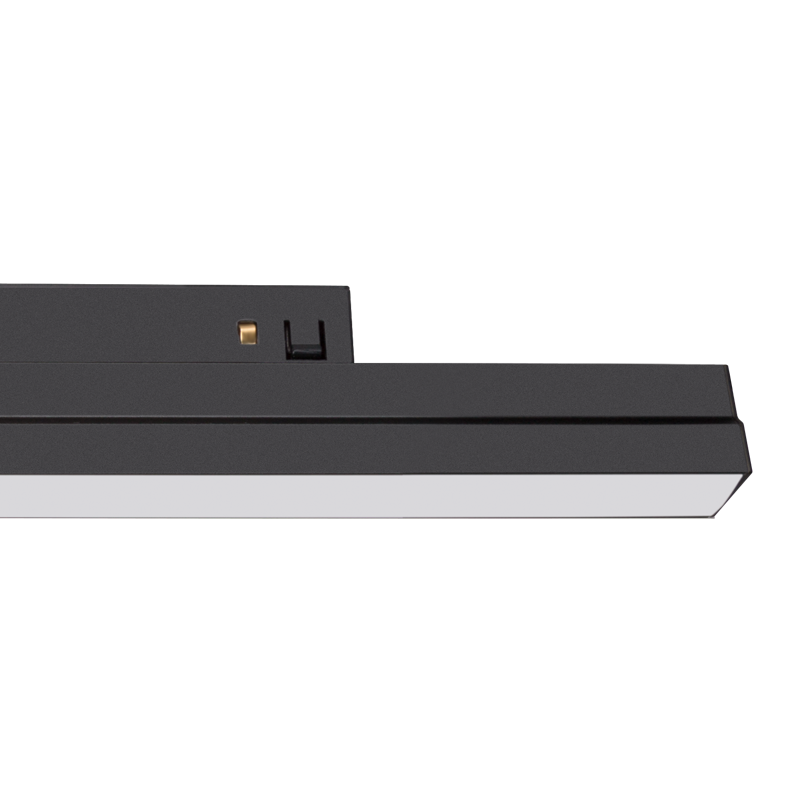

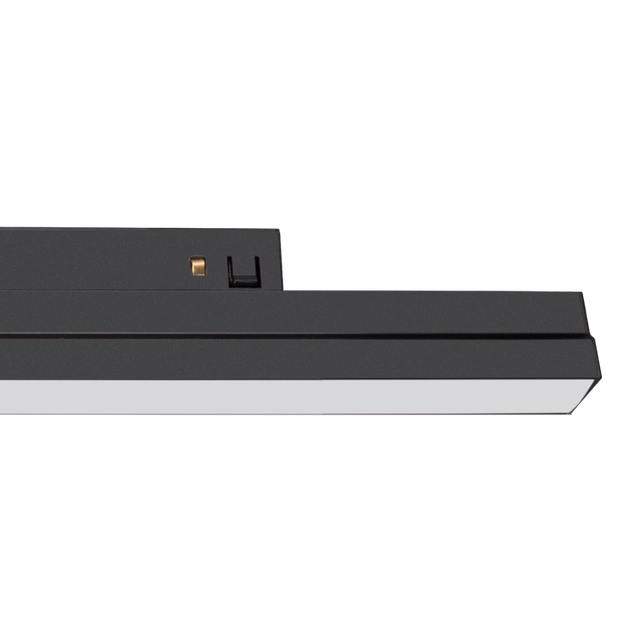

Archilight Strand 303 Track light 10W, 112 Degree, 3000K, White - D...
Log in to see priceSpecifications
Specifications
- Order code
- KC-017022A03
- Input
- 48 V
- Power rating
- 10W
- Beam angle
- 112°
- Brightness
- 610 lm
- Efficacy
- ≥61 lm/W
- Colour render index(CRI)
- ≥90
- Colour temperature
- 3000K / 4000K / 6000K / 3000K - 6000K
- IP level
- IP20
- Temperature range
- -25°C~50°C
- Dimming control
- Bluetooth APP Control (Default) or DALI (Optional)
- Tiltable
- Fixed
- Mounting
- Motion Magnetic Track Series
- Driver
- 48V Driver not Included
- Warranty
- 5 years
- Lifetime
- 50,000hrs
- Material
- Aluminum
- Finish
- Black
Certifications & ratings
- Certification marks
- CE, CB, TÜV, Class II

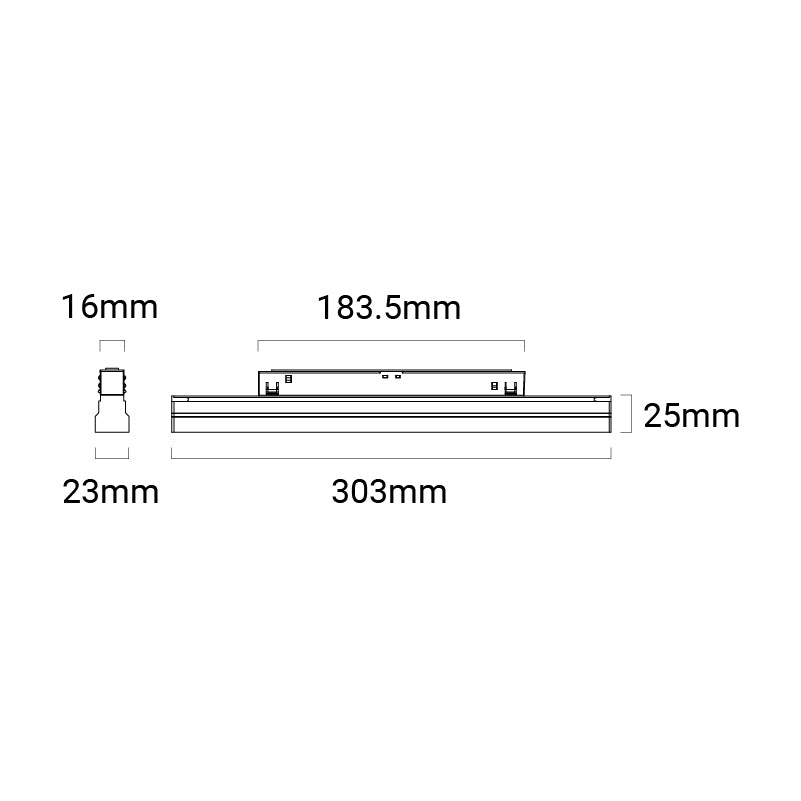

Technical drawings
Downloads
Datasheet1
FAQ
What type of projects is the Archilight Strand 303 Track light best suited for?
This model is designed for interior magnetic track lighting applications in commercial and residential spaces. Its wide beam and linear form make it a strong fit for retail, hospitality, office, and residential projects where broad, even light distribution is preferred.
What are the key performance specs of this track light?
This specific model is rated at 10W and delivers 610 lumens. It also has a 112 degree beam angle and a CRI of ≥90, which supports good color quality in interior lighting environments.
Is this track light compatible with Motion series track systems?
Yes. The product description states that this Strand series light is intended to pair with Motion series track systems. That makes it suitable for projects already using that magnetic track family.
Does this model include a driver?
No, the product data lists the driver as not included. For quoting and project planning, this means the driver requirement should be considered separately from the light module itself.
How durable is this track light for long-term commercial use?
This model has a rated lifetime of 50,000 hours and is backed by a 5 year warranty. Those specifications make it suitable for long-run interior projects where maintenance intervals and fixture longevity matter.
What operating environment can this track light handle?
The listed operating temperature range is -25 C to 50 C. That gives it a broad environmental tolerance for interior applications where ambient conditions may vary across commercial spaces.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other Archilight Strand 303 Series Models
2 other models| Model | Power | CRI | Dimming | UGR | |
|---|---|---|---|---|---|
| Archilight Strand 303 Black Track Light BLE 10W | 10W | 90 | Optional | 19 | View |
| Archilight Strand 303 Black Tracklight Light 10W | 10W | 90 | Non Dimmable | 19 | View |
