Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

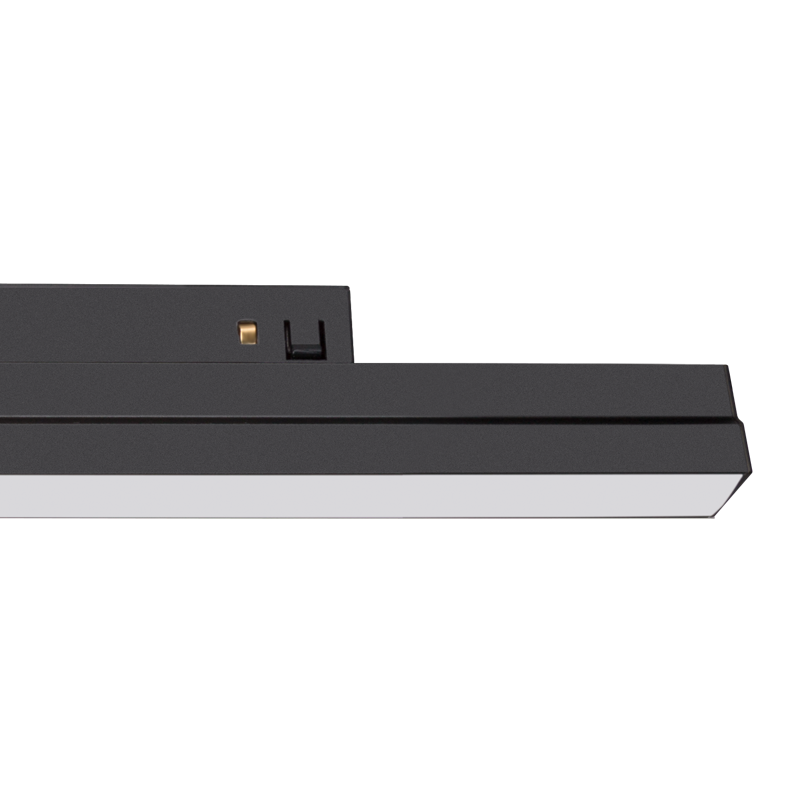

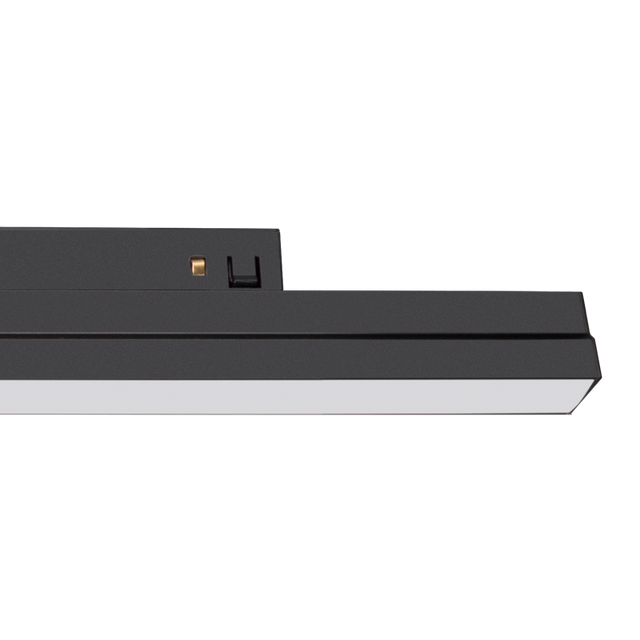

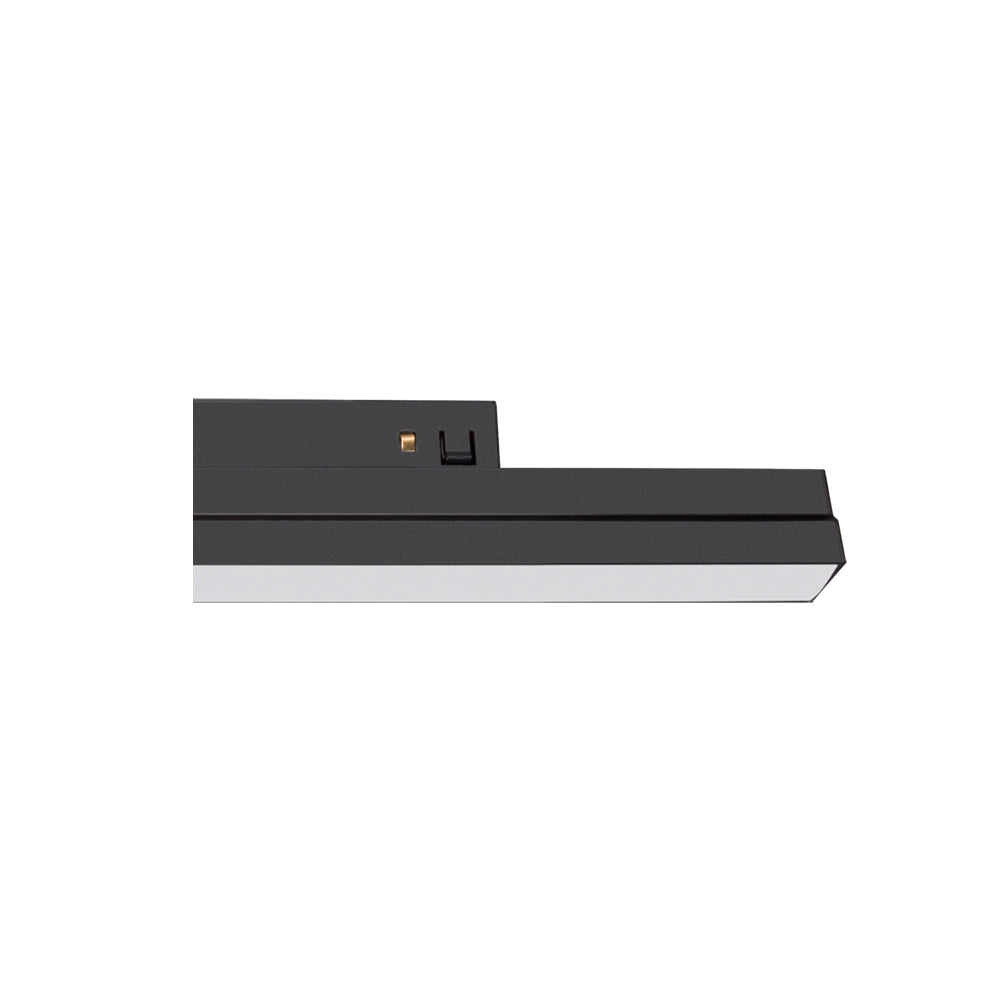

Archilight Strand 603 Black Tracklight Light 20W
Notify me when it's back in stock
Specifications
Specifications

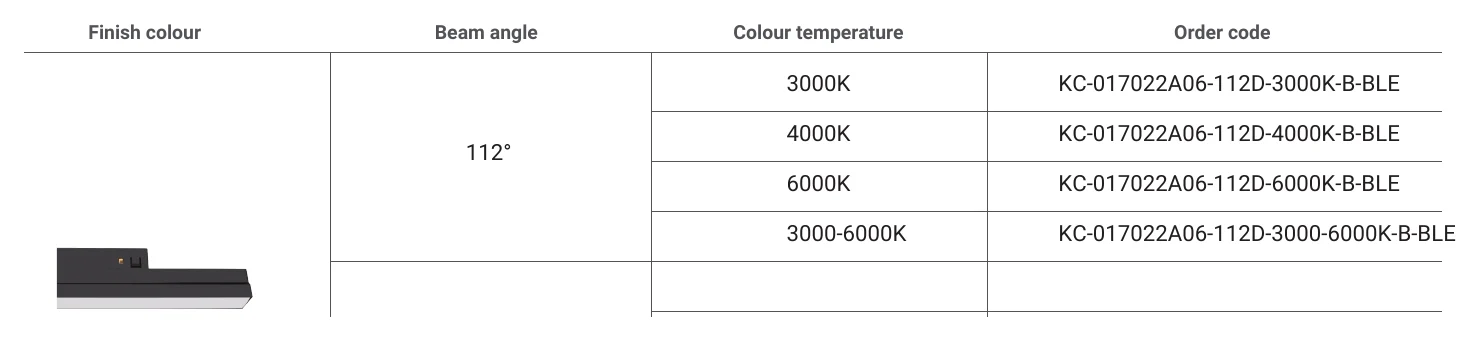

- Order code
- KC-017022A06
- Input
- 48 V
- Power rating
- 20 W
- Beam angle
- 112°
- Brightness
- 1300 lm
- Efficacy
- ≥65 lm/W
- Colour render index(CRI)
- ≥90
- Colour temperature
- 3000K / 4000K / 6000K / 3000K - 6000K
- IP level
- IP20
- Temperature range
- -25°C~50°C
- Dimming control
- Bluetooth APP Control (Default) or DALI (Optional)
- Tiltable
- Fixed
- Mounting
- Motion Magnetic Track Series
- Driver
- 48V Driver not Included
- Warranty
- 5 years
- Lifetime
- 50,000hrs
- Material
- Aluminum
- Finish
- Black
Certifications & ratings
- Certification marks
- CE, CB, TÜV, Class II

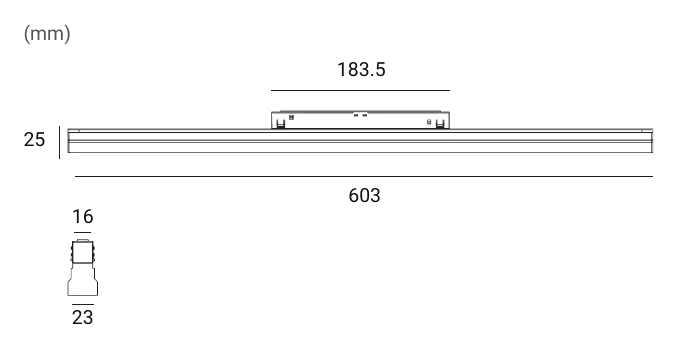

Technical drawings
Downloads
Datasheet1
FAQ
What is this light used for?
It is a 20W track light designed for indoor commercial and residential lighting, suitable for retail displays, galleries, and general ambient lighting.
What are the power and brightness specifications?
The light has a power rating of 20W and produces 1300 lumens of brightness with an efficacy of at least 65 lm/W.
How do I dim or control the light?
The default control method is via a Bluetooth APP. DALI control is available as an optional feature.
How is the light mounted?
It is designed for the Motion Magnetic Track Series. The unit is fixed and not tiltable.
What is the IP rating and operating temperature?
The light has an IP20 rating, making it suitable for indoor use only. It operates within a temperature range of -25°C to 50°C.
Is the driver included?
No, the 48V driver is not included and must be purchased separately.
What is the warranty and lifespan?
The product comes with a 5-year warranty and has a rated lifetime of 50,000 hours.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other Archilight Strand 603 Series Models
1 other model| Model | Power | CRI | Dimming | UGR | |
|---|---|---|---|---|---|
| Archilight Strand 603 Track Light BLE 20W | 20W | 90 | Optional | 19 | View |
