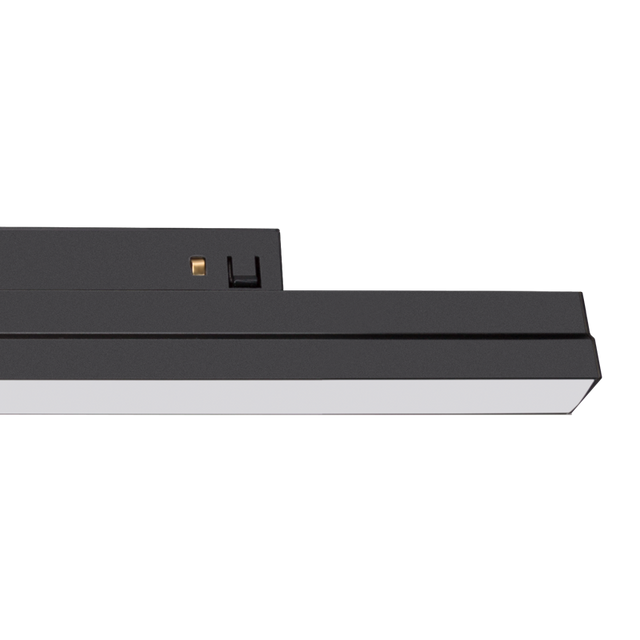

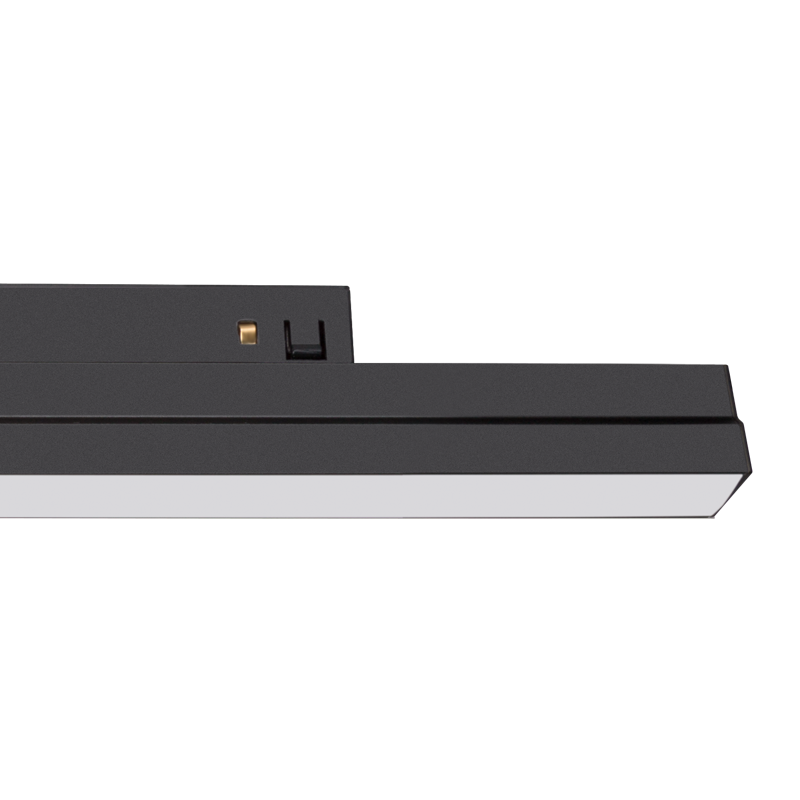

Archilight Strand 603 Track Light BLE 20W
Log in to see priceSpecifications
Archilight Strand 603 Track Light BLE 20WSpecifications from the official datasheetDownload datasheet PDF
Variants
| SKU | Finish Colour |
|---|---|
| KC-017022A06-112D-3000-6000K-B-BLE | Black |
| KC-017022A06-112D-3000-6000K-W-BLE | White |
Specifications
- Input
- 48 V
- Power rating
- 20 W
- Beam angle
- 112°
- Brightness
- 1300 lm
- Efficacy
- ≥65 lm/W
- Colour render index(CRI)
- ≥90
- Colour temperature
- 3000K / 4000K / 6000K / 3000K - 6000K
- IP level
- IP20
- Temperature range
- -25°C~50°C
- Dimming control
- Bluetooth APP Control (Default) or DALI (Optional)
- Tiltable
- Fixed
- Mounting
- Motion Magnetic Track Series
- Driver
- 48V Driver not Included
- Warranty
- 5 years
- Lifetime
- 50,000hrs
- Material
- Aluminum
Certifications & ratings
- Certification marks
- CE, CB, TÜV, Class II
Technical drawings
Downloads
Datasheet1
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other Archilight Strand 603 Series Models
1 other model| Model | Power | CRI | Dimming | UGR | |
|---|---|---|---|---|---|
| Archilight Strand 603 Black Tracklight Light 20W | 20W | 90 | Non Dimmable | 19 | View |
