Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

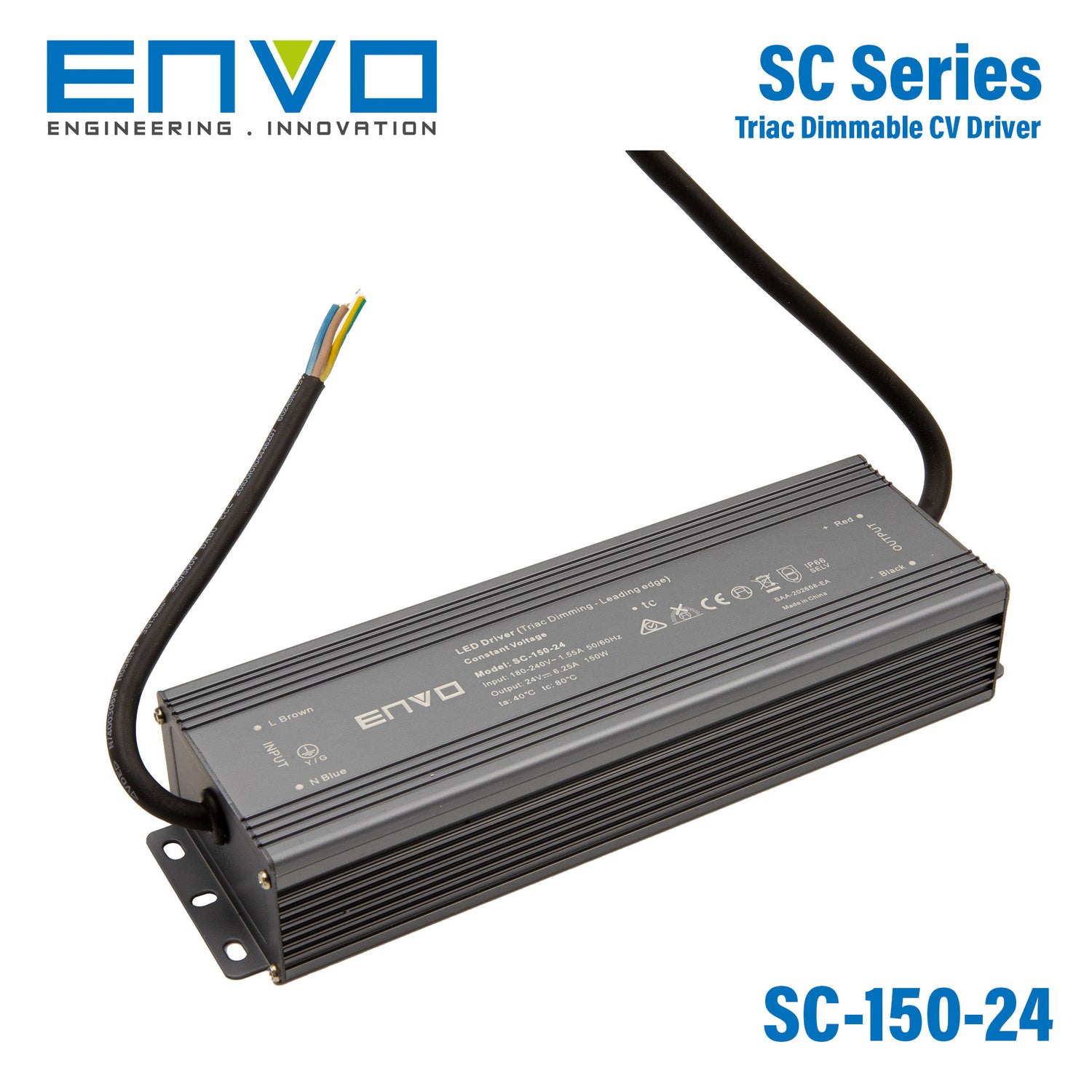

Envo SC-150-24 Power Supply 150W 24V - Triac dimmable 6.25A

triac dimmable

SKU:

SC-150-24

Please for Pricing

Notify me when it's back in stock

Description

Output constant voltage
Universal AC input/ :180-240VA
High efficiency :up to 87%
Protections:short circuit/over loading/over current
Full protection aluminum housing
Easy installation
Cooling by free air convection
Work with leading edge and trailing edge TRIAC dimmers
Strong compatibility
flicker-free dimming
Suitable for LED lighting and moving sign applications
Compliance to worldwide safety regulations for lighting

Specifications

Brand

Envo
Series

SC Envo Series
Power Rating

150 Watt
Output Voltage

24 Volt
Rated Current

6.25 Ampere
Input Voltage

180V~240V
Standards Met

CE,SAA
Operation Mode

Constant Voltage
Operating Temperature

-40°C~60°C
Warranty

5 Year
Length

25.6 cm
Width

7.8 cm
Height

4.7 cm
Weight

1.5 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the Envo SC-150-24 used for?

The Envo SC-150-24 is a 24V constant-voltage power supply designed for LED lighting and moving sign applications. It is intended for projects that need a 150W driver with TRIAC dimming support.

Is the SC-150-24 a constant-current or constant-voltage power supply?

This model is a constant-voltage power supply. It provides a 24V DC output and is intended for products and systems that require a regulated 24V constant-voltage source.

Does the Envo SC-150-24 support TRIAC dimming?

Yes, the SC-150-24 supports AC phase-cut dimming and is designed to work with both leading-edge and trailing-edge TRIAC dimmers. It is described as having strong compatibility and flicker-free dimming performance.

What output can this power supply deliver?

This model is rated for 150W output at 24V DC, with a rated current of 6.25A. Those specs make it suitable for 24V applications that need higher power capacity than smaller drivers.

Is the SC-150-24 suitable for demanding environments?

The SC-150-24 is specified for operation from -40°C to 60°C. It also uses a full-protection aluminum housing and free-air convection cooling, which supports use in a range of commercial and lighting environments.

What protection and reliability features does this model include?

According to the product data, the SC-150-24 includes protections for short circuit, over loading, and over current. It also carries a 5-year warranty and is described as compliant with worldwide safety regulations for lighting.

Model	Power	Voltage	Current	IP Rating
Envo SC-150-12 Power Supply 150W 12V - Triac dimmable 12.5A	150W	12V	12.5A	IP66	View
