Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

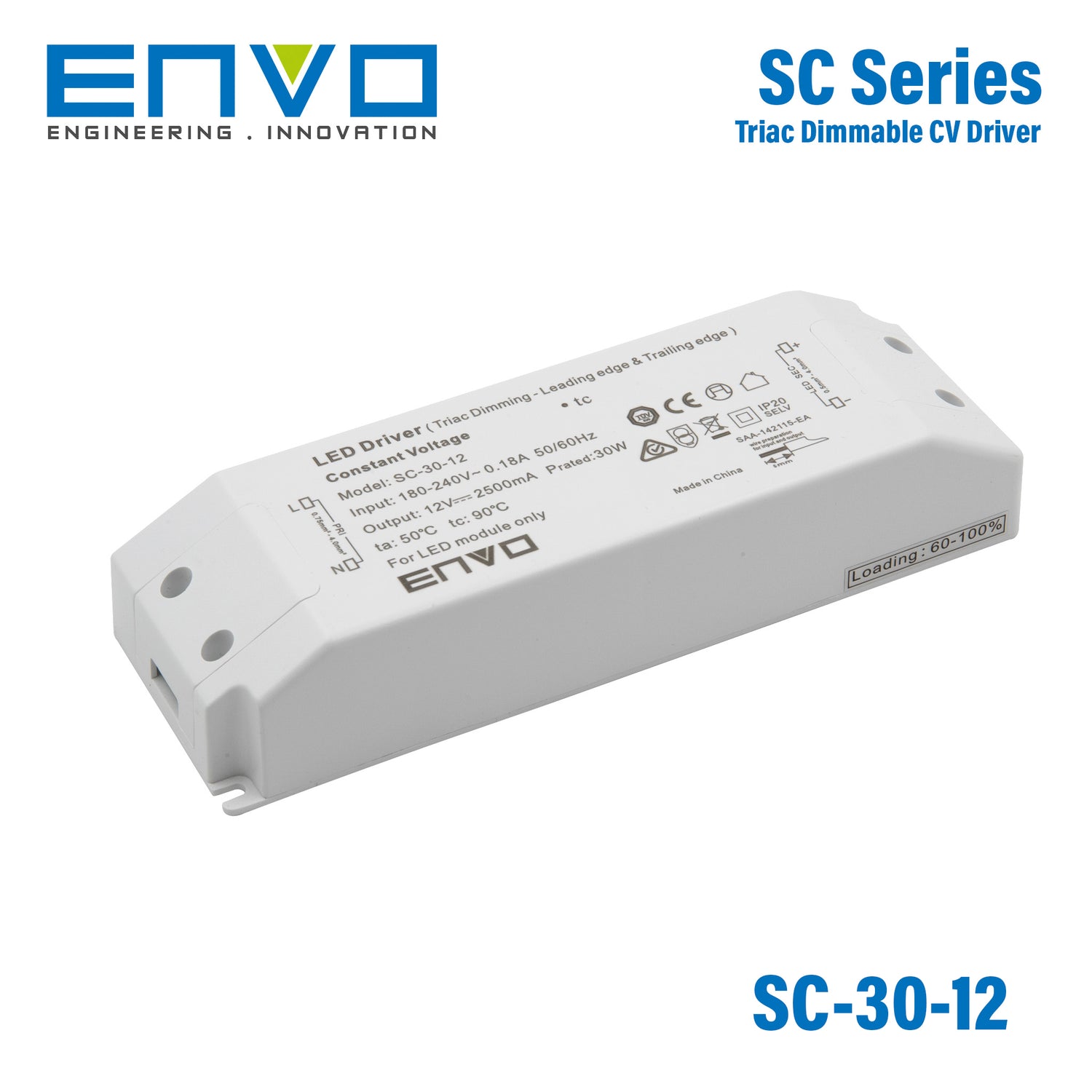

Envo SC-30-12 Power Supply 30W 12V - Triac dimmable 2.5A

triac dimmable

SKU:

SC-30-12

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

Output constant voltage
Range AC input/ :180-240VAC
Built-in active PFC function
Efficiency :up to 85%
Protections:short circuit/over loading/over current
Full protection plastic housing easy installation
IP20 design for indoor installation
Cooling by free air convection
Work with leading edge and trailing edge TRIAC dimmers
Strong compatibility
flicker-free dimming
Suitable for LED lighting and moving sign applications
Suitable for dry locations

Frequently Asked Questions

What is the Envo SC-30-12 designed for?

The Envo SC-30-12 is a 30W constant-voltage power supply for 12V LED lighting and moving sign applications. It is intended for indoor, dry-location use and is built in a full plastic housing for straightforward placement in suitable installations.

Is the Envo SC-30-12 dimmable?

Yes. This model supports AC phase-cut dimming and is designed to work with both leading-edge and trailing-edge TRIAC dimmers. The product description also notes strong compatibility and flicker-free dimming performance.

What are the main electrical ratings of the Envo SC-30-12?

This model is rated for 30W output at 12V constant voltage, with a rated current of 2.5A. Its AC input range is 180-240VAC, and the listed efficiency is up to 85%.

Where can the Envo SC-30-12 be used?

The SC-30-12 is suitable for indoor installation in dry locations. It has an IP20 design, which aligns with use in protected indoor environments rather than exposed wet areas.

What protection features does the Envo SC-30-12 include?

According to the product data, this model includes protections for short circuit, over loading, and over current. These built-in protections help support reliable operation in appropriate applications.

What temperature range is the Envo SC-30-12 rated for?

The stated operating temperature range is from -40°C to 60°C. This gives the unit a broad environmental range for suitable indoor applications, provided the location is dry.

How does the Envo SC-30-12 compare with non-dimmable 12V power supplies?

A key differentiator of the SC-30-12 is its support for leading-edge and trailing-edge TRIAC dimmers, along with flicker-free dimming. Buyers specifically needing phase-cut dimming for 12V constant-voltage LED applications may prefer it over a basic non-dimmable model.

What warranty is offered for the Envo SC-30-12?

The listed warranty period for this model is 5 years. For buyers comparing long-term value across similar LED power supplies, that is a meaningful model-specific specification.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Envo SC-30-24 Power Supply 30W 24V - Triac dimmable 1.25A	30W	24V	1.25A	Indoor	View
