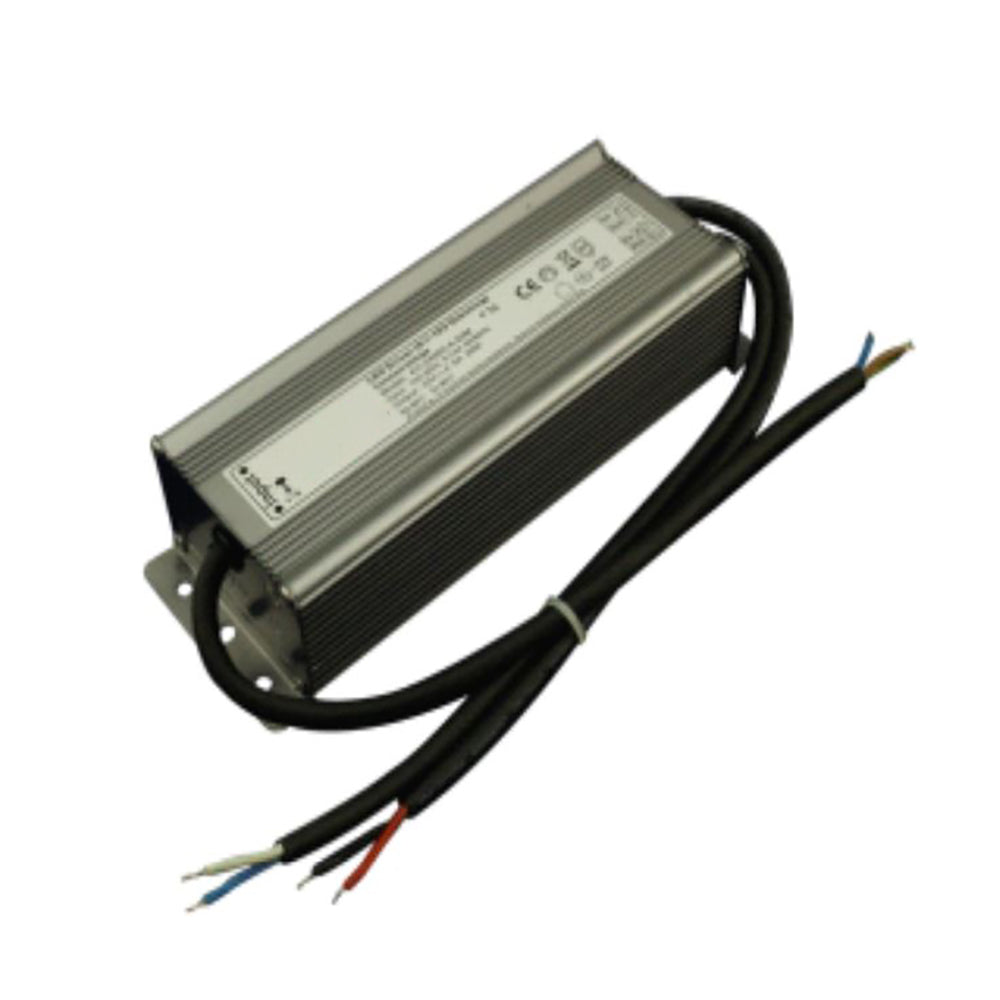

Envo SC-360-12 Power Supply 360W 12V - Triac dimmable 30A

triac dimmable

SKU:

SC-360-12

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

Output constant voltage
Range AC input: 200-240VA
Built-in active PFC function
Efficiency :up to 89%
Protections:short circuit/over loading/over temperature
Full protection aluminum housing easy installation
IP66 design for outdoor installation
Cooling by free air convection
Work with leading edge and trailing edge TRIAC dimmers
Strong compatibility
flicker-free dimming
Suitable for LED lighting and moving sign applications

Frequently Asked Questions

What are the main electrical ratings of the Envo SC-360-12 power supply?

The Envo SC-360-12 is a constant-voltage 12V power supply rated at 360W. It delivers up to 30A output current and accepts a 200-240V AC input range. This model is designed for higher-power 12V lighting loads where stable voltage is required.

Is the SC-360-12 suitable for TRIAC dimming systems?

Yes, this model is specified as TRIAC dimmable and works with both leading-edge and trailing-edge phase-cut dimmers. The product description also states strong compatibility and flicker-free dimming. That makes it a fit for projects where smooth AC phase-cut dimming is required.

What types of applications is the Envo SC-360-12 intended for?

This model is described as suitable for LED lighting and moving sign applications. Its 12V constant-voltage output and 360W capacity make it relevant for larger 12V systems that need a higher current supply. It is intended for commercial or project-based use where dimming and outdoor durability may matter.

Can the SC-360-12 be used outdoors or in exposed environments?

Yes, the SC-360-12 has an IP66 design for outdoor installation. It also uses a full aluminum housing and is specified to operate from -40°C to 60°C. Those specs make it more suitable for demanding environments than an indoor-only power supply.

How does the SC-360-12 compare with lower-power 12V LED power supplies?

The SC-360-12 is positioned for higher-load 12V applications because it provides up to 360W and 30A output. Compared with lower-wattage 12V models, it is better suited to larger lighting runs or more power-hungry 12V equipment. Buyers choosing between models should mainly compare required wattage, output current, and whether TRIAC dimming is needed.

What protection and reliability features does this model include?

The product includes short-circuit, overloading, and over-temperature protection. It also has built-in active PFC, cooling by free air convection, and up to 89% efficiency. Envo specifies a 5-year warranty for this model.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Envo SC-360-24 Power Supply 360W 24V - Triac dimmable 15A	360W	24V	15A	IP66	View
