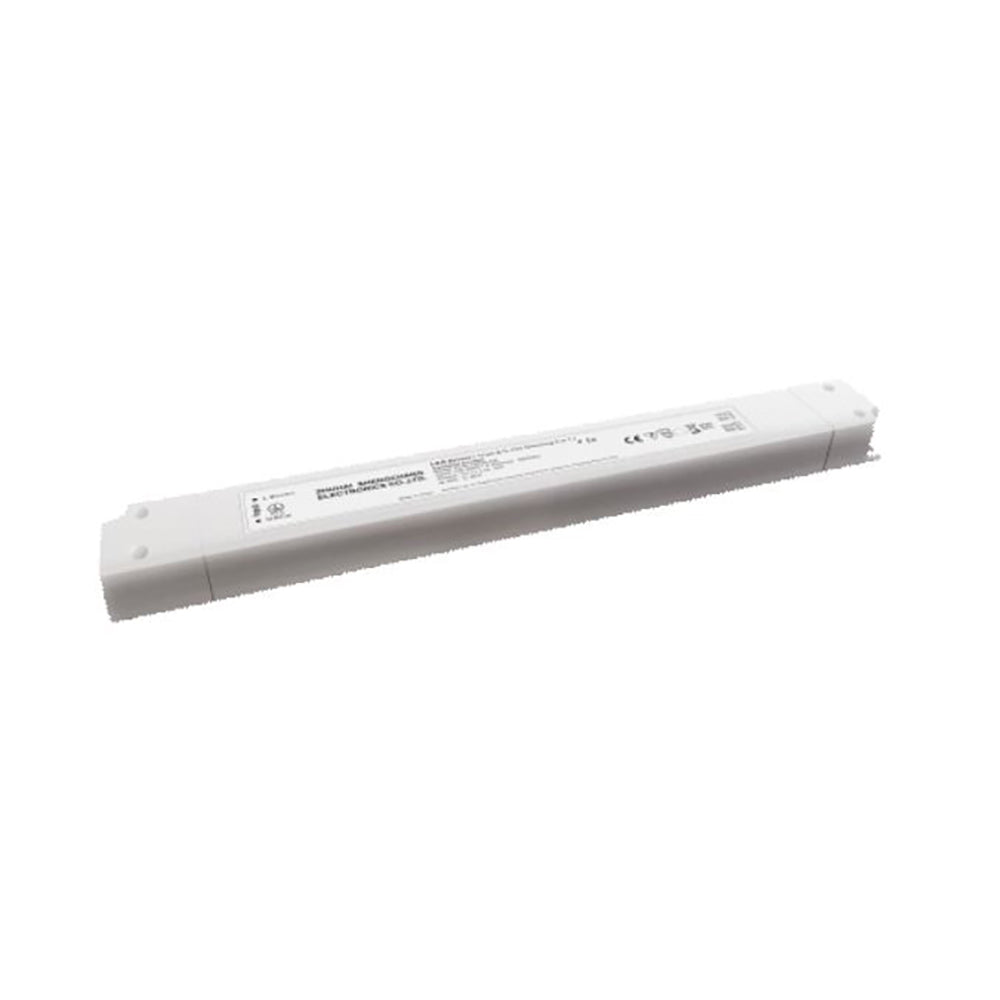

Envo Slim SC-100S-12 Power Supply 100W 12V - Triac dimmable 5A

triac dimmableslim shape30mm width

SKU:

SC-100S-12

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

Output constant voltage
Range: 200-240VAC
Built-in active PFC function Power Factor: up to 0 96
Efficiency up to 85%
Dimming range: 0-100%
Load: 10-100%
Protection:short circuit/over loading/ Over temperature
PWM output
does not change the color index
Full protection plastic case
IP20 for indoor installation
Flicker-free
Compatible with leading edge and trailing edge TRIAC dimmers
Cooling by free air convection
Suitable for LED lighting and moving sign applications

Frequently Asked Questions

What type of power supply is the Envo Slim SC-100S-12?

The Envo Slim SC-100S-12 is a constant-voltage LED power supply rated at 100W with a 12V output. It is designed for indoor LED lighting and moving sign applications where a 12V constant-voltage driver is required.

Is the SC-100S-12 dimmable?

Yes, this model is TRIAC dimmable and supports both leading-edge and trailing-edge phase-cut dimmers. Its stated dimming range is 0-100%, with a load range of 10-100%.

What are the electrical ratings of this model?

This power supply is rated for 100W output, 12V output voltage, and 5A rated current. Its input range is 200-240VAC, and it includes active PFC with power factor up to 0.96.

Is the Envo Slim SC-100S-12 suitable for indoor or outdoor use?

This model is rated IP20, which means it is intended for indoor installation. It has a full plastic case and is specified for environments where IP20 protection is appropriate.

What kinds of applications is the SC-100S-12 intended for?

The product description states that it is suitable for LED lighting and moving sign applications. It is also designed to provide PWM output without changing the color index, which is useful in lighting applications where consistent visual output matters.

What protection features does this power supply include?

The SC-100S-12 includes protection for short circuit, overloading, and over-temperature conditions. It also uses free-air convection cooling and is described as flicker-free.

What operating temperature range does this model support?

The specified operating temperature range is from -40°C to 60°C. This gives it a wide environmental range for suitable indoor applications within that temperature window.

What warranty is offered for the Envo Slim SC-100S-12?

This model has a stated warranty period of 5 years. That makes it a long-warranty option for buyers evaluating long-term LED power supply replacements or new projects.
