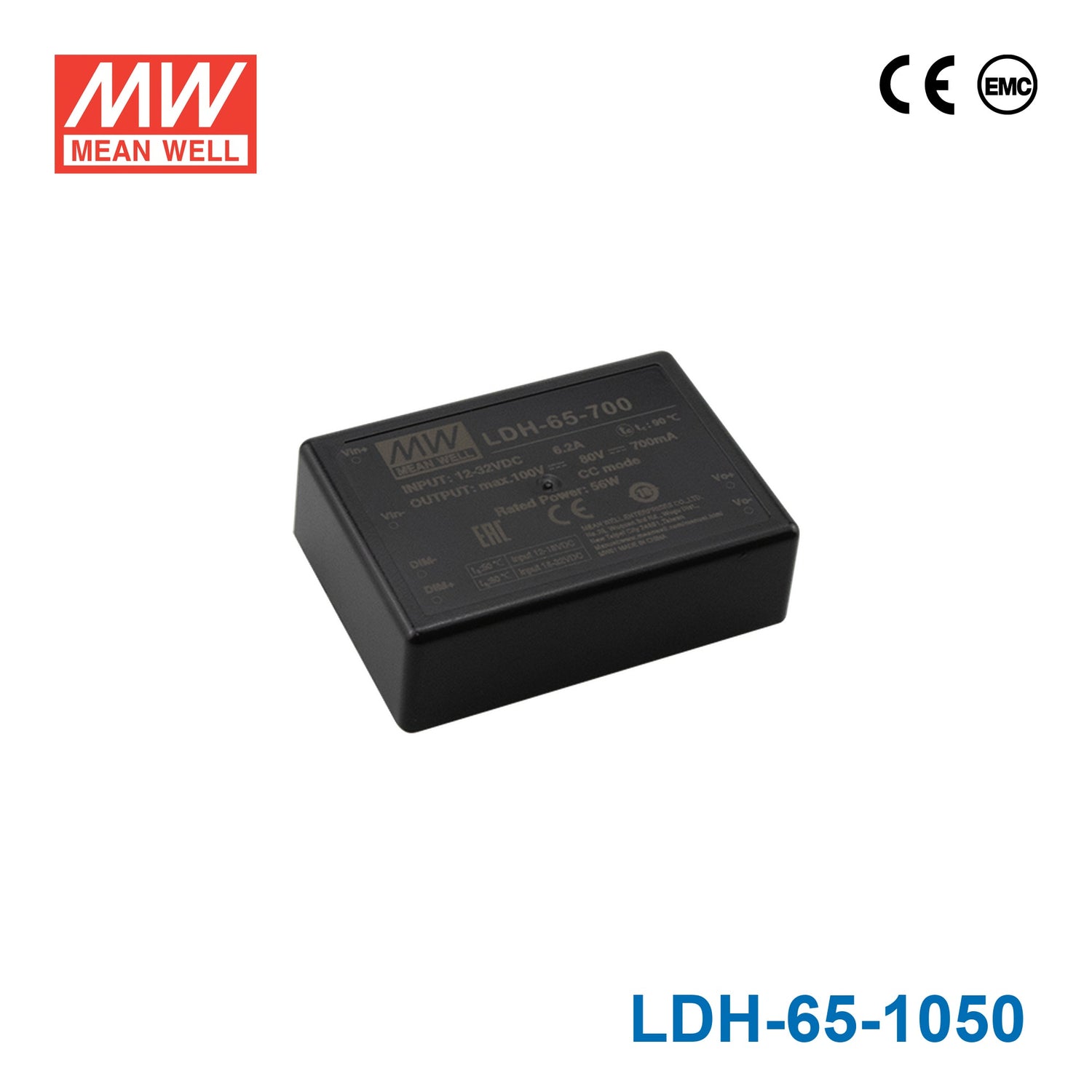

LDH-65-1050
Please Login for Pricing
Description
Description
Features
| Wide DC input voltage operation 9.5~32V |
| DC/DC step-up converter |
| Constant current output: 700ma to 1750mA |
| Wide output LED forward voltage up to 80VDC |
| High efficiency up to 96% |
| 2 in 1 dimming (0-10V, PWM) |
| Protections: Short circuit/ Over voltage |
| Cooling by free air convection |
| Fully encapsulated |
| 3 years warranty |
General Specification
| Current accuracy | ±5% at 12VDC input and 24VDC input |
| Over-voltage protection | up to 140% output voltage |
| Efficiency | up to 96% |
| Short circuit protection | Output short circuit, the power supply will be damaged |
| Working temperature | -40 ~ +60℃ (Refer to "Derating Curve") |
| EMC | Compliance to EN55015, EN61000-4-2,3,4,6,8, EAC TP TC 020 |
| Temp. Coefficient | ±0.03%/℃ (0 ~ 50℃) |
| Dimension (LxWxH) (mm) | 75 x 53 x 22.7mm |
| Packing | Pin mounted style: 152g; 100pcs/15.2kg/0.86CUFT Lead wire style: 159g; 100pcs/15.9kg/1.07CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesLDH Series
-
Power Rating63 Watt
-
Output Voltage60 Volt
-
Rated Current1.05 Ampere
-
Input Voltage9.5V~32V
-
Standards MetCE,EMC
-
Operation ModeConstant Current
-
Operating Temperature-40°C~60°C
-
Warranty3 Year
-
Length7.5 cm
-
Width5.3 cm
-
Height2.27 cm
-
Weight0.15 kg
