Over 15 years experience of providing support of MEAN WELL Power Supplies

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

×
High Resolution Image

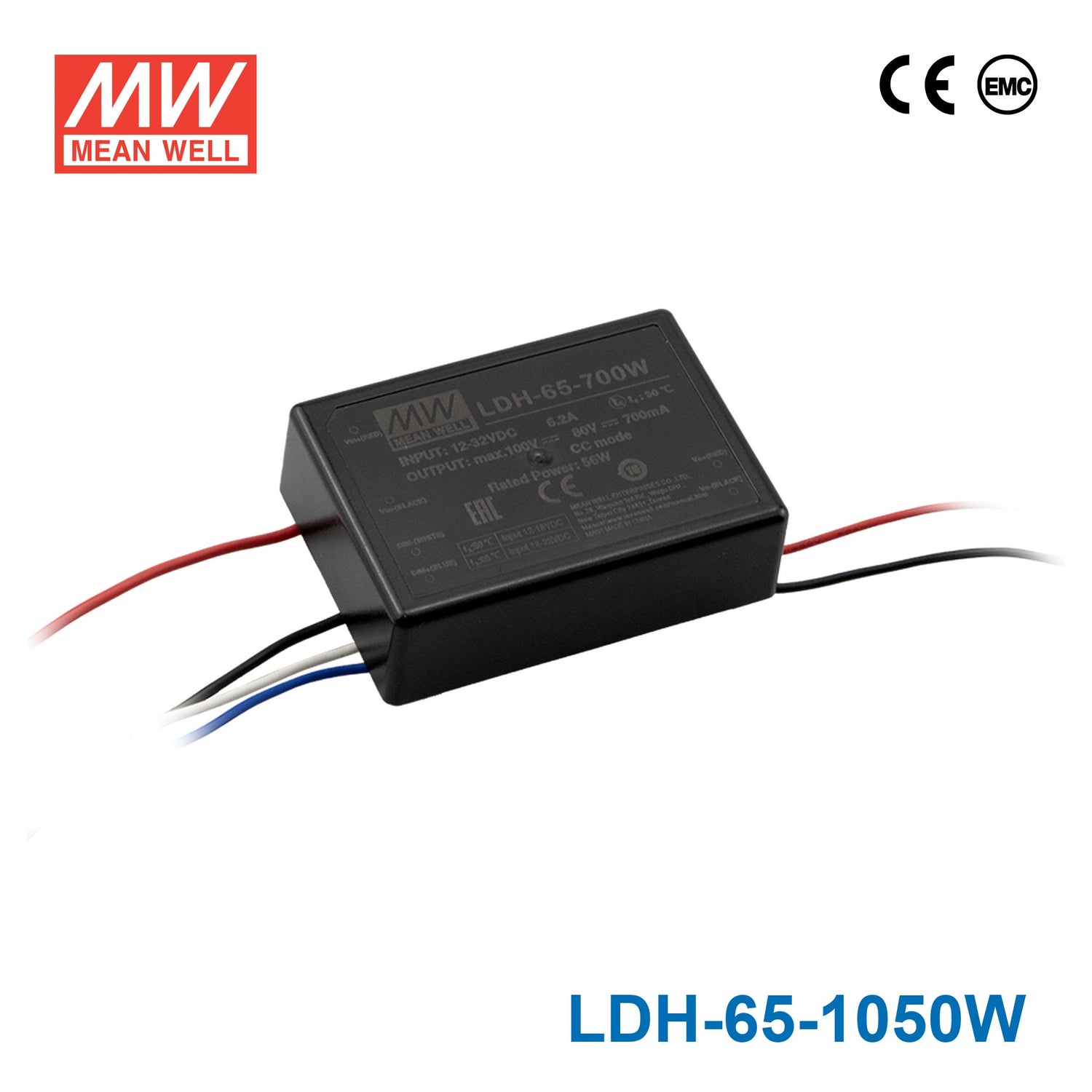

LDH-65-1050W

constant current, step up, high efficiency up to 95%, wire style

|

Description

Features

Wide DC input voltage operation 9.5~32V
DC/DC step-up converter
Constant current output: 700ma to 1750mA
Wide output LED forward voltage up to 80VDC
High efficiency up to 96%
2 in 1 dimming (0-10V, PWM)
Protections: Short circuit/ Over voltage
Cooling by free air convection
Fully encapsulated
3 years warranty

General Specification

Current accuracy ±5% at 12VDC input and 24VDC input
Over-voltage protection up to 140% output voltage
Efficiency up to 96%
Short circuit protection Output short circuit, the power supply will be damaged
Working temperature -40 ~ +60℃ (Refer to "Derating Curve")
EMC Compliance to EN55015, EN61000-4-2,3,4,6,8, EAC TP TC 020
Temp. Coefficient ±0.03%/℃ (0 ~ 50℃)
Dimension (LxWxH) (mm) 75 x 53 x 22.7mm
Packing Pin mounted style: 152g; 100pcs/15.2kg/0.86CUFT Lead wire style: 159g; 100pcs/15.9kg/1.07CUFT

Specifications

  • Brand
    Mean Well
  • Series
    LDH Series
  • Power Rating
    63 Watt
  • Output Voltage
    60 Volt
  • Rated Current
    1.05 Ampere
  • Input Voltage
    9.5V~32V
  • Standards Met
    CE,EMC
  • Operation Mode
    Constant Current
  • Operating Temperature
    -40°C~60°C
  • Warranty
    3 Year
  • Length
    7.5 cm
  • Width
    5.3 cm
  • Height
    2.27 cm
  • Weight
    0.16 kg

File Downloads

::specification::
