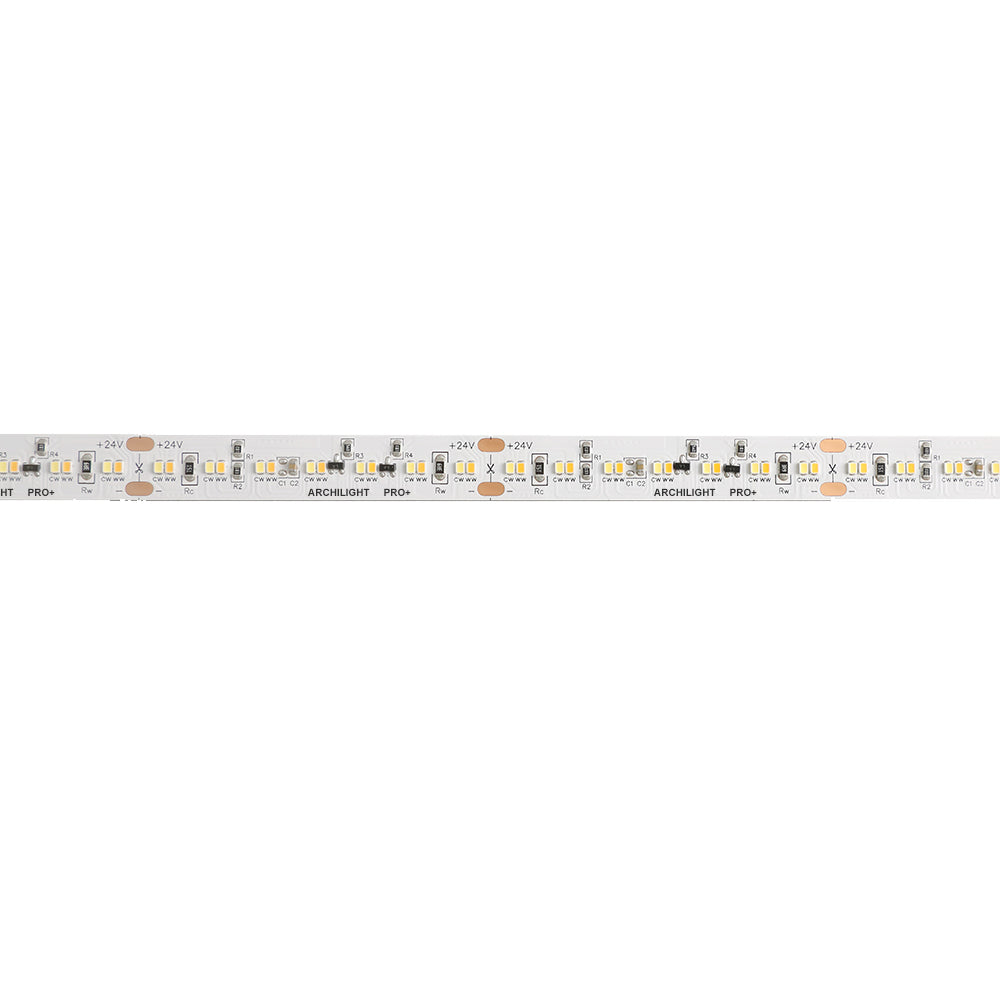

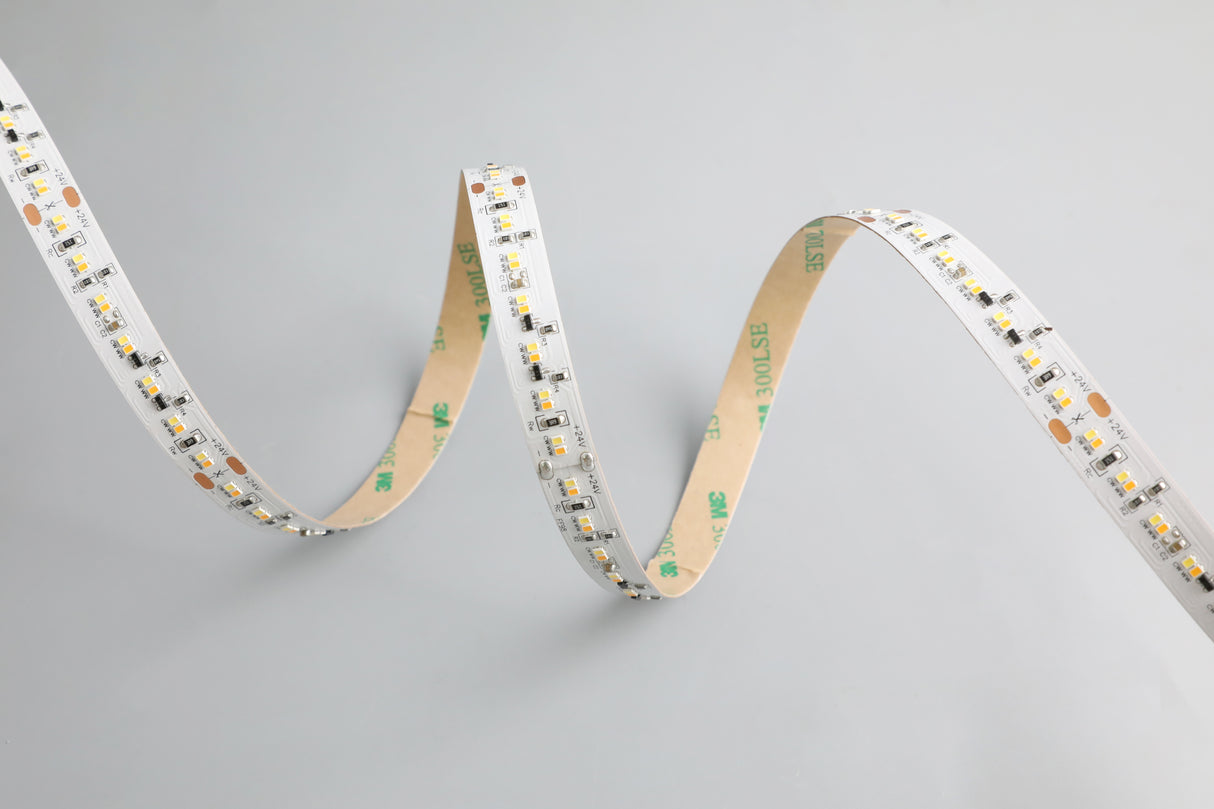

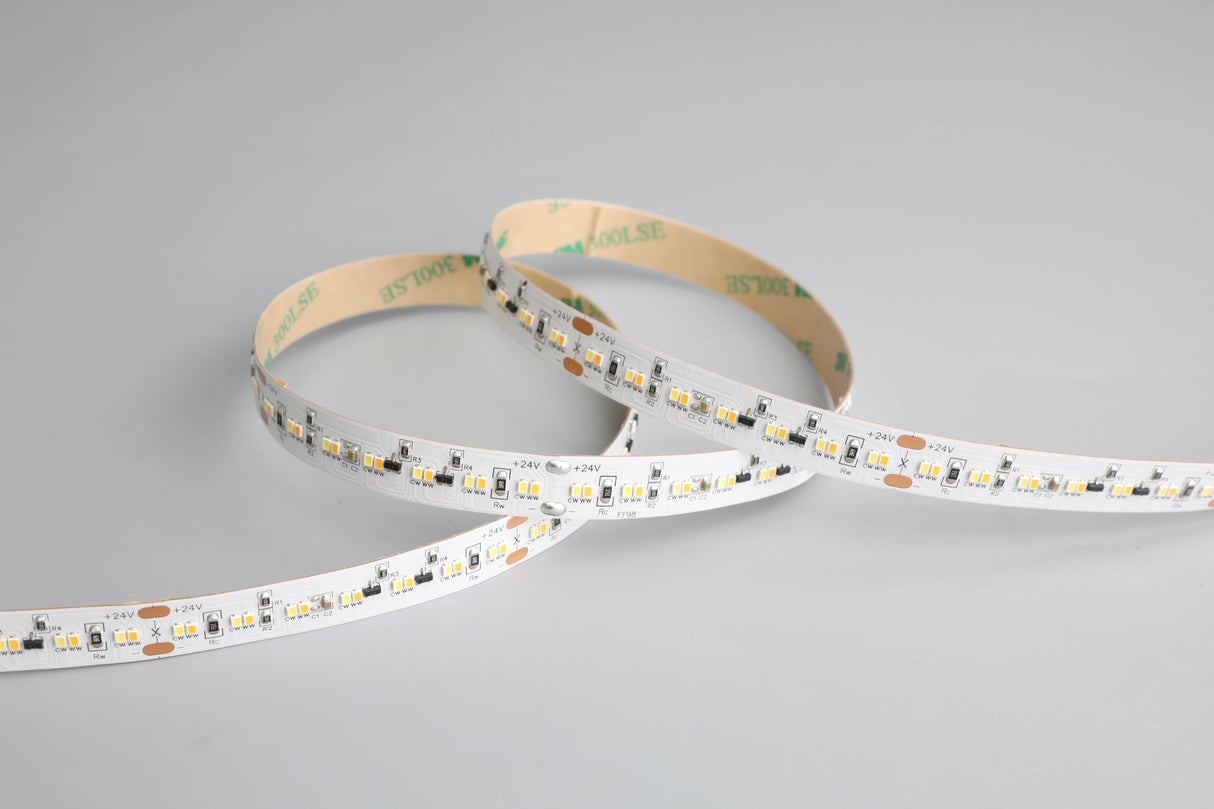

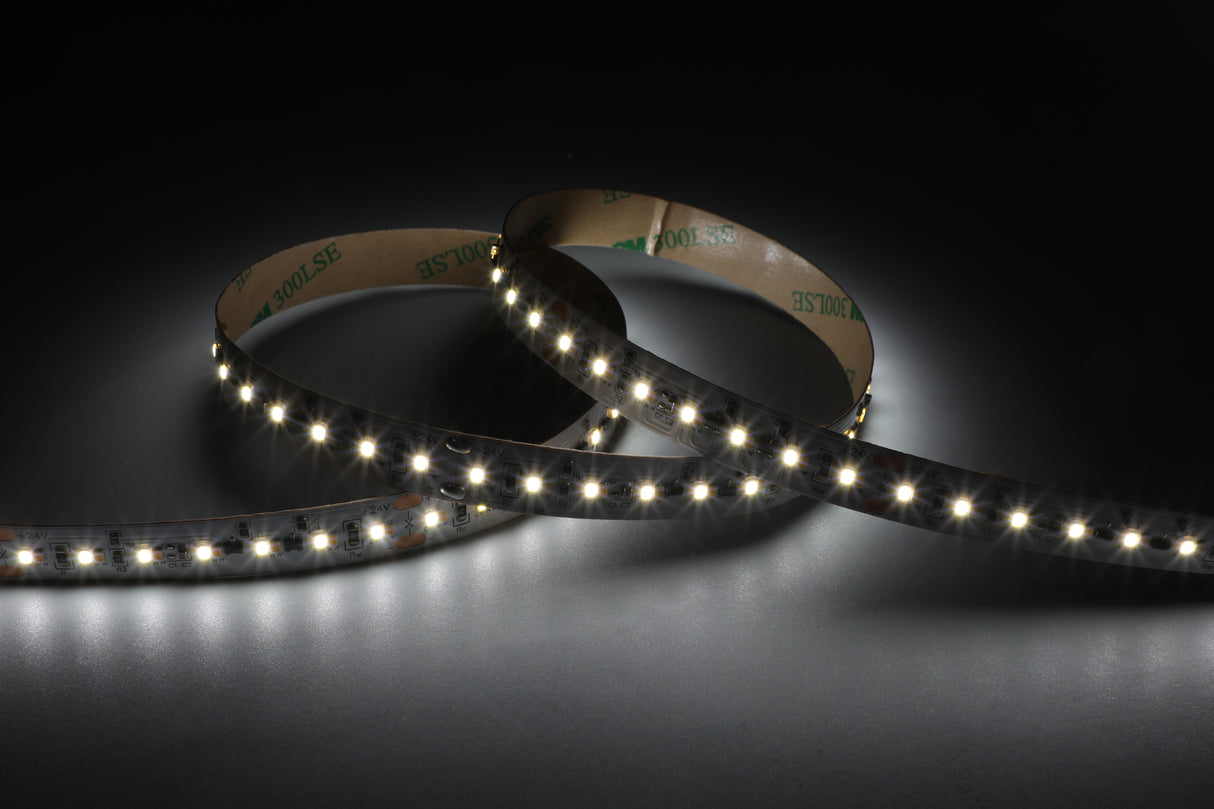

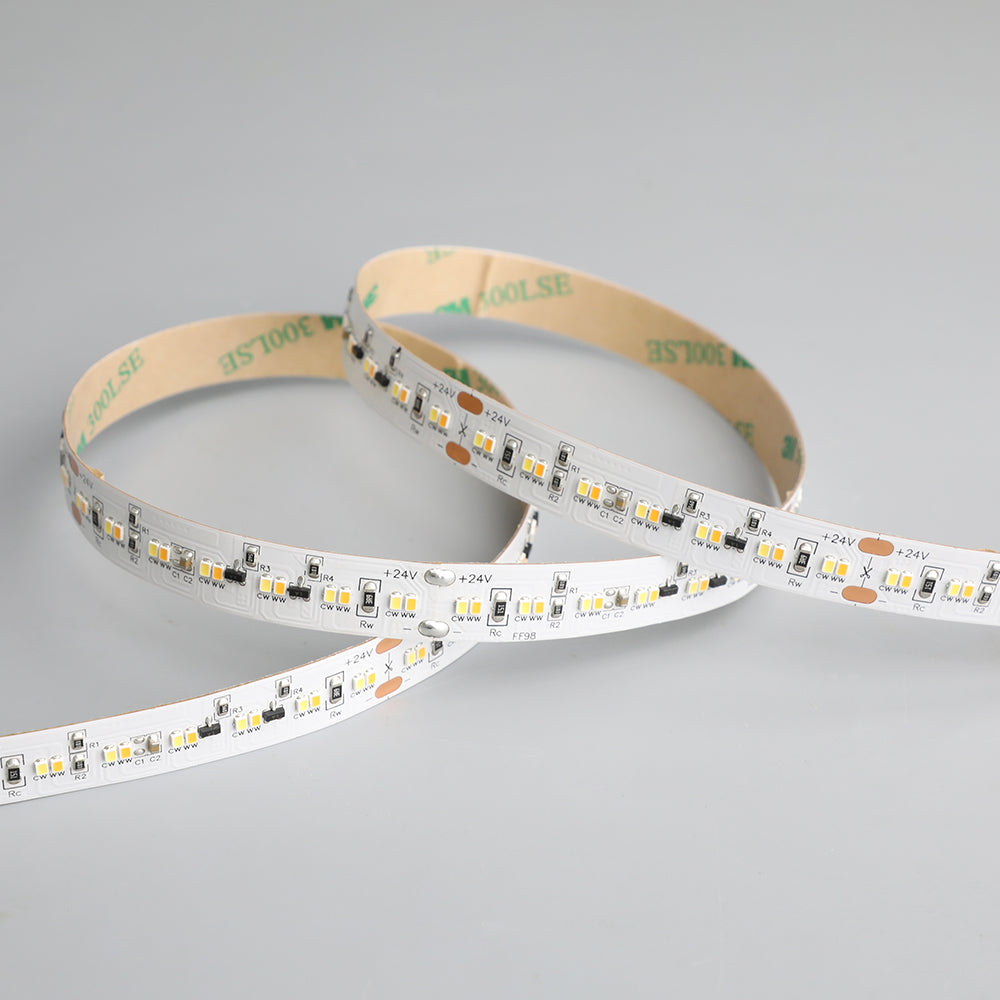

LED Strip ProPlus Dim to warm 224LEDs/m 9.6W/m 24V IP20 CRI>90

SKU:

CC2216-2242400GLE-DTW

Length

100 Centimeter 500 Centimeter

LED Colour

Dim To Warm

Product variants

Please for Pricing

Notify me when it's back in stock

Description

• Plus Series using top quality material such as Epistar/San'an chip, Intermatix phosphor powder, ShinEtsu & Dow Corning glue, Heraeus 99.99% pure golden wire, pure copper & fresh plastic stand etc. as standard configuration. • It warms as it is dimmed in only 2 wires. Dim-to-Warm concept is to dim CCT from 3000K (or 2700K) to 1800K while its brightness is dimmed from 100% to 10% (according to different kinds of drivers) synchronously and smoothly, perfectly simulating the warmth and dimming curve of incandescent and halogen lamp, which create a comfortable and natural lighting performance. • Direct dimming with PWM (Pulse-Width Modulation) output type of driver, no remote controller, no receiver, no battery, simple and convenient wiring. • Decorating backlight and indirect lighting for showcase, shelf, cabinet, billboard, signage, hotel, garden, bridge, corridor, ceiling, stair, floor, cove, theatre, lift etc.

Specifications

Brand

Archilight
Series

Dim to Warm
Power Rating

9.6 Watt
Operation Mode

Constant Voltage
Operating Temperature

-10°C~50°C
Warranty

5 Year
Width

1.2 cm
Height

0.2 cm
Weight

0.2 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What does dim to warm mean on this LED strip?

This ProPlus LED strip uses dim-to-warm control, so the light becomes warmer as it dims. The product description states it shifts from warm white toward a more amber tone while brightness is reduced, creating a lighting effect similar to incandescent or halogen dimming. This makes it suitable for projects that want a softer atmosphere at lower light levels.

What are the main electrical specifications for this LED strip family?

This family is a 24V LED strip with a power rating of 9.6W per meter. The parent model name also identifies it as a 224 LEDs per meter strip with CRI greater than 90. These are core family-level specs that apply to the parent product model shown here.

Is a driver included with this product?

No, the driver is not included with this LED strip family. The parent product data explicitly lists the driver field as driver_not_included. Buyers should account for a separate compatible dim-to-warm driver in project planning.

What kind of projects is this LED strip designed for?

The product description positions this strip for decorative backlighting and indirect lighting applications. Example uses listed include showcases, shelves, cabinets, signage, hotels, corridors, ceilings, stairs, floors, coves, theatres, and lifts. That makes it a strong fit for commercial and architectural interior lighting work.

How does this family differ across available variants?

Based on the child data provided, the main factual difference shown is light output. One variant is listed at 680 lm and another at 3400 lm, while both share the same 9.6W rating, dim-to-warm control, driver-not-included status, and 5-year warranty. No other child-level differences are supported by the data here.

What build and quality level does this ProPlus strip offer?

The description presents the Plus Series as using premium component materials as its standard configuration. It specifically references high-quality chips, phosphor powder, adhesives, gold wire, copper, and fresh plastic stand materials. This positions the family as a higher-grade option for professional lighting projects.

What warranty is provided for this LED strip family?

This parent product family carries a 5-year warranty. The same warranty period is also reflected in the child variant data provided. That gives buyers a clear long-term support expectation for the range.

Model	Power	LED Density	Cuttable	IP Rating
LED Strip ProPlus Dim to warm 224LEDs/m/m 9.6W/m 24V IP65 CRI>90	9.6W	224LEDs/m	62.5mm	IP65	View
