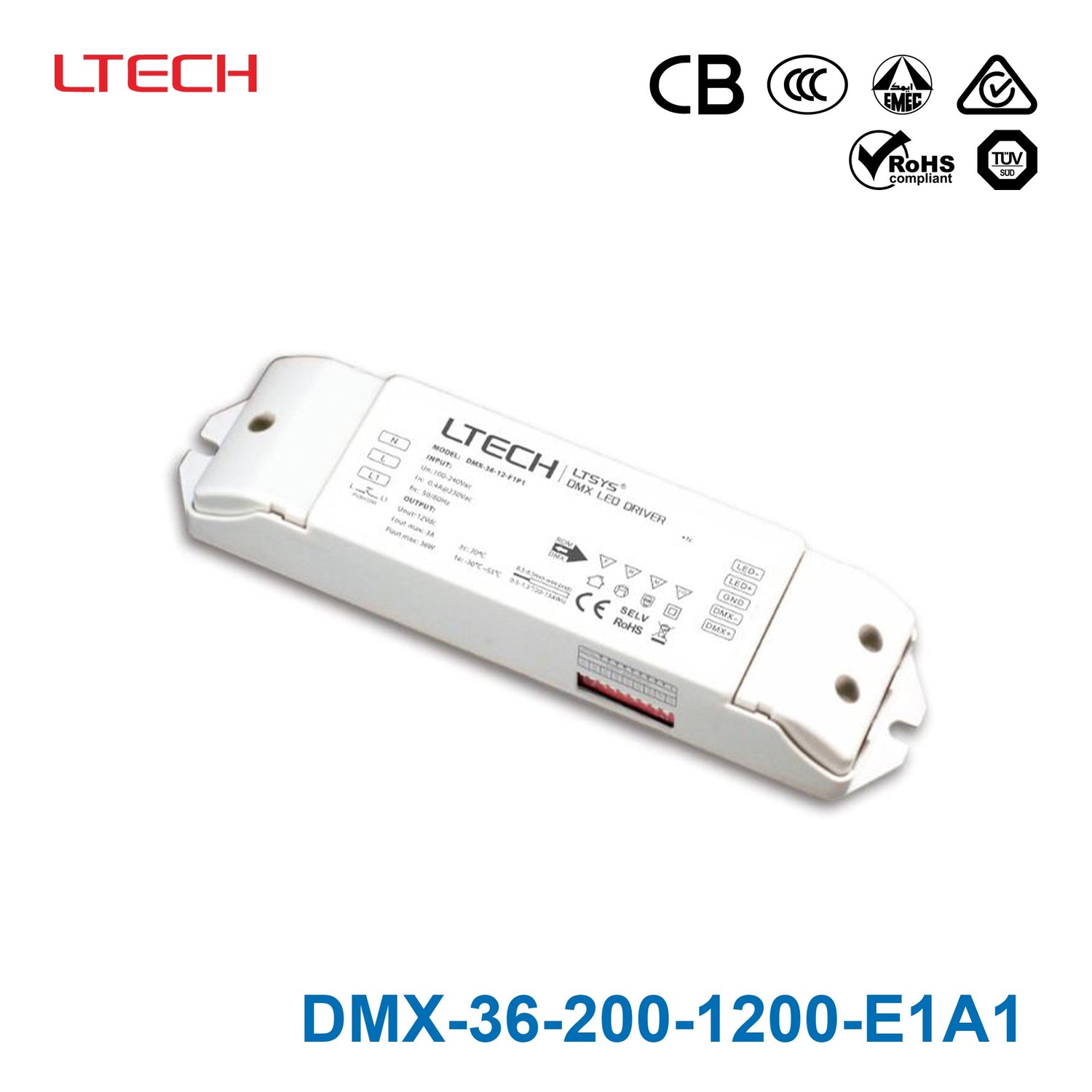

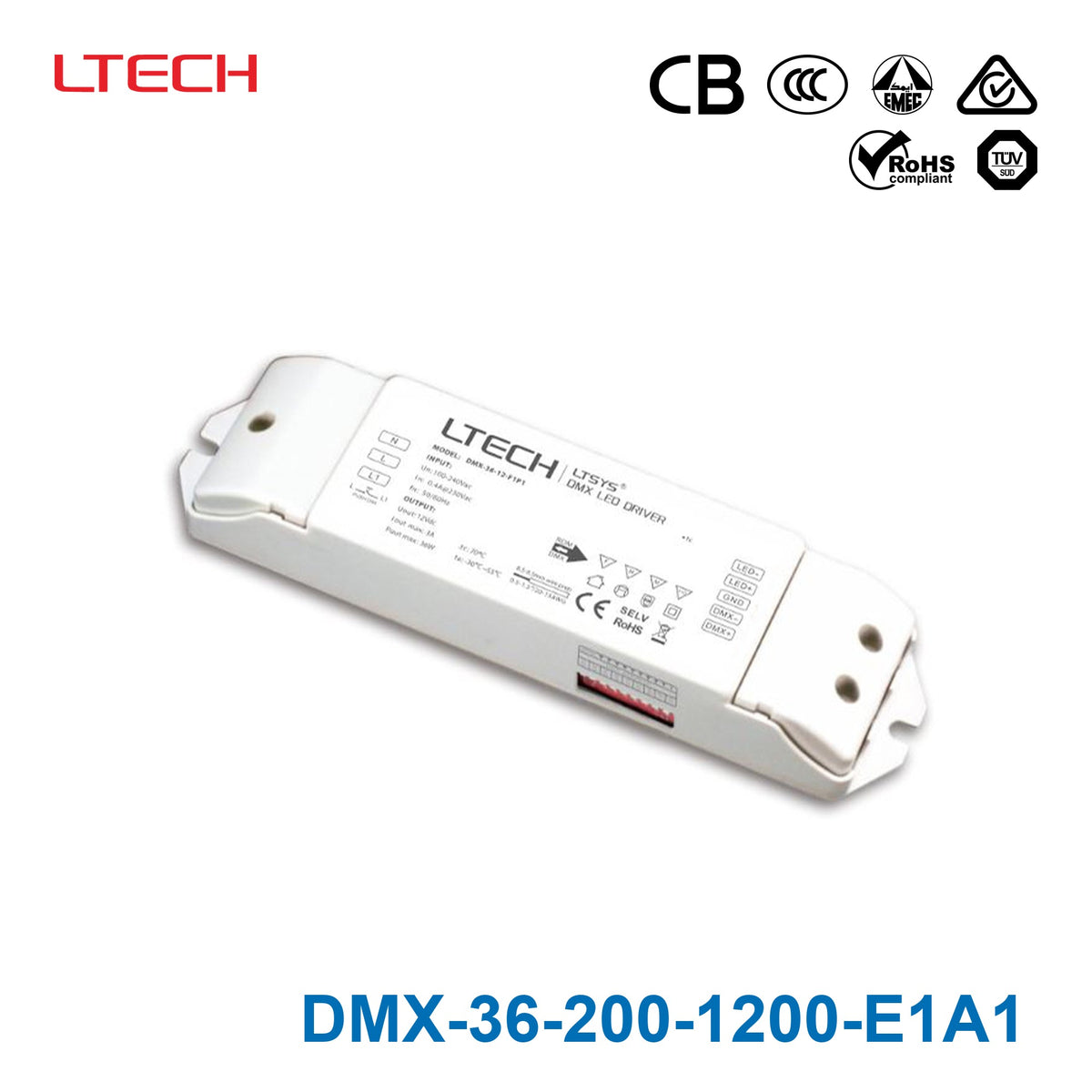

Ltech DMX-36-200-1200-E1A1 36W 200~1200mA CC DMX LED Driver - Selec...
Log in to see priceOverview
DMX-36-200-1200-E1A1 is the 10-54Vdc output model of this series: typical efficiency 87%.
Features
- Dimming interface: DMX512/RDM, Push DIM.
- T-PWM™ digital dimming.
- With RDM remote device management protocol.
- Dimming range: 0~100%, LED start at 0.01% possible.
- With soft-on and fade in function, visual more comfortable.
- DIP switch for 8 optional currents' quick selection.
- 0-100% flicker-free,High Frequency Exemption
- Innovative thermal management technology, intelligent power life protection.
- Multi-current & wide voltage, suitable for different power LED.
- Short circuit / Over-heat / Over load / Non-load protection, recover automatically.
- Non-load output voltage 0V to prevent damages to LED caused by poor contact.
- Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
- 5 years warranty (Rubycon capacitor).
Specifications
OUTPUT
- Output Voltage
- 10-54Vdc
- Max Output Voltage
- 58Vdc
- Non-load Output Voltage
- 0Vdc
- Output Current
- 200-1200mA
- Output Power
- 2W~36W
- Dimming Range
- 0~100%, LED start at 0.01% possible
- Strobe Level
- No video flicker / High frequency exemption assessment level
- PWM Dimming Frequency
- ≤3600Hz
- Current Accuracy
- ±5%
- Ripple & Noise
- ≤2V (no dim)
INPUT
- Dimming Interface
- DMX512/RDM, Push DIM
- Input Voltage Range
- 220-240Vac ±10%
- Frequency
- 50/60Hz
- Input Current
- <0.3A
- Power Factor
- PF>0.95/230Vac, at full load
- THD
- ≤15% at 230Vac, at full load
- Efficiency(typ.)
- 87%
- Inrush Current(typ.)
- Cold start 6.29A at 230Vac (twidth=57.3μs measured at 50% Ipeak)
- Anti Surge
- L-N: 1kV
- Leakage Current
- <0.5mA/230Vac
ENVIRONMENT
- Working Temperature
- ta: 50°C tc: 90°C
- Working Humidity
- 20 ~ 95%RH, non-condensing
- Storage Temp., Humidity
- -40°C ~ 80°C, 10~95%RH
- Temp. Coefficient
- ±0.03%/°C (0-50°C)
- Vibration
- 10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
PROTECTION
- Over-heat Protection
- Intelligently adjusting or turning off the output current if the PCB temperature ≥110°C, auto recovers
- Over Load Protection
- Shut down the output when rated power≥102%, auto recovers
- Short Circuit Protection
- Shut down automatically if short circuit occurs, auto recovers
- Non-load Protection
- Shut down the output if no load, auto recovers when load back to normal
SAFETY & EMC
- Withstand Voltage
- I/P-O/P: 3750Vac
- Isolation Resistance
- I/P-O/P: 100MΩ/500VDC/25°C/70%RH
- Safety Standards
- IEC/EN61347-1, IEC/EN61347-2-13
- EMC Emission
- EN55015, EN61000-3-2 Class C, IEC61000-3-3
- EMC Immunity
- EN61000-4-2,3,4,5,6,8,11 EN61547
- Strobe Test Standard
- IEEE 1789
OTHERS
- Dimension
- 167×41×32mm(L×W×H)
- Packing
- 168×43×35mm(L×W×H)
- Weight(G.W.)
- 165g±10g
- TUV
- Certificate No. B 17 06 01119 001
- RCM
- Equipment registration No: E2017013627 Ref: ESV170365
- ENEC
- Certificate No. U6 17 07 01119 004
- CE
- EMC Certificate No. BST1702498520001Y-1EC-1
Certifications & ratings
- Marked features
- DMX/RDM PUSH DIM
Technical drawings
Downloads
FAQ
What kind of LED applications is the Ltech DMX-36-200-1200-E1A1 designed for?
This model is a constant-current LED driver intended for indoor LED lighting applications that need dimming control. Its selectable current design and DMX-focused control make it suitable for commercial and architectural projects where flexible output settings and smooth dimming are important.
What dimming methods does this LED driver support?
The DMX-36-200-1200-E1A1 supports DMX512/RDM dimming and also lists Push DIM digital dimming. It is designed for 0-100% flicker-free dimming, with low-end dimming performance down to 0.01% start capability.
What makes this model different from a fixed-output constant-current LED driver?
Unlike a fixed-output driver, this model provides selectable current settings within a 200-1200mA range. That gives buyers more flexibility when matching one driver model to different power LED requirements across a project.
Is the Ltech DMX-36-200-1200-E1A1 compatible with DMX control systems?
Yes, this model is specifically built for DMX512 control and includes RDM support for remote device management. That makes it a fit for lighting systems that use DMX-based dimming and need device-level management capability.
What are the main electrical ratings for this LED driver?
This model is rated at 36W and has a maximum output voltage of 58Vdc. The product name and description indicate selectable constant-current output from 200mA up to 1200mA, giving it broader application flexibility than a single-current driver.
Can this LED driver be used in demanding indoor environments?
It is rated for indoor use and has an operating ambient temperature up to 50°C. The product description also highlights thermal management, automatic recovery protection, and protections for short circuit, overload, overheat, and non-load conditions.
