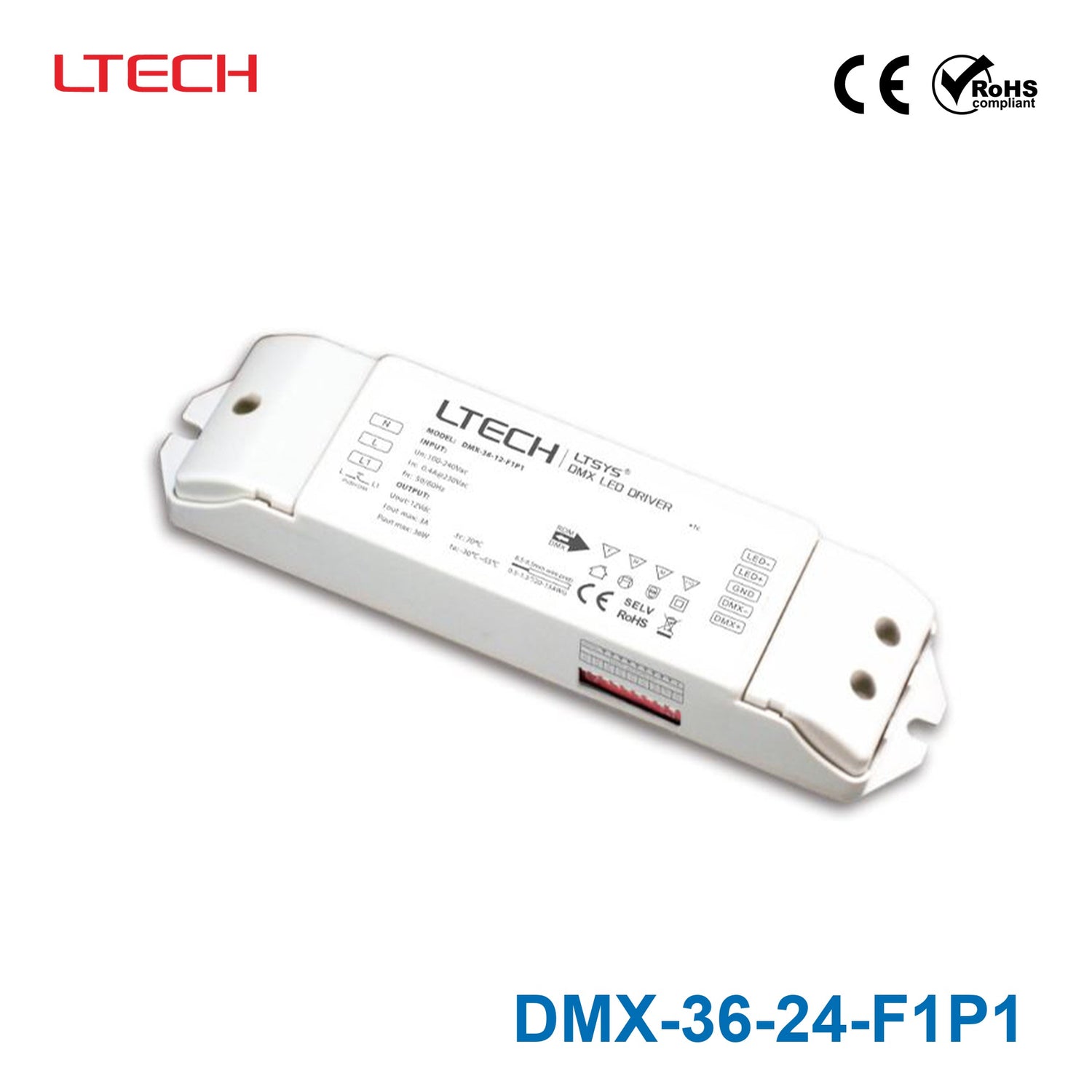

Ltech DMX-36-24-F1P1 36W 24VDC CV DMX LED Driver - DMX dimmable 1.5A
Log in to see priceOverview
DMX-36-24-F1P1 is the 24Vdc output model of this series: typical efficiency 85%.
Features
- Dimming interface: DMX512/RDM, Push DIM.
- With the RDM remote device management protocol.
- PWM digital dimming, no alter LED color rendering index.
- 0~100% flicker-free, achieve the level of exemption assessment.
- Dimming range from 0-100%, LED start at 0.1% possible.
- Short circuit / Over-heat / Over load protection, recover automatically.
- Class 2 power supply. Full protective plastic housing.
- Compliant with Safety Extra Low Voltage standard.
- Suitable for indoor Ⅰ/Ⅱ/Ⅲ type lamps application.
Specifications
OUTPUT
- Output Voltage
- 24Vdc
- Output Voltage Range
- 24Vdc ±0.5Vdc
- Output Current
- Max. 1.5A
- Output Power
- Max. 36W
- Output Power Range
- 0~36W
- Strobe Level
- High frequency exemption level.
- Dimming Range
- 0~100%, dimming depth: Max. 0.1%
- Overload Power Limitation
- ≥102%
- Ripple & Noise
- ≤200mV
- PWM Frequency
- ≤3600Hz
INPUT
- Dimming Interface
- DMX512/RDM, Push Dim
- Input Voltage
- 100-240Vac
- Frequency
- 50/60Hz
- Input Current
- 115Vac≤0.75A, 230Vac≤0.4A
- Efficiency(typ.)
- 85%
- Inrush Current(typ.)
- Cold start 60A at 230Vac
- Anti Surge
- L-N:1KV
- Leakage Current
- <0.5mA/230Vac
ENVIRONMENT
- Working Temperature
- ta: -30°C ~ 55°C tc: 70°C
- Working Humidity
- 20 ~ 95%RH, non-condensing
- Storage Temp., Humidity
- -40°C ~ 80°C, 10~95%RH
- Temp. Coefficient
- ±0.03%/°C (0-50°C)
- Vibration
- 10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes.
PROTECTION
- Over-heat Protection
- Intelligently adjusting or turning off the output current if the PCB temperature ≥110°C, auto recovers.
- Over Load Protection
- Shut down the output when current load≥102%, auto recovers.
- Short Circuit Protection
- Shut down automatically if short circuit occurs, auto recovers.
SAFETY & EMC
- Withstand Voltage
- I/P-O/P: 3750Vac
- Isolation Resistance
- I/P-O/P: 100MΩ/500VDC/25°C/70%RH
- Safety Standards
- IEC/EN61347-1, IEC/EN61347-2-13
- Strobe Test Standard
- IEEE 1789
OTHERS
- Dimension
- 175×44×30mm(L×W×H)
- Packing
- 178×48×33mm(L×W×H)
- Weight(G.W.)
- 190g±10g
Certifications & ratings
- Dimming Depth
- 0.1%
- Marked features
- DMX/RDM PUSH DIM, PWM Digital Dimming
Technical drawings
Downloads
FAQ
What type of LED lighting is the Ltech DMX-36-24-F1P1 designed for?
The Ltech DMX-36-24-F1P1 is a 24VDC constant voltage LED driver for compatible low-voltage LED lighting applications. It is intended for indoor lamp applications and is suited to projects that need DMX-based dimming control.
Does this LED driver support DMX control?
Yes. This model supports DMX512/RDM dimming control, which makes it suitable for lighting systems that use DMX-based dimming and remote device management. It also supports Push DIM for compatible dimming setups.
What are the electrical ratings for the DMX-36-24-F1P1?
This model is rated for 36W output at 24VDC with a rated current of 1.5A. Those specifications make it a constant voltage driver for 24V LED loads within its rated capacity.
How smooth is the dimming performance on this driver?
The DMX-36-24-F1P1 uses PWM digital dimming with a 0 to 100 percent dimming range. The product description also states flicker-free dimming and notes that LED startup at 0.1 percent is possible.
What protection features are included in this LED driver?
This model includes short circuit, over-heat, and overload protection. According to the product details, it recovers automatically after the fault condition is cleared.
Is the Ltech DMX-36-24-F1P1 suitable for demanding temperature environments?
It is rated for operation from -30°C to 55°C. That gives it a fairly broad working temperature range for indoor commercial and architectural lighting applications.
What makes this model a good choice compared with a non-DMX 24V LED driver?
A key differentiator is its support for DMX512/RDM control, which is useful when a project requires centralized dimming and device management features. It also combines that control capability with 24V constant voltage output and Class 2 construction.
