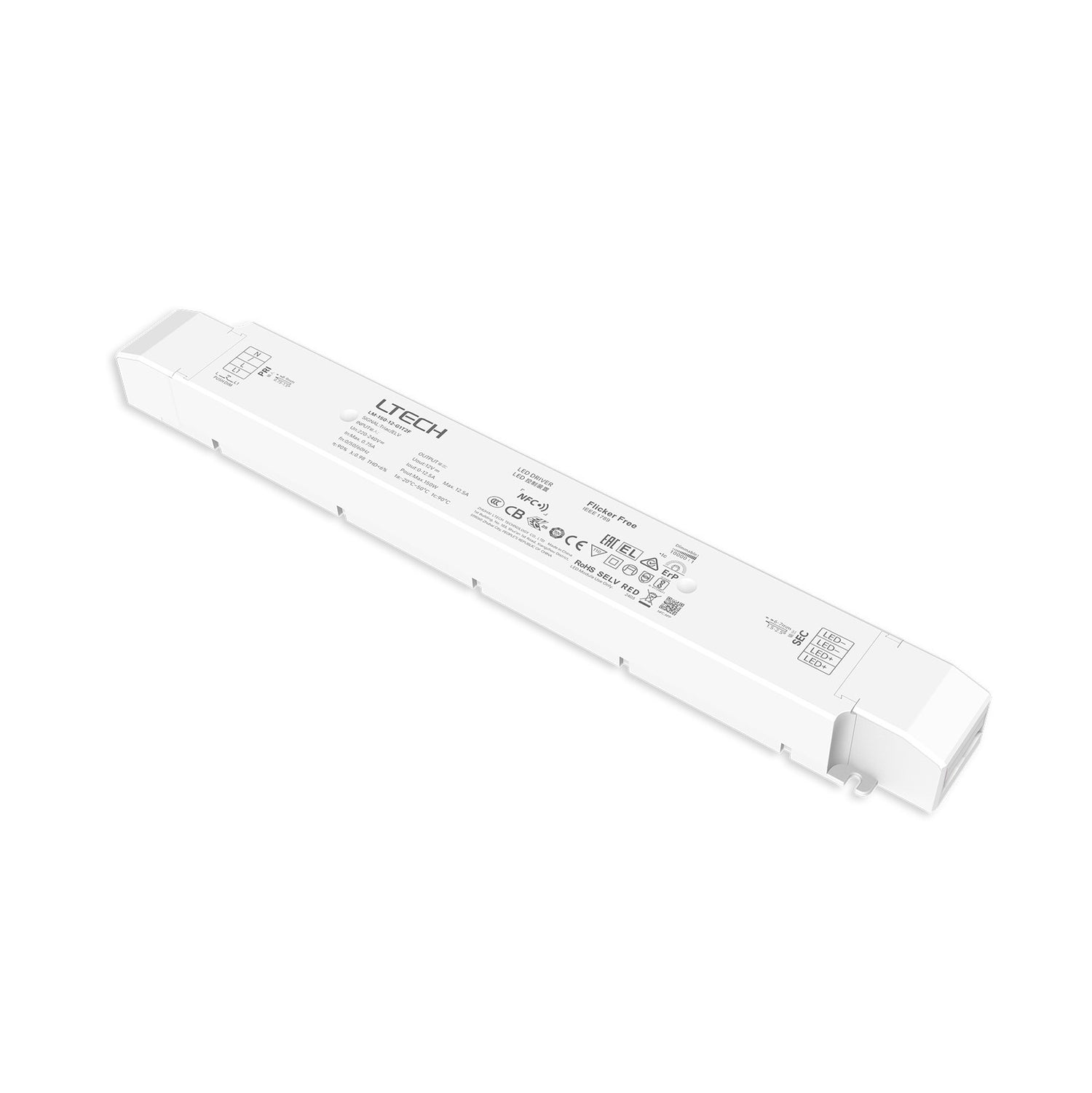

LTECH LM-150-12-G1T2F CV Triac Dimmable Driver 150W 12V with NFC Setting 12.5A

NFC function

SKU:

LM-150-12-G1T2F

Please for Pricing

Notify me when it's back in stock

Description

The housing is made from V0 flame retardant PC materials that

SAMSUNG/COVESTRO uses.

The clamshell design and screwless type for strain-relief. The design

of dismountable end cap allows you to adjust the length of housing

depending on your needs.

With soft-on and fade-in dimming function, enhancing your visual comfort.

High frequency exemption level.

Dimming from 0~100%, down to 0.1%.

Support Leading edge (Triac), Trailing edge (ELV) and

Push DIM.

The secure and reliable design for signal isolation.

Innovative thermal management technology intelligently

protects the life of the LED driver.

Overheat, over voltage , overload, short circuit protection

and automatic recovery.

Suitable for Class Ⅰ/Ⅱ/Ⅲ indoor light fixtures.

Up to 50,000-hour life time.

5-year warranty (Rubycon capacitor).

Specifications

Brand

Ltech
Series

Ltech Triac Series
Power Rating

150 Watt
Output Voltage

12 Volt
Rated Current

12.5 Ampere
Input Voltage

220V~240V
Standards Met

CB,CCC,CE,EAC,ENEC,RCM,SELV,TUV
Operation Mode

Constant Voltage
Operating Temperature

-20°C~50°C
Warranty

5 Year
Length

35.2 cm
Width

4.3 cm
Height

3 cm
Weight

0.46 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What type of LED lighting is the LTECH LM-150-12-G1T2F designed for?

This model is a constant-voltage 12V LED driver intended for indoor LED lighting applications that need a 12V output. It is suitable for Class I, II, and III indoor light fixtures. Its 150W capacity makes it relevant for higher-load 12V lighting projects.

What dimming methods does the LM-150-12-G1T2F support?

The LM-150-12-G1T2F supports leading-edge (Triac), trailing-edge (ELV), and Push DIM control. It is designed for AC phase-cut dimming and supports dimming from 0 to 100%, with low-end dimming down to 0.1%. It also includes soft-on and fade-in dimming for improved visual comfort.

What are the key electrical ratings of this LED driver?

This model is rated at 150W output power with a 12V output voltage. Its rated output current is 12.5A. These specifications make it appropriate for 12V constant-voltage LED loads within that power range.

How does this model compare with a non-dimmable 12V LED driver?

Unlike a non-dimmable 12V driver, the LM-150-12-G1T2F is built for dimming control through Triac, ELV, and Push DIM methods. It also offers deep dimming down to 0.1% and soft-on/fade-in behavior. That makes it a stronger fit where lighting control and user comfort matter.

Is the LM-150-12-G1T2F suitable for demanding indoor environments?

This driver is specified for indoor use with an operating temperature range of -20°C to 50°C. It uses a V0 flame-retardant PC housing and includes intelligent thermal management. The design also includes overheat, over-voltage, overload, and short-circuit protection with automatic recovery.

What durability and service-life features does this model offer?

The LM-150-12-G1T2F is rated for up to 50,000 hours of lifetime. It is backed by a 5-year warranty and specifically notes a Rubycon capacitor in the warranty statement. These details position it as a long-life driver for professional indoor LED applications.

What distinguishes this LTECH driver from basic phase-cut dimmable drivers?

This model combines 150W 12V constant-voltage output with support for leading-edge, trailing-edge, and Push DIM control in one unit. It also includes NFC setting, deep dimming to 0.1%, signal isolation design, and intelligent thermal protection. Those features make it more differentiated than simpler phase-cut-only drivers.

Model	Power	Voltage	Current	IP Rating
LTECH LM-150-24-G1T2F CV Triac Dimmable Driver 150W 24V with NFC Setting 6.25A	150W	24V	6.25A	Indoor	View
Ltech LM-150-12-G1T2 150W 12V Triac Dimmable Driver 12.5A	150W	12V	12.5A	IP20	View
