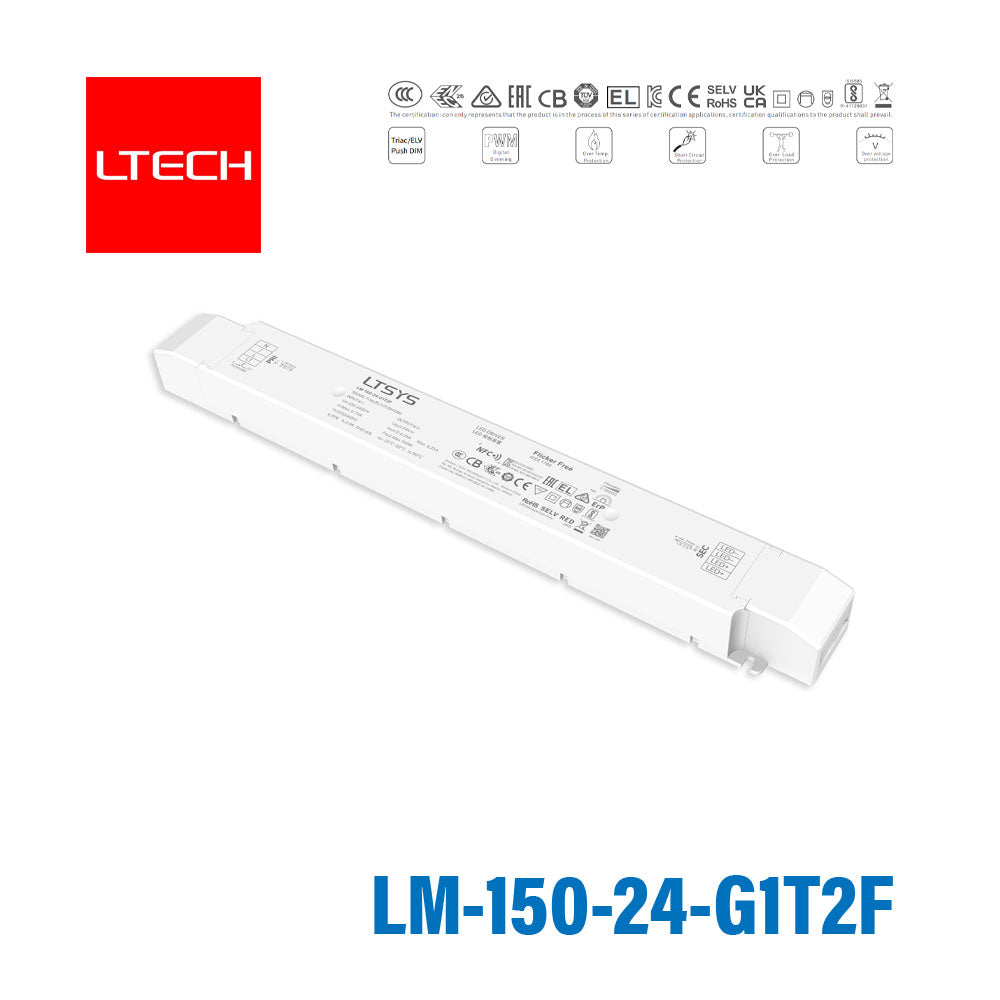

LTECH LM-150-24-G1T2F CV Triac Dimmable Driver 150W 24V with NFC Setting 6.25A

NFC function

SKU:

LM-150-24-G1T2F

Please for Pricing

Notify me when it's back in stock

Description

The housing is made from V0 flame retardant PC materials that

SAMSUNG/COVESTRO uses.

The clamshell design and screwless type for strain-relief. The design

of dismountable end cap allows you to adjust the length of housing

depending on your needs.

With soft-on and fade-in dimming function, enhancing your visual comfort.

High frequency exemption level.

Dimming from 0~100%, down to 0.1%.

Support Leading edge (Triac), Trailing edge (ELV) and

Push DIM.

The secure and reliable design for signal isolation.

Innovative thermal management technology intelligently

protects the life of the LED driver.

Overheat, over voltage , overload, short circuit protection

and automatic recovery.

Suitable for Class Ⅰ/Ⅱ/Ⅲ indoor light fixtures.

Up to 50,000-hour life time.

5-year warranty (Rubycon capacitor).

Specifications

Brand

Ltech
Series

Ltech Triac Series
Power Rating

150 Watt
Output Voltage

24 Volt
Rated Current

6.25 Ampere
Input Voltage

220V~240V
Standards Met

CB,CCC,CE,EAC,ENEC,RCM,SELV,TUV
Operation Mode

Constant Voltage
Operating Temperature

-20°C~50°C
Warranty

5 Year
Length

35.2 cm
Width

4.3 cm
Height

3 cm
Weight

0.46 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What type of lighting applications is the LTECH LM-150-24-G1T2F designed for?

This model is a constant-voltage 24V LED driver intended for indoor light fixtures. It is suited to commercial and residential LED lighting projects that need a 24V supply with phase-cut dimming support. LTECH also states it is suitable for Class I, II, and III indoor light fixtures.

What dimming methods does the LM-150-24-G1T2F support?

This driver supports leading-edge (Triac), trailing-edge (ELV), and Push DIM control. The product description states it dims from 0 to 100% and can go down to 0.1% for very low-level light output. That makes it a fit for projects where smooth deep dimming is important.

What are the key electrical specifications of this LED driver?

The LM-150-24-G1T2F is rated at 150W output power with a 24V constant-voltage output. Its rated current is 6.25A. These specifications make it appropriate for 24V LED loads that stay within the driver's rated output limits.

What protection and reliability features are included in this model?

LTECH lists overheat, over-voltage, overload, and short-circuit protection with automatic recovery. The driver also uses thermal management technology intended to protect service life. The stated lifetime is up to 50,000 hours, backed by a 5-year warranty.

Is the LM-150-24-G1T2F suitable for demanding indoor environments?

This model is specified for indoor use and has an operating temperature range of -20°C to 50°C. Its housing is described as V0 flame-retardant PC material, which supports use in professional lighting environments where durability and safety matter. Buyers should still confirm the full fixture and site conditions match the product's indoor rating.

What differentiates the LM-150-24-G1T2F from a basic non-dimming 24V power supply?

Unlike a standard fixed-output 24V power supply, this model is built for dimmable LED applications and supports multiple dimming types including Triac, ELV, and Push DIM. It also includes soft-on and fade-in dimming behavior for improved visual comfort. The product name additionally identifies NFC setting support, which helps distinguish it within LTECH's dimmable driver range.

Model	Power	Voltage	Current	IP Rating
Ltech LM-150-12-G1T2 150W 12V Triac Dimmable Driver 12.5A	150W	12V	12.5A	IP20	View
LTECH LM-150-12-G1T2F CV Triac Dimmable Driver 150W 12V with NFC Setting 12.5A	150W	12V	12.5A	Indoor	View
