Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

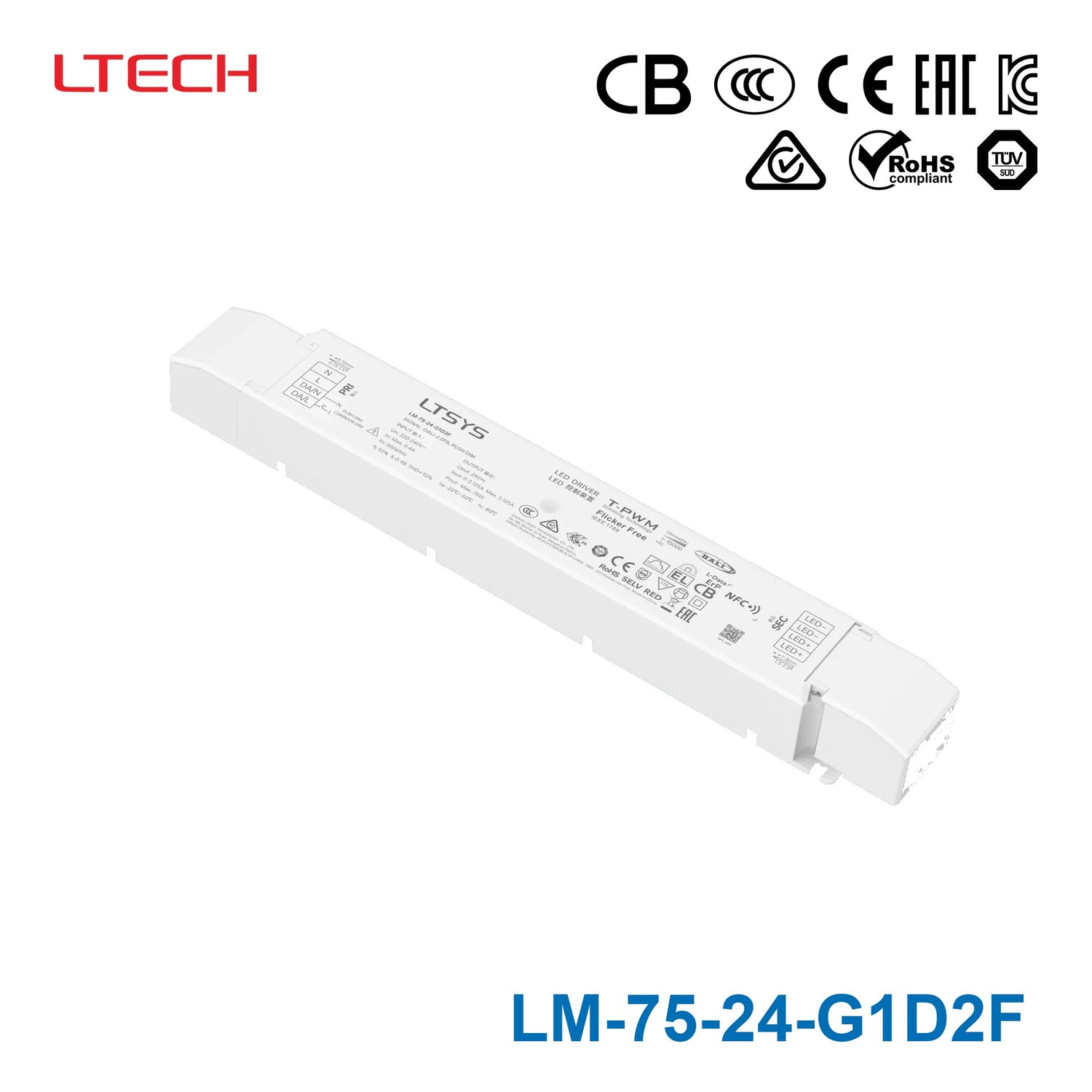

Ltech LM-75-24-G1D2F 75W 24V NFC CV DALI-2 LED Driver 3.125A

NFC programmableDALI-2 DT6Push DIMadjustable length housing5yr warranty

SKU LM-75-24-G1D2F

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

Features

Housing made from SAMSUNG/COVESTRO V0 flame retardant PC materials
Screwless wire-pressing flip cover design with detachable end caps — adjustable shell length
Full-command NFC fast programming via mobile app: modify dimming mode, brightness range, DALI templates and more
Two independent SELV constant voltage output channels
Supports DALI-2 DT6, Push DIM, and corridor light DIM modes
Compatible with L-Data and DALI Part 251, 252, 253
Deep dimming from 0–100%, minimum dimming level 0.01%
EU ERP compliant: no-load power <0.5W, network standby <0.5W
Overheat, over voltage, overload and short circuit protection with automatic recovery
Suitable for Class I/II/III indoor luminaires, service life up to 100,000 hours
5-year warranty (Rubycon capacitor)

General Specification

Input Voltage

220–240VAC, 50/60Hz

Output Voltage

24Vdc

Output Current

Max. 3.125A

Output Power

0–75W

Power Factor

PF > 0.98 / 230V~ (at full load)

Efficiency

92% (typ.)

Dimming Interface

DALI-2 DT6, PUSH DIM

Dimming Range

0–100%, down to 0.01%

PWM Frequency

300–22,000Hz

IP Rating

IP20

Working Temperature

-20°C ~ +50°C

Dimensions (L×W×H)

293 × 43 × 30mm

Weight

0.29kg

Frequently Asked Questions

What type of LED lighting is the Ltech LM-75-24-G1D2F designed for?

This model is a 75W constant voltage LED driver with a 24Vdc output, so it is intended for 24V constant voltage LED lighting applications. It is suited to indoor luminaires that need DALI-2 DT6 or Push DIM control and benefit from deep dimming performance.

Does this LED driver support DALI-2 control?

Yes. The LM-75-24-G1D2F supports DALI-2 DT6 and also works with Push DIM and corridor light dimming modes. It is additionally listed as compatible with L-Data and DALI Parts 251, 252, and 253.

What are the main output specifications of this model?

The LM-75-24-G1D2F provides a 24Vdc output with a maximum output current of 3.125A and a power range of 0 to 75W. It also features two independent SELV constant voltage output channels.

How low can this driver dim?

This model supports dimming from 0 to 100%, with a minimum dimming level down to 0.01%. That makes it a strong option for projects that need very fine low-end dimming control rather than only basic on/off or limited dimming range.

Can this driver be programmed without dedicated hardware tools?

Yes. The LM-75-24-G1D2F supports full-command NFC fast programming via a mobile app, allowing supported parameters such as dimming mode, brightness range, and DALI templates to be modified. This can be useful for commercial projects that need model-specific configuration flexibility.

Is this LED driver suitable for indoor commercial environments?

Yes, it is designed for indoor use and carries an IP20 rating. Its operating temperature range is -20°C to +50°C, and it is suitable for Class I, II, and III indoor luminaires.

What efficiency and energy performance does this driver offer?

The LM-75-24-G1D2F has a typical efficiency of 92% and a power factor above 0.98 at 230V under full load. It is also EU ERP compliant, with no-load power consumption below 0.5W and network standby below 0.5W.

What protections and warranty are included with this model?

This driver includes overheat, over-voltage, overload, and short-circuit protection with automatic recovery. It is backed by a 5-year warranty and is rated for a service life of up to 100,000 hours.
