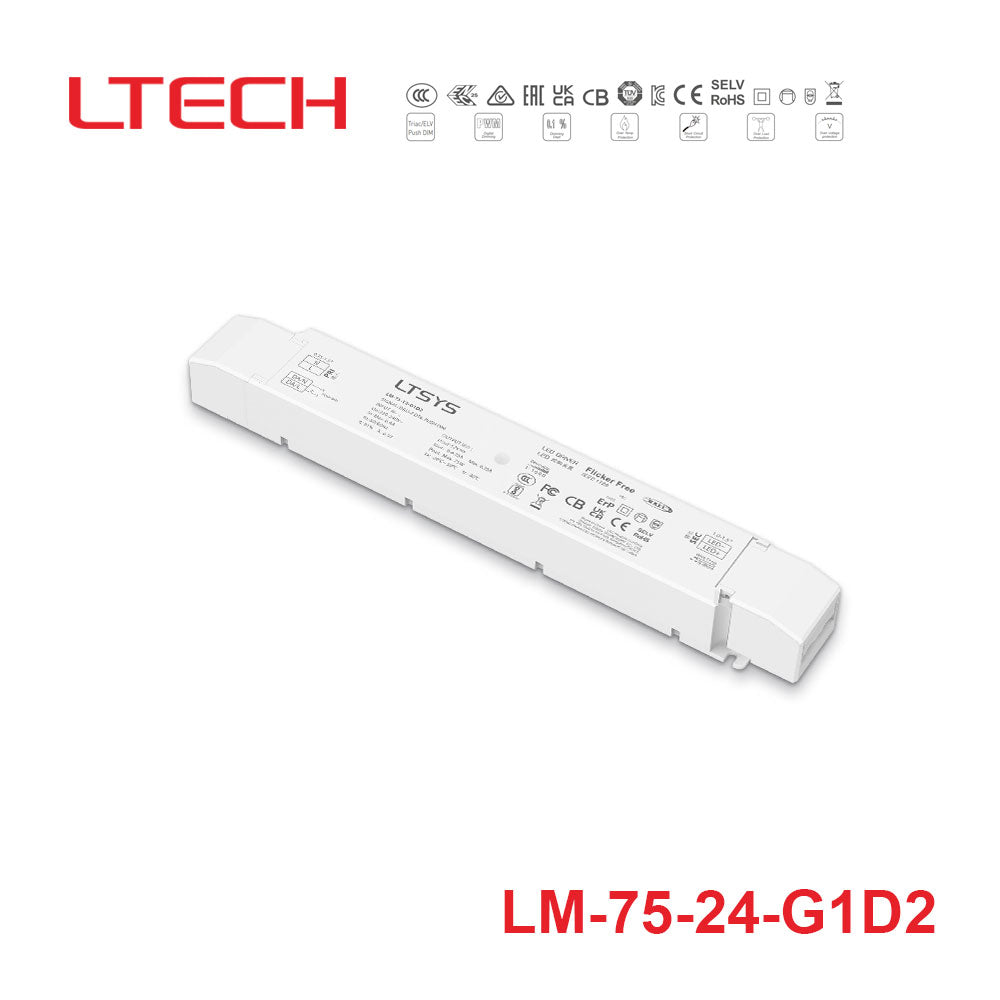

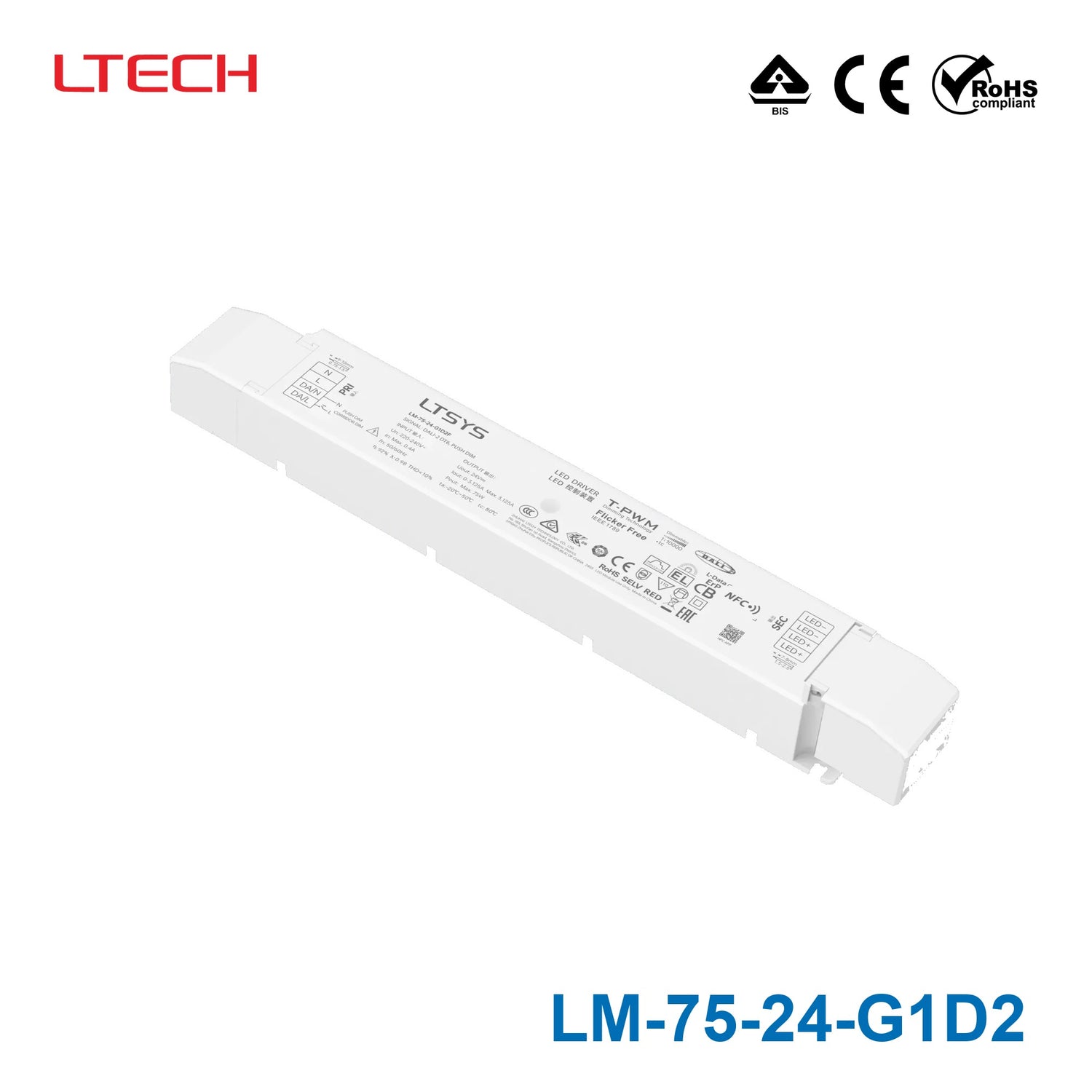

LTECH LM-75-24-G1D2 75W 24VDC CV DALI2 LED Driver
Please Login for Pricing
Description
Description
- Dimming interface: DALI
- Push DIM
- Dimming range from 0-100%
- LED start at 0.1%possible.
- DALI protocol: DALI 1
- DALI 2.
- 0~100% flicker-free
- achieve the level of exemption assessment.
- DALI dimming curve: liner curve or logarithmic curve.
- Over-heat / Over load / Short circuit protection
- recover automatically.
- Standby Power Loss < 0.5W
- Full protective plastic housing.
- DALI bus standard: IEC62386-101
- 102
- 207
- Compliant with Safety Extra Low Voltage standard.
- Suitable for indoor I/II/III type lamps application.
Specifications
Specifications
-
BrandLtech
-
SeriesLtech DALI Series
-
Power Rating75 Watt
-
Output Voltage24 Volt
-
Rated Current3.12 Ampere
-
Input Voltage220V~240V
-
Standards MetBIS,CE,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length29.3 cm
-
Width4.3 cm
-
Height3 cm
-
Weight0.3 kg
