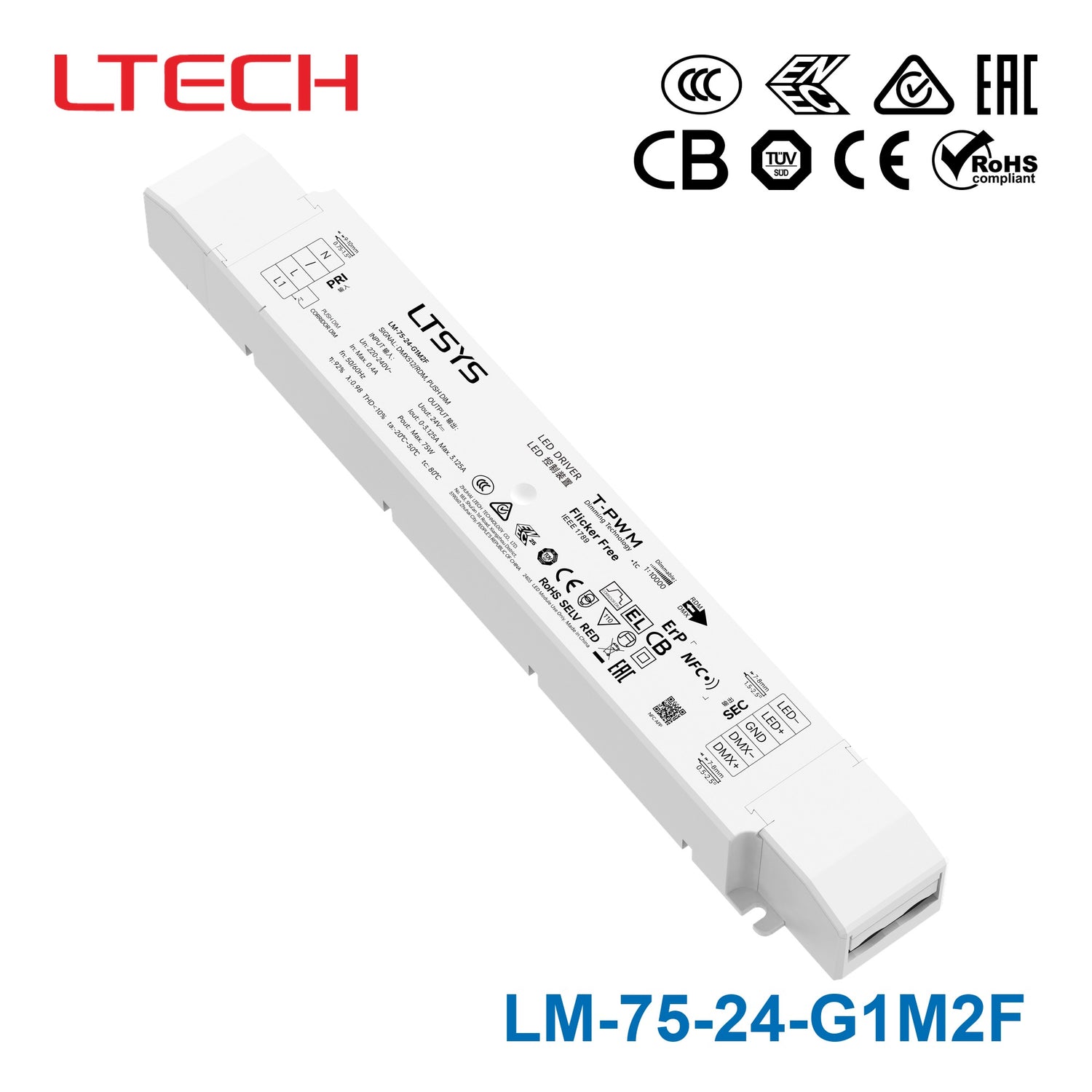

Ltech LM-75-24-G1M2F 75W 24VDC CV DMX512/RDM LED Driver 3.125A

DMX512RDMpush dimNFC programmable24VDC3.125A75WIP20

SKU LM-75-24-G1M2F

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

LM-75-24-G1M2F is the 24V ⎓ output model of this series: typical efficiency 92%.

Intelligent LED Driver (Constant Voltage)

Features

The housing is made of V0 flame-retardant PC material, sourced from SAMSUNG/COVESTRO.
The clamshell design and screwless type for strain-relief. The design of dismountable end cap allows you to adjust the length of housing depending on your needs.
Supports full-command NFC fast programming. Mobile app via NFC enables changing DMX address, dimming curve, brightness range and other parameters, realizing driver data interaction.
Support the RDM remote Device Management Protocol.
Supports DMX512/RDM, Push DIM and corridor light DIM.
Supports deep dimming from 0–100%, with a minimum dimming level of 0.01%.
It is equipped with a soft-start gradually brightening function, making the visual experience more comfortable for the human eye.
Supports Over-the-Air (OTA) online firmware updates for devices
Complies with the EU ERP Directive on energy efficiency, with no-load power consumption < 0.5W and network standby power consumption < 0.5W
Innovative thermal management technology intelligently protects the life of the LED driver.
Includes protections against overheating, overload, short circuit, and open circuit.
Suitable for ClassⅠ/Ⅱ/Ⅲindoor light fixtures.
Designed for a service life exceeding 100,000 hours under normal operating conditions.
5-year warranty (Rubycon capacitor).

Specifications

LM-75-24-G1M2FSpecifications from the official datasheetDownload datasheet PDF

FEATURES

Output Type: Constant Voltage
Dimming Interface: DMX512/RDM, PUSH DIM
Output Feature: Isolation
Protection Grade: IP20
Insulation Grade: Class II (Suitable for class I /II/III light fixtures)

OUTPUT

Output Voltage: 24V ⎓
Output Voltage Range: 24V ± 0.5V ⎓
Output Current: Max. 3.125A
Output Power: Max. 75W
Output Power Range: 0~75W
Strobe Level: High frequency exemption level
Dimming Range: 0-100%, down to 0.01%
Overload Power Limitation: ≥102%
Ripple: ≤300mV
PWM Frequency: 300-22000Hz

INPUT

AC Voltage Range: 220-240V~
DC Voltage Range: 220-240V⎓ (EMI needs to be evaluated after the luminaire is installed)
Frequency: 50/60Hz
Input Current: Max. 0.4A/230V~
Power Factor: PF>0.98/230V~ (at full load)
THD: THD<10%@ 230V~ (at full load)
Efficiency (Typ.): 92%
Standby Power Loss: ＜0.5W
Inrush Current: 45A (twidth=300us, tested under 50% Ipeak) / 230V~
Anti Surge: L-N: 2KV
Leakage Current: Max. 0.5mA

ENVIRONMENT

Working Temperature: ta: -20 ~ 50°C tc: 80°C
Working Humidity: 20 ~ 95%RH, non-condensing
Storage Temperature/Humidity: -40 ~ 80°C, 10~95%RH
Temperature Coefficient: ±0.03%/°C(0-50°C)
Vibration: 10-500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively

PROTECTION

Overload Protection: Shut down the output when rated power≥102%, auto recovers
Overheat Protection: Intelligently adjust or turn off the output current if the PCB temperature ≥110°C, and recover automatically
Short Circuit Protection: Enter hiccup mode if short circuit occurs, and recover automatically
Overvoltage Protection: Shut down the output when no-load voltage≥28V, and recover automatically
Withstand Voltage: I/P-O/P：3750V~
Insulation Resistance: I/P-O/P：100MΩ/500VDC/25°C/70%RH

SAFETY & EMC

SafetyStandards: Parameter Standard Test Level

CCC China GB19510.1，GB19510.14，GB19510.213
TUV Germany EN61347-1，EN61347-2-13，EN62493
CB CB MEMBER STATES IEC61347-1，IEC61347-2-13
CE European Union EN61347-1，EN61347-2-13，EN62384
EAC Russia IEC61347-1，IEC61347-2-13
RCM Australia AS 61347-1，AS 61347-2-13
ENEC Europe EN61347-1，EN61347-2-13，EN62384
EMC Emission: Parameter Standard Test Level

CCC China GB/T17743，GB17625.1
CE European Union EN55015，EN61000-3-2，EN61000-3-3，EN61547
EAC Russia IEC62493，IEC61547，EH55015
RCM Australia EN55015，EN61000-3-2，EN61000-3-3，EN61547

Parameter	Standard	Test Level
CCC	China	GB19510.1，GB19510.14，GB19510.213
TUV	Germany	EN61347-1，EN61347-2-13，EN62493
CB	CB MEMBER STATES	IEC61347-1，IEC61347-2-13
CE	European Union	EN61347-1，EN61347-2-13，EN62384
EAC	Russia	IEC61347-1，IEC61347-2-13
RCM	Australia	AS 61347-1，AS 61347-2-13
ENEC	Europe	EN61347-1，EN61347-2-13，EN62384

Parameter	Standard	Test Level
CCC	China	GB/T17743，GB17625.1
CE	European Union	EN55015，EN61000-3-2，EN61000-3-3，EN61547
EAC	Russia	IEC62493，IEC61547，EH55015
RCM	Australia	EN55015，EN61000-3-2，EN61000-3-3，EN61547

ErP

Power Consumption: Parameter Standard

Networked standby ＜0.5W(After shutdown by command)
No-load power consumption ＜0.5W (when no luminaire is connected)
Flicker/Stroboscopic Effect: Parameter Standard

IEEE1789 Meet IEEE 1789 standard/High frequency exemption level
CIE SVM PstLM≤1.0，SVM≤0.4
DF: Parameter Standard

Phase factor DF≥0.9

Parameter	Standard
Networked standby	＜0.5W(After shutdown by command)
No-load power consumption	＜0.5W (when no luminaire is connected)

Parameter	Standard
IEEE1789	Meet IEEE 1789 standard/High frequency exemption level
CIE SVM	PstLM≤1.0，SVM≤0.4

Parameter	Standard
Phase factor	DF≥0.9

OTHERS

Weight(N.W.): 290g±10g
Dimensions: 293×43×30mm(L×W×H)

Certifications & ratings

RDM: DMX
Digital dimming: PWM
Marked features: NFC, CORRIDOR DIM

Test conditions and notes1

This driver is suitable for connecting to resistor-limited LED fixtures (e.g., LED strips). If connected to fixtures with built-in constant-current ICs, it may generate instantaneous surge currents dozens of times higher, triggering overload protection (hiccup-mode flickering). For such fixtures (e.g., MR16 bulbs, buried lights, wall washers, constant-current rigid strips), please specify during ordering to enable firmware reprogramming.

Technical drawings

LM-75-24-G1M2F Product Size — Product Size

LM-75-24-G1M2F Wiring Diagram — Wiring Diagram

LM-75-24-G1M2F PUSH DIM Connection — PUSH DIM Connection

LM-75-24-G1M2F Corridor Dimming Application — Corridor Dimming Application

LM-75-24-G1M2F Corridor Dimming: Working Process — Corridor Dimming: Working Process

LM-75-24-G1M2F Use with RDM Editor — Use with RDM Editor

LM-75-24-G1M2F LTECH RDM Programmer APP interface introduction — LTECH RDM Programmer APP interface introduction

LM-75-24-G1M2F Use the NFC Lighting APP — Use the NFC Lighting APP

LM-75-24-G1M2F 1.Read the LED driver — 1.Read the LED driver

LM-75-24-G1M2F 2. Edit parameters — 2. Edit parameters

LM-75-24-G1M2F Protective Housing Application Diagram — Protective Housing Application Diagram

LM-75-24-G1M2F Installation Precautions — Installation Precautions

LM-75-24-G1M2F Relationship Diagrams — Relationship Diagrams

LM-75-24-G1M2F Life time VS Housing temperature — Life time VS Housing temperature

LM-75-24-G1M2F Life time VS Housing temperature (2) — Life time VS Housing temperature (2)

Downloads

Datasheet1

LM-75-24-G1M2F datasheetLM_75_24_G1M2F.pdf PDF Download

FAQ

What is the Ltech LM-75-24-G1M2F?

It is a 75W constant voltage LED driver that provides a stable 24V DC output with a maximum current of 3.125A.

What is the input voltage range?

The driver accepts an AC input of 220-240V at 50/60Hz. It also supports a DC input of 220-240V, though EMI must be evaluated after installation.

How do I dim this driver?

It supports DMX512/RDM and PUSH DIM interfaces. The dimming range is 0-100%, capable of going down to 0.01% using PWM frequencies between 300-22000Hz.

What safety protections are included?

It includes automatic recovery for overload (≥102%), short circuit (hiccup mode), overvoltage (≥28V), and overheat (PCB ≥110°C).

Where can this driver be installed?

It has an IP20 rating, making it suitable for indoor use only. The operating temperature range is -20°C to 50°C.

What are the dimensions and weight?

The unit measures 293 x 43 x 30mm (L x W x H) and weighs approximately 290g.

Does it have any special features?

Yes, it features NFC connectivity and Corridor Dim functionality. It is Class II insulated, suitable for Class I, II, and III light fixtures.
