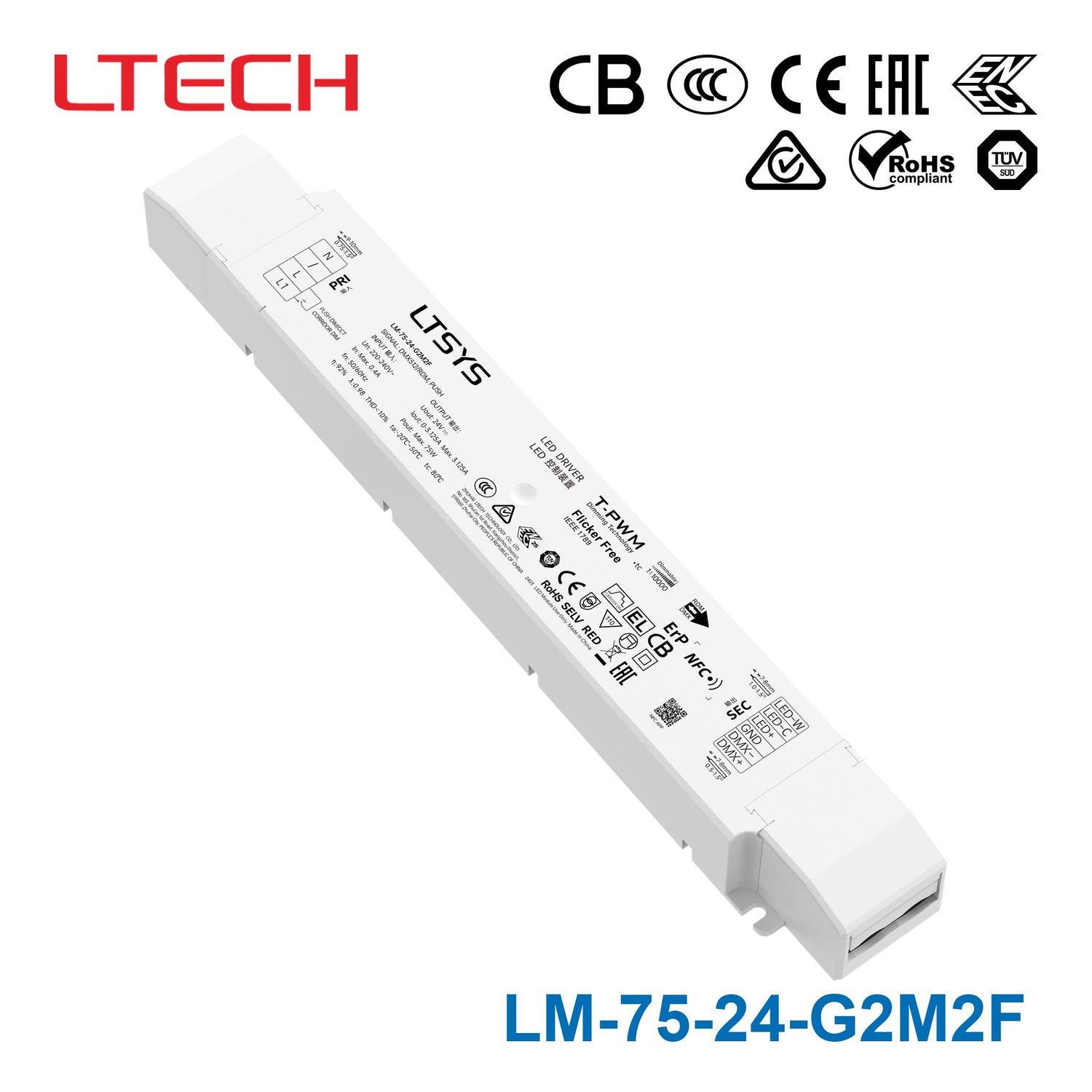

Ltech LM-75-24-G2M2F 75W 24VDC CV DMX512 LED Driver 3.12A

4-in-1 DMX/RDM Push DIM/CCT75W

SKU LM-75-24-G2M2F

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

LM-75-24-G2M2F is the 24V output model of this series: typical efficiency 92%.

Features

The housing is made of V0 flame-retardant PC material, sourced from SAMSUNG/COVESTRO.
The clamshell design and screwless type for strain-relief. The design of dismountable end cap allows you to adjust the length of housing depending on your needs.
Supports full-command NFC fast programming. Mobile app via NFC enables changing DMX address, dimming curve, brightness range and other parameters, realizing driver data interaction.
Support the RDM remote Device Management Protocol.
Provides two-channel independent SELV outputs.
Supports DMX512/RDM, PUSH DIM/CCT and corridor light DIM/CCT.
Constant power design ensures consistent brightness when adjusting different color temperatures.
Supports deep dimming from 0–100%, with a minimum dimming level of 0.01%.
It is equipped with a soft-start gradually brightening function, making the visual experience more comfortable for the human eye.
Supports Over-the-Air (OTA) online firmware updates for devices
Complies with the EU ERP Directive on energy efficiency, with no-load power consumption < 0.5W and network standby power consumption < 0.5W
Innovative thermal management technology intelligently protects the life of the LED driver.
Over-heat / Over voltage / Over load / Short circuit protection, recover automatically.
Suitable for ClassⅠ/Ⅱ/Ⅲindoor light fixtures.
Designed for a service life exceeding 100,000 hours under normal operating conditions.
5-year warranty (Rubycon capacitor).

Specifications

LM-75-24-G2M2FSpecifications from the official datasheetDownload datasheet PDF

FEATURES

Output Type: Constant Voltage
Dimming Interface: DMX512/RDM, PUSH DIM/CCT
Output Feature: Isolation
Protection Grade: IP20
Insulation Grade: Class II (Suitable for class I /II/III light fixtures)

OUTPUT

Output Voltage: 24V
Output Voltage Range: 24V ± 0.5V
Output Current: Max. 3.125A
Output Power: Max. 75W
Output Power Range: 0-75W
Strobe Level: High frequency exemption level
Dimming Range: 0-100%, down to 0.01%
Overload Power Limitation: ≥102%
Ripple: ≤300mV
PWM Frequency: 300-22000Hz

INPUT

AC Voltage Range: 220-240V~
DC Voltage Range: 220-240V (EMI needs to be evaluated after the luminaire is installed)
Frequency: 50/60Hz
Input Current: Max. 0.4A/230V~
Power Factor: PF>0.98/230V~ (at full load)
THD: THD<10%@ 230V~ (at full load)
Efficiency (Typ.): 92%
Standby Power Loss: ＜0.5W
Inrush Current: 45A (twidth=300us, tested under 50% Ipeak) / 230V~
Anti Surge: L-N: 2KV
Leakage Current: Max. 0.5mA

ENVIRONMENT

Working Temperature: ta: -20 ~ 50°C tc: 80°C
Working Humidity: 20 ~ 95%RH, non-condensing
Storage Temperature/Humidity: -40 ~ 80°C, 10~95%RH
Temperature Coefficient: ±0.03%/°C(0-50°C)
Vibration: 10-500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively

PROTECTION

Overload Protection: Shut down the output when rated power≥102%, auto recovers
Overheat Protection: Intelligently adjust or turn off the output current if the PCB temperature ≥110°C, and recover automatically
Short Circuit Protection: Enter hiccup mode if short circuit occurs, and recover automatically
Overvoltage Protection: Shut down the output when no-load voltage≥28V, and recover automatically
Withstand Voltage: I/P-O/P：3750V~
Insulation Resistance: I/P-O/P：100MΩ/500VDC/25°C/70%RH

SAFETY & EMC

SafetyStandards: Parameter Standard Test Level

CCC China GB19510.1，GB19510.14，GB19510.213
TUV Germany EN61347-1，EN61347-2-13，EN62493
CB CB MEMBER STATES IEC61347-1，IEC61347-2-13
CE European Union EN61347-1，EN61347-2-13，EN62384
EAC Russia IEC61347-1，IEC61347-2-13
RCM Australia AS 61347-1，AS 61347-2-13
ENEC Europe EN61347-1，EN61347-2-13，EN62384
EMC Emission: Parameter Standard Test Level

CCC China GB/T17743，GB17625.1
CE European Union EN55015，EN61000-3-2，EN61000-3-3，EN61547
EAC Russia IEC62493，IEC61547，EH55015
RCM Australia EN55015，EN61000-3-2，EN61000-3-3，EN61547
EMC Immunity: EN61000-4-2,3,4,5,6,8,11,EN61547

Parameter	Standard	Test Level
CCC	China	GB19510.1，GB19510.14，GB19510.213
TUV	Germany	EN61347-1，EN61347-2-13，EN62493
CB	CB MEMBER STATES	IEC61347-1，IEC61347-2-13
CE	European Union	EN61347-1，EN61347-2-13，EN62384
EAC	Russia	IEC61347-1，IEC61347-2-13
RCM	Australia	AS 61347-1，AS 61347-2-13
ENEC	Europe	EN61347-1，EN61347-2-13，EN62384

Parameter	Standard	Test Level
CCC	China	GB/T17743，GB17625.1
CE	European Union	EN55015，EN61000-3-2，EN61000-3-3，EN61547
EAC	Russia	IEC62493，IEC61547，EH55015
RCM	Australia	EN55015，EN61000-3-2，EN61000-3-3，EN61547

ErP

Power Consumption: Parameter Standard

Networked standby < 0.5W(After shutdown by command)
No-load power consumption < 0.5W (when no luminaire is connected)
Flicker/Stroboscopic Effect: Parameter Standard

IEEE1789 Meet IEEE 1789 standard/High frequency exemption level
CIE SVM PstLM≤1.0，SVM≤0.4
DF: Parameter Standard

Phase factor DF≥0.9

Parameter	Standard
Networked standby	< 0.5W(After shutdown by command)
No-load power consumption	< 0.5W (when no luminaire is connected)

Parameter	Standard
IEEE1789	Meet IEEE 1789 standard/High frequency exemption level
CIE SVM	PstLM≤1.0，SVM≤0.4

Parameter	Standard
Phase factor	DF≥0.9

OTHERS

Weight(N.W.): 290g±10g
Dimensions: 293×43×30mm(L×W×H)

Certifications & ratings

Marked features: NFC, CORRIDOR DIM

Technical drawings

LM-75-24-G2M2F Product Size — Product Size

LM-75-24-G2M2F Wiring Diagram — Wiring Diagram

LM-75-24-G2M2F PUSH DIM Connection — PUSH DIM Connection

LM-75-24-G2M2F PUSH DIM/CCT — PUSH DIM/CCT

LM-75-24-G2M2F Corridor Dimming Working Process — Corridor Dimming Working Process

LM-75-24-G2M2F LTECH RDM Programmer APP interface introduction — LTECH RDM Programmer APP interface introduction

LM-75-24-G2M2F Use the NFC Lighting APP — Use the NFC Lighting APP

LM-75-24-G2M2F 1.Read the LED driver — 1.Read the LED driver

LM-75-24-G2M2F 2. Edit parameters — 2. Edit parameters

LM-75-24-G2M2F Protective Housing Application Diagram — Protective Housing Application Diagram

LM-75-24-G2M2F Installation Precautions — Installation Precautions

LM-75-24-G2M2F Relationship Diagrams — Relationship Diagrams

LM-75-24-G2M2F Life time VS Housing temperature — Life time VS Housing temperature

LM-75-24-G2M2F Surge Current & Corresponding Miniature Circuit Breaker… — Surge Current & Corresponding Miniature Circuit Breaker…

Downloads

Datasheet1

LM-75-24-G2M2F datasheetLM_75_24_G2M2F.pdf PDF Download

FAQ

What is this LED driver used for?

It is a constant voltage LED driver suitable for Class I, II, and III light fixtures, featuring DMX512/RDM and PUSH DIM/CCT dimming interfaces.

What are the output voltage and current specifications?

The output is 24V DC with a maximum current of 3.125A and a maximum power of 75W. The output voltage range is 24V ± 0.5V.

What is the required input voltage?

The input voltage range is 220-240V AC at 50/60Hz. It supports a power factor greater than 0.98 at full load.

How does the dimming work?

It supports 0-100% dimming down to 0.01% using DMX512/RDM or PUSH DIM/CCT interfaces. The PWM frequency ranges from 300-22000Hz.

What protection features are included?

It includes overload, overheat, short circuit, and overvoltage protection. All protections recover automatically after the fault is cleared.

What is the operating temperature range?

The ambient operating temperature (ta) is -20 to 50°C, with a case temperature (tc) limit of 80°C. It operates in 20-95% RH non-condensing humidity.

What are the physical dimensions and weight?

The unit measures 293x43x30mm (LxWxH) and weighs approximately 290g. It has an IP20 protection rating, suitable for indoor use.
