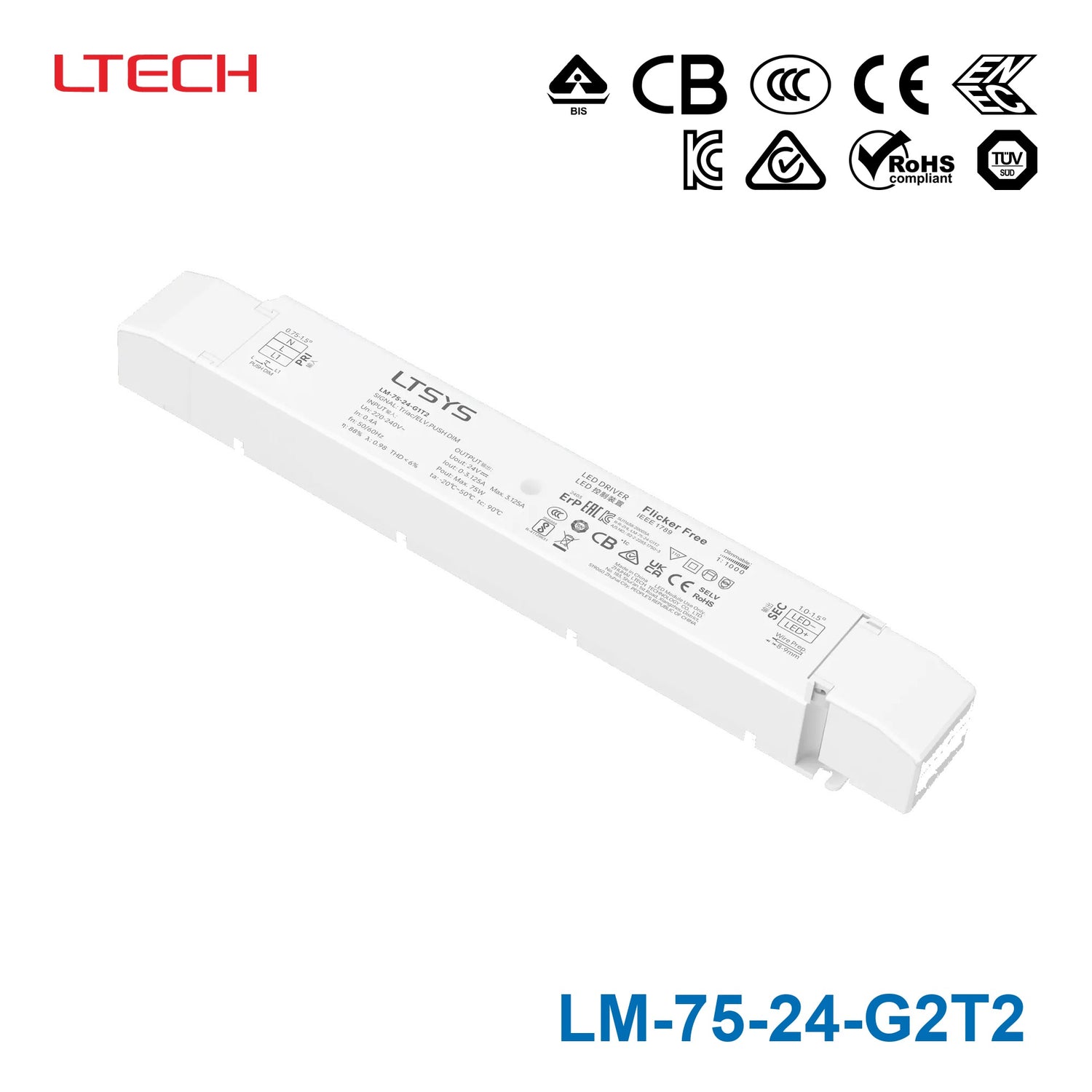

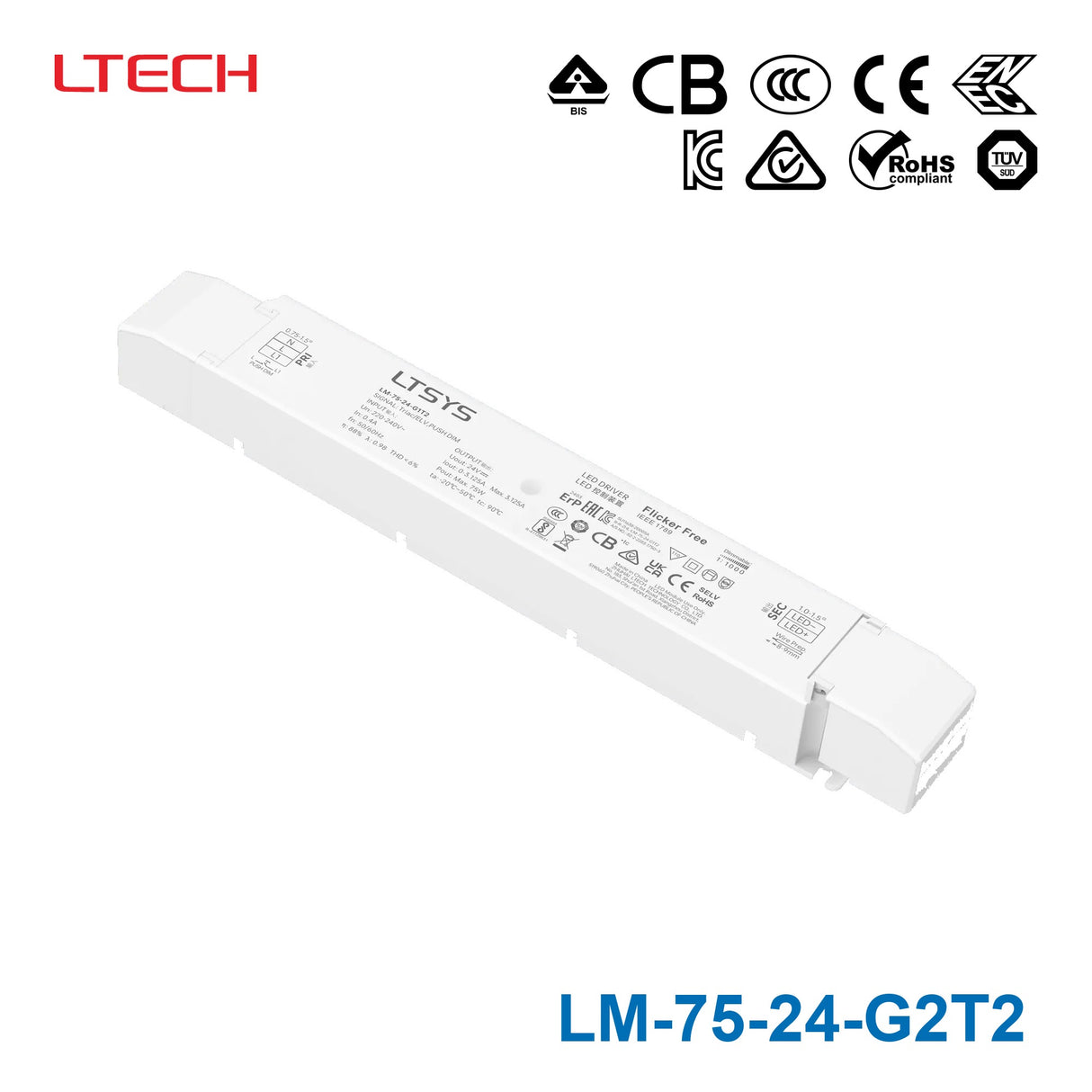

Ltech LM-75-24-G2T2 75W 24VDC CV Triac Driver 3.125A

Q: What kind of lighting applications is the Ltech LM-75-24-G2T2 designed for?

The LM-75-24-G2T2 is a 75W constant-voltage LED driver for 24VDC lighting systems. It is suited to internal lighting applications where dimming and color temperature adjustment are needed from a single driver. Its dual independently SELV output channels make it relevant for tunable white constant-voltage LED setups.

Q: What dimming methods does the LM-75-24-G2T2 support?

This model supports leading-edge Triac and trailing-edge ELV phase-cut dimming, along with Push DIM/CCT control. It is built for synchronous adjustment of brightness and color temperature. The stated dimming range is 0-100%, with LED start at 0.1% possible.

Q: How is the LM-75-24-G2T2 different from a standard single-channel 24V LED driver?

A key difference is that this model provides 2 independently SELV constant-voltage output channels instead of a single output channel. It is also designed for both dimming and CCT adjustment, which makes it more suitable for tunable white applications than a basic fixed-output driver. This gives it broader use on projects that need coordinated light level and color temperature control.

Q: What are the main electrical specifications of the LM-75-24-G2T2?

The LM-75-24-G2T2 is rated at 75W with a 24VDC output. Its rated current is 3.125A. The product description also states up to 88% efficiency, power factor greater than 0.98, and THD below 6%.

Q: Is the LM-75-24-G2T2 suitable for demanding indoor environments?

This driver is specified for operation from -20°C to 50°C, which supports a wide range of indoor conditions. It also includes overload, over-temperature, short-circuit, and over-voltage protection with automatic recovery. These protections help support reliability in commercial and professional lighting applications.

Q: Does the LM-75-24-G2T2 support smooth low-level dimming?

Yes, the product description states a 0-100% dimming range and notes that LED start at 0.1% is possible. It also specifies 0-100% flicker-free performance and includes soft-on and fade-in functionality. Those features make it better suited to spaces where smooth visual comfort matters.

Q: What warranty is offered with the LM-75-24-G2T2?

This model includes a 5-year warranty. The product description specifically references a Rubycon capacitor in connection with that warranty period. For buyers comparing long-term value, that makes warranty support one of this driver's clearer differentiators.

SKU:

LM-75-24-G2T2

Please for Pricing

Notify me when it's back in stock

Description

Leading edge (Triac)
Trailing edge (ELV) phase-cut and Push DIM/CCT.
With soft-on and fade in function
makes the human vision more comfortable.
2 independently SELV constant voltage output channels.
Constant power design
adjust brightness and color temperature synchronously.
Dimming range: 0-100%
LED start at 0.1% possible.
0-100% flicker-free
High Frequency Exemption
High Efficient driver: efficiency 88%
PF>0.98
THD<6%
Innovative thermal management technology
intelligent power life protection.
Over load / Over temp. / Short circuit / Over voltage protection
recover automatically.
Suitable for internal lights application for I/II/III
5 years warranty (Rubycon capacitor).

Specifications

Brand

Ltech
Series

Ltech Triac Series
Power Rating

75 Watt
Output Voltage

24 Volt
Rated Current

3.12 Ampere
Input Voltage

220V~240V
Standards Met

BIS,CB,CCC,CE,ENEC,KC,RCM,ROHS,TUV
Operation Mode

Constant Voltage
Operating Temperature

-20°C~50°C
Warranty

5 Year
Length

29.3 cm
Width

4.3 cm
Height

3 cm
Weight

0.35 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What kind of lighting applications is the Ltech LM-75-24-G2T2 designed for?

The LM-75-24-G2T2 is a 75W constant-voltage LED driver for 24VDC lighting systems. It is suited to internal lighting applications where dimming and color temperature adjustment are needed from a single driver. Its dual independently SELV output channels make it relevant for tunable white constant-voltage LED setups.

What dimming methods does the LM-75-24-G2T2 support?

This model supports leading-edge Triac and trailing-edge ELV phase-cut dimming, along with Push DIM/CCT control. It is built for synchronous adjustment of brightness and color temperature. The stated dimming range is 0-100%, with LED start at 0.1% possible.

How is the LM-75-24-G2T2 different from a standard single-channel 24V LED driver?

A key difference is that this model provides 2 independently SELV constant-voltage output channels instead of a single output channel. It is also designed for both dimming and CCT adjustment, which makes it more suitable for tunable white applications than a basic fixed-output driver. This gives it broader use on projects that need coordinated light level and color temperature control.

What are the main electrical specifications of the LM-75-24-G2T2?

The LM-75-24-G2T2 is rated at 75W with a 24VDC output. Its rated current is 3.125A. The product description also states up to 88% efficiency, power factor greater than 0.98, and THD below 6%.

Is the LM-75-24-G2T2 suitable for demanding indoor environments?

This driver is specified for operation from -20°C to 50°C, which supports a wide range of indoor conditions. It also includes overload, over-temperature, short-circuit, and over-voltage protection with automatic recovery. These protections help support reliability in commercial and professional lighting applications.

Does the LM-75-24-G2T2 support smooth low-level dimming?

Yes, the product description states a 0-100% dimming range and notes that LED start at 0.1% is possible. It also specifies 0-100% flicker-free performance and includes soft-on and fade-in functionality. Those features make it better suited to spaces where smooth visual comfort matters.

What warranty is offered with the LM-75-24-G2T2?

This model includes a 5-year warranty. The product description specifically references a Rubycon capacitor in connection with that warranty period. For buyers comparing long-term value, that makes warranty support one of this driver's clearer differentiators.

Model	Power	Voltage	Current	IP Rating
Ltech LM-75-24-G1T2 75W 24VDC CV Triac Driver 3.125A	75W	24V	3.12A	Indoor	View
Ltech LM-75-12-G2T2 75W 12VDC CV Triac Driver 6.25A	75W	12V	6.25A	Indoor	View
Ltech LM-75-12-G1T2 75W 12VDC CV Triac Driver 6.25A	75W	12V	6.25A	Indoor	View
