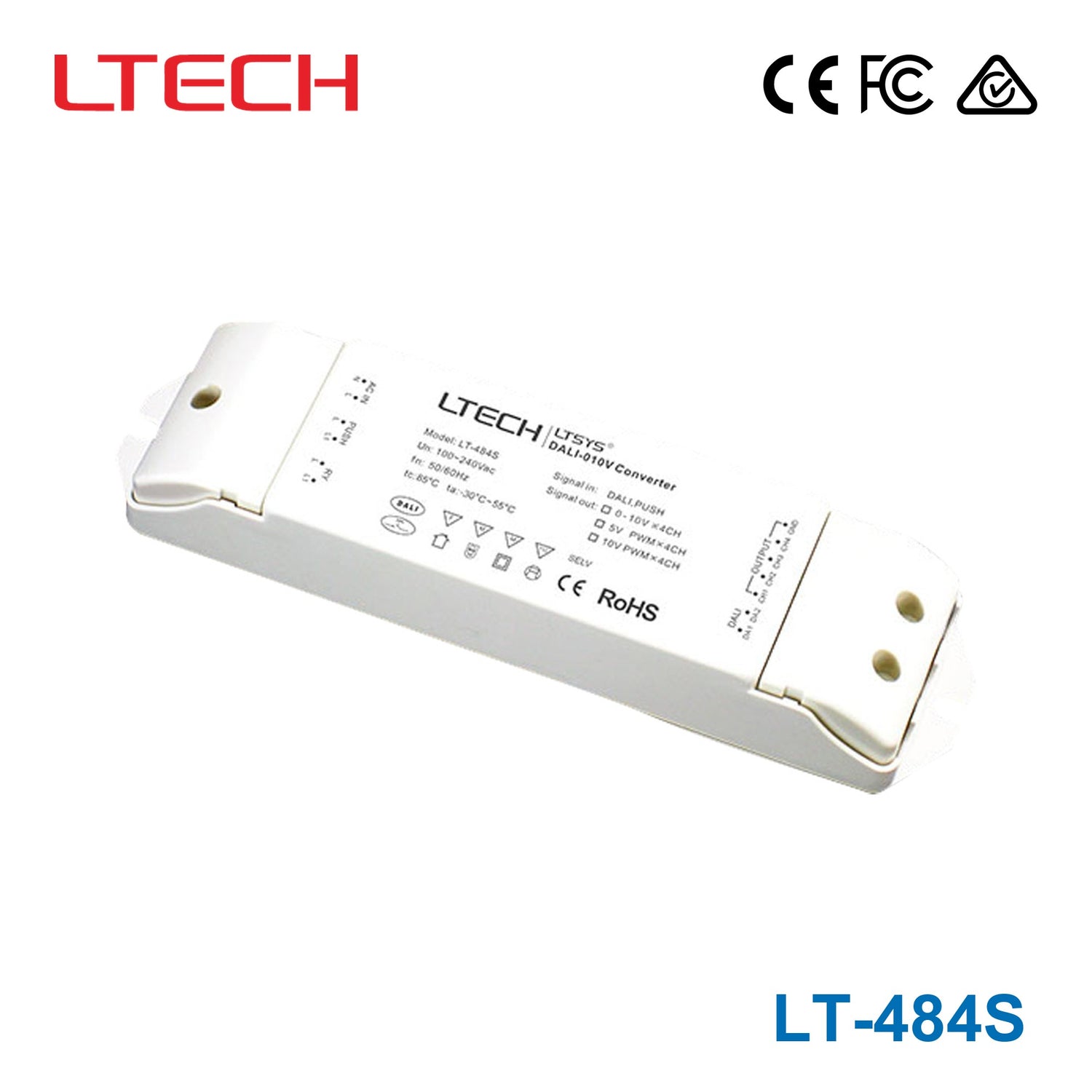

Ltech LT-484S Signal Converter - DALI/Push to PWM/0-10V
Please Login for Pricing
Description
Description
- Dimming interface: DALI
- Push Dim.
- Optional output: 0-10V
- 5V PWM
- 10V PWM.
- 4 DALI addressable output channels.
- Built-in relay for ON/OFF control of LED driver.
- Dimming range: 0-100%.
- Full protective plastic housing.
- DALI bus standard: IEC62386-101
- 102
- 207
- Compliant with Safety Extra Low Voltage standard.
- Suitable for indoor environments.
Specifications
Specifications
-
BrandLtech
-
SeriesDALI Signal Converter
-
Input Voltage100V~240V
-
Standards MetCE,FCC,RCM
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length17.5 cm
-
Width4.4 cm
-
Height3 cm
-
Weight0.12 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What does the Ltech LT-484S do?
The LT-484S is a signal converter that takes DALI or Push Dim control input and provides output options including PWM and 0-10V. It is designed for LED control applications where signal conversion is needed between these dimming methods.
What control inputs are supported by the LT-484S?
This model supports DALI and Push Dim as its dimming interfaces. That makes it suitable for projects that use either standard DALI control or push-dimming control methods.
What output types are available on the Ltech LT-484S?
The LT-484S supports optional 0-10V output as well as 5V PWM and 10V PWM output. This gives buyers flexibility when selecting a converter for compatible LED control systems.
How many channels does the LT-484S support?
The LT-484S provides 4 DALI addressable output channels. This is useful for applications that need multiple independently addressable channels from a single converter.
Does the LT-484S support on/off control in addition to dimming?
Yes, this model includes a built-in relay for ON/OFF control of the LED driver. In addition to switching, it also supports a 0-100% dimming range for compatible dimming applications.
Is the Ltech LT-484S suitable for indoor or outdoor use?
The LT-484S is suitable for indoor environments. It also uses a full protective plastic housing and is compliant with the Safety Extra Low Voltage standard.
What temperature range can the LT-484S operate in?
This model is rated for operation from -30°C to 55°C. That range supports use in a variety of indoor commercial and industrial environments within those limits.
What standard and warranty apply to the LT-484S?
The DALI bus standard listed for the LT-484S is IEC62386-101, 102, and 207. This model also includes a 5-year warranty.
