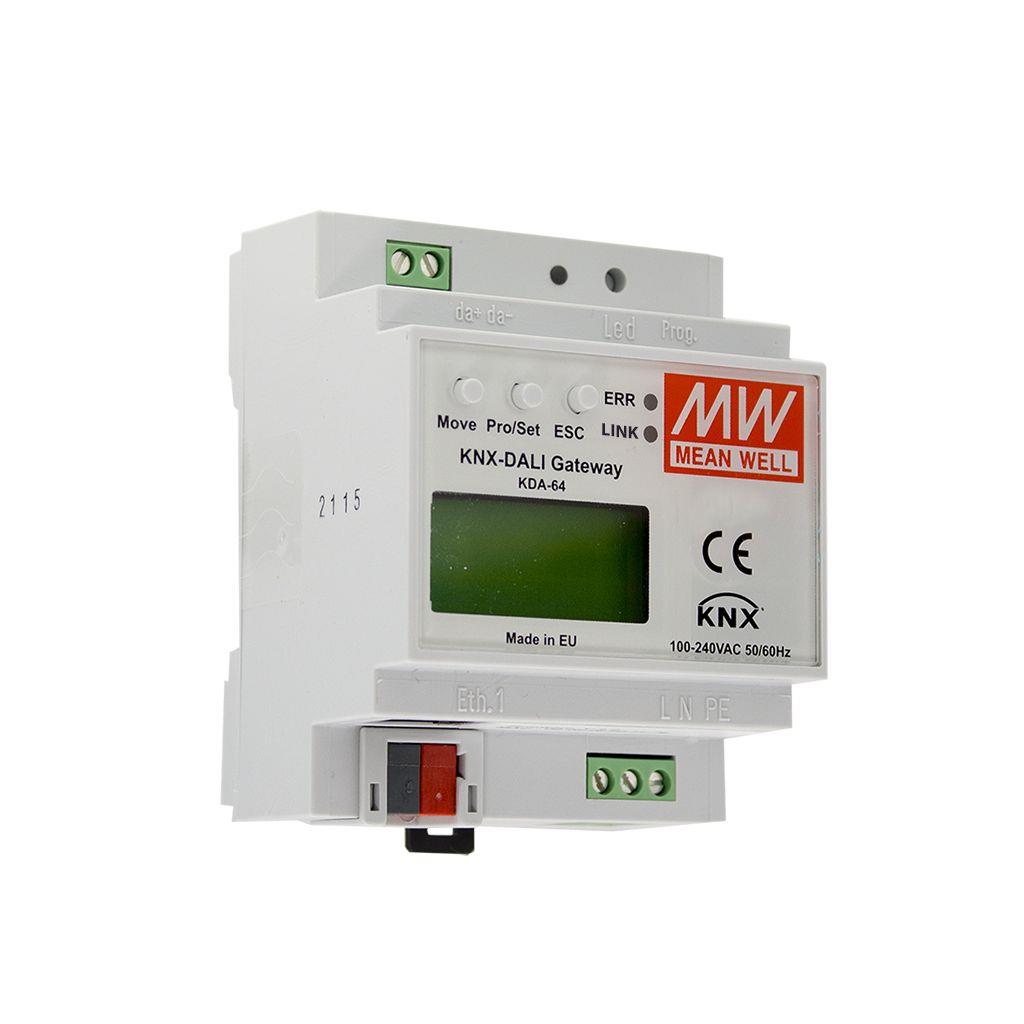

Mean Well -KDA-064 KNX to DALI Gateway

Standard KNX connector

SKU KDA-064

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

KDA-64 is used to connect a digital DALI lighting system to the KNX installation. Thus, room-based lighting control is conveniently incorporated into the higher-level KNX building management system. The device transforms switch and dim commands from the connected KNX system into DALI telegrams and status information from the DALI bus into KNX telegrams. KDA-64 is a Category 1 device (in accordance with EN 62386-103). This means the device must only be used in DALI segments with connected ECGs and not with other DALI control devices within the segment (No multi-master function). Power supply for the up to 64 connected ECGs comes directly from the KDA-64. An additional DALI power supply is not required and not permitted. The device comes in a 4 units wide DIN Rail casing so it can be directly integrated into the mains distribution box. Connection to the KNX bus is via a bus connector. DALI Bus is connected via screw connectors on the device. ECGs can be switched, dimmed and set to a defined value in 16 groups per gateway. In addition to group control, KDA-64 offers the possibility to individually control up to 64 ECGs.

Features

KNX proof gateway
Easy configuration & installation
Cost effective solution for smart building
Connect up to 64 DALI ECGs/Drivers
Built-in DALI power supply
LCD 2x12 display
Lighting control via the button
Lighting control via the integrated web server
Up to 16 DALI lighting groups setting
Up to 16 DALI scenes setting
3 year warranty

Specifications

KDA-064Specifications from the official datasheet (2019-07-24 edition)Download datasheet PDF

COMMUNICATION SIGNAL

KNX BUS: Standard KNX connector
DALI BUS VOLTAGE: Built-in DALI Voltage 16-20VDC ; Screw terminal for solid or stranded copper conductors 1-2.5m²
DALI BUS RATED CURRENT: 250mA
ETHERNET: 100MB/s via RJ45 connector

INPUT

VOLTAGE RANGE: 100~240VAC, 142~339VDC
FREQUENCY RANGE: 50~60Hz
AC CURRENT: 0.1A
POWER CONSUMPTION: 7W(Typ.)
TERMINAL: Screw terminal for solid or stranded copper conductors 1-2.5m²

PROTECTION

OVERLOAD: 100% at DALI rated current Protection type: Constant current limiting

FUNCTION

DISPLAY: LCD-Display of 2 lines with 12 characters each for comission the device and parameter settings
KNX PROGRAMMING: One physical button to toggle between normal and programming/addressing mode
GENERIC SETTING: Three buttons(Move, Prg/Set, ESC) on the front panel to set and view the settings

ENVIRONMENT

WORKING TEMP.: -5 ~ +45℃
WORKING HUMIDITY: 5 ~ 93% RH non-condensing; comply with climatic EN50090-2-2
STORAGE TEMP., HUMIDITY: -25 ~ +70℃, 10 ~ 95% RH non-condensing
VIBRATION: 5 ~ 150Hz, each along X, Y, Z axes according to EN50090-2-2
OVER VOLTAGE CATEGORY: III
POLLUTION DEGREE: 2, EN60664-1
PROTECTION TYPE: IP20, EN60529

SAFETY & EMC

SAFETY STANDARDS: EAC TP TC 004 approved; Compliance to EN60669-2-1, EN50428, EN50090-2-2
DALI STANDARDS: Comply with IEC60926, EN62386-103 DALI controller
EMC EMISSION: Compliance to EN50491-5-1, EN60669-2-1, EN50428, EN50090-2-2, EN61000-3-3, EAC TP TC 020
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,11, EAC TP TC 020

OTHERS

DIMENSION: 86*72*55mm (L*W*H)-Weight 0.2Kg
DIN RAIL MOUNTING: 35 mm rail ; 4 units wide
ENCLOSURE MATERIAL: ABS-V0

Test conditions and notes3

1. All parameters NOT specially mentioned are measured at 230VAC input and 25℃ of ambient temperature.
2. Maximum allowable DALI driver is 64.
3. The devices may be operated only up to 2000m(6500ft).

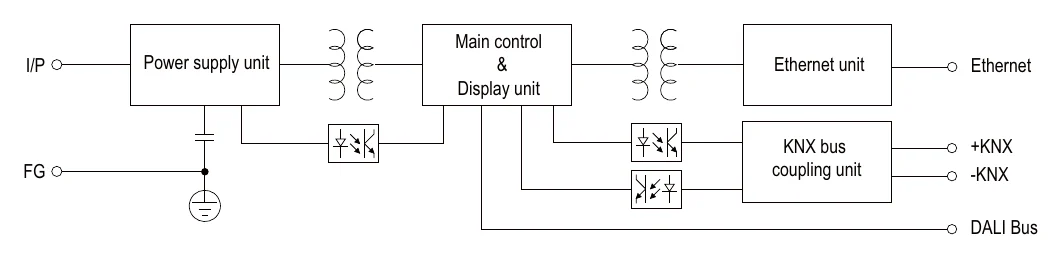

Technical drawings

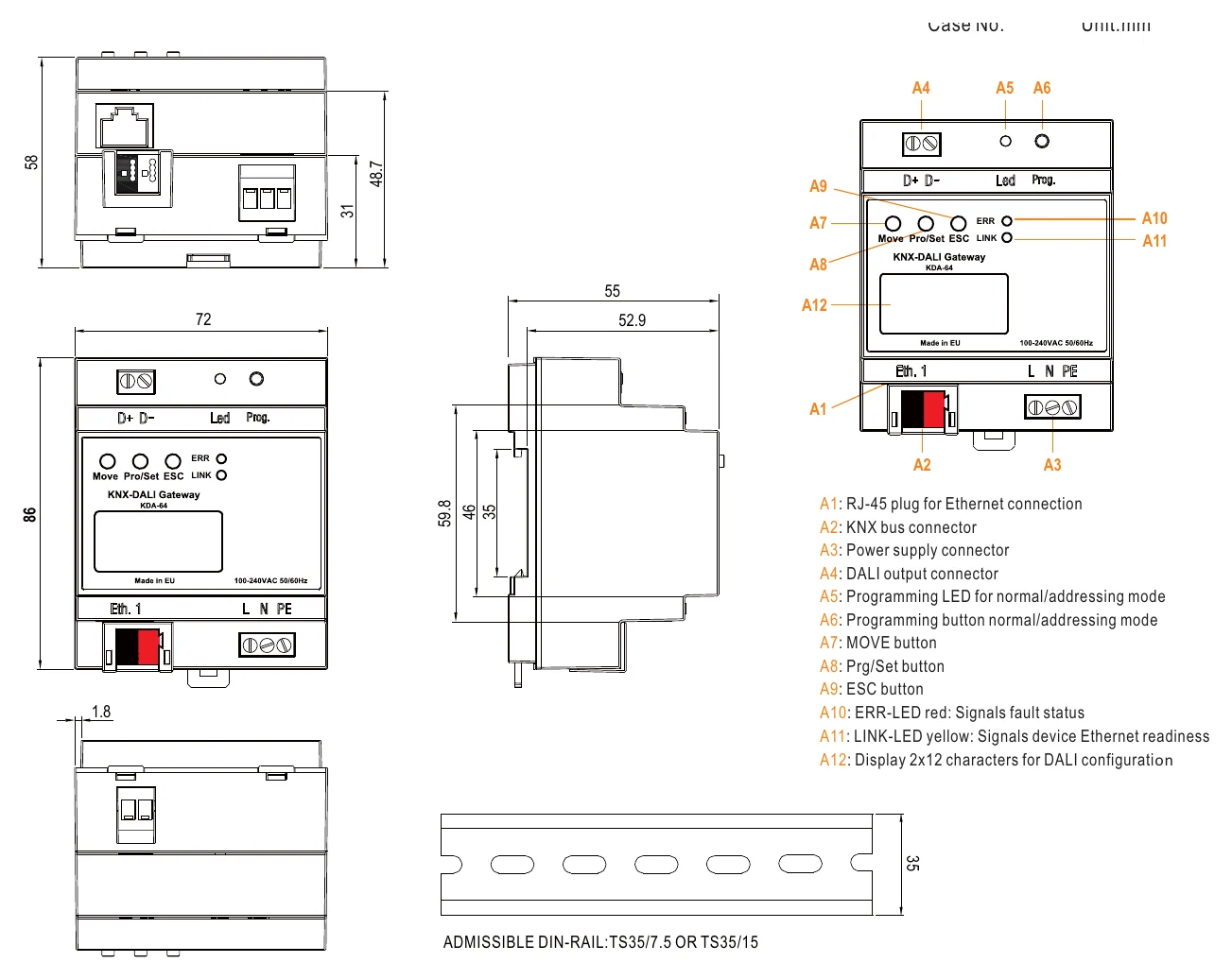

KDA-064 Mechanical Specification — Mechanical Specification

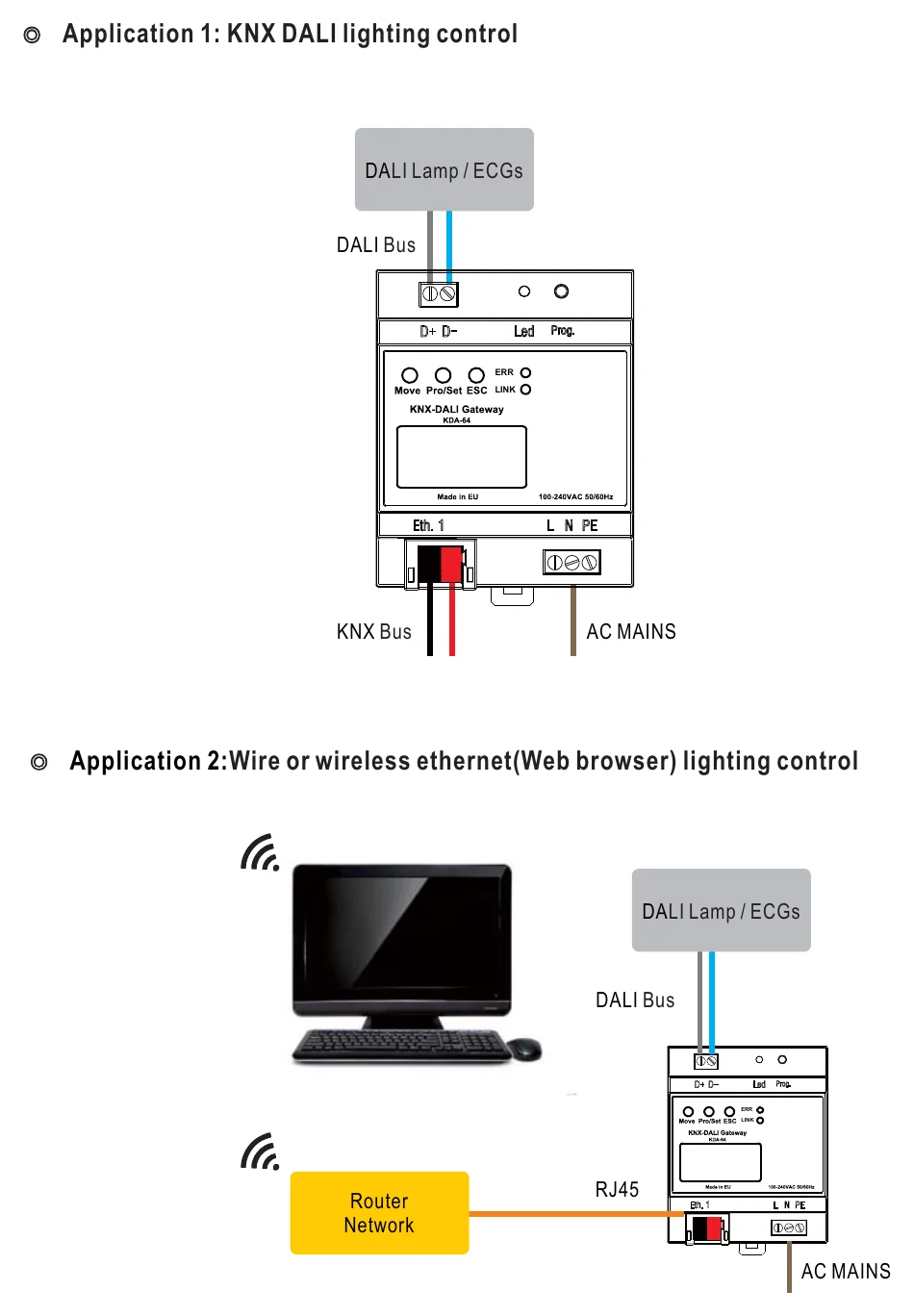

KDA-064 Typical application — Typical application

Typical applications

Office lighting
Smart home lighting
Luxury villas lighting
LED indoor lighting

Downloads

Datasheet1

KDA-064 datasheetKDA_64_spec.pdf · 2019-07-24 edition PDF Download

FAQ

What does the Mean Well KDA-064 do?

The KDA-064 is a KNX to DALI gateway designed for smart building lighting control. It lets a KNX-based system manage DALI lighting devices and supports control features such as group and scene settings. This model is positioned as a cost-effective solution for smart building lighting, such as office, smart home and luxury villa lighting.

How many DALI devices can the KDA-064 support?

This gateway can work with up to 64 DALI ECGs or drivers. That makes it suitable for projects that need centralized control of a moderate-sized DALI lighting network. It also supports up to 16 DALI lighting groups and up to 16 DALI scenes.

Does the KDA-064 include a DALI power supply?

Yes, the KDA-064 includes a built-in DALI power supply. That is a useful differentiator for buyers looking for a compact gateway solution with integrated DALI bus support. It helps position this model as a practical option for smart building lighting control systems.

What control and interface features are available on this model?

The KDA-064 includes an LCD 2x12 display and supports lighting control via onboard buttons. It also includes an integrated web server for control access. These features give users multiple ways to manage and review the gateway's lighting functions.

What input voltage does the Mean Well KDA-064 accept?

This model accepts 100 to 240VAC input and also supports 142 to 339VDC. Its listed AC current is 0.1A, and its typical power consumption is 7W. These specifications make it suitable for a wide range of standard building power environments.

Is the KDA-064 suitable for demanding indoor environments?

The KDA-064 is rated for a working temperature range of -5 to +45 degrees C and 5 to 93% RH non-condensing, with an IP20 enclosure, so it is intended for indoor installation such as a distribution box. It also lists vibration performance from 5 to 150Hz along the X, Y, and Z axes. Buyers evaluating durability should also note its compliance with listed safety and EMC standards.

Which control systems is the KDA-064 compatible with?

This model is specifically designed as a KNX to DALI gateway, so it is intended for applications where KNX control needs to interface with DALI lighting devices. It supports DALI ECGs and drivers on the lighting side. For buyers standardizing on KNX building control and DALI lighting, that makes this model directly relevant.

What warranty comes with the Mean Well KDA-064?

The KDA-064 includes a 3-year warranty. That matches the warranty period listed for this model and can be useful for commercial buyers evaluating lifecycle support. It is one of the product's stated features.
