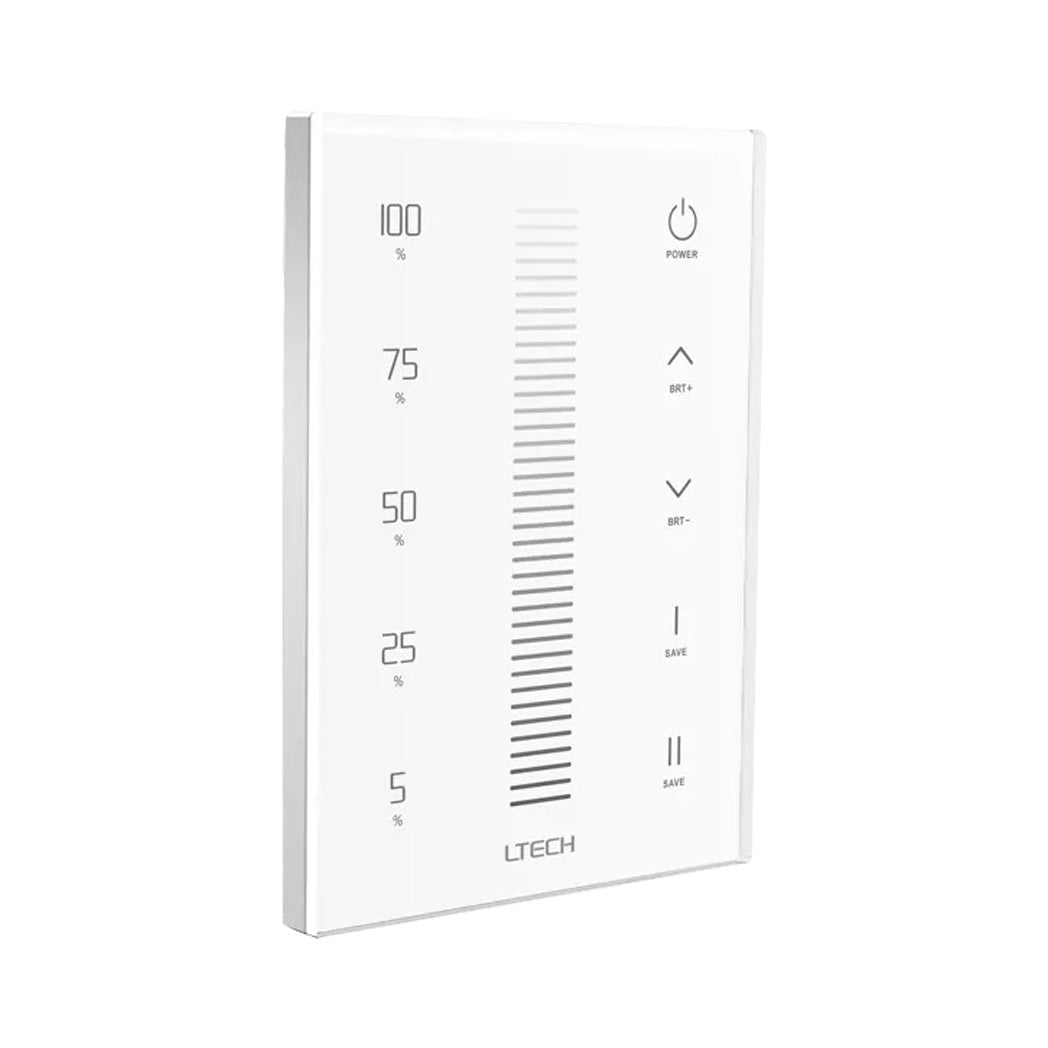

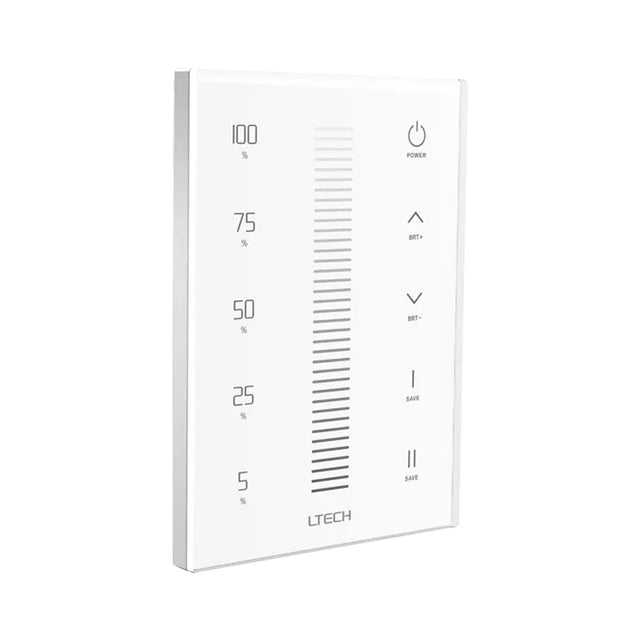

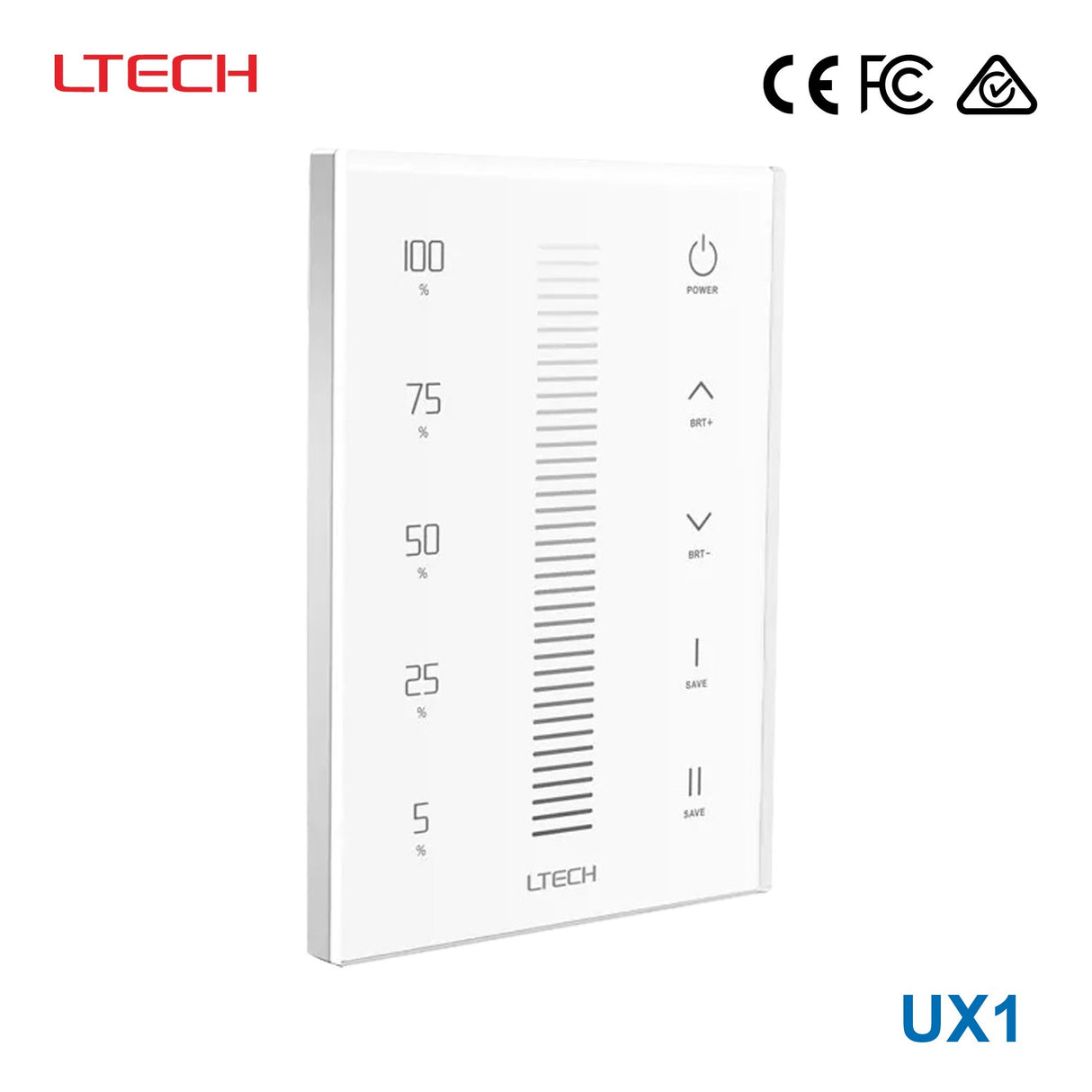

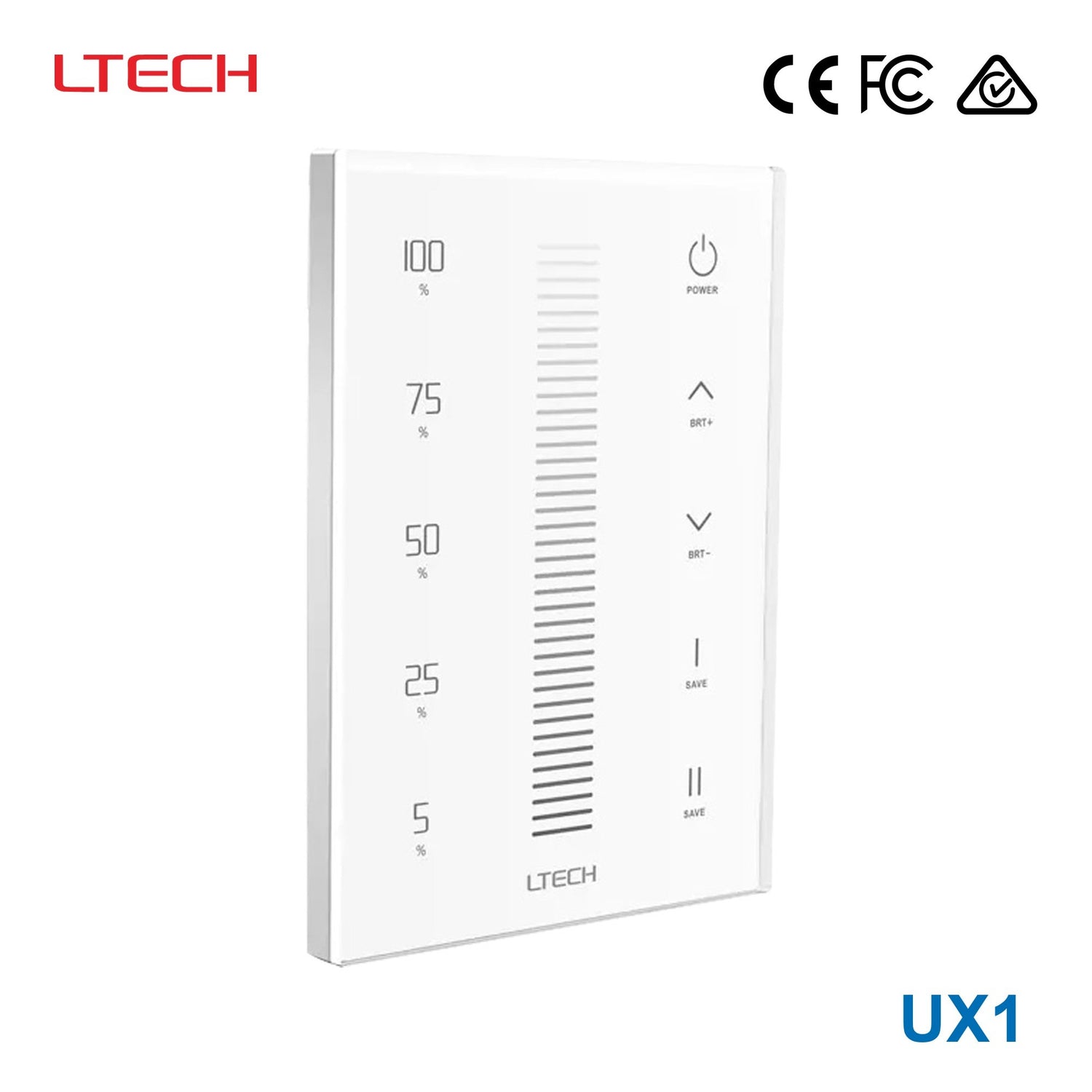

Ltech UX1 Wireless RF/DMX512 Multi-zone Touch Panel - Dimming
Log in to see priceOverview
UX1 is the 3~46Vdc output model of this series.
Specifications
UX1 Dimming Touch Panel
- Input Voltage
- 5Vdc, 0.5A~1A (with an adapter)
- Output Signal
- RF 2.4GHz, DMX512
- Control Mode
- Dimming
- Working Temp.
- -30℃~55℃
- Package Size
- L132×W192×H50(mm)
- Weight(N.W.)
- 230g
- Weight(G.W.)
- 370g
R4-3A Constant Voltage Receiver (receiver is sold separately)
- Wireless Signal
- RF 2.4GHz
- Input Voltage
- 5~24Vdc
- Current Load
- 3A × 4CH Max. 12A
- Output Power
- Max 60W/144W/288W(5V/12V/24V)
- Working Temp.
- -30℃~55℃
- Package Size
- L127×W35×H24(mm)
- Weight(G.W.)
- 60g
R4-5A Constant Voltage Receiver (receiver is sold separately)
- Wireless Signal
- RF 2.4GHz
- Input Voltage
- 5~24Vdc
- Current Load
- 5A × 4CH Max. 20A
- Output Power
- Max 100W/240W/480W(5V/12V/24V)
- Working Temp.
- -30℃~55℃
- Package Size
- L178×W48×H33(mm)
- Weight(G.W.)
- 150g
R4-CC Constant Current Receiver (receiver is sold separately)
- Wireless Signal
- RF 2.4GHz
- Input Voltage
- 12~48Vdc
- Output Voltage
- 3~46Vdc
- Output Current
- CC 350/700/1050mA×4CH
- Output Power
- 1.05W~48.3W×4CH Max 193.2W
- Working Temp.
- -30℃~55℃
- Package Size
- L178×W48×H33(mm)
- Weight(G.W.)
- 165g
Certifications & ratings
- Certification marks
- FCC, CE, RoHS, SAA
Technical drawings
Downloads
FAQ
What does the Ltech UX1 control?
The Ltech UX1 is a wireless RF and DMX512 touch panel designed for dimming LED lighting. This model focuses on brightness control rather than color-changing functions, making it a fit for single-color dimming applications.
How is brightness adjusted on the UX1?
The UX1 uses a touch bar in the center of the panel for dimming control. You adjust light intensity by moving your finger along the bar, which gives a fast and simple way to change brightness levels.
Does the UX1 support multiple lighting zones?
Yes, the UX1 supports four zones. That makes it useful when you want separate dimming control for multiple lighting areas from a single wall-style touch panel.
Can the UX1 save lighting settings?
Yes, this model includes buttons I and II for saving settings. That allows users to recall preferred dimming scenes without manually readjusting brightness each time.
Where is the Ltech UX1 a good fit?
The UX1 is well suited for commercial and professional LED dimming environments that benefit from multi-zone control and a clean touch-panel interface. It can be a practical option for showrooms, architectural spaces, and other business installations using RF or DMX-based lighting control.
What environments can the UX1 operate in?
This model is rated for operation from -30°C to 55°C. That range supports use in a variety of indoor and protected commercial environments where temperature conditions can vary.
What are the basic physical and support specs for this model?
The UX1 has a net weight of 230g, which keeps it relatively lightweight for a touch-panel controller. It operates within a temperature range of -30°C to 55°C.
