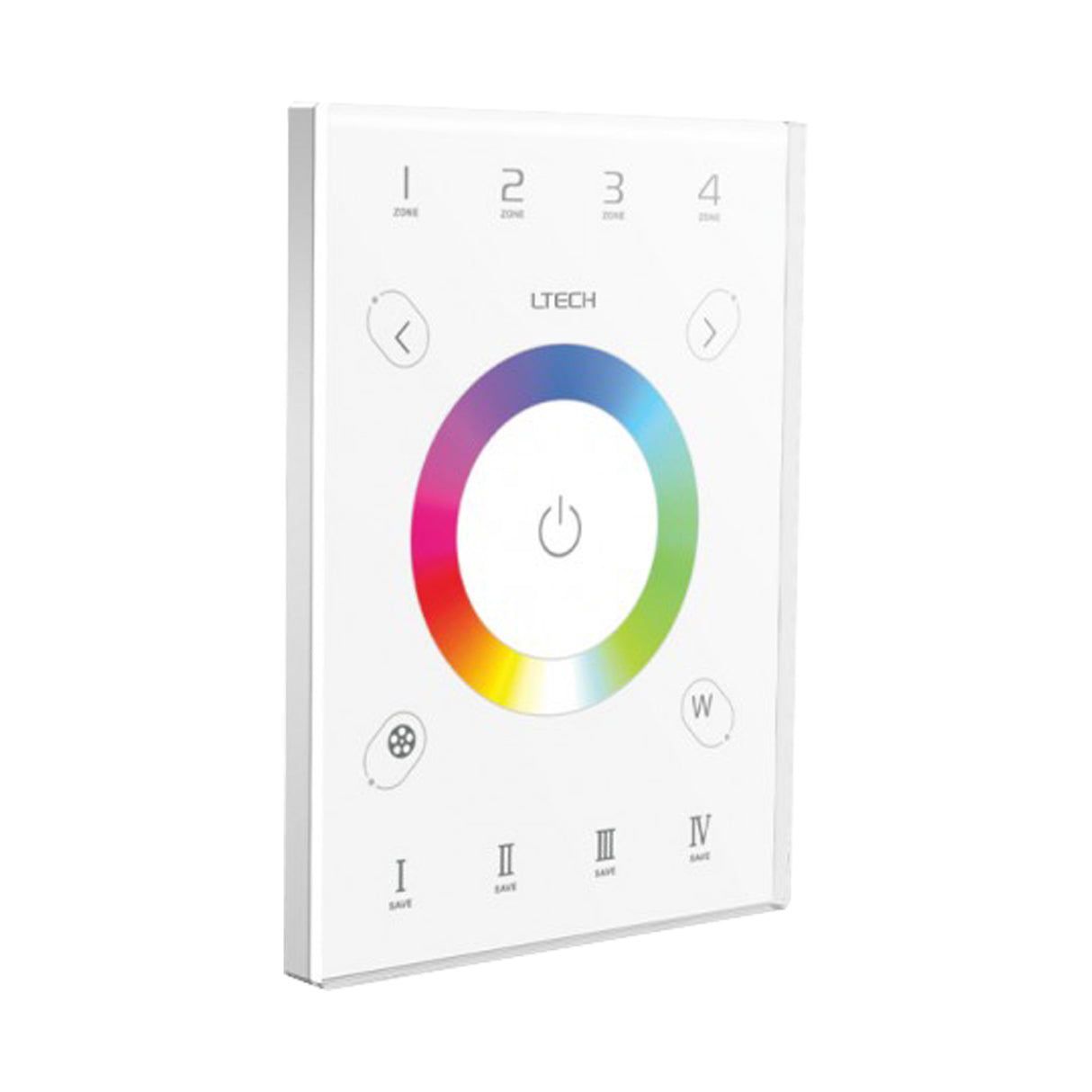

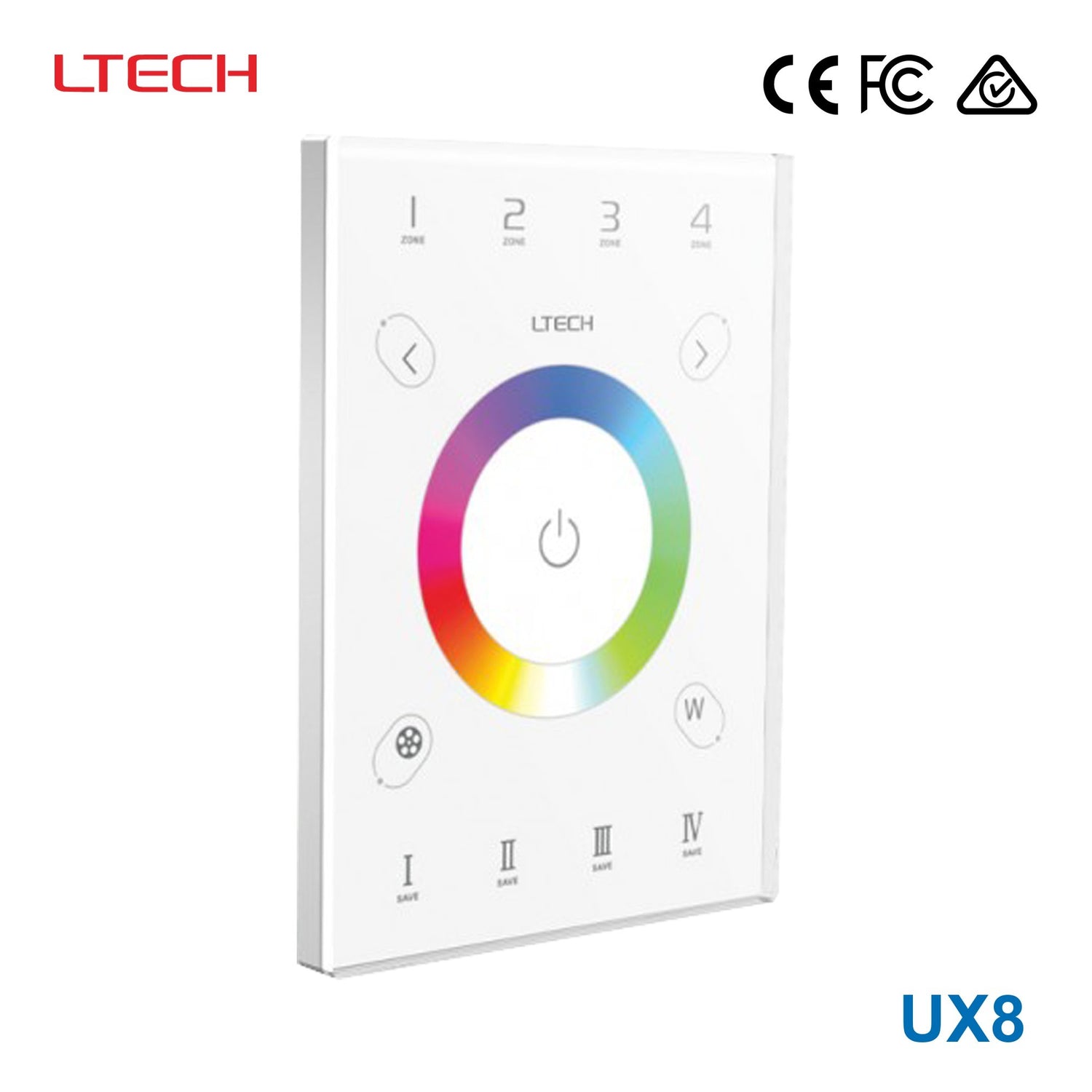

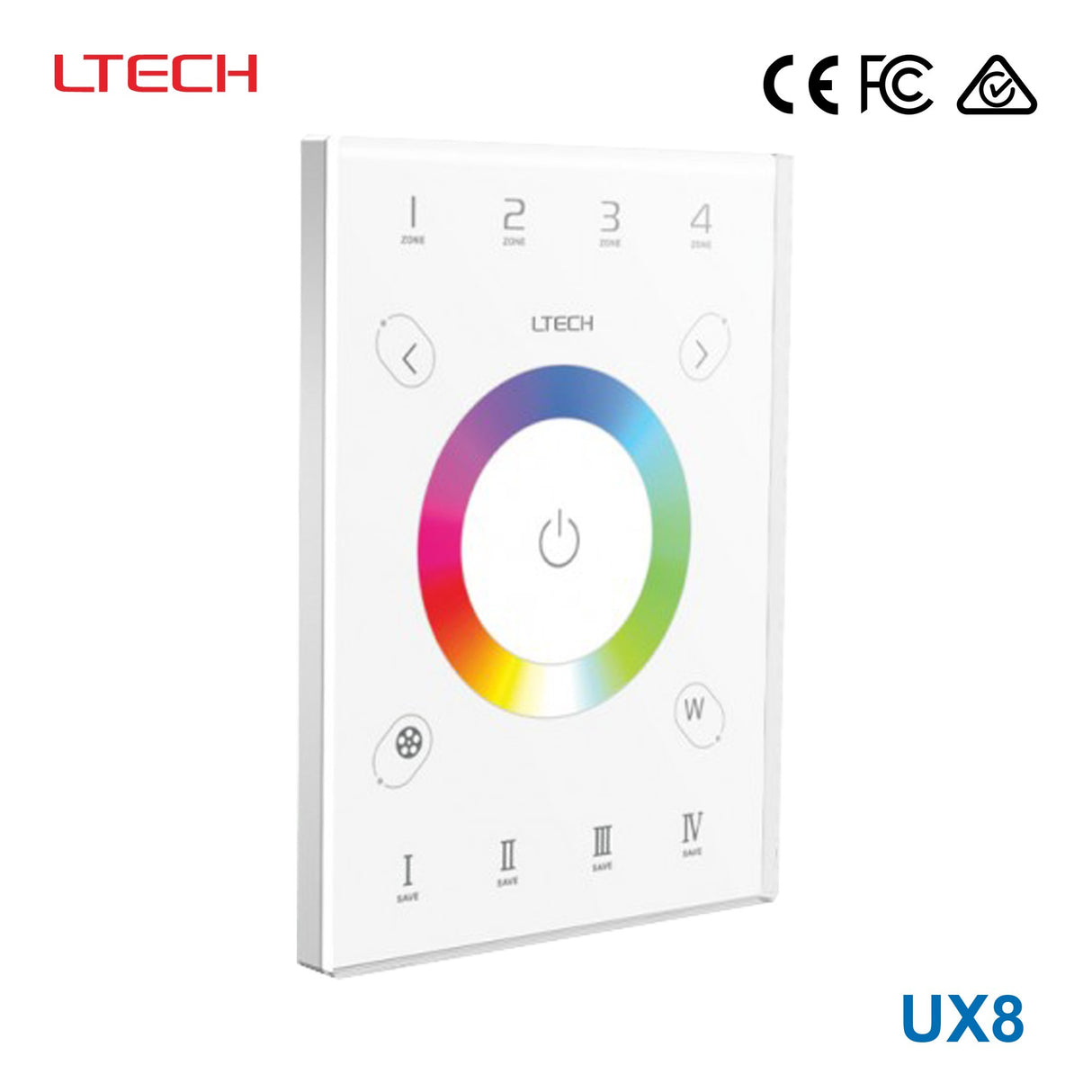

Ltech UX8 Wireless RF/DMX512 Multi-zone Touch Panel - RGBW
Log in to see priceOverview
UX8 is the 3~46Vdc output model of this series.
Specifications
UX8 RGBW Touch Panel
- Input Voltage
- 5Vdc, 0.5A~1A (with a power adapter)
- Output Signal
- RF 2.4GHz, DMX512
- Control Mode
- RGBW, 4 Zones Control
- Working Temp.
- -30℃~55℃
- Package Size
- L132×W192×H50(mm)
- Weight(N.W.)
- 230g
- Weight(G.W.)
- 370g
R4-5A Constant Voltage Receiver (receiver is sold separately)
- Input Voltage
- 5~24Vdc
- Current Load
- 5A × 4CH Max. 20A
- Output Power
- Max. 100W/240W/480W(5V/12V/24V)
- Wireless Signal
- RF 2.4GHz
- Working Temp.
- -30℃~55℃
- Package Size
- L178×W48×H33(mm)
- Weight(G.W.)
- 150g
R4-CC Constant Current Receiver (receiver is sold separately)
- Input Voltage
- 12~48Vdc
- Output Voltage
- 3~46Vdc
- Output Current
- CC 350/700/1050mA×4CH
- Output Power
- 1.05W~48.3W×4CH Max 193.2W
- Wireless Signal
- RF 2.4GHz
- Working Temp.
- -30℃~55℃
- Package Size
- L178×W48×H33(mm)
- Weight(G.W.)
- 165g
Certifications & ratings
- Certification marks
- FCC, CE, RoHS
Technical drawings
Downloads
FAQ
What is the Ltech UX8 used for?
The Ltech UX8 is a wireless touch panel for controlling RGBW LED lighting. It is designed for multi-zone lighting control and gives users access to color selection, brightness adjustments, stored scenes, and preset modes from a single wall-style interface.
How many lighting zones can the UX8 control?
This model supports 4 separate zones, selected with the 1 to 4 buttons at the top of the panel. That makes it useful for commercial or multi-area spaces where different RGBW lighting groups need to be managed independently.
Does the UX8 support scene recall and dynamic lighting modes?
Yes, the UX8 includes scene storage with buttons I to IV for saved lighting looks. It also includes a mode function with 11 different modes, along with speed control for adjusting how those modes run.
What control methods does the Ltech UX8 support?
The product supports RF and DMX control. That combination makes it relevant for buyers looking for a touch panel that fits wireless control environments while also aligning with DMX-based lighting applications.
Can the UX8 adjust more than overall brightness?
Yes, the UX8 provides brightness control by zone and also supports separate brightness control per color. This gives more precise control over RGBW lighting scenes than a basic single-level dimming interface.
Is the Ltech UX8 suitable for demanding indoor environments?
It is rated for operation from -30°C to 55°C, which indicates a broad working temperature range for challenging environments. Buyers should still confirm that the overall project conditions match the product's operating limits.
What warranty comes with the Ltech UX8?
The listed warranty period for this model is 5 years. That can be an important consideration for commercial buyers evaluating long-term reliability and support expectations.
