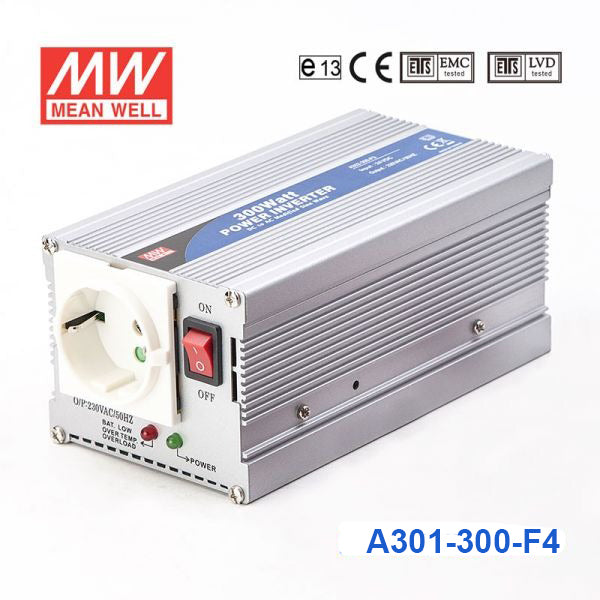

Mean Well A301-300-F4 Modified Sine Wave 300W 230V DC-AC Power Inverter

The A301-300-F4 is a 300W DC-AC power inverter designed to convert DC power into AC power for suitable equipment. It is typically used in mobile, vehicle, backup, and off-grid applications where a compact 230V AC inverter is needed.

This model provides a modified sine wave AC output. That makes it suitable for many general-purpose loads, but buyers who specifically need pure sine wave output should compare carefully before selecting this inverter.

The A301-300-F4 is rated for 300W output power. When selecting loads, the total demand should stay within that rating so the inverter can operate as intended and avoid overload protection events.

This model includes protection for input reverse polarity, battery low shutdown, over voltage, overload, over temperature, and output short circuit. These built-in protections help safeguard both the inverter and the connected system during abnormal operating conditions.

Its stated working temperature is 0 to 30°C at 100% load, and up to 40°C at 50% load. This means ambient temperature and load level both matter, especially in enclosed or heat-prone environments.

The product description lists 12V or 24V DC input options for the A301 series, and this model is housed in a compact 165 x 88 x 74 mm enclosure. The listed unit weight is 1.1 kg, which can help when planning for space and handling.

The product listing shows approvals including E13, EAC, CE, and UKCA, with safety and EMC references also noted in the specification table. Mean Well lists this model with a 1-year warranty.
