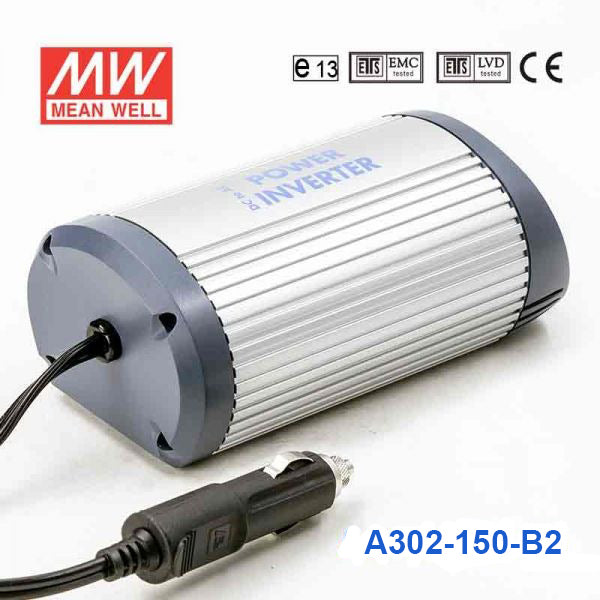

Mean Well A302-150-B2 Modified Sine Wave 150W 110V DC-AC Power Inverter

modified sine wavesuitable for resistive loadlow cost

SKU A302-150-B2

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

A302-150-B2 is the model of this series: rated power 150W, typical efficiency 82%.

Features

12V or 24V DC input
Power ON-OFF switch
Input voltage range: -15% ~ +25%
Output voltage regulation:±10%
Protections: Bat. Low alarm/Bat. Low shutdown/Over voltage/ Over temp./Output short/Input polarity reverse/Over load.
Output waveform: Modified sine wave
Topology: Microprocessor
Approvals: E13 / EAC / CE / UKCA
1 year warranty

Specifications

A302-150-B2Specifications from the official datasheet (2022-04-15 edition)

ORDER NO.

SAFETY MODEL NO.: A302-150
AC VOLTAGE: 110V
RATED POWER: 150W
SURGE POWER: 300W

OUTPUT

WAVEFORM: Modified sine wave
FREQUENCY: 60Hz±1%
AC REGULATION: ±10%
STANDARD RECEPTACLES: TYPE-2* 1ea
LED INDICATOR: Green LED for power on

INPUT

DC CURRENT: 10A
NO LOAD CURRENT DRAW: 0.2A
DC VOLTAGE: 24V
VOLTAGE RANGE: 21 ~ 30VDC
EFFICIENCY (Typ.): 82%
DC CONNECTOR: 700mm Cigarette plug*1ea
FUSE: 10A* 1ea

PROTECTION

BAT. LOW ALARM: 20.5±1V
BAT. LOW SHUTDOWN: 19.5±1V
OVER VOLTAGE: 30~32V
OVER TEMPERATURE: 60±5℃ / 140±9oF
OUTPUT SHORT: Shut-off; Broken
BAT. POLARITY: By fuse open

ENVIRONMENT

WORKING TEMP.: 0 ~ 30℃@100% load, 40℃@50% load
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -30 ~ +70℃ / -22 ~ +158oF, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.05% / ℃ (0 ~ 50℃)

SAFETY & EMC

SAFETY STANDARDS: EAC TP TC 004 approved
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMI RADIATION: Compliance to BS EN/EN55014-1, EAC TP TC 020
EMS IMMUNITY: Compliance to BS EN/EN55014-2, IEC61000-4-2,3, EAC TP TC 020
LVD: Compliance to BS EN/EN62368-1

OTHERS

MTBF: 200Khrs min. MIL-HDBK-217F(25℃)
DIMENSION: 122*73*45mm (L*W*H)
PACKING: 0.5Kg ; 30pcs / 17Kg / CARTON
COOLING: By air convection
APPLICATIONS: Home appliance, Power tools, Office and Portable equipment and Vehicle ...etc.

Technical drawings

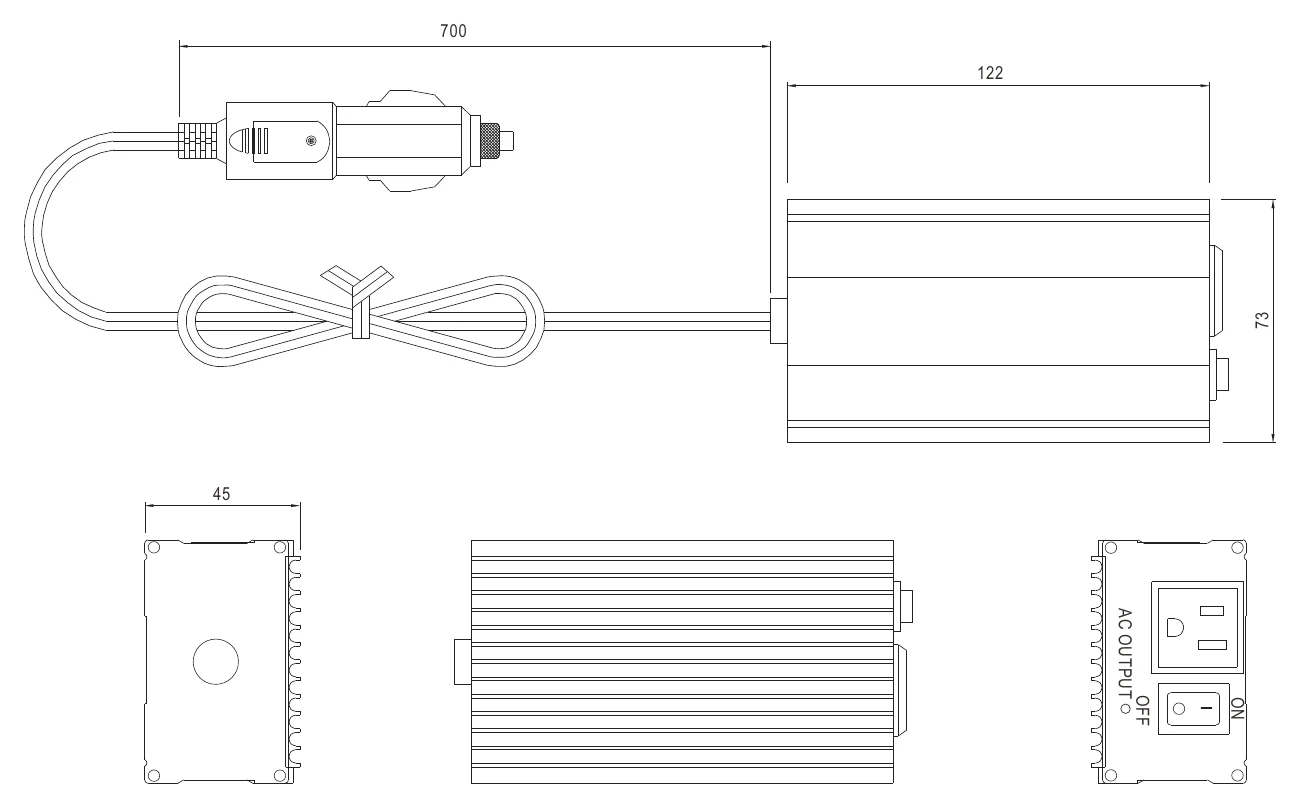

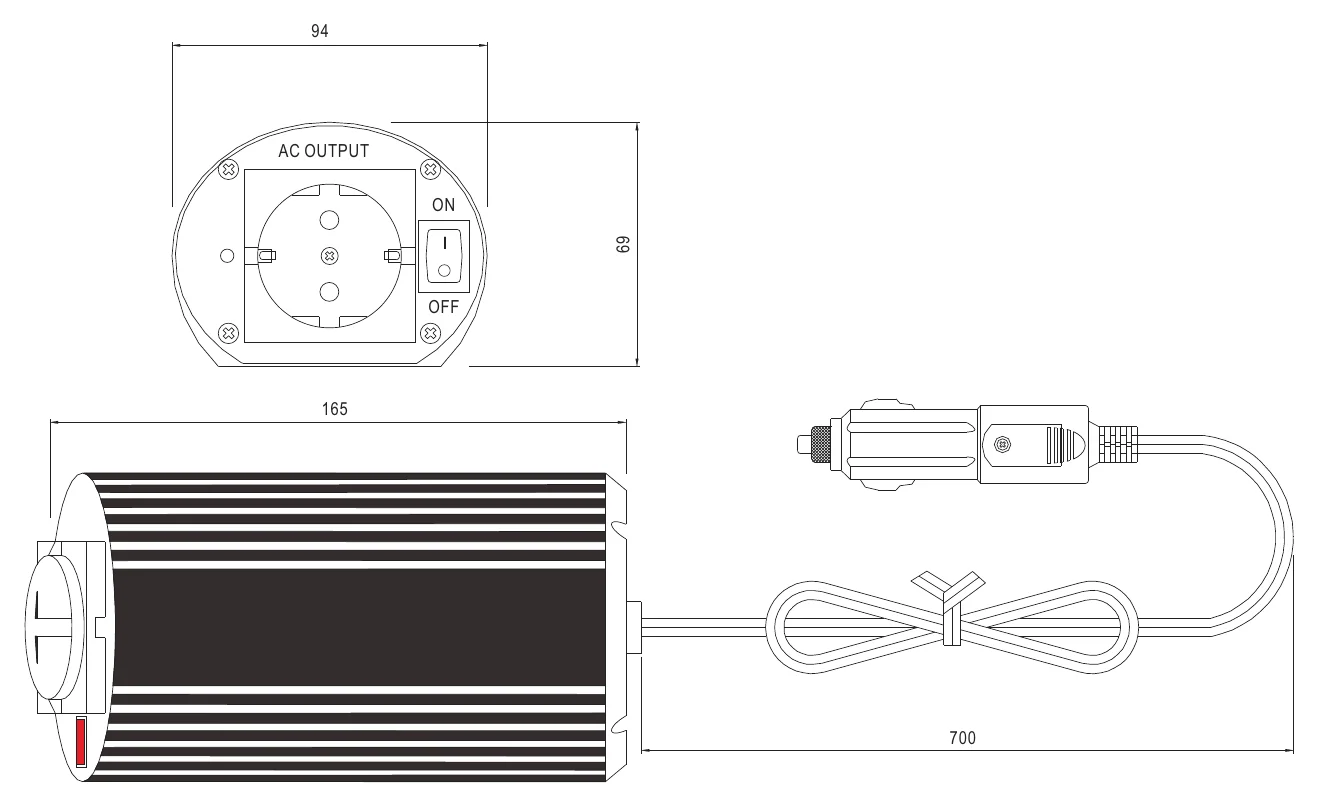

A302-150-B2 Mechanical Specification — Mechanical Specification

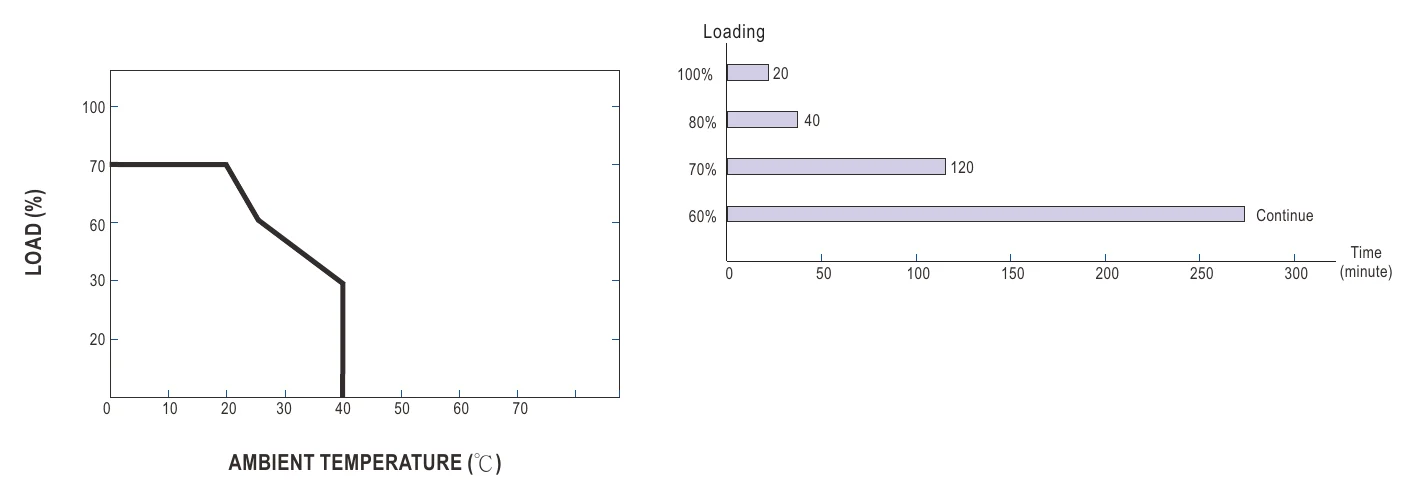

A302-150-B2 Derating Curve — Derating Curve

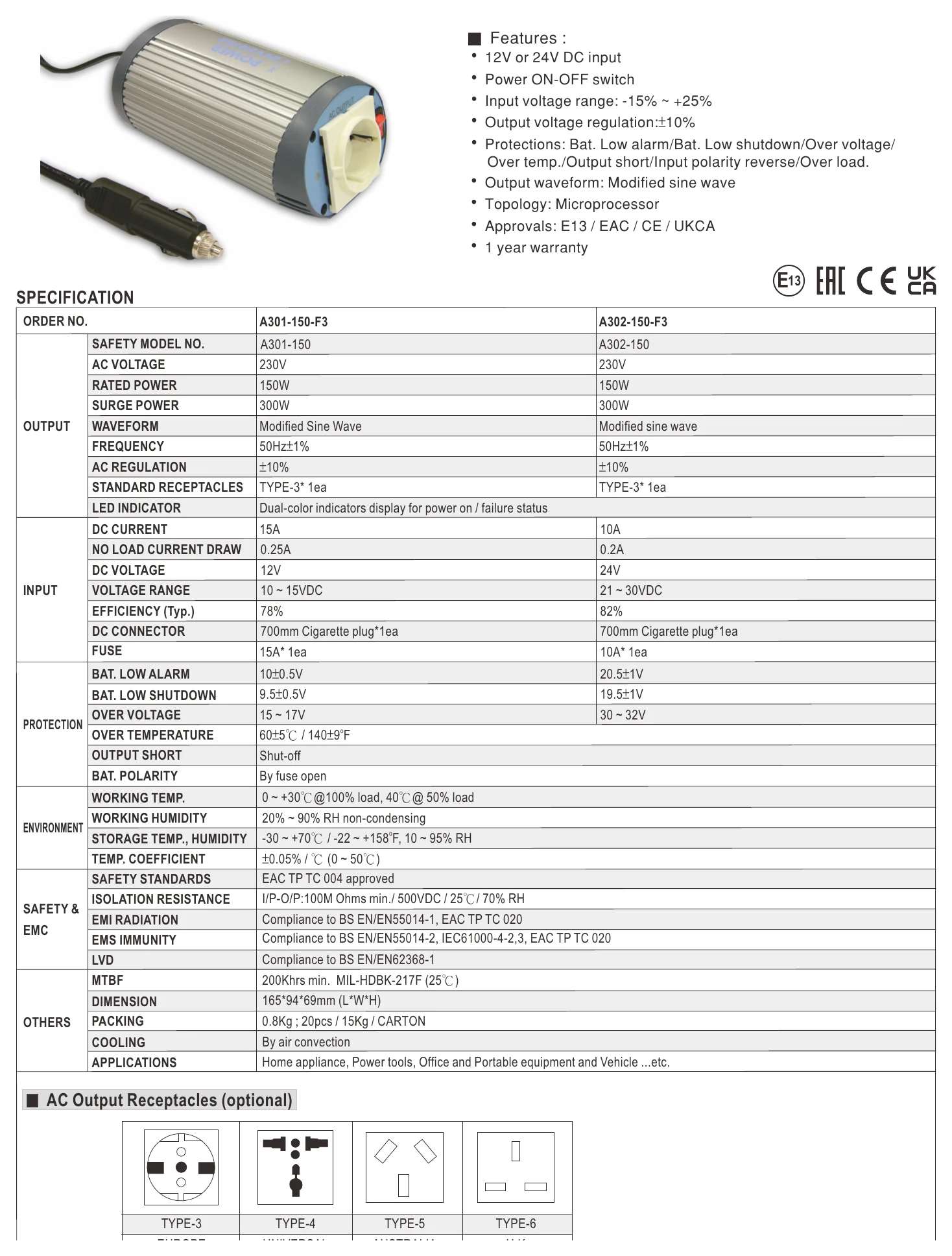

A302-150-B2 Illustration (page 3) — Illustration (page 3)

Typical applications

Home appliance, Power tools, Office and Portable equipment and Vehicle ...etc.

Downloads

Certificates4

Mean Well A-301-150W-E13 Certificate PDF Download

Mean Well A301-302-150-CE-dec Certificate PDF Download

Mean Well A30x-150W-UK-dec Certificate PDF Download

Mean Well A301-302-150-LVD Certificate PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well Inverter Catalog PDF Download
