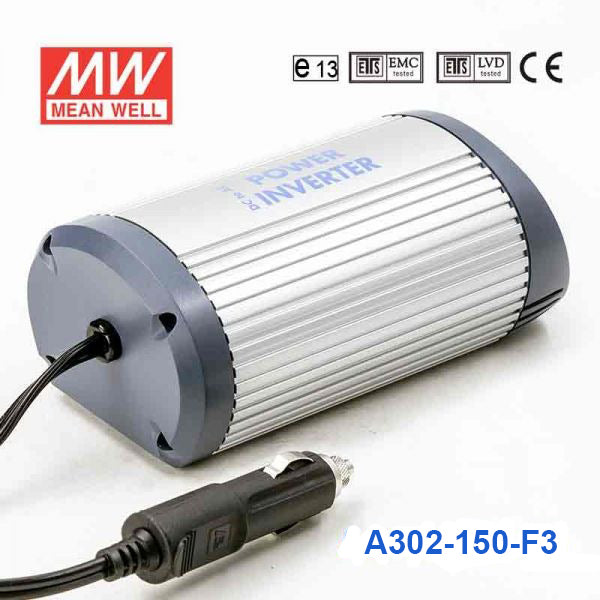

Mean Well A302-150-F3 Modified Sine Wave 150W 230V DC-AC Power Inve...
Please Login for Pricing
Description
Description
The A302-150 is a 150W Mean Well. power converter. and an input range of 10~15VDC.
Key Features
- ✓ Input voltage range: 10~15VDC
- ✓ Protections: Over voltage / Over temperature
- ✓ Safety approvals: ISOLATION RESISTANCE EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesA301/A302 Series
-
Power Rating150 Watt
-
Output Voltage230 Volt
-
Input Voltage21V~30V
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~30°C
-
Warranty1 Year
-
Length12.2 cm
-
Width7.3 cm
-
Height4.5 cm
-
Weight0.5 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well A302-150-F3 used for?
The A302-150-F3 is a 150W DC-AC power inverter designed to convert 12V or 24V DC input into AC power. It is intended for low-power inverter applications where a compact modified sine wave unit is appropriate.
What output waveform does the A302-150-F3 provide?
This model provides a modified sine wave output. That makes it different from pure sine wave inverters and is an important compatibility point when selecting it for sensitive or waveform-dependent equipment.
What are the main electrical specifications of this inverter?
The A302-150-F3 is rated for 150W output power and supports either 12V or 24V DC input. The listed output voltage for this model is 230V AC, and the product description specifies output voltage regulation of plus or minus 10%.
What protections are built into the Mean Well A302-150-F3?
This inverter includes protection for input reverse polarity, battery low shutdown, over voltage, overload, over temperature, and output short conditions. These protection features are intended to help protect both the inverter and the connected load during abnormal operation.
What operating temperature range is supported?
The specified working temperature is 0°C to +30°C at 100% load, with operation up to 40°C at 50% load. The overload temperature point is listed as 60 plus or minus 5°C.
How compact is the A302-150-F3?
This model has dimensions of 122 x 73 x 45 mm and a listed weight of 0.5 kg. Its compact size makes it easier to fit into space-constrained equipment or enclosure designs.
What approvals and warranty come with this inverter?
The product listing cites E13, EAC, CE, and UKCA approvals, and the general specification also notes EAC TP TC 004 approval with EMC references to IEC61000-4-2 and IEC61000-4-3. The listed warranty period for this model is 1 year.
Other A302-150 Models
3 other models| Model | Power | Voltage | Waveform | Frequency | |
|---|---|---|---|---|---|
| Mean Well A302-150-F5 Modified sine wave 150W 230V - DC-AC Inverter | 150W | 230V | Modifined Sine Wave | 50Hz | View |
| Mean Well A302-150-F4 Modified Sine Wave 150W 230V DC-AC Power Inverter | 150W | 230V | Modifined Sine Wave | 60Hz | View |
| Mean Well A302-150-B2 Modified Sine Wave 150W 110V DC-AC Power Inverter | 150W | 110V | Modifined Sine Wave | 60Hz | View |
