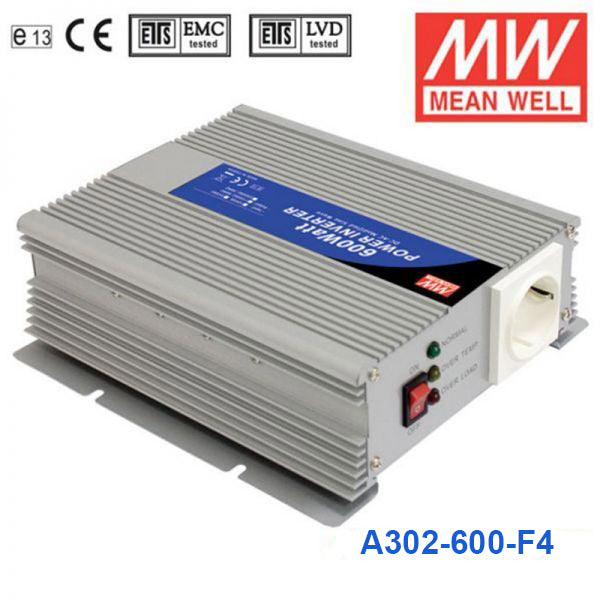

Mean Well A302-600-F4 Modified Sine Wave 600W 230V - DC-AC Power Inverter

The A302-600-F4 is a 600W DC-AC power inverter designed to convert DC power to 230V AC output for general equipment use. It is positioned for buyers who need a compact inverter with modified sine wave output, built-in protections, and standard compliance markings including CE and UKCA.

This model has a modified sine wave output. That makes it different from pure sine wave inverter models, so waveform requirements should be checked carefully when comparing options for sensitive AC loads.

This model is rated at 600W output power and is identified as a 230V DC-AC inverter. The listed operating temperature is 0 to 30°C at full load, the unit weight is 2.1 kg, and the housing size is 210 x 173 x 65 mm.

The A302-600-F4 includes protection for input reverse polarity, battery low shutdown, over voltage, overload, over temperature, and output short circuit. The short-circuit response is listed as shut-off, which helps protect the inverter during fault conditions.

The stated working range is 0 to 30°C at 100% load, and 40°C at 50% load. It also includes cooling fan ON-OFF control and over-temperature protection, but output expectations should still be matched to the published temperature and load limits.

The product features either 12V or 24V DC input, depending on the version supplied, and the listed input voltage range is -15% to +25%. For compliance-focused purchasing, it carries approvals and standards references including E13, EAC, CE, UKCA, and EAC TP TC 004.

This model includes a 1-year warranty. That can be useful for buyers standardizing on approved inverter models for maintenance or replacement planning.
