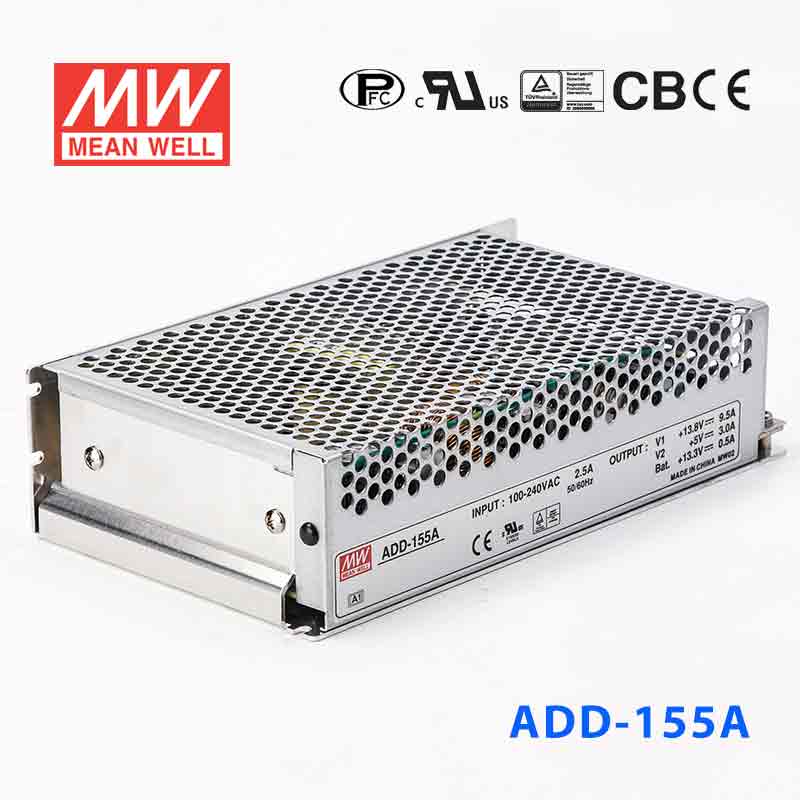

Mean Well ADD-155A Security Power Supply 152.75W 13.8V 5V 9.5A - UP...
Please Login for Pricing
Description
Description
Features
| Universal AC input / Full range |
| Built-in active PFC function |
| Protections: Short circuit/ Overload/ Over voltage |
| Battery low/battery polarity protection |
| Cooling by free air convection |
| 100% full load burn-in test |
| Fixed switching frequency at PFC 67KHz, PWM 134KHz |
| 2 years warranty |
General Specification
| AC input voltage range | 88~264VAC; 124~370VDC |
| AC inrush current | COLD START 23A/115VAC; 45A/230VAC |
| Leakage current | <1mA / 240VAC |
| Overload protection | 105%~135% rated output power |
| Over-voltage protection | 115%~135% rated output voltage |
| Setup, rise, hold up time | 1000ms, 90ms, 24ms |
| Withstand voltage | I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC |
| Working temperature | -10 ~ +60℃ (Refer to "Derating Curve") |
| Vibration | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, and Z axes |
| Safety standards | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved |
| EMC standards | EN55032 class B, EN61000-3-2,3 |
| Case No. | 906 |
| Dimension (LxWxH) | 199x110x50 mm |
| Packing | 16pcs / 16kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesADD Series
-
Power Rating152.75 Watt
-
Output Voltage13.8 Volt
-
Rated Current9.5 Ampere
-
Input Voltage88V~264V
-
Standards MetCB,CE,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length19.9 cm
-
Width11 cm
-
Height5 cm
-
Weight1 kg
