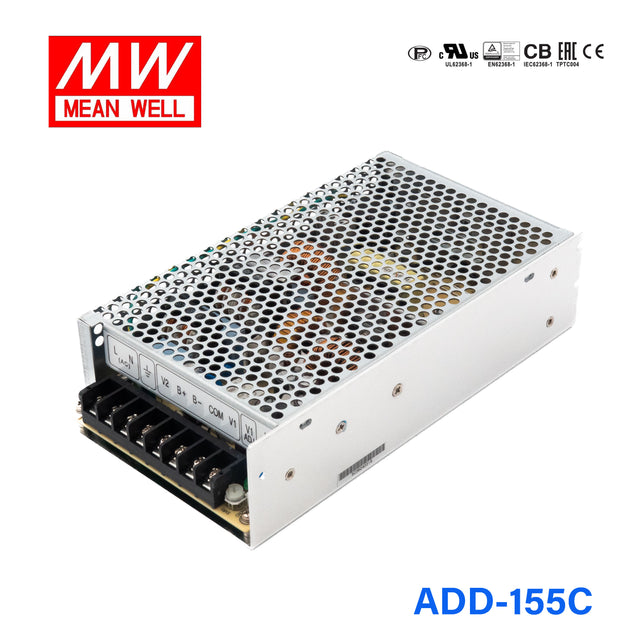

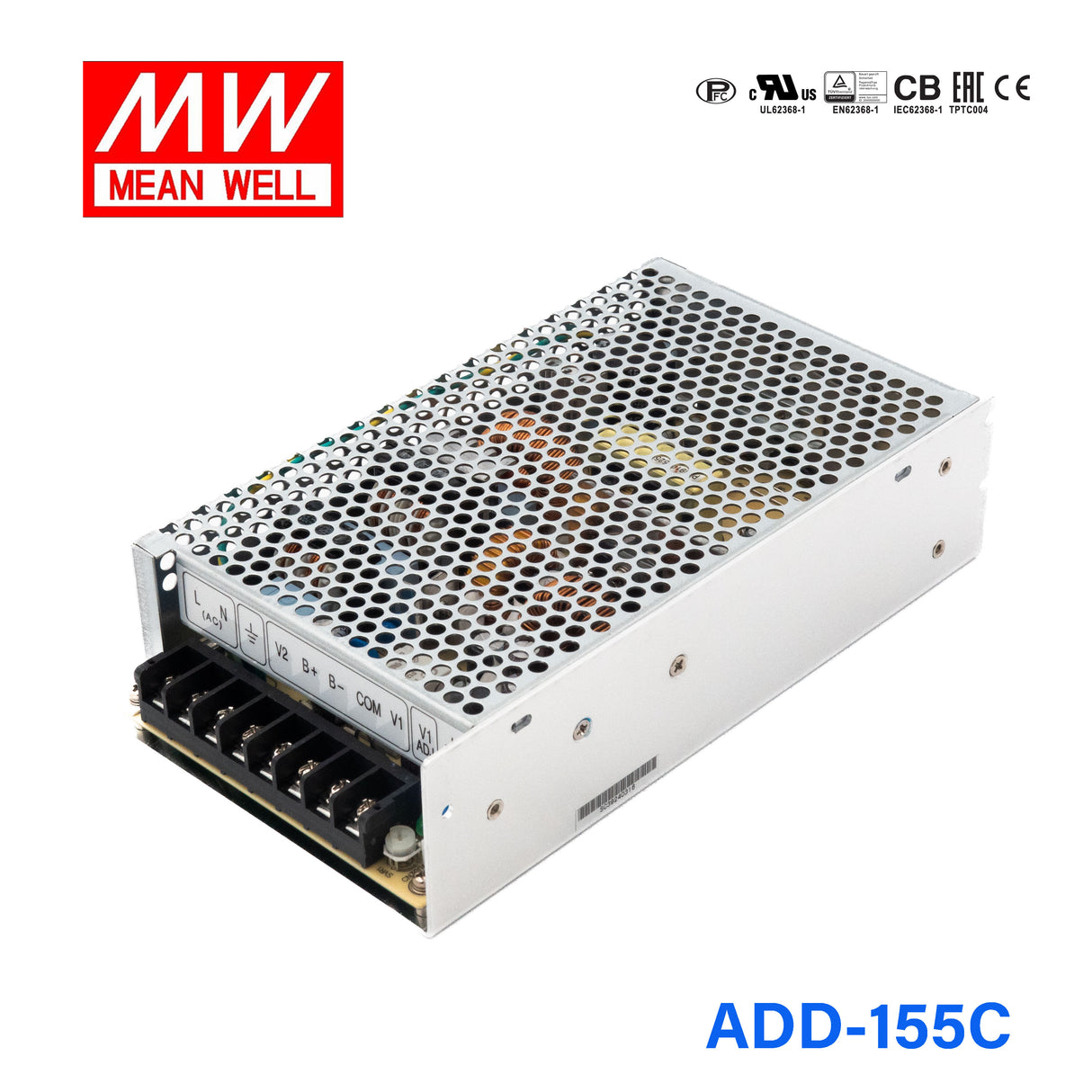

Mean Well ADD-155C Security Power Supply 149.9W 54V 5V 2.3A - UPS, ...
Please Login for Pricing
Description
Description
The ADD is a 155W Mean Well. power converter. and an input range of 88~264VAC.
Key Features
- ✓ Input voltage range: 88~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: EN61000-3-2,-3
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesADD Series
-
Power Rating149.9 Watt
-
Output Voltage54 Volt
-
Rated Current2.3 Ampere
-
Input Voltage88V~264V
-
Standards MetCB,CE,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length19.9 cm
-
Width11 cm
-
Height5 cm
-
Weight1 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What types of systems is the ADD-155C designed to power?
The Mean Well ADD-155C is designed for higher-voltage security and backup-power systems that need a 54V main DC output and a dual-output architecture. With 149.9W of rated power and 2.3A on the main 54V output, it is a fit for systems that need UPS-style support on a 54V rail while also benefiting from an auxiliary low-voltage output.
Can the ADD-155C be used in battery-backed DC applications?
Yes. The ADD-155C includes UPS function in the product positioning, so it is intended for battery-backed DC system designs where continuity of power matters. The main connected load should stay within the supply's 54V, 2.3A, and 149.9W rating.
Will the ADD-155C operate from standard AC mains supplies?
Yes. The product data lists an AC input range of 88-264VAC, so the ADD-155C can operate from common 120V and 240V AC mains systems that fall within that range. That makes it easier to deploy across multiple regions or facility standards.
Is the ADD-155C suitable for exposed outdoor use?
The current product data does not list an IP rating for waterproof or outdoor exposure, so the ADD-155C should be installed indoors or inside a suitable protective enclosure. Its listed working temperature is -10°C to +60°C, but the surrounding installation still needs proper environmental protection.
How does the ADD-155C compare with other ADD series options?
The ADD-155C delivers 149.9W with a 54V main output at 2.3A in a dual-output format. The ADD-155B offers a 27.6V main output at 4.5A with similar wattage, while the ADD-55B is a smaller 55.12W option at 27.6V and 1.3A. The main difference is the output voltage class and available current for the primary load.
