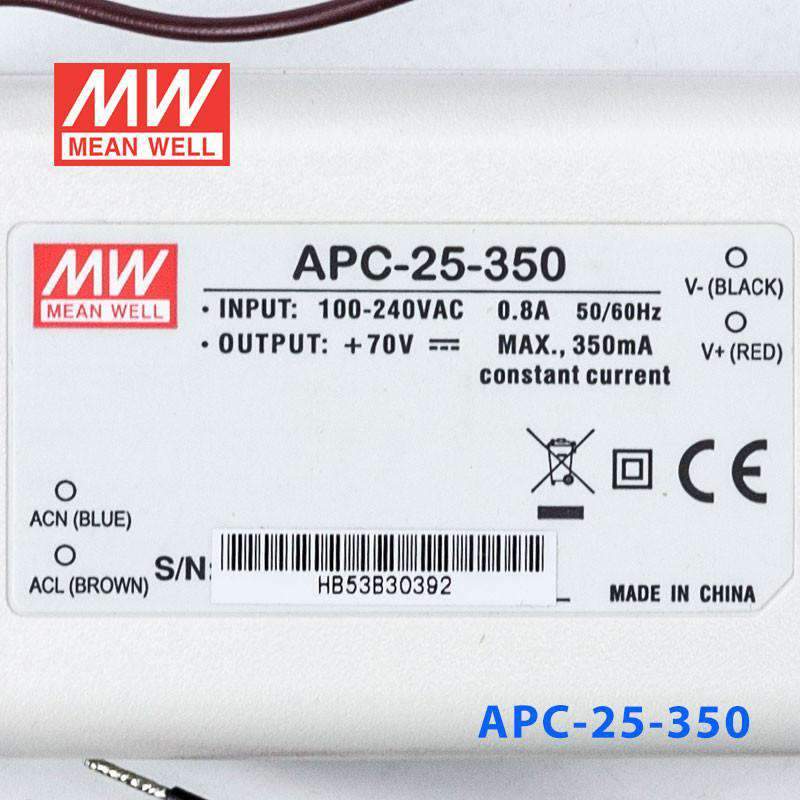

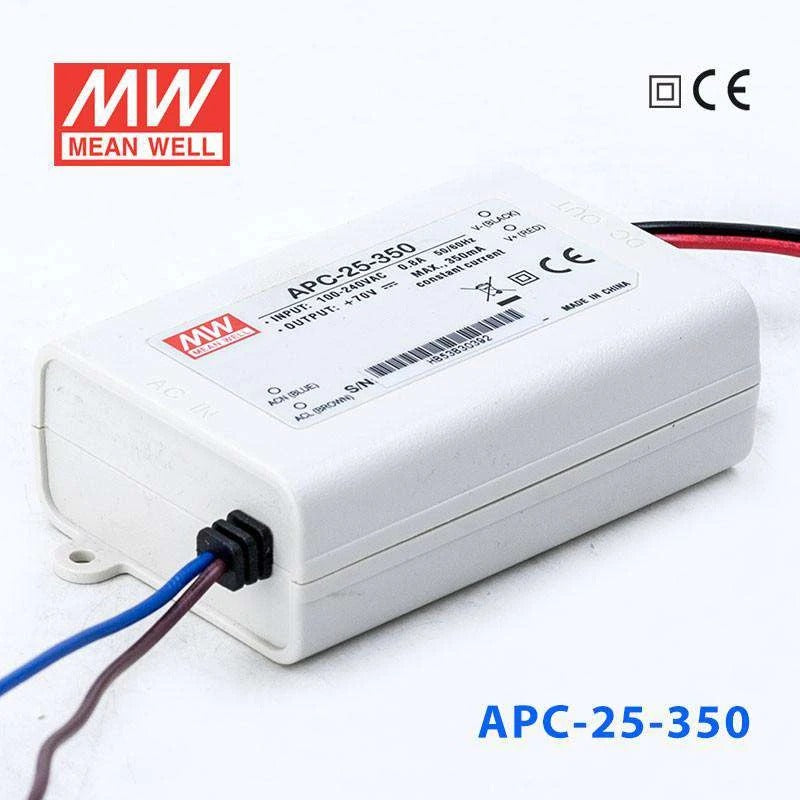

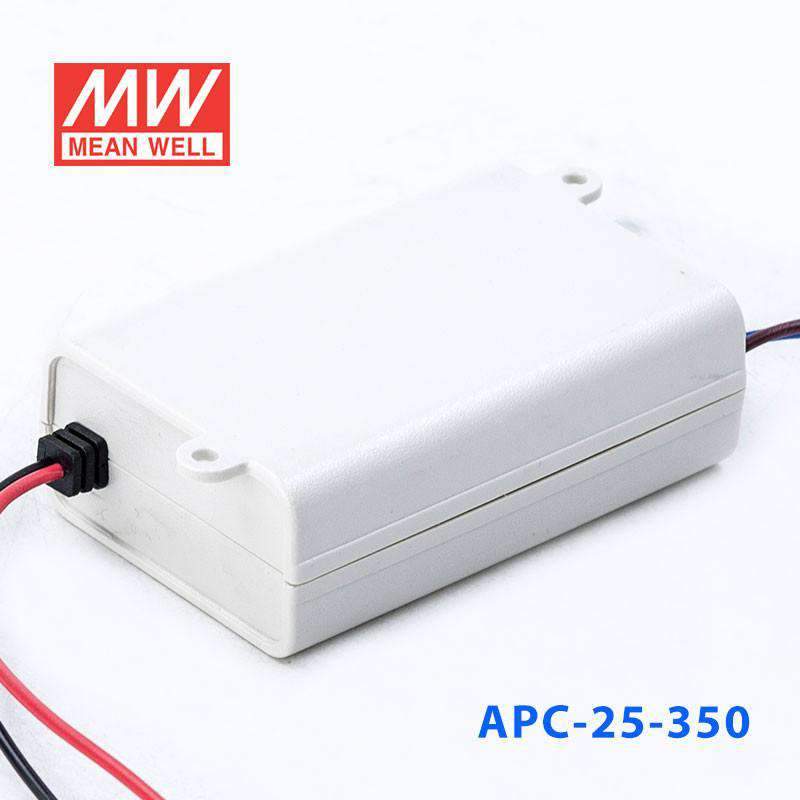

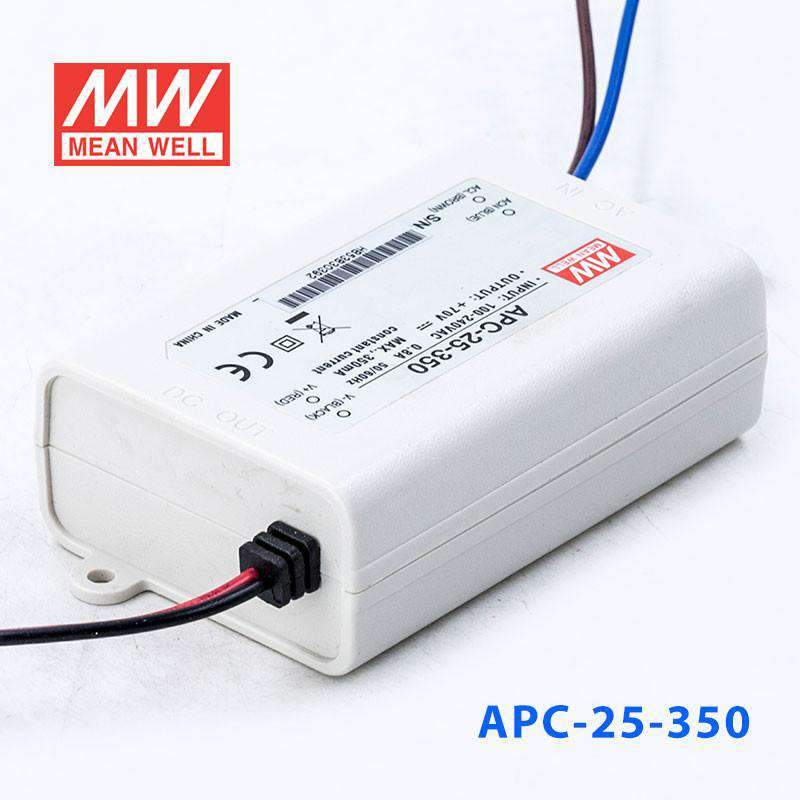

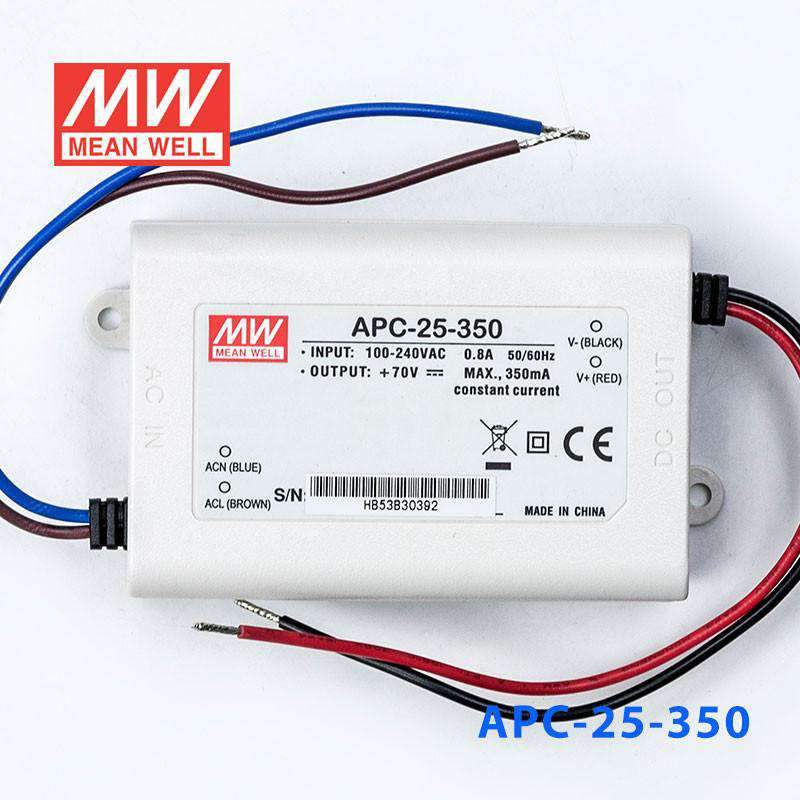

Mean Well APC-25-350 Power Supply 25W 350mA
Please Login for Pricing
Description
Description
The APC-25 is a 25W Mean Well. power converter. and an input range of 25~70V.
Key Features
- ✓ Input voltage range: 25~70V
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~70℃
- ✓ Protections: Over voltage
- ✓ Safety approvals: UL8750 (except for APC-25-350), CSA-C22.2 No. 250.0-13 (only for APC-25-700&1050), IP42
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesAPC Series
-
Power Rating24.5 Watt
-
Output Voltage70 Volt
-
Rated Current0.35 Ampere
-
Input Voltage90V~264V
-
Standards MetBSMI,CE,cUL,EAC
-
Operation ModeConstant Current
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length8.4 cm
-
Width5.7 cm
-
Height2.95 cm
-
Weight0.13 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the APC-25-350 typically used for?
The Mean Well APC-25-350 is typically used for constant-current LED lighting and moving sign applications that need a 350mA drive current with more output headroom than smaller APC models. With 24.5W rated power, it is suited to 350mA LED loads that need higher voltage or a larger output range.
Is the APC-25-350 a good fit for 350mA LED loads that need more capacity than the APC-16-350?
Yes. Both models are 350mA constant-current drivers, but the APC-25-350 provides 24.5W compared with 16.8W on the APC-16-350. That makes it a better fit when the LED load still needs 350mA but requires more output capability.
Can the APC-25-350 be used for indoor sign and LED lighting projects?
Yes. The APC-25-350 is intended for LED lighting and moving sign applications, so indoor sign lighting and other constant-current LED assemblies are typical uses when the connected load is designed for 350mA operation and fits within the driver's electrical rating.
Will the APC-25-350 run on common AC mains supplies?
Yes. The specified input range is 90-264VAC, so the APC-25-350 can operate from common 120V and 240V AC mains systems within that range. That makes it suitable for general-purpose indoor lighting installations.
Is the APC-25-350 suitable for exposed outdoor installation?
No. The APC-25-350 has an IP30 design, so it should generally be used indoors or inside a protective enclosure rather than in direct outdoor exposure. Its listed working temperature is -30°C to +70°C, but ingress protection remains limited.
How does the APC-25-350 compare with APC-16-350 and APC-25-500?
The APC-25-350 provides 24.5W at 350mA, which gives it more output capacity than the APC-16-350 at 16.8W and 350mA. Compared with the APC-25-500, the main difference is current level: the APC-25-350 is for 350mA LED loads, while the APC-25-500 is for 500mA loads. Matching the driver current to the LED requirement is the key selection rule.
Other APC-25 Models
3 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well APC-25-500 Power Supply 25W 500mA | 25.2W | 50V | 0.5A | Indoor | View |
| Mean Well APC-25-1050 Power Supply 25W 1050mA | 25.2W | 24V | 1.05A | Indoor | View |
| Mean Well APC-25-700 Power Supply 25W 700mA | 25.2W | 36V | 0.7A | Indoor | View |
