Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

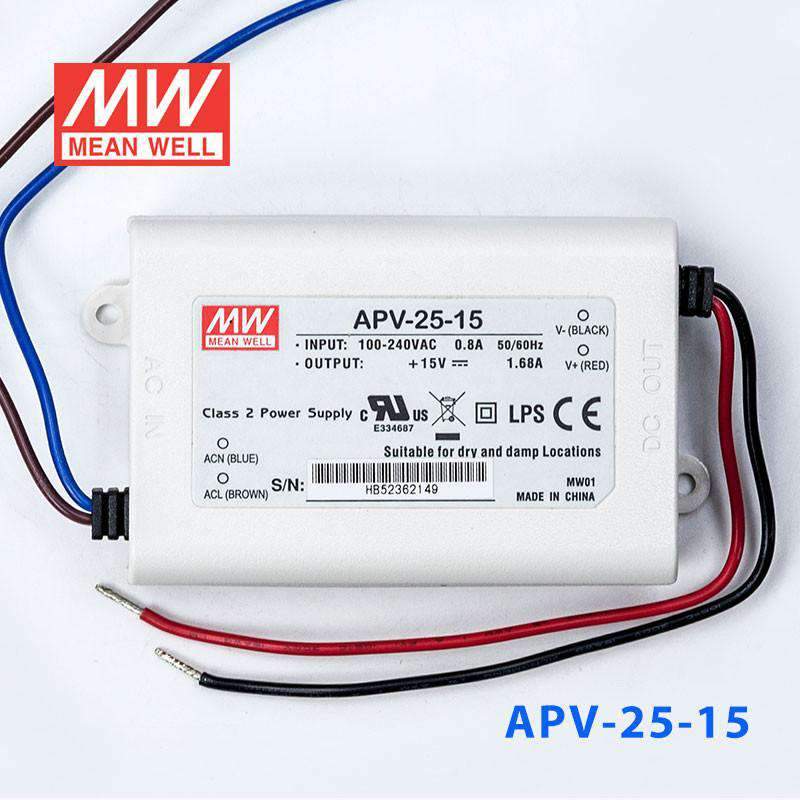

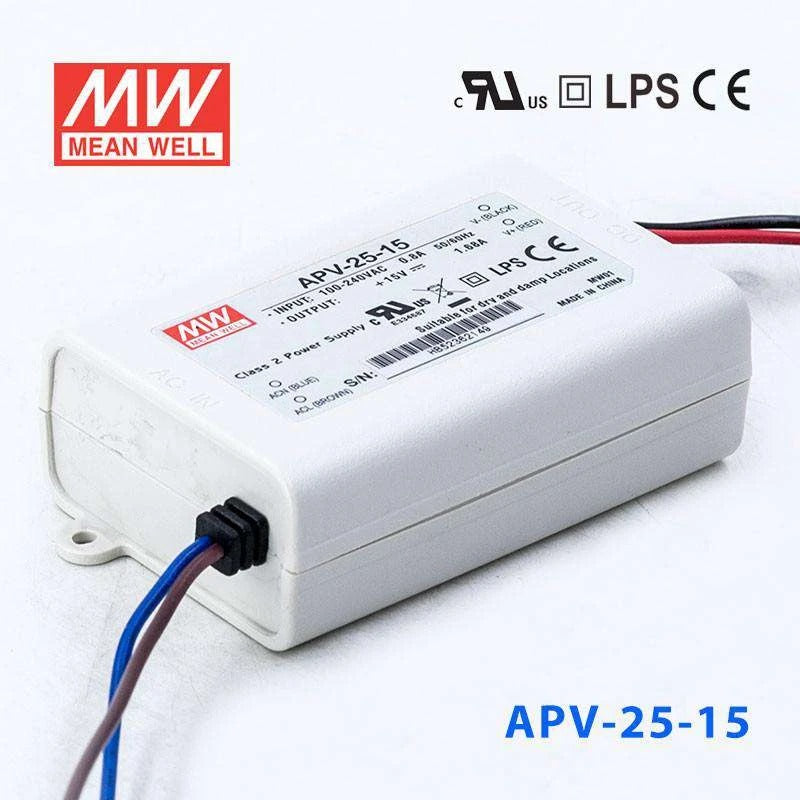

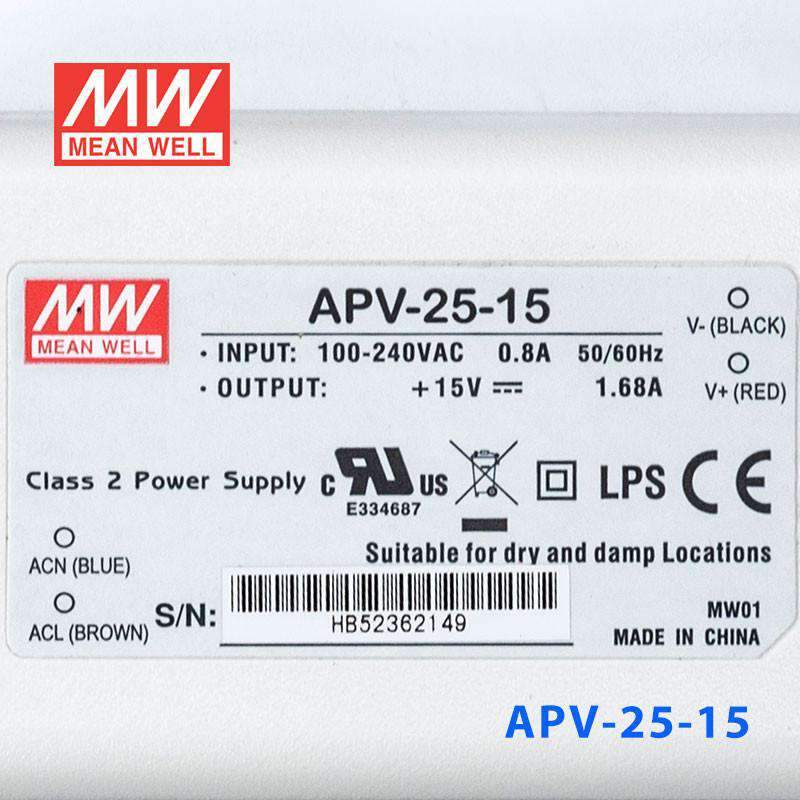

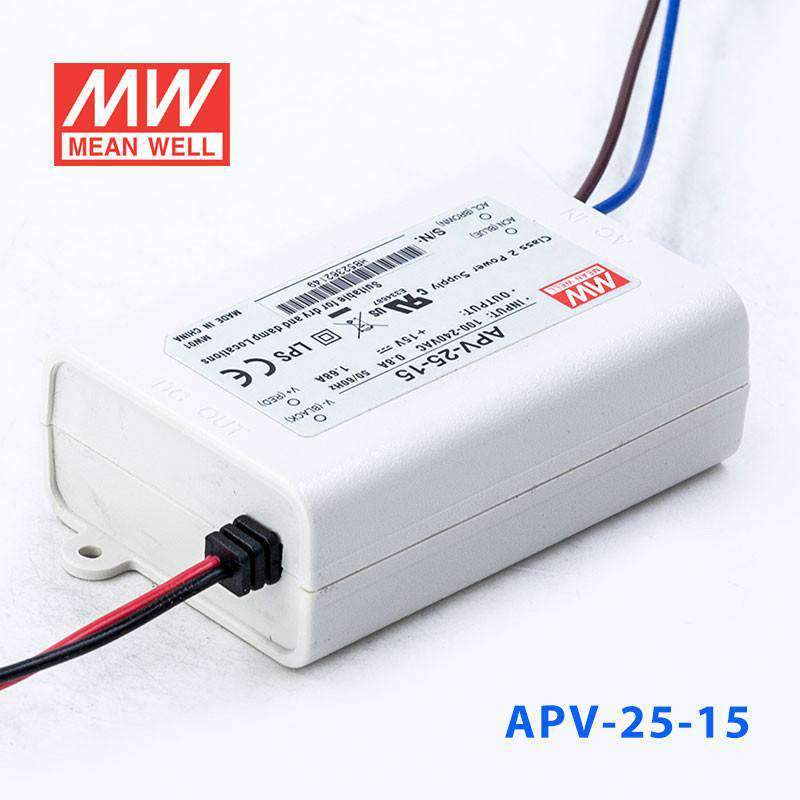

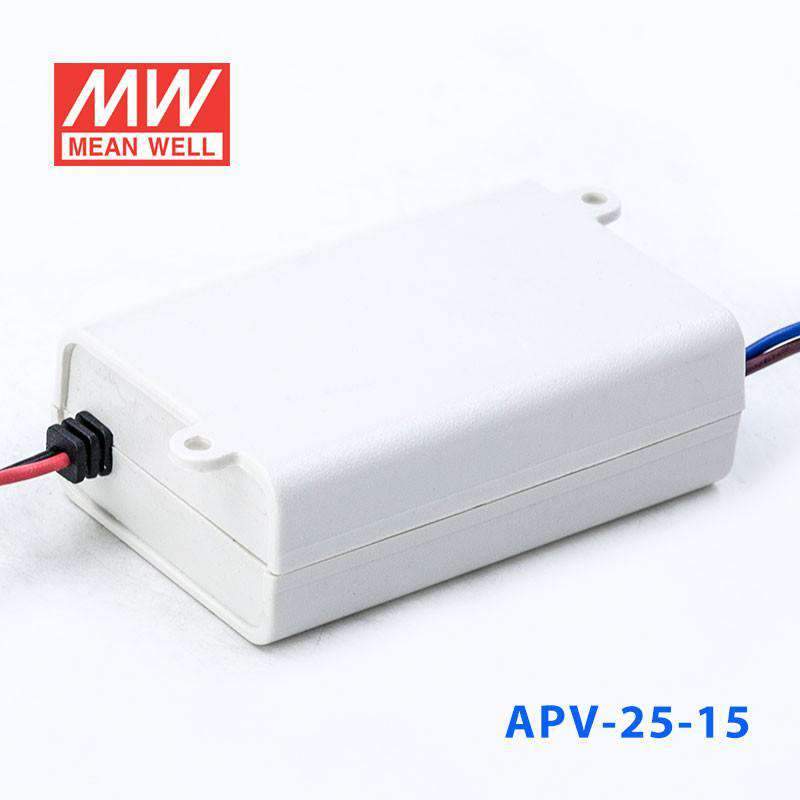

Mean Well APV-25-15 Power Supply 25W 15V

Class II design, low cost, small and compact, IP42

SKU:

APV-25-15

Model

12W 15V

SKU: APV-12-15

16W 15V

SKU: APV-16-15

25W 15V

SKU: APV-25-15

35W 15V

SKU: APV-35-15

Product variants

Please for Pricing

Notify me when it's back in stock

Description

The APV-25 is a 25W Mean Well. power converter. and an input range of 90~264VAC.

Key Features

✓ Input voltage range: 90~264VAC
✓ 3KVAC reinforced I/O isolation
✓ Protections: Over voltage
✓ Safety approvals: UL8750 , CSA-C22.2 No. 250.0-13, IP42
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

APV Series
Power Rating

25.2 Watt
Output Voltage

15 Volt
Rated Current

1.68 Ampere
Input Voltage

90V~264V
Standards Met

CE,EAC,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

2 Year
Length

8.4 cm
Width

5.7 cm
Height

2.95 cm
Weight

0.13 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What LED lighting applications is the APV-25-15 suited to at 15V, 25.2W?

The APV-25-15 outputs 15V at 1.68A for a maximum of 25.2W. It suits longer 15V LED strip runs in retail display lighting, 15V LED module arrays in signage back-boxes, and 15V LED fixtures where a moderate output level is needed from a compact driver.

How does the APV-25-15 compare to the APV-16-15 and APV-35-15?

All three output 15V from 90–264VAC. The APV-16-15 provides 15W at 1A in a 77.0 × 40.0 × 29.0 mm housing. The APV-25-15 provides 25.2W at 1.68A in a 84.0 × 57.0 × 29.5 mm enclosure. The APV-35-15 provides 36W at 2.4A in the same 84.0 × 57.0 × 29.5 mm housing. Choose based on wattage required.

How long a 15V LED strip can the APV-25-15 support?

The APV-25-15 delivers 25.2W at 15V. At a strip rated 5 W/m, that supports approximately 5 m. Divide 25.2W by your strip's rated power per meter to find your specific maximum, and check your strip's rated power per meter before specifying.

Is the APV-25-15 protected against moisture in commercial installations?

The APV-25-15 carries IP42 ingress protection, covering solid particles larger than 1 mm and dripping water. It is appropriate for indoor commercial installations in clean, dry to lightly damp locations. For wet or outdoor LED signage, a driver with IP65 or higher protection is needed.

Model	Power	Voltage	Current	IP Rating
Mean Well APV-25-24 Power Supply 25W 24V	25.2W	24V	1.05A	Indoor	View
Mean Well APV-25-12 Power Supply 25W 12V	25.2W	12V	2.1A	Indoor	View
Mean Well APV-25-5 Power Supply 16W 5V	17.5W	5V	3.5A	Indoor	View
Mean Well APV-25-36 Power Supply 25W 36V	25.2W	36V	0.7A	Indoor	View
