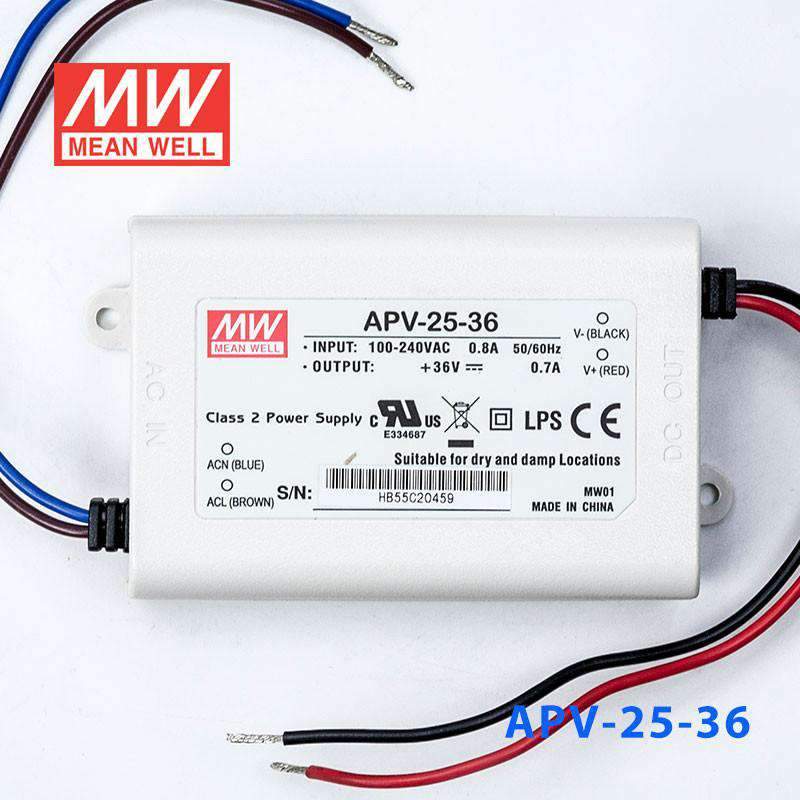

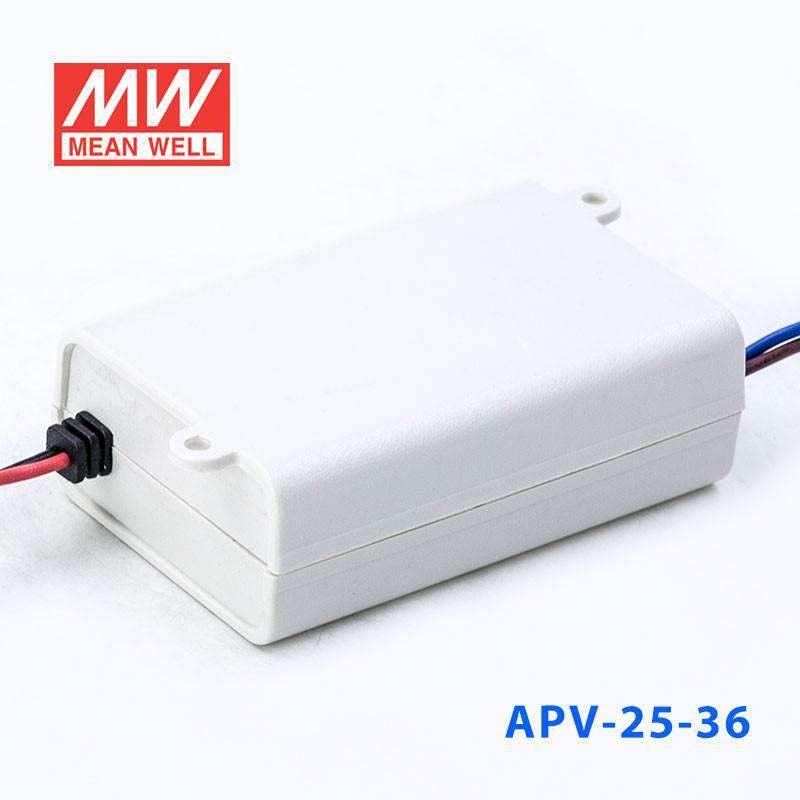

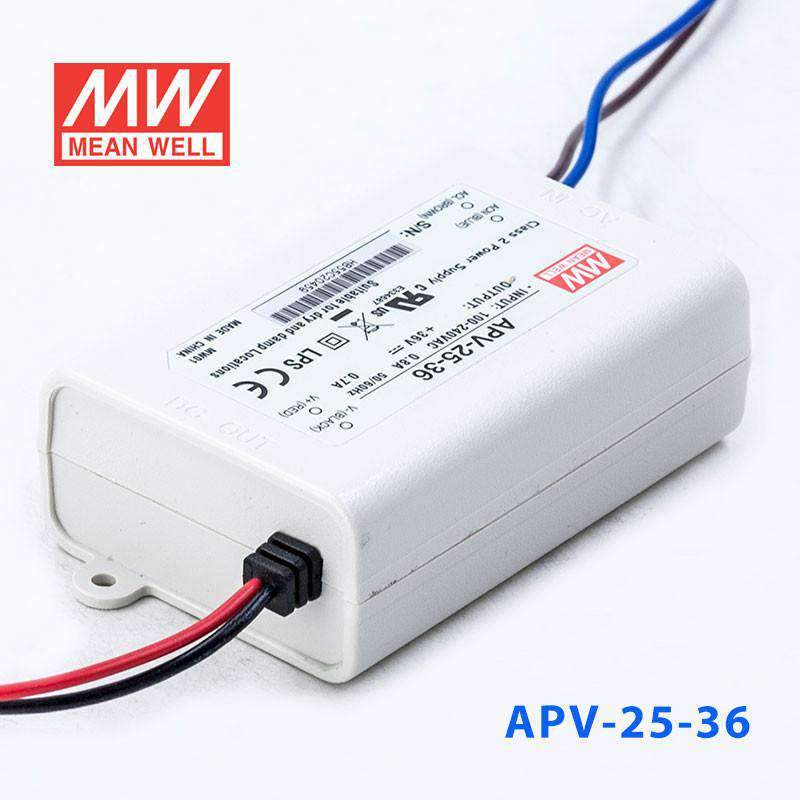

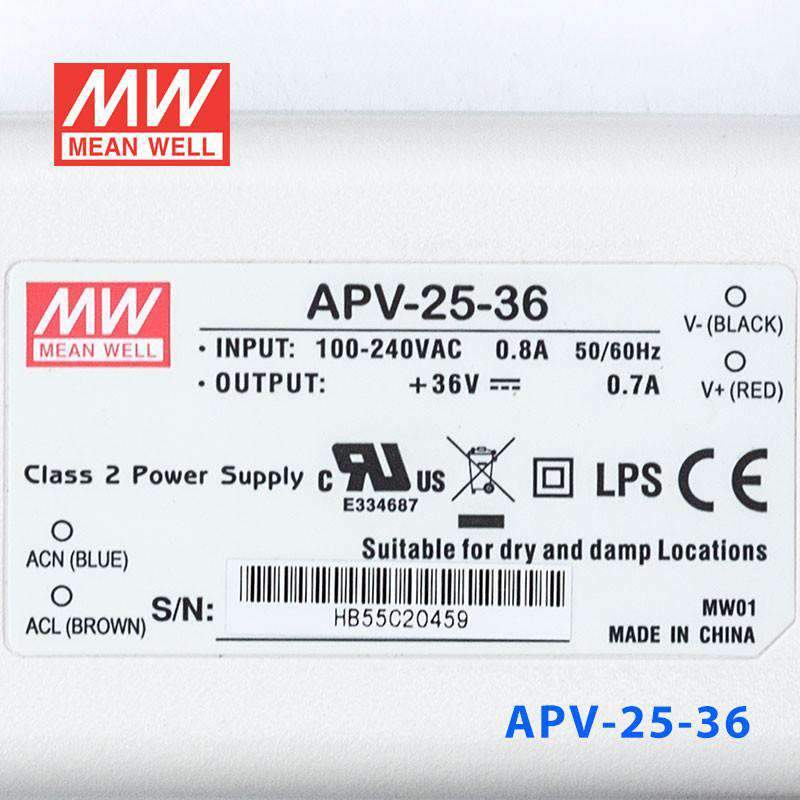

Mean Well APV-25-36 Power Supply 25W 36V

Class II design, low cost, small and compact, IP42

SKU:

APV-25-36

Model

25W 36V

SKU: APV-25-36

35W 36V

SKU: APV-35-36

Product variants

Please for Pricing

Notify me when it's back in stock

Description

The APV-25 is a 25W Mean Well. power converter. and an input range of 90~264VAC.

Key Features

✓ Input voltage range: 90~264VAC
✓ 3KVAC reinforced I/O isolation
✓ Protections: Over voltage
✓ Safety approvals: UL8750 , CSA-C22.2 No. 250.0-13, IP42
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

APV Series
Power Rating

25.2 Watt
Output Voltage

36 Volt
Rated Current

0.7 Ampere
Input Voltage

90V~264V
Standards Met

CE,EAC,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

2 Year
Length

8.4 cm
Width

5.7 cm
Height

2.95 cm
Weight

0.13 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What LED lighting systems operate at 36V and would use the APV-25-36?

The APV-25-36 outputs 36V at 0.7A for a maximum of 25.2W. It suits 36V LED strip products, some LED module arrays designed for 36V nominal supply, and specialty LED signage components rated at 36V. Always verify your LED product's nominal voltage is 36V before selecting this driver.

How does the APV-25-36 differ from the APV-25-24 and APV-25-12 in the same wattage class?

All three APV-25 variants provide approximately 25.2W from the same 84.0 × 57.0 × 29.5 mm housing and 90–264VAC input. The APV-25-12 outputs 12V at 2.1A; the APV-25-24 outputs 24V at 1.05A; the APV-25-36 outputs 36V at 0.7A. The output voltage determines which load voltage they match — wattage and form factor are identical.

How much 36V LED strip can the APV-25-36 support?

The APV-25-36 delivers 25.2W at 36V. At a 36V strip rated 7.2 W/m, the maximum length is approximately 3.5 m. Divide 25.2W by your strip's rated power per meter to calculate your specific maximum, and check your strip's rated power per meter before purchasing.

Is the APV-25-36 suitable for outdoor LED signage?

The APV-25-36 carries an IP42 rating, which protects against solid objects larger than 1 mm and light dripping water only. It is not rated for outdoor, rain, or splash environments. For outdoor 36V LED signage, the driver must be installed in a sealed IP65 or higher rated enclosure, or a driver with higher native IP protection must be selected.

Model	Power	Voltage	Current	IP Rating

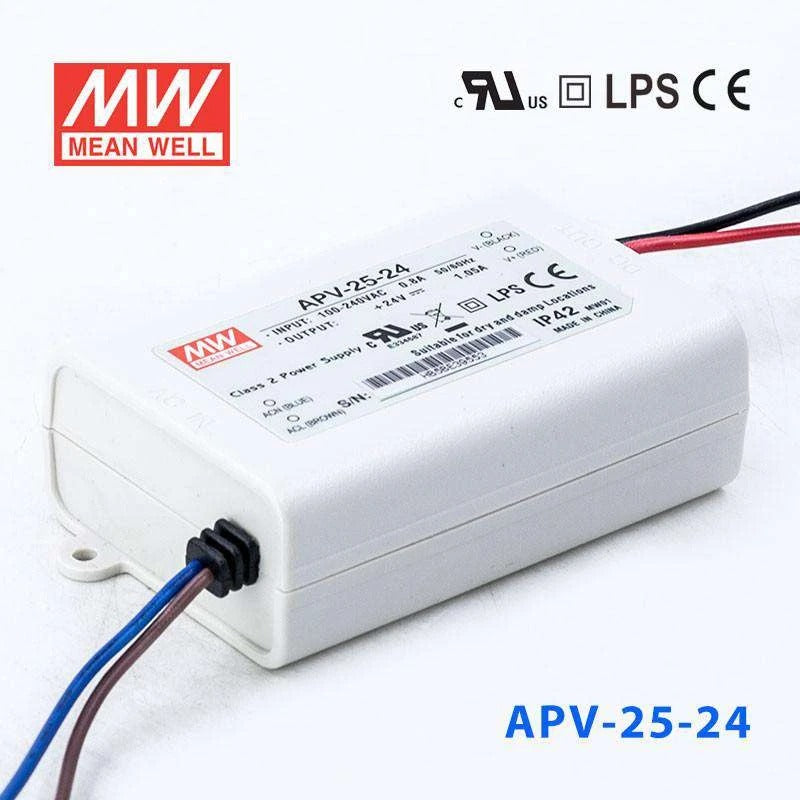

Mean Well APV-25-24 Power Supply 25W 24V	25.2W	24V	1.05A	Indoor	View
Mean Well APV-25-12 Power Supply 25W 12V	25.2W	12V	2.1A	Indoor	View
Mean Well APV-25-5 Power Supply 16W 5V	17.5W	5V	3.5A	Indoor	View
Mean Well APV-25-15 Power Supply 25W 15V	25.2W	15V	1.68A	Indoor	View
