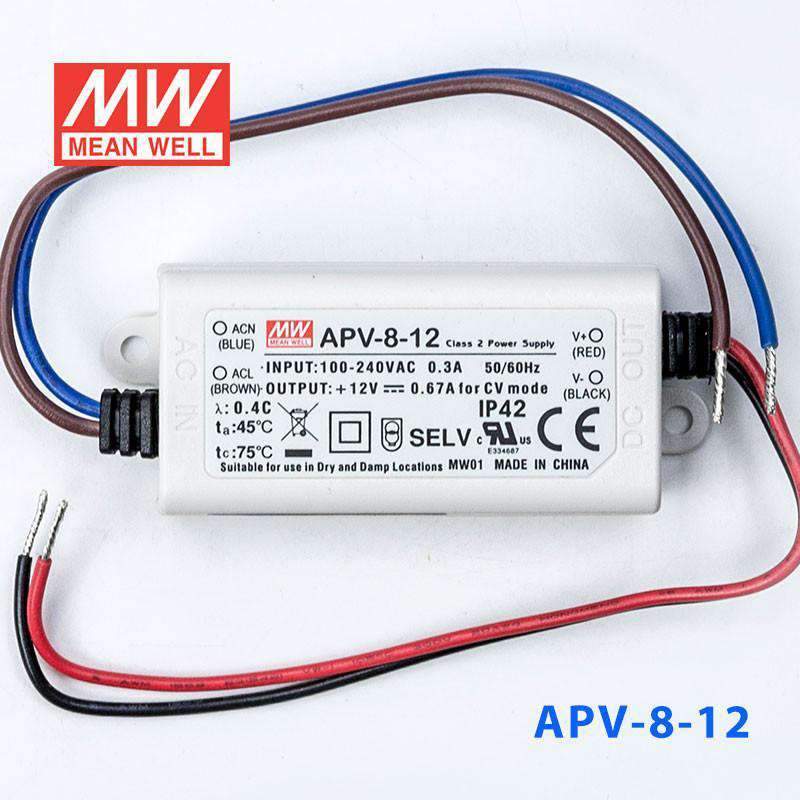

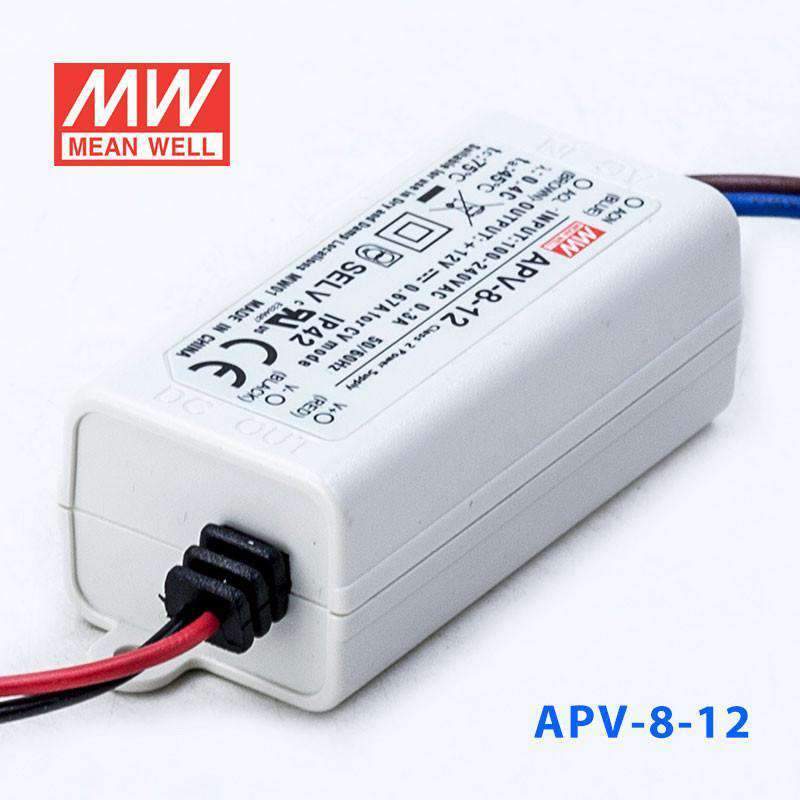

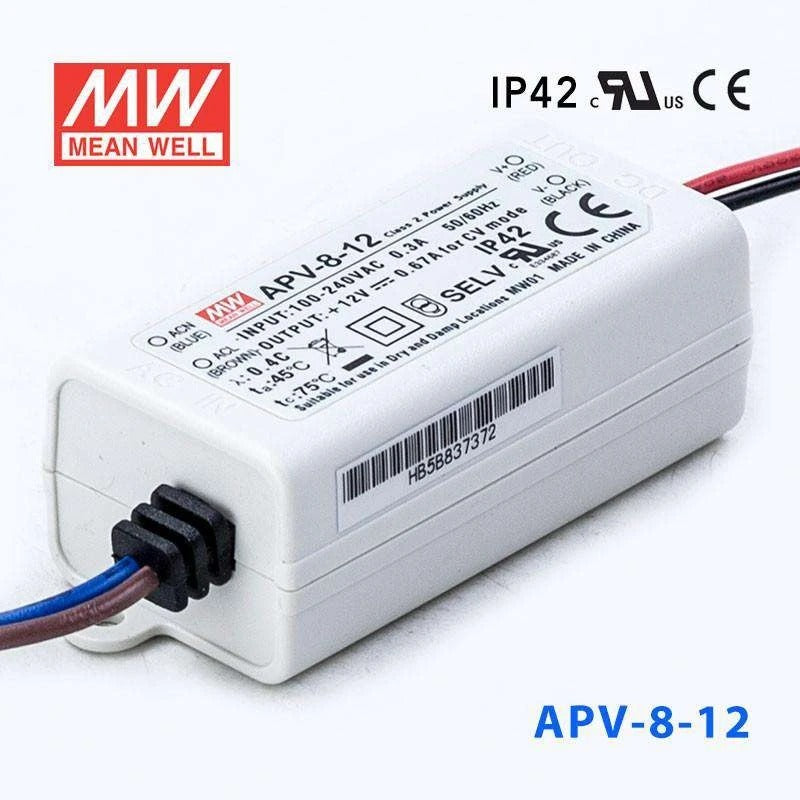

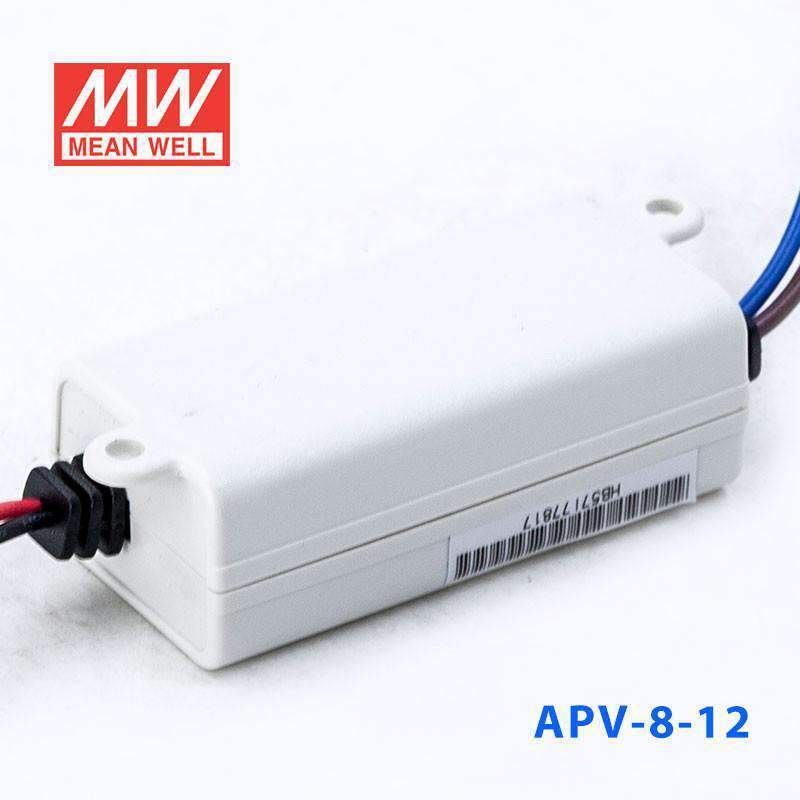

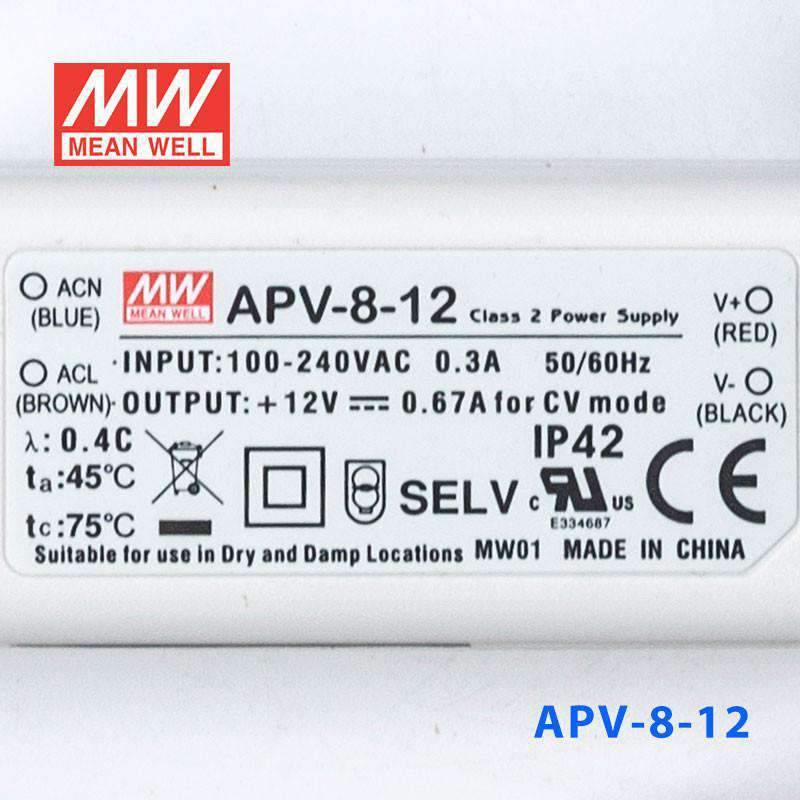

Mean Well APV-8-12 Power Supply 8W 12V

Class II design, low cost, small and compact, IP42

SKU:

APV-8-12

Model

8W 12V

SKU: APV-8-12

12W 12V

SKU: APV-12-12

16W 12V

SKU: APV-16-12

25W 12V

SKU: APV-25-12

35W 12V

SKU: APV-35-12

Product variants

Please for Pricing

Notify me when it's back in stock

Description

The APV-8 is a 8W Mean Well. power converter. and an input range of 90~264VAC.

Key Features

✓ Input voltage range: 90~264VAC
✓ 3.75KVAC reinforced I/O isolation
✓ No minimum load required
✓ Wide operating temperature: -30~+70℃
✓ Protections: Short circuit / Over voltage
✓ Safety approvals: UL8750,CSA C22.2 No.250.0-08
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

APV Series
Power Rating

8.04 Watt
Output Voltage

12 Volt
Rated Current

0.67 Ampere
Input Voltage

90V~264V
Standards Met

CE,EAC,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

2 Year
Length

6 cm
Width

3 cm
Height

2.35 cm
Weight

0.05 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What LED lighting tasks suit the APV-8-12 at 8W and 12V?

The APV-8-12 outputs 12V at 0.67A for a maximum of 8.04W. Its compact 60.0 × 30.0 × 23.5 mm size makes it suited to very short 12V LED strip accent lighting, individual 12V LED panel spotlights, and small 12V LED signage elements where space is limited and load is well under 8W.

How long a 12V LED strip can the APV-8-12 support?

The APV-8-12 provides 8.04W at 12V. At a strip rated 4.8 W/m, that supports approximately 1.7 m. Divide 8.04W by your strip's rated power per meter to find the maximum run length, and check your strip's rated power per meter before specifying.

How does the APV-8-12 compare to the APV-12-12 and APV-16-12 at 12V?

All three output 12V from 90–264VAC. The APV-8-12 provides 8.04W at 0.67A in the smallest housing at 60.0 × 30.0 × 23.5 mm. The APV-12-12 provides 12W at 1A in a 77.0 × 40.0 × 29.0 mm enclosure. The APV-16-12 provides 15W at 1.25A in the same 77.0 × 40.0 × 29.0 mm housing. The APV-8-12 is the right choice when physical footprint is the primary constraint.

Is the APV-8-12 suitable for use in enclosed LED fixture housings?

Yes. The APV-8-12 weighs only 0.05 kg and measures 60.0 × 30.0 × 23.5 mm, making it one of the smallest options in the APV series. It operates from -30°C to +70°C. Its IP42 rating means it should be kept away from moisture, and ventilation should be provided within any enclosure to avoid heat buildup.

Model	Power	Voltage	Current	IP Rating
Mean Well APV-8-24 Power Supply 8W 24V	8.16W	24V	0.34A	Indoor	View
Mean Well APV-8-5 Power Supply 8W 5V	7W	5V	1.4A	Indoor	View
