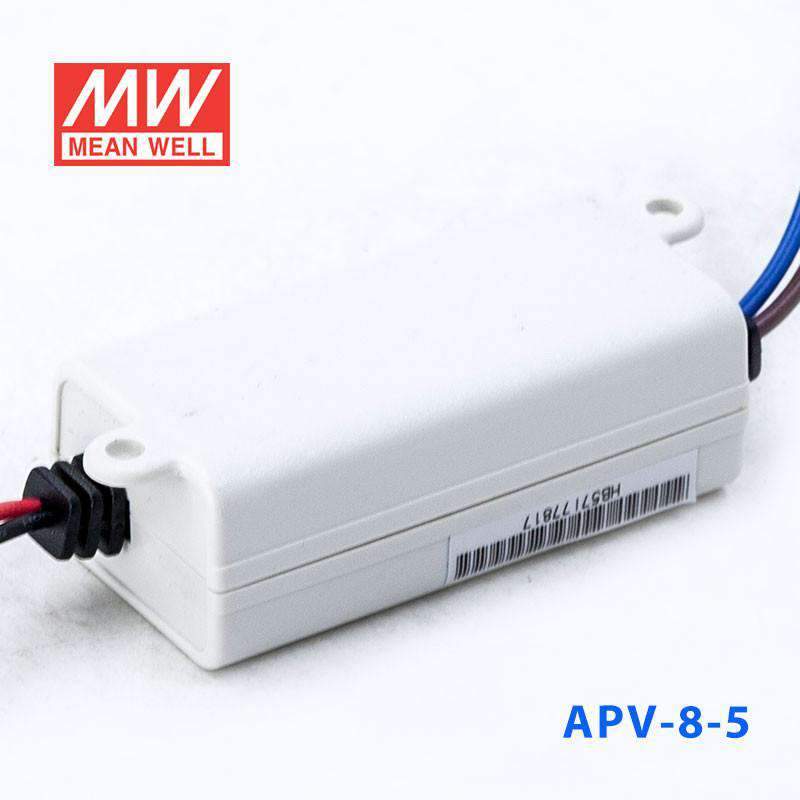

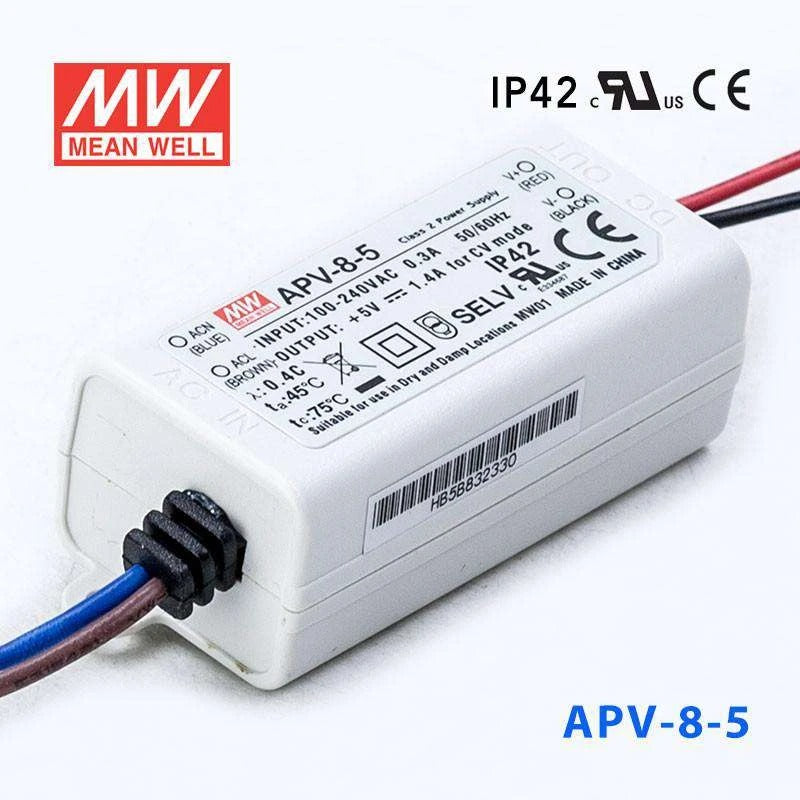

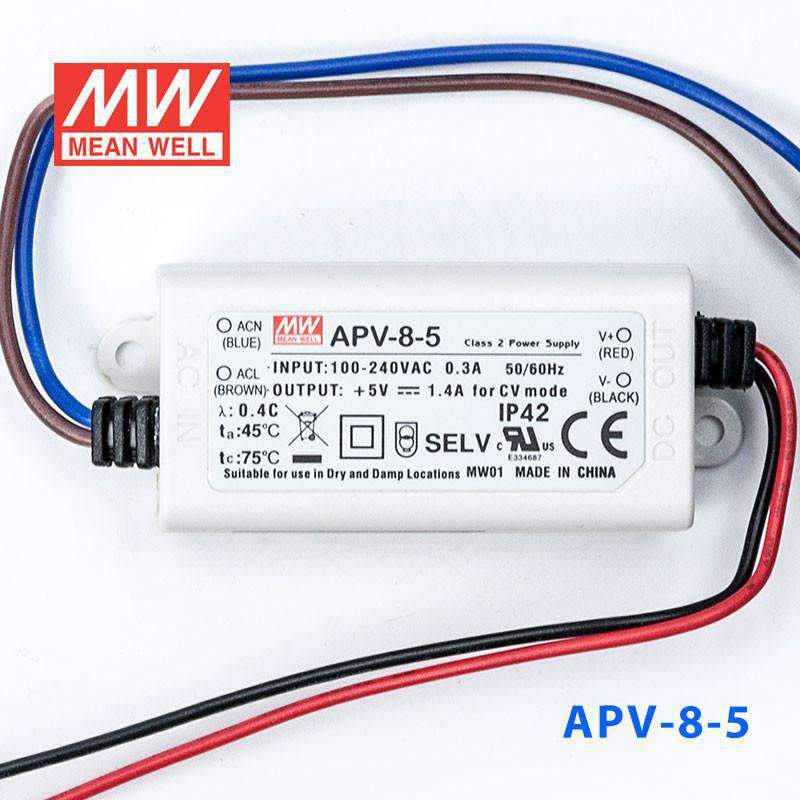

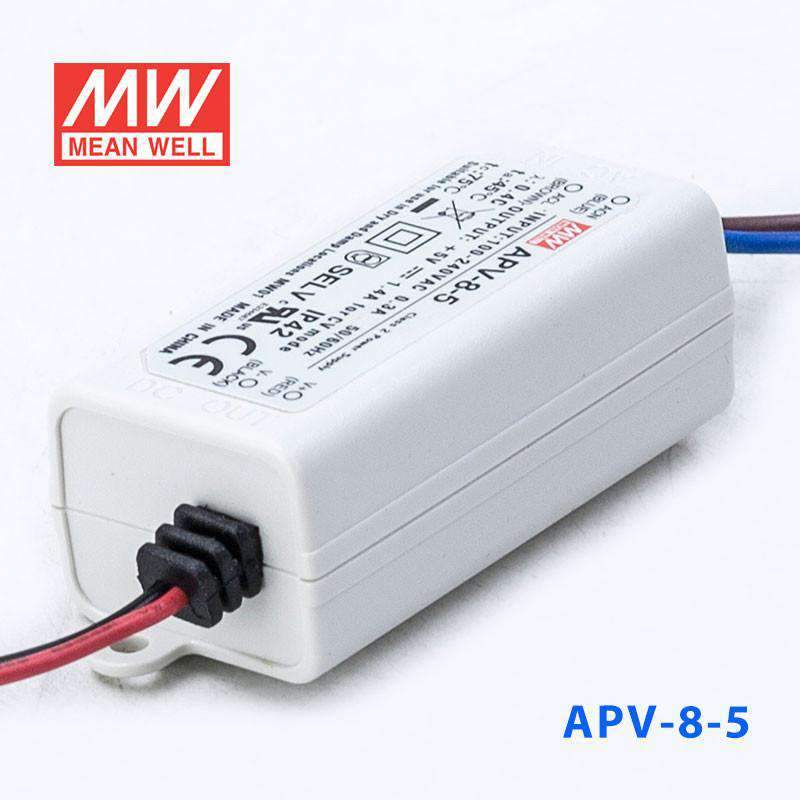

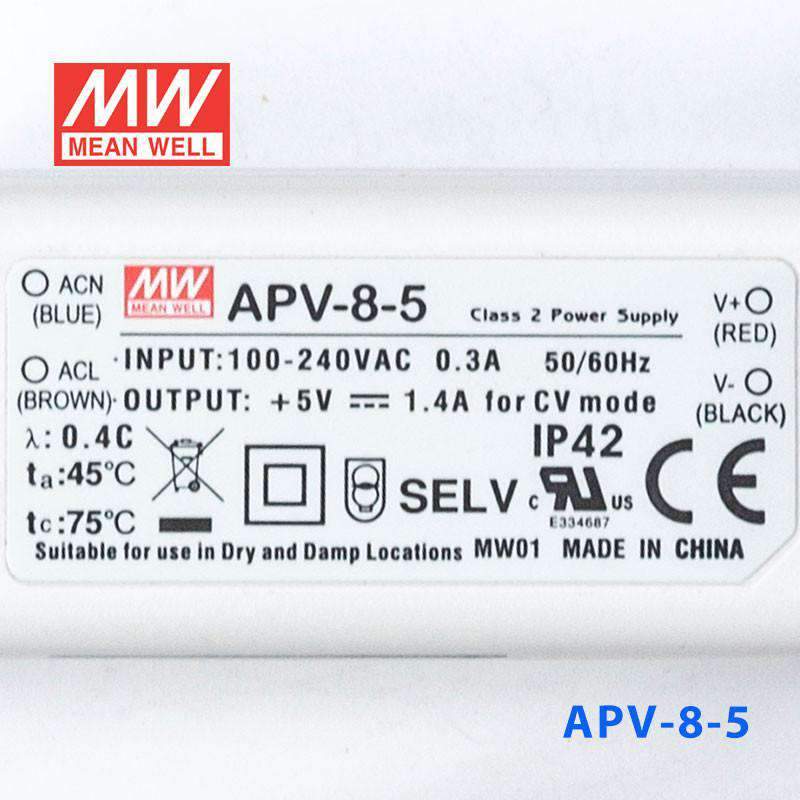

Mean Well APV-8-5 Power Supply 8W 5V

Class II design, low cost, small and compact, IP42

SKU:

APV-8-5

Model

8W 5V

SKU: APV-8-5

12W 5V

SKU: APV-12-5

16W 5V

SKU: APV-16-5

25W 5V

SKU: APV-25-5

35W 5V

SKU: APV-35-5

Product variants

Please for Pricing

Notify me when it's back in stock

Description

The APV-8 is a 8W Mean Well. power converter. and an input range of 90~264VAC.

Key Features

✓ Input voltage range: 90~264VAC
✓ 3.75KVAC reinforced I/O isolation
✓ No minimum load required
✓ Wide operating temperature: -30~+70℃
✓ Protections: Short circuit / Over voltage
✓ Safety approvals: UL8750,CSA C22.2 No.250.0-08
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

APV Series
Power Rating

7 Watt
Output Voltage

5 Volt
Rated Current

1.4 Ampere
Input Voltage

90V~264V
Standards Met

CE,EAC,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

2 Year
Length

6 cm
Width

3 cm
Height

2.35 cm
Weight

0.05 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What 5V LED lighting applications suit the APV-8-5?

The APV-8-5 outputs 5V at 1.4A for a maximum of 7W. Its compact 60.0 × 30.0 × 23.5 mm housing makes it suited to very short 5V addressable LED strip segments, small 5V LED pixel accent lighting, and miniature 5V LED display elements where total load stays within 7W.

How does the APV-8-5 compare to the APV-12-5 and APV-16-5 at 5V output?

All three output 5V from 90–264VAC. The APV-8-5 provides 7W at 1.4A in the smallest housing at 60.0 × 30.0 × 23.5 mm. The APV-12-5 provides 10W at 2A in a 77.0 × 40.0 × 29.0 mm enclosure. The APV-16-5 provides 13W at 2.6A in the same 77.0 × 40.0 × 29.0 mm housing. The APV-8-5 is the appropriate choice when minimum physical size is required.

How long a 5V LED strip can the APV-8-5 support?

The APV-8-5 delivers 7W at 5V. At a strip rated 5 W/m, that supports approximately 1.4 m. Divide 7W by your strip's rated power per meter to calculate your specific maximum, and check your strip's rated power per meter before purchasing.

What are the environmental limits for the APV-8-5?

The APV-8-5 operates from -30°C to +70°C and carries an IP42 ingress protection rating. It is designed for dry to lightly damp indoor installations only. For outdoor or wet-location 5V LED installations, a driver with IP65 or higher protection is required.

Model	Power	Voltage	Current	IP Rating
Mean Well APV-8-24 Power Supply 8W 24V	8.16W	24V	0.34A	Indoor	View
Mean Well APV-8-12 Power Supply 8W 12V	8.04W	12V	0.67A	Indoor	View
