What input voltage does the APV-8E-24 require?

The APV-8E-24 accepts 180–264VAC input, placing it in the European and other high-mains market segments. It will not operate on 100–120V mains supplies. For universal-input 24V LED applications including North America, the APV-8-24 (90–264VAC, UL listed) is the correct choice.

How does the APV-8E-24 differ from the APV-8-24?

Both output 24V at 0.34A (8.16W) in the same 60.0 × 30.0 × 23.5 mm housing. The APV-8-24 accepts 90–264VAC and is certified CE, EAC, and UL. The APV-8E-24 accepts 180–264VAC only and carries CB, CE, EAC, and ENEC, making it the European-specific variant.

What 24V LED lighting applications suit the APV-8E-24 in European markets?

The APV-8E-24 outputs 24V at 0.34A for 8.16W maximum from 230V European mains. It is suited to small 24V LED accent strips, individual 24V LED spotlight modules, and compact 24V LED signage elements in European installations where total load is at or below 8.16W.

How long a 24V LED strip can the APV-8E-24 support?

The APV-8E-24 provides 8.16W at 24V. At a strip rated 8 W/m, the maximum supported length is approximately 1 m. Divide 8.16W by your strip's rated power per meter to find your specific limit, and check your strip's rated power per meter before specifying.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

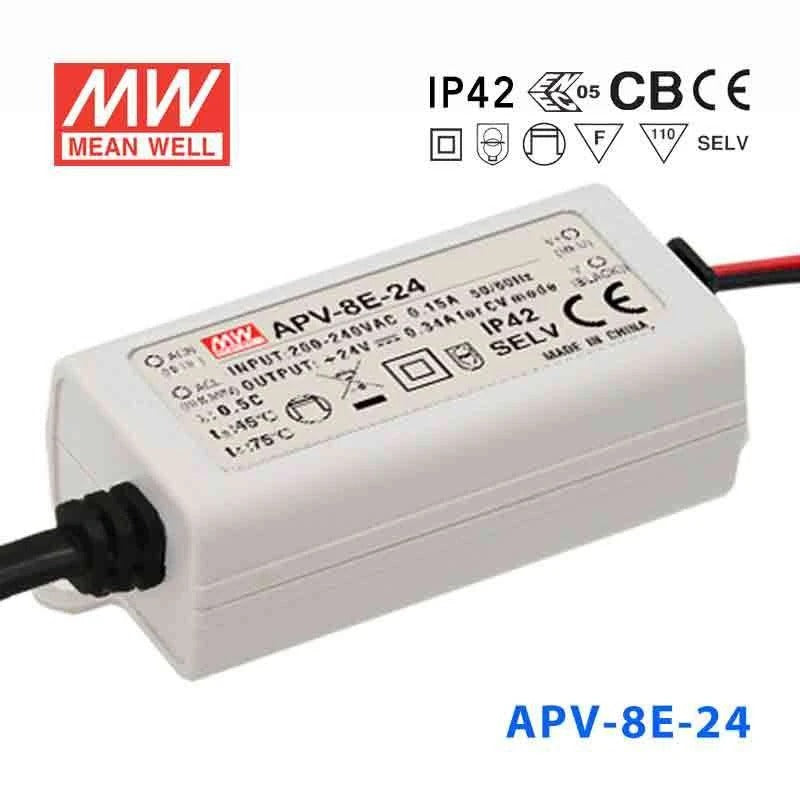

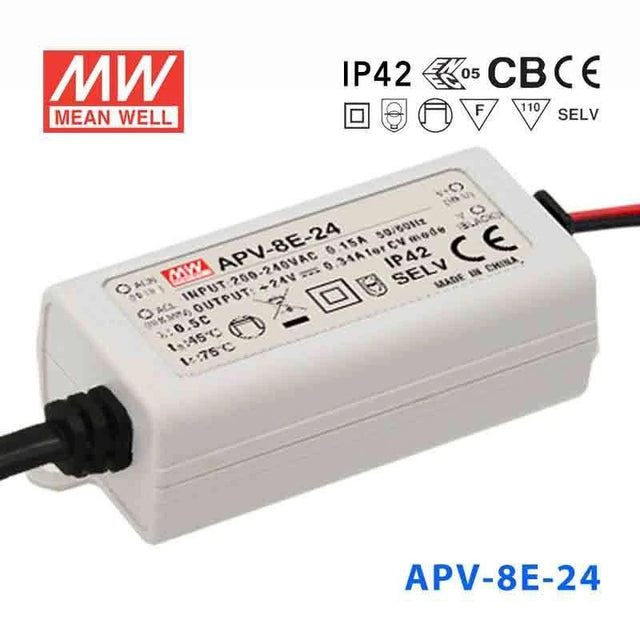

Mean Well APV-8E-24 Power Supply 8W 24V 340mA

4.6 (11 reviews)

Class II designlow costsmall and compactIP42

SKU:

APV-8E-24

Log in to see price Trade pricing & online ordering for account holders

End of Life, Succeeded by APV-8-24

Notify me when it's back in stock

The APV-8E is a 8W Mean Well. power converter. and an input range of 180~264VAC.

Key Features

✓ Input voltage range: 180~264VAC
✓ 3.75KVAC reinforced I/O isolation
✓ No minimum load required
✓ Wide operating temperature: -30~+70℃
✓ Protections: Short circuit / Over voltage
✓ Safety approvals: ENEC EN61347-1,EN61347-2-13,EN62384
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well APV-8E-5 Power Supply 8W 5V 1.4A	7W	5V	1.4A	Indoor	View
Mean Well APV-8E-12 Power Supply 8W 12V 670mA	8.04W	12V	0.67A	Indoor	View

Customer reviews

4.6 Reviews verified for authenticity

5 ★ (8)

4 ★ (2)

3 ★ (1)

2 ★ (0)

1 ★ (0)

Reviewed by 11 customers across the APV series

Great for LED strip runs
By Tane W.|2026-06-20✓ Verified Buyer
Model: APV-35-24Quantity: 6
Used the APV-35-24 to drive 5m of warm-white strip — dead quiet, no flicker on dimming.
Compact and cool
By Priya S.|2026-06-05✓ Verified Buyer
Model: APV-25-24Quantity: 3
Fits our enclosures nicely. Runs slightly warm at full load but well within spec.
Reliable CV driver
By Workshop NZ|2026-05-12
Model: APV-16-24Quantity: 20
Standard part for our signage jobs now. Zero returns.
