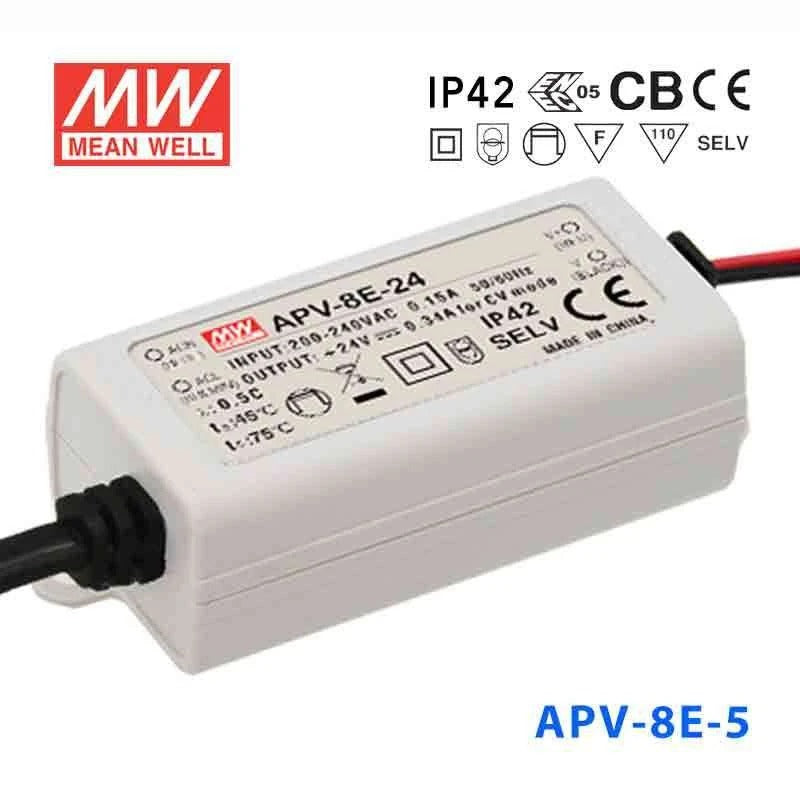

Mean Well APV-8E-5 Power Supply 8W 5V
Please Login for Pricing
Description
Description
Features
| Universal AC input / Full range |
| Fully isolated plastic case |
| Protections: Short circuit / Overload / Over voltage |
| Constant voltage design |
| IP42esign |
| Class 2 power unit |
| Isolation class II, no F.G. |
| Cooling by free air convection |
| 100% full load burn-in test |
| Low cost, high reliability |
| Suitable for LED lighting and moving sign applications |
| 2 years warranty |
General Specification
| AC input voltage range | 180~264VAC ; 254~370VDC |
| AC inrush current | Cold start, 70A at 230VAC |
| Protection Type | Hiccup up mode, auto-recovery |
| Withstand voltage | I/P-O/P: 3.75kVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Vibration | 10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes |
| Safety standards | UL8750 approved;Design refer to EN60950-1,EN61347-1, EN61347-2-13 |
| EMC standards | EN55022, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024 |
| Connection Input | H03VVH2-F 0.75mm²x2C (15cm) |
| Connection Output | UL rated, 20AWGx2C (15cm) |
| Dimension (LxWxH)(mm) | 60x 30x 23.5 |
Specifications
Specifications
-
BrandMean Well
-
SeriesAPV Series
-
Power Rating7 Watt
-
Output Voltage5 Volt
-
Rated Current1.4 Ampere
-
Input Voltage180V~264V
-
Standards MetCB,CE,EAC,ENEC
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length6 cm
-
Width3 cm
-
Height2.35 cm
-
Weight0.05 kg
