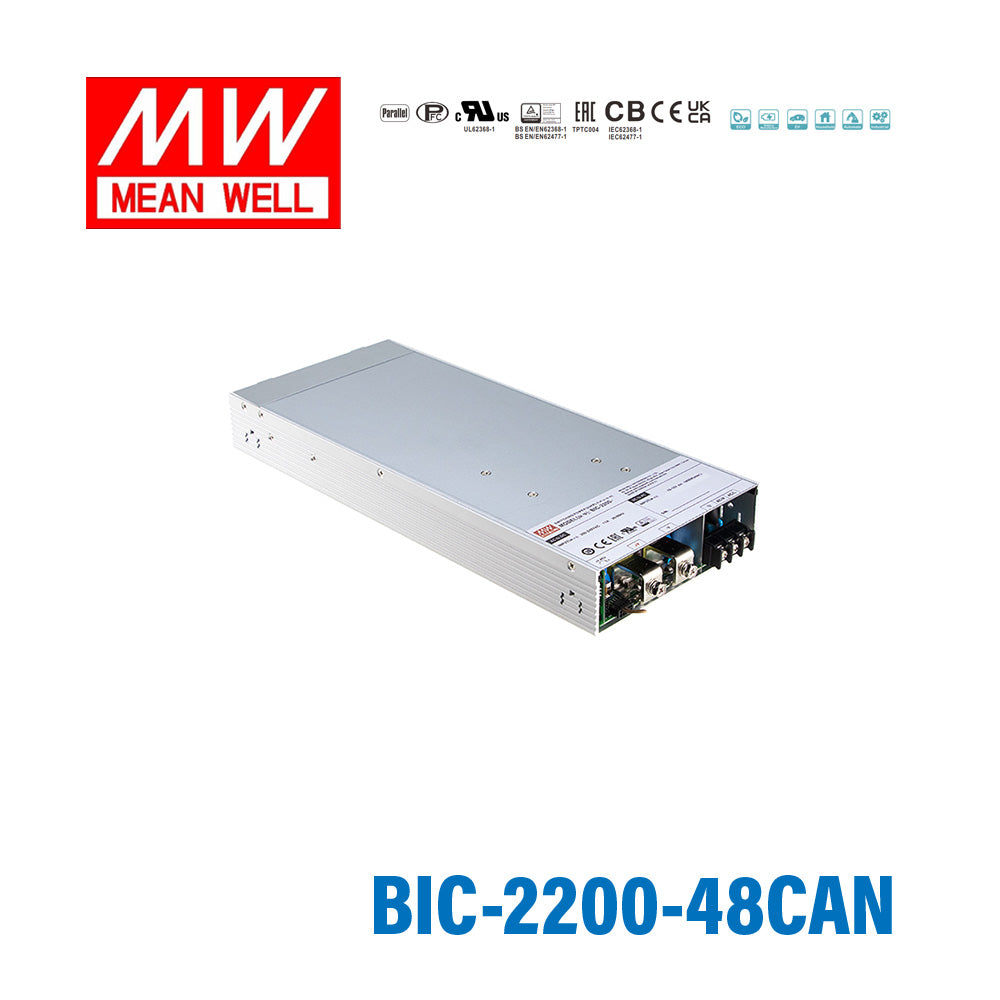

Mean Well BIC-2200-48CAN Power Supply 2200W 48V 45A

1U low profile design, 93% conversion efficiency, ultrafast switching time of 1ms, active current sharing up to 11000W

|

Description

Features

1U low profile design
Full digital design with 93% conversion efficiency
Ultrafast switching time between AC/DC and DC/AC of 1ms
CB/TUV/UL 62368-1 certified, and design refer to IEC 62477 regulation
Active current sharing up to 11000W
<3% Low THDi in both conversion mode
Force charging and discharding mode with CANBus model
High efficiency, long life and high reliability
Complete protections: Anti-islanding protection, AC fail protection, DC OVP, OLP, OCP, OTP
5 years warranty


General Specification

AC input voltage range 180~264VAC, 255~373VDC
AC inrush current (max.) 35A at 230VAC
DC adjustment range ±15% by potentiometer
Overload protection 105%~115%
Over voltage protection 146%~173% rated output voltage, auto-recovery
Withstand voltage I/P - O/P: 3KVAC, I/P - FG: 2KVAC, O/P - FG: 0.5KVAC
Working temperature -30~+70°C
Vibration 10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes
Safety standards UL62368-1, TUV EN62368-1 approved
EMC standards EN55032 class B, EN61000-3-2,3
Connection Terminal block for input and output
Dimension (LxWxH) 330x 140x 41
Case No. 277C
Packing 4pcs /12.6kg

Specifications

  • Brand
    Mean Well
  • Series
    Mean Well BIC Series
  • Power Rating
    2200 Watt
  • Output Voltage
    48 Volt
  • Rated Current
    45 Ampere
  • Input Voltage
    180V~264V
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~70°C
  • Warranty
    5 Year
  • Length
    4.1 cm
  • Width
    3.3 cm
  • Height
    1.4 cm
  • Weight
    0.5 kg
