Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

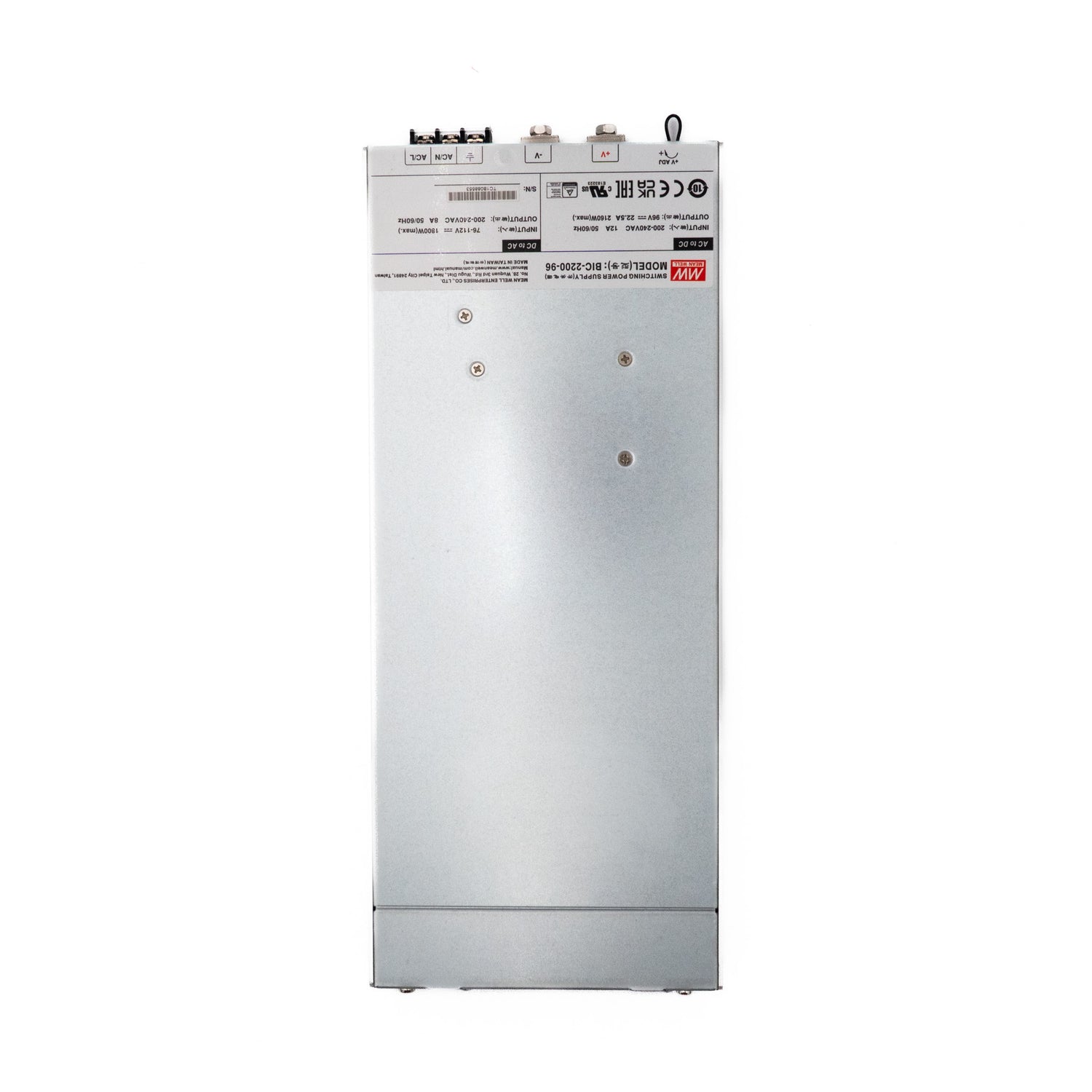

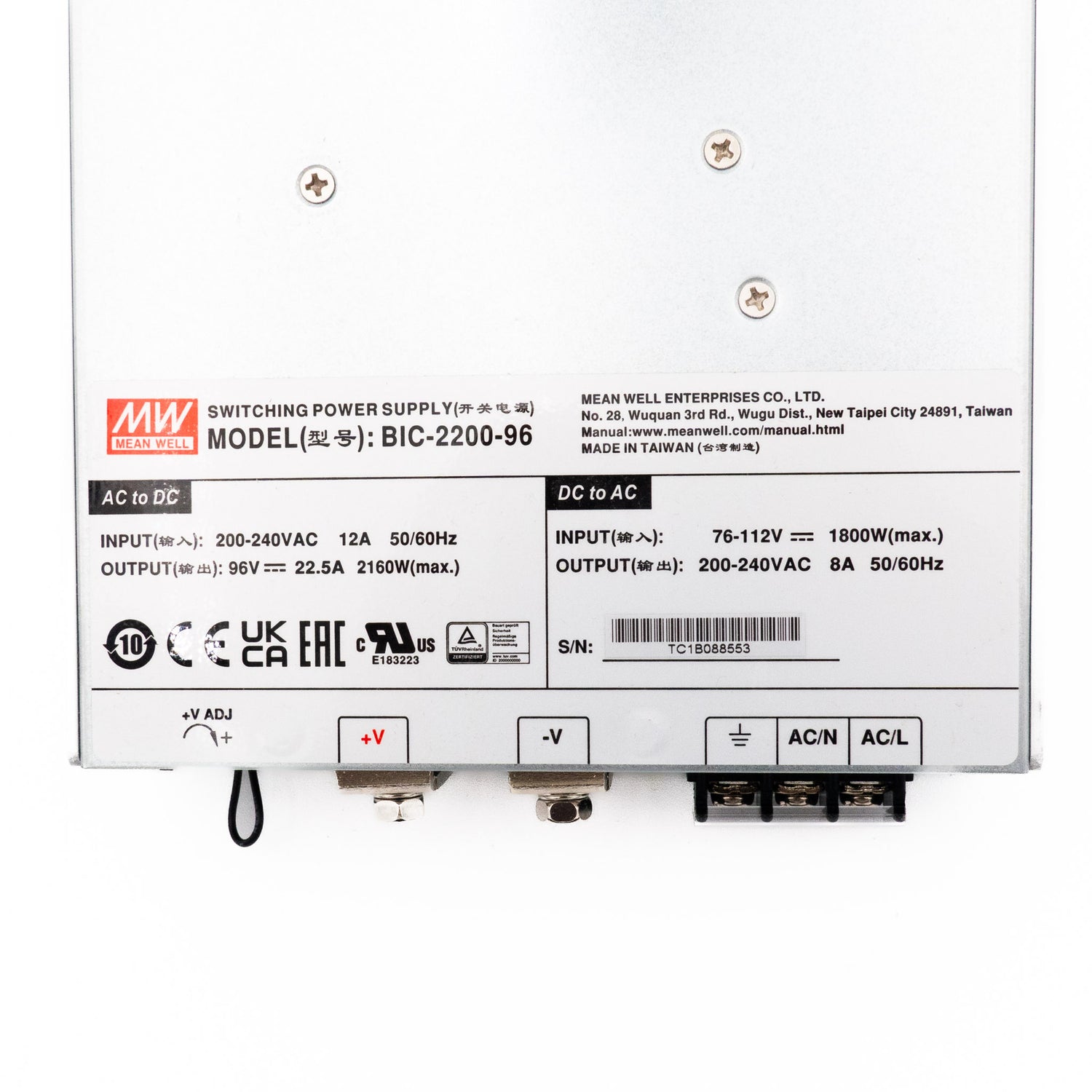

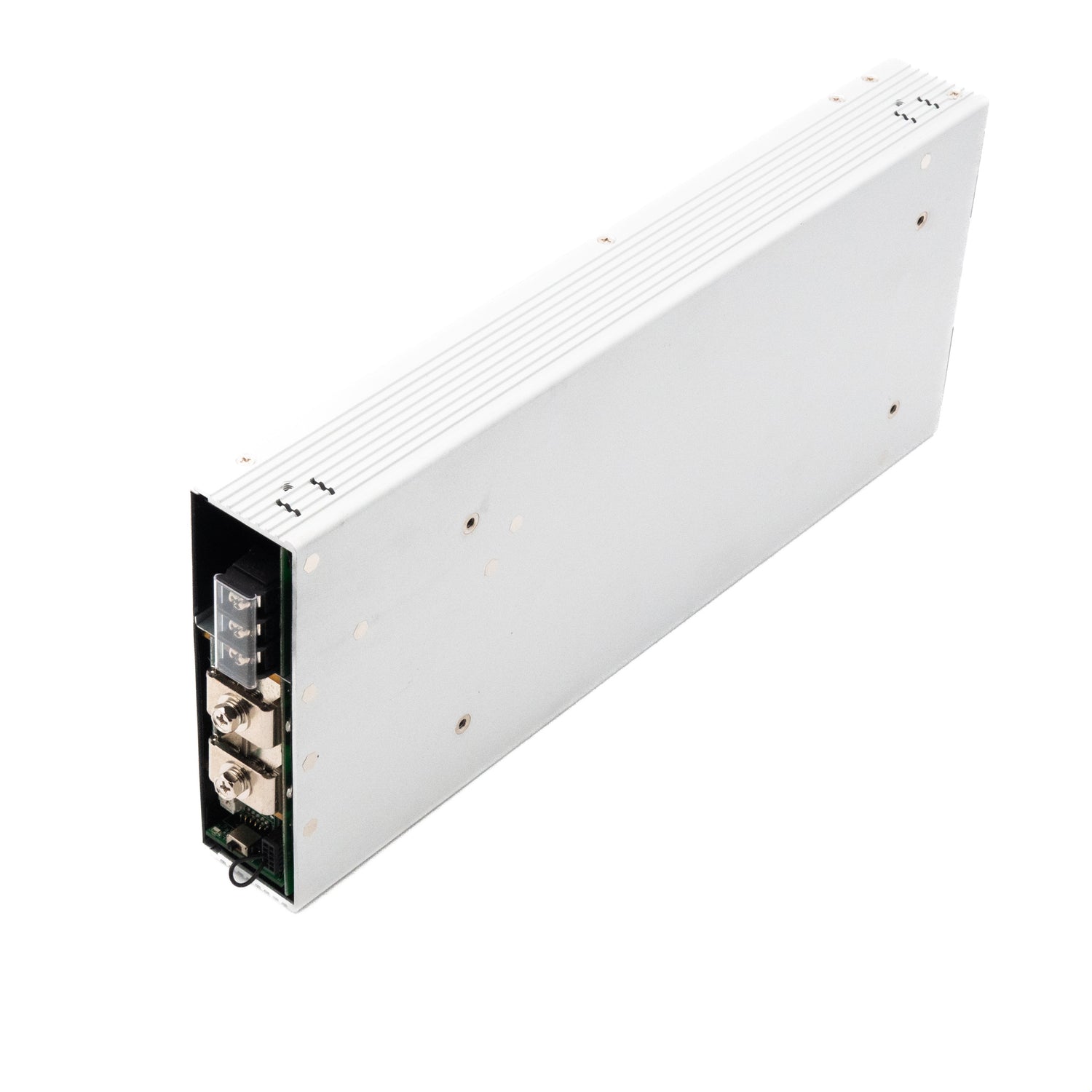

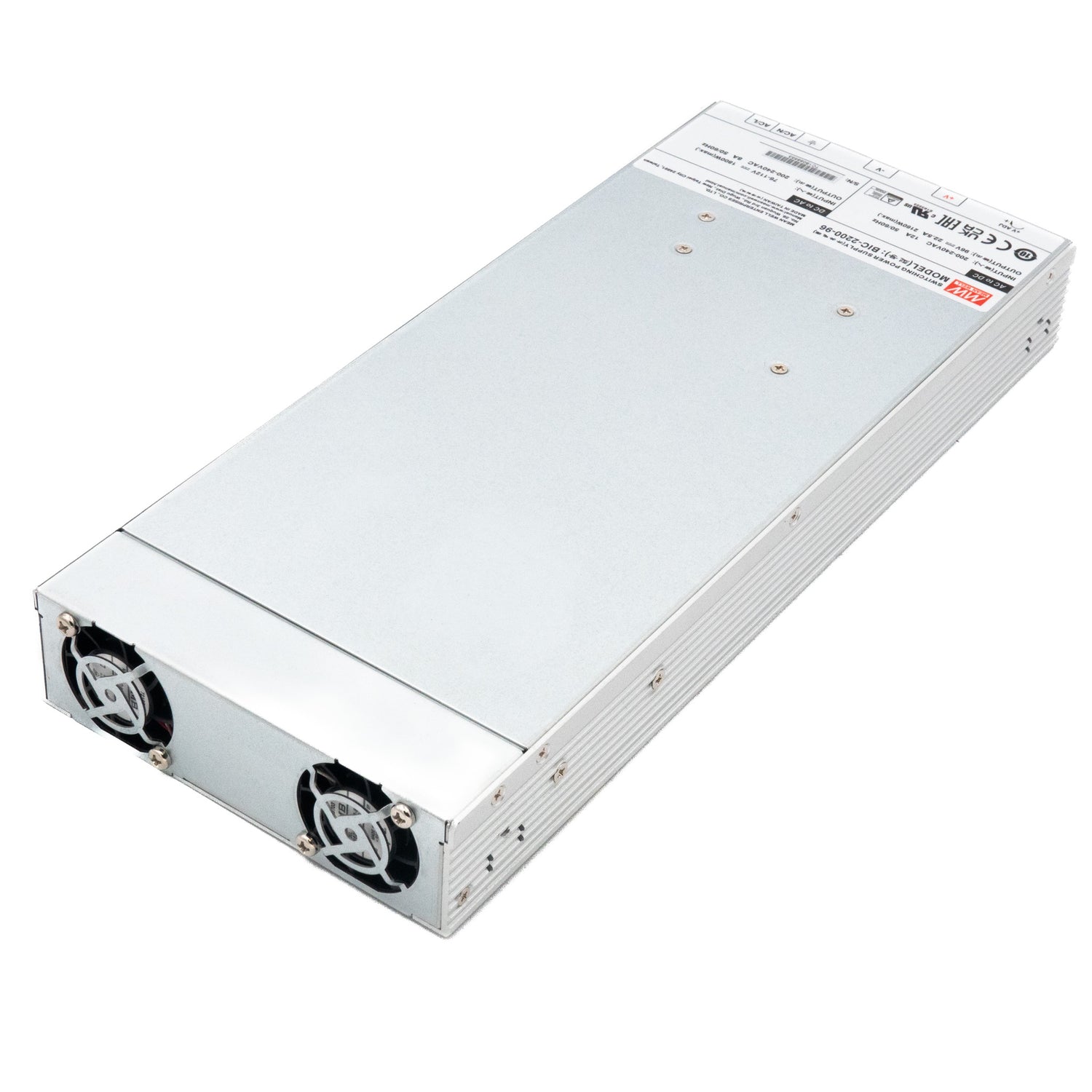

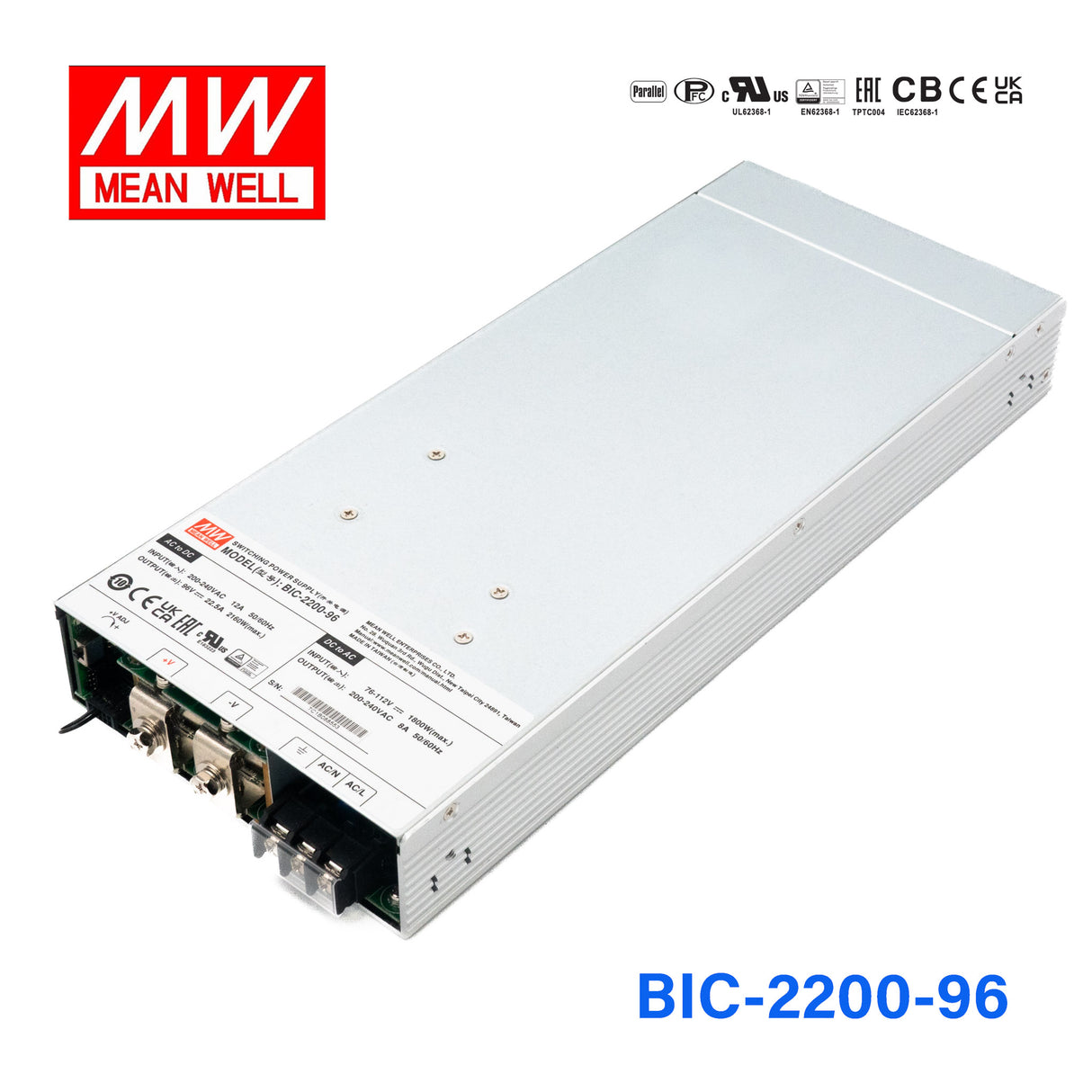

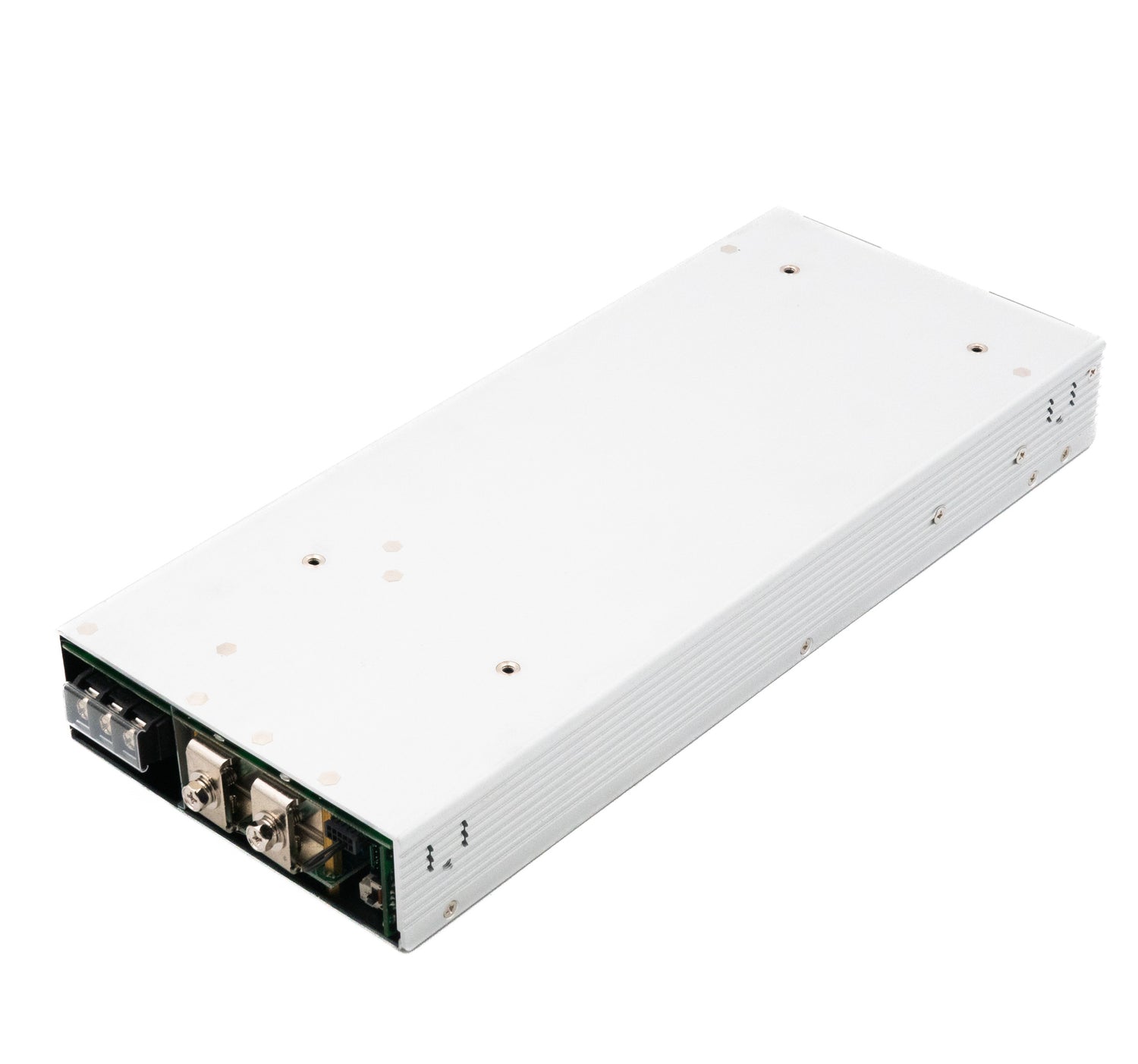

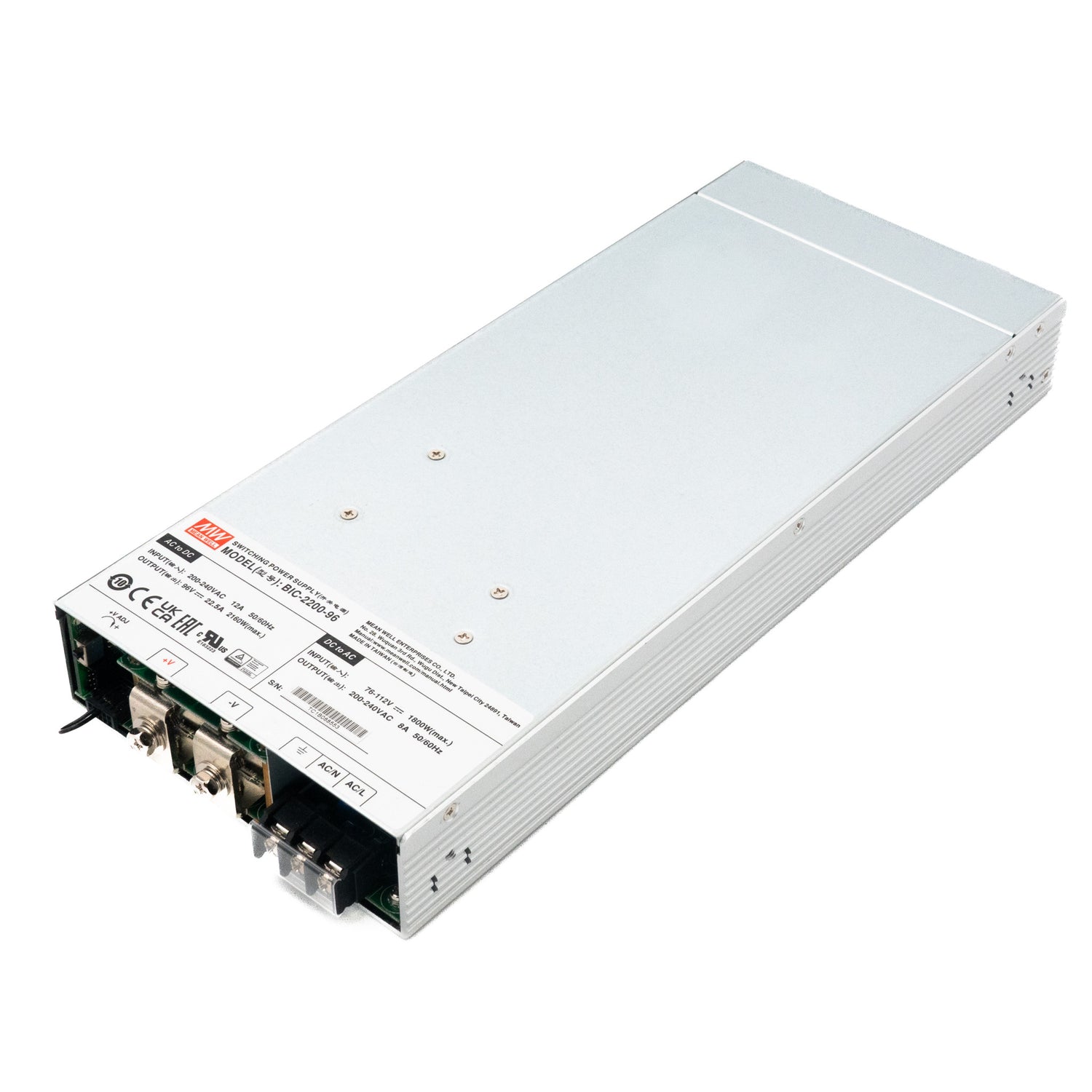

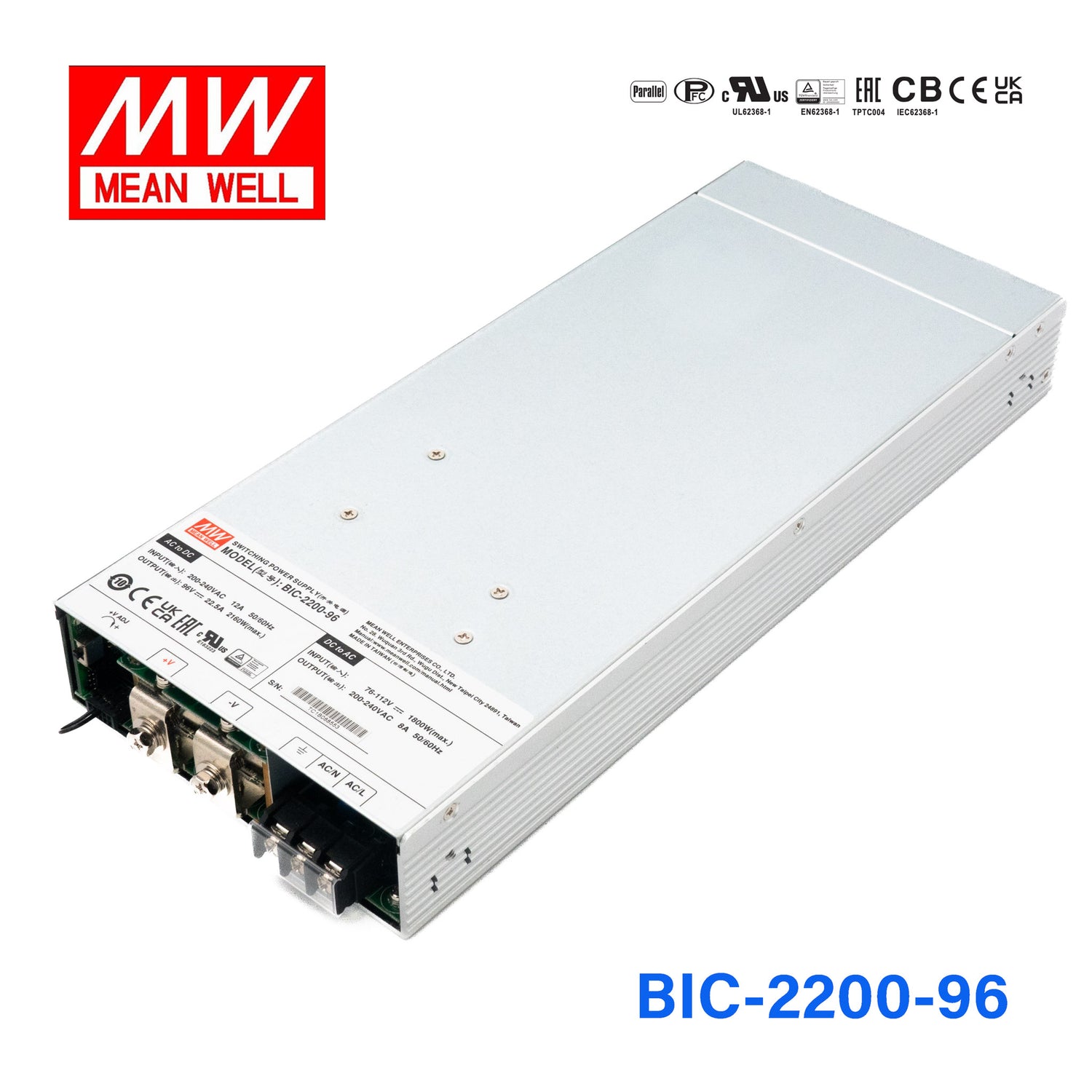

Mean Well BIC-2200-96 Bidirectional Power Supply with Energy Recycl...
Please Login for Pricing
Description
Description
Features
| 1U low profile design |
| Full digital design with 93% conversion efficiency |
| Ultrafast switching time between AC/DC and DC/AC of 1ms |
| CB/TUV/UL 62368-1 certified, and design refer to IEC 62477 regulation |
| Active current sharing up to 11000W |
| <3% Low THDi in both conversion mode |
| Force charging and discharding mode with CANBus model |
| High efficiency, long life and high reliability |
| Complete protections: Anti-islanding protection, AC fail protection, DC OVP, OLP, OCP, OTP |
| 5 years warranty |
General Specification
| AC input voltage range | 180~264VAC, 255~373VDC |
| AC inrush current (max.) | 35A at 230VAC |
| DC adjustment range | ±15% by potentiometer |
| Overload protection | 105%~115% |
| Over voltage protection | 146%~173% rated output voltage, auto-recovery |
| Withstand voltage | I/P - O/P: 3KVAC, I/P - FG: 2KVAC, O/P - FG: 0.5KVAC |
| Working temperature | -30~+70°C |
| Vibration | 10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes |
| Safety standards | UL62368-1, TUV EN62368-1 approved |
| EMC standards | EN55032 class B, EN61000-3-2,3 |
| Connection | Terminal block for input and output |
| Dimension (LxWxH) | 330x 140x 41 |
| Case No. | 277C |
| Packing | 4pcs /12.6kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesBIC Series
-
Power Rating2200 Watt
-
Output Voltage96 Volt
-
Rated Current22.5 Ampere
-
Input Voltage180V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length4.1 cm
-
Width3.3 cm
-
Height1.4 cm
-
Weight0.5 kg
