Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

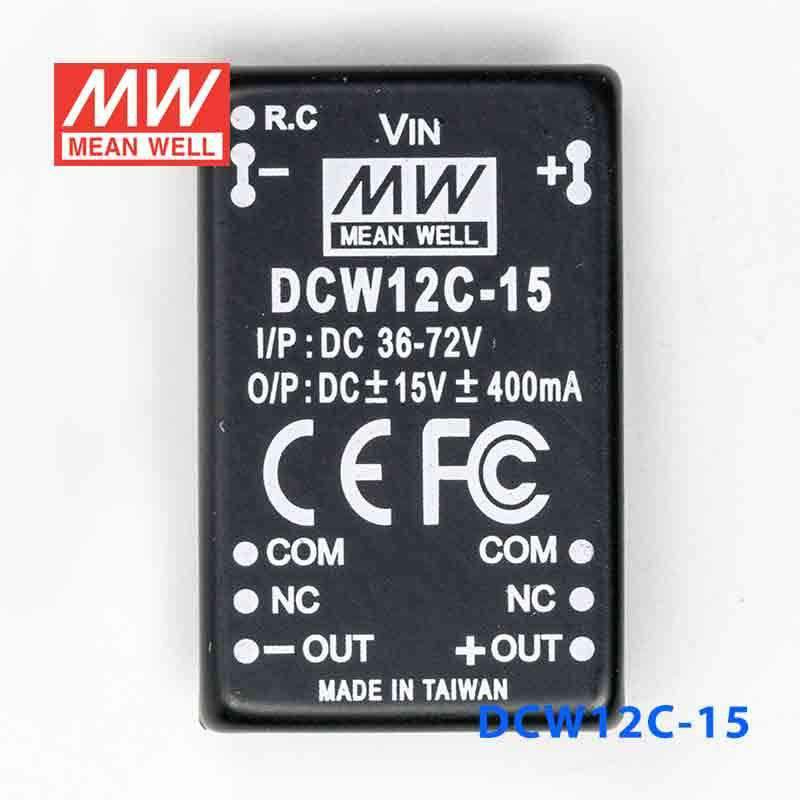

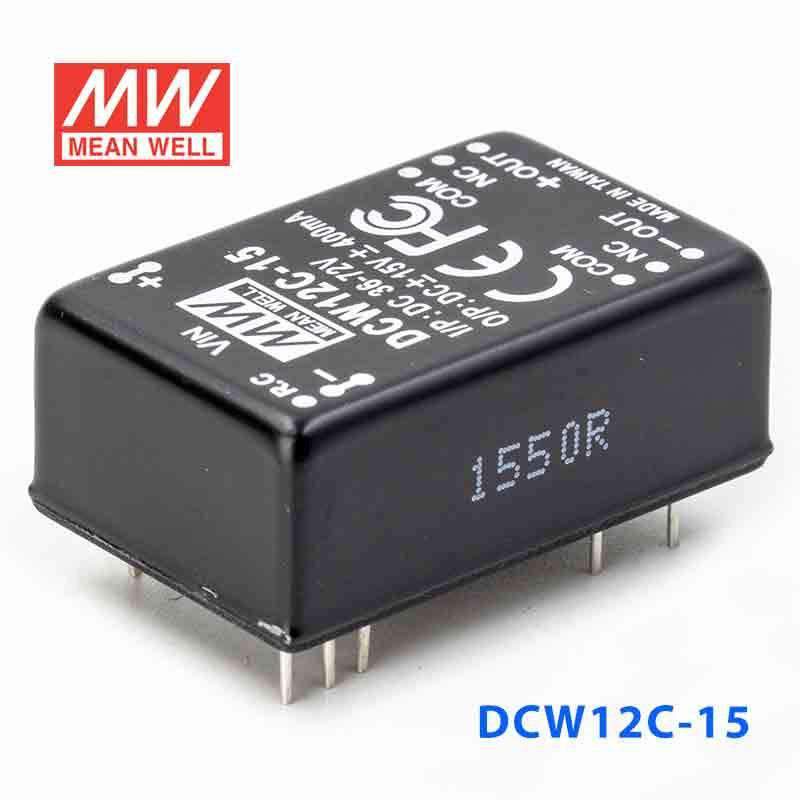

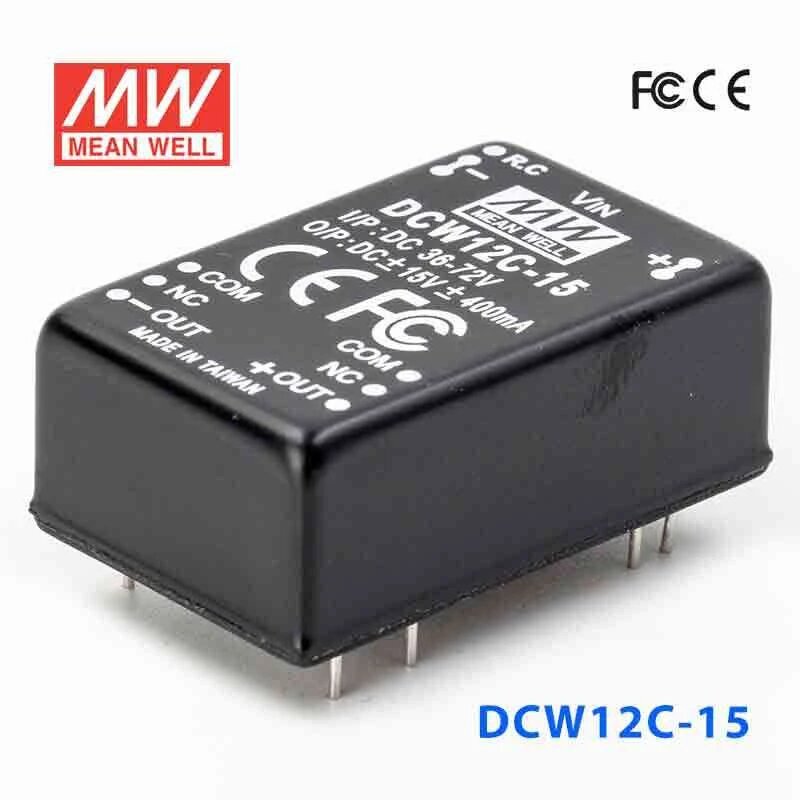

Mean Well DCW12C-15 DC-DC Converter - 12W - 36~72V in ±15V out

SKU:

DCW12C-15

Please for Pricing

Notify me when it's back in stock

Description

Features

2: 1 wide input range

1500VDC I / O isolation

Built-in remote ON/OFF control

Built-in EMI filter

Protection: Short circuit / Overload

Cooling by free air convection

Five-sided shield metal case

100% full load burn-in test

Low cost, high reliability

2 years warranty

General Specification

Voltage set point accuracy	±2.0% (max.)
Line regulation	± 0.5% (max.)
Load regulation	± 0.5% (max.) @ 10 ~ 100% load
Overload protection	110% ~ 180%, auto-recovery
Efficiency	80% - 80% - 81% \| 84% - 84% - 84% \| 83% - 84% - 83%
Short circuit protection	All output equipped with over current protection \| Protection type: Hiccup mode recovers automatically after fault condition is removed
I / O isolation voltage	I/P-O/P:1.5KVDC
I / O isolation resistance	I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
Isolation capacitance	2200pF max
Working temperature	-40 ~ + 71°C (refer to output derating curve)
Storage temperature	-40°C to + 105°C
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient	±0.05% / ℃ (0 ~ 50℃)
Dimension (LxWxH) (mm)	31.8 x 20.3 x 12.2mm or 1.25" x 0.80" x 0.48" inch
Case material	Five-sided shield metal case

Specifications

Brand

Mean Well
Series

DCW Series
Power Rating

12 Watt
Output Voltage

15 Volt
Rated Current

0.4 Ampere
Input Voltage

36V~72V
Standards Met

CE,EMC,FCC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~71°C
Warranty

2 Year
Length

3.18 cm
Width

2.03 cm
Height

1.22 cm
Weight

0.02 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What are the key input and output specs of the Mean Well DCW12C-15?

The Mean Well DCW12C-15 is a 12W DC-DC converter with a 36 to 72V DC input range and a ±15V DC output. It is rated for 400mA output current and is designed for applications that need regulated dual-output DC power from a wide input range.

What kind of isolation does the DCW12C-15 provide?

This model provides 1500VDC input-to-output isolation. It also specifies input-to-output isolation resistance of 100M Ohms at 500VDC and a maximum isolation capacitance of 2200pF.

Is the DCW12C-15 suitable for harsh temperature environments?

The DCW12C-15 has a working temperature range of -40 to +71 degrees C, subject to the output derating curve. Its storage temperature range is -40 to +105 degrees C, which makes it suitable for demanding industrial environments.

What protection features are included in the Mean Well DCW12C-15?

The DCW12C-15 includes overload protection rated at 110% to 180% with automatic recovery. It also has short circuit protection on all outputs using hiccup-mode overcurrent protection, which recovers automatically after the fault is removed.

What types of applications is the DCW12C-15 commonly used for?

This converter is suited to industrial and OEM applications that need compact isolated DC-DC power conversion from a 36 to 72V DC source to a regulated ±15V output. Its wide 2:1 input range, shielded metal case, built-in EMI filter, and remote ON/OFF capability make it a practical option for embedded power designs.

How compact is the Mean Well DCW12C-15?

The DCW12C-15 measures 31.8 x 20.3 x 12.2 mm and weighs about 0.0185 kg. Its compact size and five-sided shield metal case help it fit space-constrained industrial and embedded applications.
