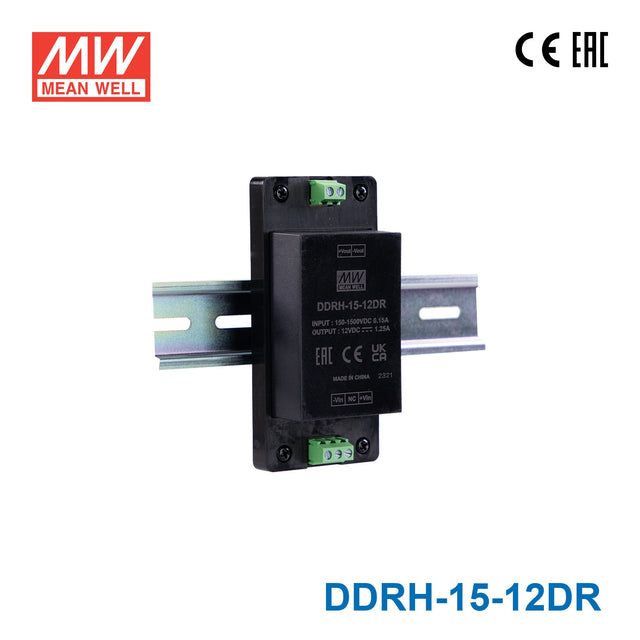

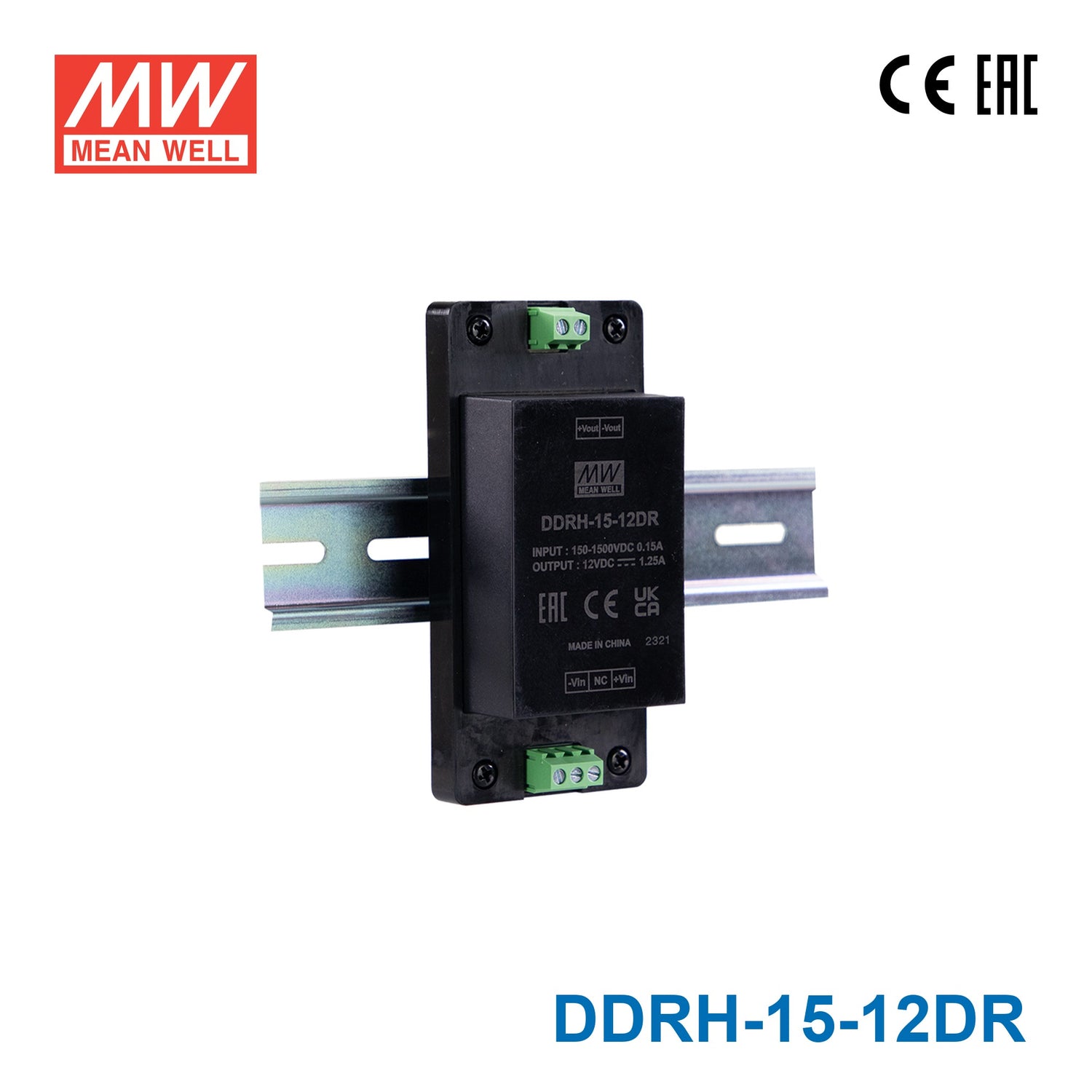

Mean Well DDRH-15-12DR Ultra Wide Input DC-DC Converter, 15W 12V, D...
Please Login for Pricing
Description
Description
The DDRH-15 is a 15W high-reliability ultra-wide input DC-DC converter designed for photovoltaic, renewable energy, and demanding high-voltage industrial applications. Its exceptional 150~1500Vdc input range — a 10:1 ratio — covers solar panels, battery strings, and high-voltage DC bus sources. With 4KVac reinforced I/O isolation, fanless free air convection cooling, and no minimum load requirement, the DDRH-15 provides stable, isolated power conversion across a wide -40~+80°C operating range.
Key Features
- ✓ Ultra-wide 150~1500Vdc input range — covers solar, ESS, and DC bus sources
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVac reinforced I/O isolation
- ✓ Cooling by free air convection — fanless design, no minimum load required
- ✓ Wide operating temperature: -40°C ~ +80°C
- ✓ Protections: Short circuit / Overload / Over voltage / Reverse polarity / Under voltage lockout
- ✓ DIN rail TS-35/7.5 or 15 compatible (DR type)
- ✓ Safety approvals: IEC62109-1 (LVD), EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesDDRH Series
-
Power Rating15 Watt
-
Output Voltage12 Volt
-
Rated Current1.25 Ampere
-
Input Voltage150V~1500V
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty3 Year
-
Length12.23 cm
-
Width5.73 cm
-
Height4.35 cm
-
Weight0.22 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the DDRH-15-12DR power 12V sensors or transmitters from a high-voltage DC bus in a process control system?
Yes. The DDRH-15-12DR delivers 12V at 1.25A (15W) from a 150–1500VDC input, making it appropriate for supplying 12V loop-powered sensors, 4-20mA transmitters, or small instruments in process control panels connected to high-voltage DC buses.
Is the DDRH-15-12DR suitable for providing isolated 12V power to intrinsically safe barriers or Zener barriers?
The DDRH-15-12DR provides 15W at 12V/1.25A from a 150–1500VDC input and mounts on a DIN rail, which is a common configuration for IS barrier power feeds. Verify isolated output characteristics and relevant certifications for the specific IS application requirements.
Can I use the DDRH-15-12DR in a renewable energy cabinet where the input bus is 400–800VDC?
Yes. The 10:1 ultra-wide input range of 150–1500VDC makes the DDRH-15-12DR compatible with 400–800VDC input from solar or wind energy DC buses, supplying a regulated 12V/1.25A output for instrumentation or control circuits.
What is the operating temperature range of the DDRH-15-12DR?
The DDRH-15-12DR operates from -40°C to +80°C with a fanless design. This wide temperature range makes it suitable for outdoor equipment, cold-climate deployments, and high-ambient industrial enclosures.
How does the DDRH-15-12DR differ from the DDRH-15-12P and DDRH-15-12ST models?
All three deliver 15W at 12V/1.25A from 150–1500VDC input. The DDRH-15-12DR is DIN rail-mount (122.3 × 57.3 × 43.5 mm, 0.215 kg), while the DDRH-15-12P is PCB-mount and the DDRH-15-12ST uses screw terminals. Select the variant that matches your panel's mounting and wiring requirements.
