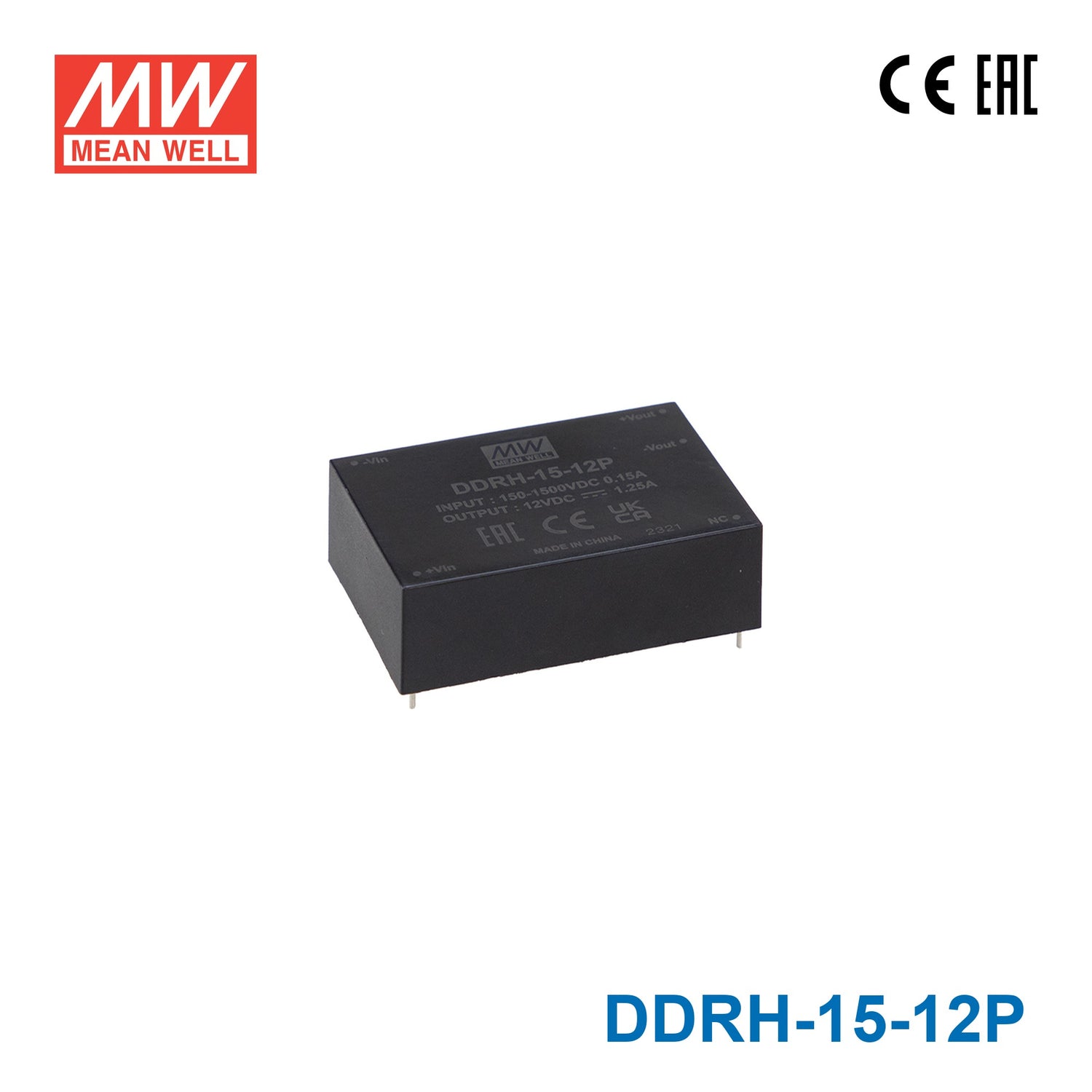

Mean Well DDRH-15-12P Ultra Wide Input DC-DC Converter, 15W 12V, PC...
Please Login for Pricing
Description
Description
The DDRH-15 is a 15W high-reliability ultra-wide input DC-DC converter designed for photovoltaic, renewable energy, and demanding high-voltage industrial applications. Its exceptional 150~1500Vdc input range — a 10:1 ratio — covers solar panels, battery strings, and high-voltage DC bus sources. With 4KVac reinforced I/O isolation, fanless free air convection cooling, and no minimum load requirement, the DDRH-15 provides stable, isolated power conversion across a wide -40~+80°C operating range.
Key Features
- ✓ Ultra-wide 150~1500Vdc input range — covers solar, ESS, and DC bus sources
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVac reinforced I/O isolation
- ✓ Cooling by free air convection — fanless design, no minimum load required
- ✓ Wide operating temperature: -40°C ~ +80°C
- ✓ Protections: Short circuit / Overload / Over voltage / Reverse polarity / Under voltage lockout
- ✓ DIN rail TS-35/7.5 or 15 compatible (DR type)
- ✓ Safety approvals: IEC62109-1 (LVD), EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesDDRH Series
-
Power Rating15 Watt
-
Output Voltage12 Volt
-
Rated Current1.25 Ampere
-
Input Voltage150V~1500V
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty3 Year
-
Length7.62 cm
-
Width5.08 cm
-
Height2.5 cm
-
Weight0.17 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the DDRH-15-12P to power a 12V embedded controller board in a high-voltage DC bus system?
Yes. The DDRH-15-12P accepts a 150–1500VDC ultra-wide input range, making it suitable for powering 12V embedded controllers or microcontroller boards directly off high-voltage DC distribution buses found in industrial and renewable energy systems. It delivers up to 1.25A at 12V for a maximum of 15W.
Is the DDRH-15-12P suitable for powering a 12V PLC or industrial sensor in a DIN rail cabinet that uses a high-voltage DC bus?
The DDRH-15-12P can power low-wattage 12V industrial devices such as sensors, signal isolators, or small PLCs. Its 10:1 ultra-wide input range (150–1500VDC) makes it appropriate for cabinets supplied from high-voltage DC buses, and its PCB mounting form factor fits compactly onto circuit boards within the enclosure.
Can this converter supply 12V bias power to a gate driver or auxiliary circuit in a power electronics system?
Yes. The DDRH-15-12P is commonly used for 12V auxiliary or bias power in power electronics, motor drives, and inverter systems where a high-voltage DC bus (up to 1500VDC) is present. At 15W and 1.25A output, it is well-suited for logic-level bias circuits rather than high-current loads.
What temperature range does the DDRH-15-12P support for outdoor or harsh-environment deployments?
The DDRH-15-12P is rated for an operating temperature range of -40°C to +80°C. Its fanless design allows it to operate passively without airflow, making it suitable for sealed enclosures or locations with wide ambient temperature variation. It is not assigned an IP rating, so it should be mounted inside a suitable protective enclosure for outdoor use.
How does the PCB-mount DDRH-15-12P differ from the DIN rail and screw terminal variants in the same 15W 12V family?
All three 15W 12V variants — DDRH-15-12P (PCB mount, 76.2 × 50.8 × 25.0 mm, 0.17 kg), DDRH-15-12DR (DIN rail, 122.3 × 57.3 × 43.5 mm, 0.215 kg), and DDRH-15-12ST (screw terminal, 122.3 × 57.3 × 32.0 mm, 0.21 kg) — share the same 15W output, 12V/1.25A rating, and 150–1500VDC input range. The difference is the mechanical mounting style: PCB mounting for board-level integration, DIN rail for panel mounting, and screw terminals for direct wire termination in enclosures.
Does the DDRH-15-12P carry CE certification, and is it suitable for use in European industrial equipment?
Yes, the DDRH-15-12P holds CE and EAC certifications. CE certification indicates compliance with relevant EU directives for use in European industrial equipment and machinery.
