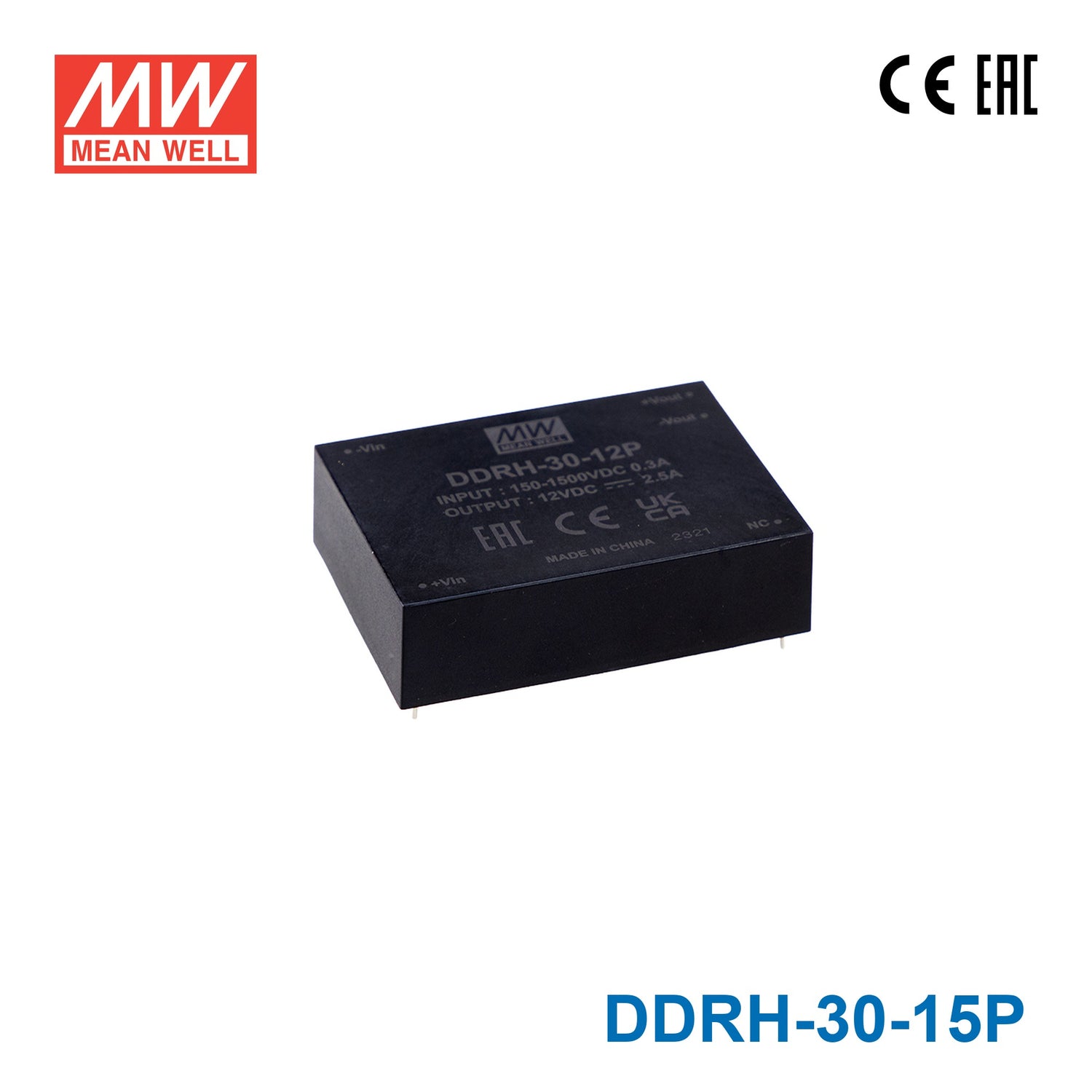

Mean Well DDRH-30-15P Ultra Wide Input DC-DC Converter, 30W 15V, PCB Mounting Type 2A

150~1500VDC 10:1 ultra-wide input rangefanless design-40~80°C ultra-wide operating temperature

SKU DDRH-30-15P

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

DDRH-30-15P is the 15V output model of this series: rated power 30W, typical efficiency 88%.

DDRH-30 series is a 150 ~ 1500Vdc high reliable ultra-high input DC-DC converter which can supply stable working voltage for the load. Main features are as following: compact size, -40~+80℃ wide range operating temperature, 4KVac high isolation voltage, operation at 5000m altitude, low ripple & noise, complete protections and so on. Futhermore, this series also has DIN Rail type, it is suitable to be mounted on TS-35/7.5 or TS-35/15 rails. DDRH-30 is designed to meet UL1741and IEC62109-1 standard. It is suitable for industrial automation, surveillance, telecommunication and can be widely deployed in the applications of new energy generation such as solar power, and windmill power generation, for instances, photovoltaic power systems, high voltage inverting , DC bus centralized application , ESS, charging pile, railway and so forth.

Features

150~1500Vdc 10:1 ultra-wide input range
4KVac I/O high isolation(Reinforced isolation)
Protections: Short circuit / Overload / Over voltage / DC input under voltage / DC input reverse Polarity
Fanless design, fully encapsulated, cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15 (DR-Type)
-40~+80℃ ultra-wide operating temperature (＞+50℃ derating)
Operating altitude up to 5000 meters
3 years warranty

Specifications

DDRH-30-15PSpecifications from the official datasheet (2024-10-18 edition)

INPUT

INPUT VOLTAGE (RANGE): Nominal 800Vdc (150~1500Vdc)
INPUT CURRENT NO LOAD: 0.2mA
INPUT CURRENT FULL LOAD: 50mA
VOLTAGE RANGE: 150 ~ 1500Vdc
FILTER: Internal capacitor
EXTERNAL INPUT FUSE: 4A/1500Vdc, required (Please refer to page 6 for more details)
INRUSH CURRENT (Typ.): Cold start 150A max. @ Vin=800Vdc

OUTPUT

OUTPUT VOLTAGE: 15V
OUTPUT CURRENT: 2A
EFFICIENCY (Typ.): 88%
CAPACITOR LOAD (MAX.): 2000μF
VOLTAGE ACCURACY: ±2.0%
RATED POWER: 30W
RIPPLE & NOISE^Note.2: 12 ~ 24Vo: 100mVp-p 48Vo: 150mVp-p
LINE REGULATION: ±1%
LOAD REGULATION: ±1% (10% Load to Full Load)
SWITCHING FREQUENCY (Typ.): 28 ~ 75.6KHz
HOLD UP TIME: 16ms min. @Vin=800Vdc
SETUP TIME: 2s max. @150~1500Vdc

PROTECTION

SHORT CIRCUIT: Protection type : Hiccup mode, continuous, automatic recovery
OVERLOAD: 110 ~ 300% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: Hiccup mode, recovers automatically after fault condition is removed
DC INPUT REVERSE POLARITY: By internal Bridge Diode, no damage, recovers automatically after fault condition removed
DC INPUT UNDER VOLTAGE LOCKOUT Start-up voltage: 144Vdc
DC INPUT UNDER VOLTAGE LOCKOUT Shutdown voltage: 132Vdc

ENVIRONMENT

WORKING TEMP.: -40 ~ +80℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.02% / ℃ (-40℃ ~ 50℃) Typ.
VIBRATION: Meets: MIL.STD-810F Table 514.5C-VⅢ, 15-2000Hz, X,Y,Z axis, 1hr (each axis), total 3hrs
OPERATING ALTITUDE^Note.3: 5000 meters
OVER VOLTAGE CATEGORY: Ⅱ; According to EN62109-1; altitude up to 5000 meters

SAFETY & EMC

SAFETY STANDARDS: UL1741 , CSA C22.2 No.107.1-16 , IEC62109-1 (LVD), EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:4KVac
ISOLATION RESISTANCE: I/P-O/P, 100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 Class A (with external components)
Radiated BS EN/EN55032 Class A (with external components)
EMC IMMUNITY^Note.4: BS EN/EN55035

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility BS EN/EN61000-4-3 Level 3, 10V, criteria A
EFT/Burest BS EN/EN61000-4-4 Level 2, 0.5KV, criteria A
Surge BS EN/EN61000-4-5 Level 4, 2KV/Vin+ ~ Vin-, criteria A
Conducted BS EN/EN61000-4-6 Level 3, 10V, criteria A

Parameter	Standard	Test Level
Conducted	BS EN/EN55032	Class A (with external components)
Radiated	BS EN/EN55032	Class A (with external components)

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility	BS EN/EN61000-4-3	Level 3, 10V, criteria A
EFT/Burest	BS EN/EN61000-4-4	Level 2, 0.5KV, criteria A
Surge	BS EN/EN61000-4-5	Level 4, 2KV/Vin+ ~ Vin-, criteria A
Conducted	BS EN/EN61000-4-6	Level 3, 10V, criteria A

OTHERS

MTBF: 318Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): P Type: 89*63.5*25mm, ST Type: 135*70*32mm, DR Type: 135*70*43.5mm
CASE MATERIAL: Non-conductive black plastic (UL 94V-0 rated)
POTTING MATERIAL: UL 94V-0
PIN MATERIAL: Base: copper, Plating: Matte Tin
PACKING: P Type : 240g ; 6pcs/Tray, 18pcs/per carton ST Type : 305g ; 6pcs/Tray, 18pcs/per carton DR Type : 310g ; 6pcs/Tray, 18pcs/per carton

Test conditions and notes4

1. All parameters NOT specially mentioned are measured at 800Vdc input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor.
3. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)

Technical drawings

DDRH-30-15P ‧Tolerance: x.x±0.7mm (x.x±0.0275") — ‧Tolerance: x.x±0.7mm (x.x±0.0275")

DDRH-30-15P ‧Tolerance: x.x±0.7mm (x.x±0.0275") (2) — ‧Tolerance: x.x±0.7mm (x.x±0.0275") (2)

DDRH-30-15P DDRH-30-xxST (Screw Terminal Type) — DDRH-30-xxST (Screw Terminal Type)

DDRH-30-15P DDRH-30-xxDR (DIN Rail Type) — DDRH-30-xxDR (DIN Rail Type)

DDRH-30-15P Installation Instruction(DDRH-30-xxDR only) — Installation Instruction(DDRH-30-xxDR only)

DDRH-30-15P External Fuse Wiring Instruction — External Fuse Wiring Instruction

Typical applications

Downloads

Datasheet1

DDRH-30-15P datasheetDDRH_30_spec_sheet.pdf · 2024-10-18 edition PDF Download

FAQ

Can I use the DDRH-30-15P to power sensors or control boards in high-voltage DC bus systems?

Yes. The DDRH-30-15P accepts 150–1500 VDC input, making it suitable for powering 15 V control electronics directly from high-voltage DC buses found in industrial automation, traction, and renewable energy systems. It delivers up to 2 A at 15 V, providing 30 W of isolated output for PLCs, sensors, or interface cards.

Is the DDRH-30-15P suitable for embedded systems that require PCB-mounted DC-DC conversion?

Yes. The DDRH-30-15P uses a PCB mounting type and measures 89.0 × 63.5 × 25.0 mm, making it appropriate for integration directly onto a PCB or within compact enclosures. Its case and potting material are UL 94V-0 rated.

Can this converter operate in cold-climate outdoor equipment or unheated enclosures?

The DDRH-30-15P is rated for –40°C to +80°C operating temperature (with load derating at higher ambient temperatures per the derating curve), so it can function in unheated outdoor or industrial enclosures in cold climates, provided the enclosure protects it from dust and condensation.

Is the DDRH-30-15P appropriate for IT or telecom equipment drawing 15 V from a centralized high-voltage DC distribution rail?

It can be used in this context when the source bus voltage falls within the 150–1500 VDC input range and the load does not exceed 2 A (30 W). In IT rack or telecom applications with a centralized high-voltage DC rail, this converter provides a locally regulated 15 V supply for interface cards or ancillary circuits.

What mounting options are available in the DDRH-30-15 family for the same 30 W, 15 V output?

The 30 W 15 V variants are the DDRH-30-15P (PCB mounting, 89.0 × 63.5 × 25.0 mm, 0.24 kg), DDRH-30-15DR (DIN rail mounting), and DDRH-30-15ST (screw terminal, 135.0 × 70.0 × 32.0 mm, 0.305 kg). All three share the same 150–1500 VDC ultra-wide input range, 15 V / 2 A output, and –40°C to +80°C operating temperature.

Does the DDRH-30-15P carry CE certification?

The spec sheet lists UL1741, CSA C22.2 No.107.1-16, IEC62109-1 (LVD) and EAC TP TC 004 approvals. It does not show a CE marking explicitly, so confirm CE documentation before relying on it.
