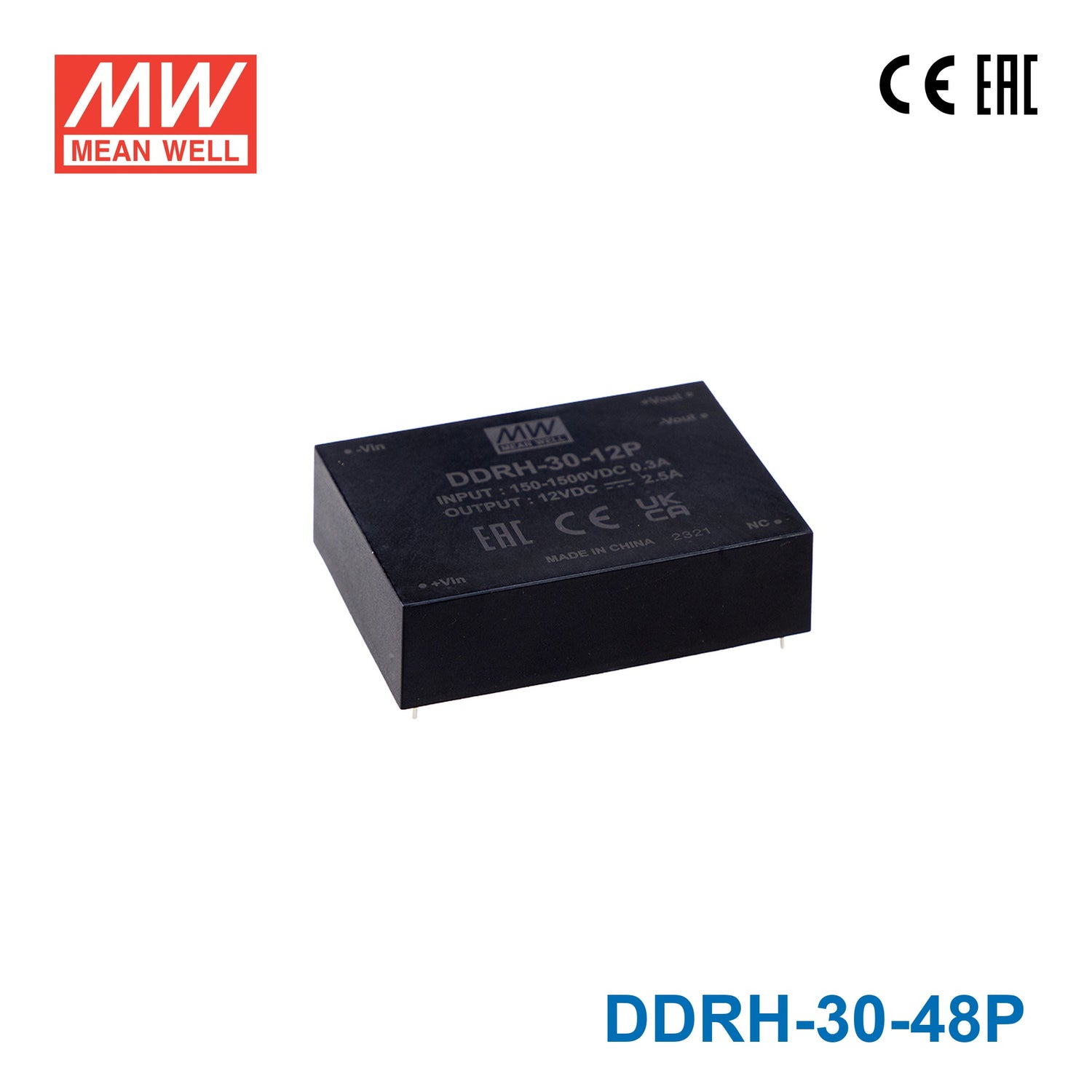

Mean Well DDRH-30-48P Ultra Wide Input DC-DC Converter, 30W 48V, PCB Mounting Type 625mA

150~1500VDC 10:1 ultra-wide input rangefanless design-40~80°C ultra-wide operating temperature

SKU DDRH-30-48P

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

DDRH-30-48P is the 48V output model of this series: rated power 30W, typical efficiency 91%.

DDRH-30 series is a 150 ~ 1500Vdc high reliable ultra-high input DC-DC converter which can supply stable working voltage for the load. Main features are as following: compact size, -40~+80℃ wide range operating temperature, 4KVac high isolation voltage, operation at 5000m altitude, low ripple & noise, complete protections and so on. Futhermore, this series also has DIN Rail type, it is suitable to be mounted on TS-35/7.5 or TS-35/15 rails. DDRH-30 is designed to meet UL1741and IEC62109-1 standard. It is suitable for industrial automation, surveillance, telecommunication and can be widely deployed in the applications of new energy generation such as solar power, and windmill power generation, for instances, photovoltaic power systems, high voltage inverting , DC bus centralized application , ESS, charging pile, railway and so forth.

Features

150~1500Vdc 10:1 ultra-wide input range
4KVac I/O high isolation(Reinforced isolation)
Protections: Short circuit / Overload / Over voltage / DC input under voltage / DC input reverse Polarity
Fanless design, fully encapsulated, cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15 (DR-Type)
-40~+80℃ ultra-wide operating temperature (＞+50℃ derating)
Operating altitude up to 5000 meters
3 years warranty

Specifications

DDRH-30-48PSpecifications from the official datasheet (2024-10-18 edition)

INPUT

INPUT VOLTAGE (RANGE): Nominal 800Vdc (150~1500Vdc)
INPUT CURRENT NO LOAD: 0.2mA
INPUT CURRENT FULL LOAD: 50mA
VOLTAGE RANGE: 150 ~ 1500Vdc
FILTER: Internal capacitor
EXTERNAL INPUT FUSE: 4A/1500Vdc, required (Please refer to page 6 for more details)
INRUSH CURRENT (Typ.): Cold start 150A max. @ Vin=800Vdc

OUTPUT

OUTPUT VOLTAGE: 48V
OUTPUT CURRENT: 0.625A
EFFICIENCY (Typ.): 91%
CAPACITOR LOAD (MAX.): 625μF
VOLTAGE ACCURACY: ±2.0%
RATED POWER: 30W
RIPPLE & NOISE^Note.2: 12 ~ 24Vo: 100mVp-p 48Vo: 150mVp-p
LINE REGULATION: ±1%
LOAD REGULATION: ±1% (10% Load to Full Load)
SWITCHING FREQUENCY (Typ.): 28 ~ 75.6KHz
HOLD UP TIME: 16ms min. @Vin=800Vdc
SETUP TIME: 2s max. @150~1500Vdc

PROTECTION

SHORT CIRCUIT: Protection type : Hiccup mode, continuous, automatic recovery
OVERLOAD: 110 ~ 300% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: Hiccup mode, recovers automatically after fault condition is removed
DC INPUT REVERSE POLARITY: By internal Bridge Diode, no damage, recovers automatically after fault condition removed
DC INPUT UNDER VOLTAGE LOCKOUT Start-up voltage: 144Vdc
DC INPUT UNDER VOLTAGE LOCKOUT Shutdown voltage: 132Vdc

ENVIRONMENT

WORKING TEMP.: -40 ~ +80℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.02% / ℃ (-40℃ ~ 50℃) Typ.
VIBRATION: Meets: MIL.STD-810F Table 514.5C-VⅢ, 15-2000Hz, X,Y,Z axis, 1hr (each axis), total 3hrs
OPERATING ALTITUDE^Note.3: 5000 meters
OVER VOLTAGE CATEGORY: Ⅱ; According to EN62109-1; altitude up to 5000 meters

SAFETY & EMC

SAFETY STANDARDS: UL1741 , CSA C22.2 No.107.1-16 , IEC62109-1 (LVD), EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:4KVac
ISOLATION RESISTANCE: I/P-O/P, 100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 Class A (with external components)
Radiated BS EN/EN55032 Class A (with external components)
EMC IMMUNITY^Note.4: BS EN/EN55035

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility BS EN/EN61000-4-3 Level 3, 10V, criteria A
EFT/Burest BS EN/EN61000-4-4 Level 2, 0.5KV, criteria A
Surge BS EN/EN61000-4-5 Level 4, 2KV/Vin+ ~ Vin-, criteria A
Conducted BS EN/EN61000-4-6 Level 3, 10V, criteria A

Parameter	Standard	Test Level
Conducted	BS EN/EN55032	Class A (with external components)
Radiated	BS EN/EN55032	Class A (with external components)

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility	BS EN/EN61000-4-3	Level 3, 10V, criteria A
EFT/Burest	BS EN/EN61000-4-4	Level 2, 0.5KV, criteria A
Surge	BS EN/EN61000-4-5	Level 4, 2KV/Vin+ ~ Vin-, criteria A
Conducted	BS EN/EN61000-4-6	Level 3, 10V, criteria A

OTHERS

MTBF: 318Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): P Type: 89*63.5*25mm, ST Type: 135*70*32mm, DR Type: 135*70*43.5mm
CASE MATERIAL: Non-conductive black plastic (UL 94V-0 rated)
POTTING MATERIAL: UL 94V-0
PIN MATERIAL: Base: copper, Plating: Matte Tin
PACKING: P Type : 240g ; 6pcs/Tray, 18pcs/per carton ST Type : 305g ; 6pcs/Tray, 18pcs/per carton DR Type : 310g ; 6pcs/Tray, 18pcs/per carton

Test conditions and notes4

1. All parameters NOT specially mentioned are measured at 800Vdc input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor.
3. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)

Technical drawings

DDRH-30-48P ‧Tolerance: x.x±0.7mm (x.x±0.0275") — ‧Tolerance: x.x±0.7mm (x.x±0.0275")

DDRH-30-48P ‧Tolerance: x.x±0.7mm (x.x±0.0275") (2) — ‧Tolerance: x.x±0.7mm (x.x±0.0275") (2)

DDRH-30-48P DDRH-30-xxST (Screw Terminal Type) — DDRH-30-xxST (Screw Terminal Type)

DDRH-30-48P DDRH-30-xxDR (DIN Rail Type) — DDRH-30-xxDR (DIN Rail Type)

DDRH-30-48P Installation Instruction(DDRH-30-xxDR only) — Installation Instruction(DDRH-30-xxDR only)

DDRH-30-48P External Fuse Wiring Instruction — External Fuse Wiring Instruction

Typical applications

Downloads

Datasheet1

DDRH-30-48P datasheetDDRH_30_spec_sheet.pdf · 2024-10-18 edition PDF Download

FAQ

Can the DDRH-30-48P be used to power 48 V embedded computing modules or communication cards inside high-voltage power systems?

Yes. The PCB mounting format and 150–1500 VDC input make the DDRH-30-48P suitable for integration inside high-voltage converters or energy storage systems where a 48 V / 0.625 A (30 W) embedded auxiliary supply is needed for DSP boards, communication interfaces, or gate driver logic.

Is this unit appropriate for powering 48 V sensing or data acquisition modules in industrial automation equipment?

Yes. The DDRH-30-48P provides 48 V at 0.625 A (30 W) for sensors, data acquisition modules, or analog input cards that operate at 48 V. Its compact PCB footprint of 89.0 × 63.5 × 25.0 mm allows it to be mounted close to the load within the same enclosure.

Will the DDRH-30-48P operate in equipment that sees temperature extremes, such as outdoor metering units?

Yes, within its rating. The DDRH-30-48P is rated –40°C to +80°C (with load derating at higher ambient temperatures per the derating curve), so it can serve outdoor metering or monitoring units where temperatures swing widely, provided the enclosure protects it from moisture (20–90% RH non-condensing) and dust.

Can the DDRH-30-48P supply 48 V to VoIP gateways or networked automation controllers in a high-voltage DC panel?

It can provide up to 30 W at 48 V to a VoIP gateway or automation controller, provided the device's power draw does not exceed 0.625 A. The 150–1500 VDC input supports deriving this from a high-voltage DC distribution rail within that range.

How does the PCB-mount version compare to the DIN rail and screw terminal variants in the DDRH-30-48 family?

All three output 30 W at 48 V / 0.625 A from 150–1500 VDC with –40°C to +80°C range. The DDRH-30-48P (PCB) measures 89.0 × 63.5 × 25.0 mm and weighs 0.24 kg; the DDRH-30-48DR (DIN rail) is 135.0 × 70.0 × 43.5 mm at 0.31 kg; the DDRH-30-48ST (screw terminal) is 135.0 × 70.0 × 32.0 mm at 0.305 kg.

What certifications does the DDRH-30-48P carry?

The DDRH-30-48P is approved to UL1741, CSA C22.2 No.107.1-16, IEC62109-1 (LVD) and EAC TP TC 004.
