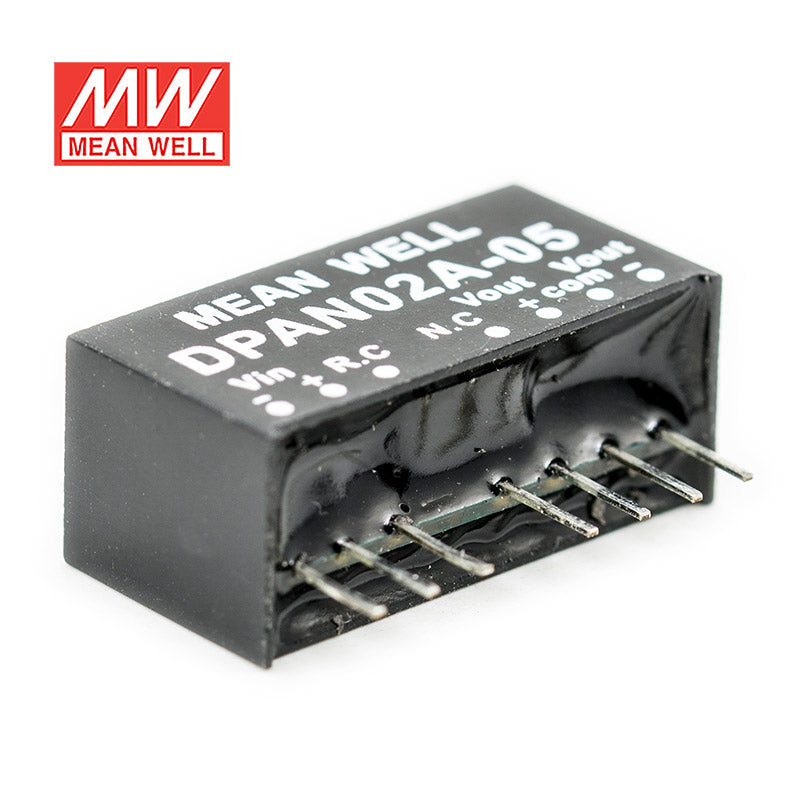

Mean Well DPAN02A-05 DC-DC Converter - 2W - 9~18V in ±5V out

SKU:

DPAN02A-05

Notify me when it's back in stock

Description

SPAN02 and DPAN02 series are 2W isolated and regulated module type DC-DC converter with SIP8 package. It features international standard pins, a high efficiency up to 85%, wide working temperature range -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, compliance to EN55032 radiated class A without additional components, overload and continuous-mode short circuit protection, etc. The models account for different input voltage 4.5~9V, 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.

Features

SIP8 package with industry standard pinout 2:1 wide input range
Operating temperature range -40 ~ +90℃
No minimum load required
Comply to EN55032 radiated Class A without additional
Hcoigmhpeofnfiecinetnscy up to 85%
Protections: Short circuit (Continuous) / Overload
1.5KVDC I/O isolation
Remote ON/OFF control
3 years warranty

Applications

Telecom/datacom system
Wireless network
Industrial control facility
Instrument
Analyzer
Detector
Data switch

Specifications

Brand

Mean Well
Series

DPAN Series
Power Rating

2 Watt
Output Voltage

5 Volt
Rated Current

0.2 Ampere
Input Voltage

9V~18V
Standards Met

CE,EAC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

3 Year
Length

2.18 cm
Width

1.11 cm
Height

0.92 cm
Weight

0 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the DPAN02A-05 in a 12V embedded controller that needs 5V power?

This model accepts 9-18VAC input and provides a constant 5V output at 2W. That makes it appropriate for very low-power embedded control, monitoring, or interface circuits that run from a 9-18VAC source range.

Is the DPAN02A-05 suitable for compact industrial electronics with tight space limits?

Yes, its dimensions are 21.8 × 11.1 × 9.2 mm and its weight is 0.0048 kg, so it is much smaller than larger board-mount converters. That compact size fits space-constrained industrial or embedded assemblies needing a 5V rail at 2W.

Can this converter be used for low-power automation I/O or communication boards?

It can fit low-power automation electronics that need a constant 5V output, as long as the input remains within 9-18VAC. Since the rated output is 2W, it is best matched to small I/O, sensing, or communication sections rather than heavier 5V loads.

Is the DPAN02A-05 suitable for harsh temperature environments?

The operating temperature range is -40°C to +90°C, which is wider than many compact converters and supports demanding hot or cold equipment conditions. No IP rating is listed, so the specs support temperature suitability but do not confirm outdoor or sealed-enclosure protection.

How does the DPAN02A-05 compare with the other DPAN02A models?

The listed DPAN02A siblings are all 2W converters in the same series. The DPAN02A-05 is 5V with 200A, the DPAN02A-12 is 12V with 0.08A, and the DPAN02A-15 is 15V with 0.07A.

Model	Power	Voltage	Current	IP Rating
Mean Well DPAN02E-15 DC-DC Converter - 2W - 4.5~9V in ±15V out	2W	15V	0.06A	Indoor	View
Mean Well DPAN02E-12 DC-DC Converter - 2W - 4.5~9V in ±12V out	2W	12V	0.08A	Indoor	View
Mean Well DPAN02E-05 DC-DC Converter - 2W - 4.5~9V in ±5V out	2W	5V	0.2A	Indoor	View
Mean Well DPAN02C-15 DC-DC Converter - 2W - 36~75V in ±15V out	2W	15V	0.06A	Indoor	View
Mean Well DPAN02C-12 DC-DC Converter - 2W - 36~75V in ±12V out	2W	12V	0.08A	Indoor	View
Mean Well DPAN02C-05 DC-DC Converter - 2W - 36~75V in ±5V out	2W	5V	0.2A	Indoor	View
Mean Well DPAN02B-15 DC-DC Converter - 2W - 18~36V in ±15V out	2W	15V	0.06A	Indoor	View
Mean Well DPAN02B-12 DC-DC Converter - 2W - 18~36V in ±12V out	2W	12V	0.08A	Indoor	View
Mean Well DPAN02B-05 DC-DC Converter - 2W - 18~36V in ±5V out	2W	5V	0.2A	Indoor	View
Mean Well DPAN02A-15 DC-DC Converter - 2W - 9~18V in ±15V out	2W	15V	0.06A	Indoor	View
Mean Well DPAN02A-12 DC-DC Converter - 2W - 9~18V in ±12V out	2W	12V	0.08A	Indoor	View
