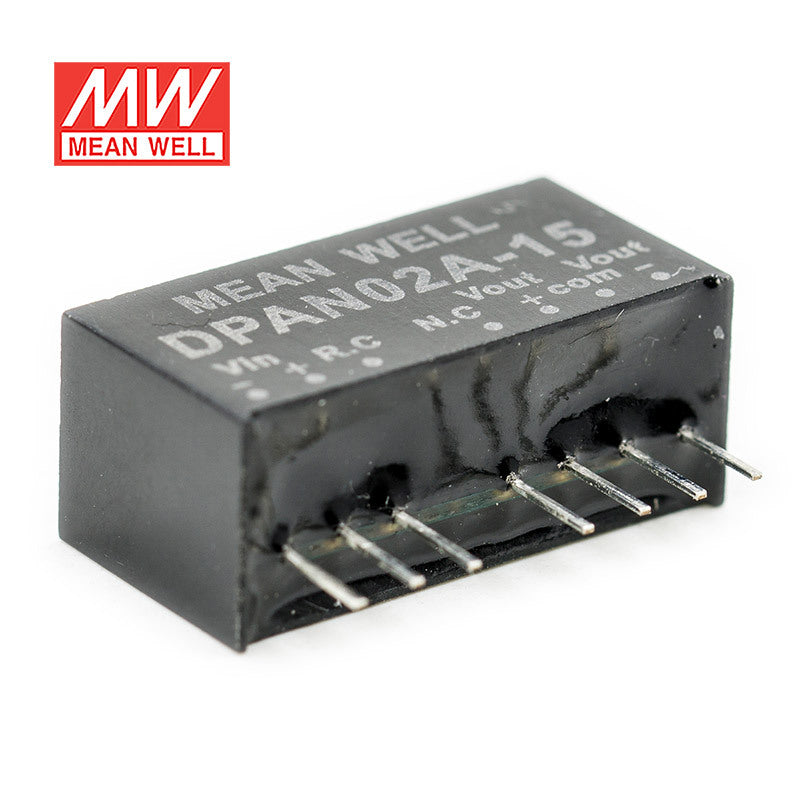

Mean Well DPAN02A-15 DC-DC Converter - 2W - 9~18V in ±15V out 67mA

SKU DPAN02A-15

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

DPAN02A-15 is the ±15V output model of this series: rated power 2W, typical efficiency 83%.

SPAN02 and DPAN02 series are 2W isolated and regulated module type DC-DC converter with SIP 8 package. It features international standard pins, a high efficiency up to 85%, wide working temperature range -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated class A without additional components, overload and continuous-mode short circuit protection, etc. The models account for different input voltage 4.5~9V, 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.

Features

SIP8 package with industry standard pinout
2:1 wide input range
Operating temperature range -40 ~ +90℃
No minimum load required
Comply to BS EN/EN55032 radiated Class A without additional components
High efficiency up to 85%
Protections: Short circuit (Continuous) / Overload
1.5KVDC I/O isolation
Remote ON/OFF control
3 years warranty

Specifications

DPAN02A-15Specifications from the official datasheet (2024-04-30 edition)

INPUT

INPUT VOLTAGE (RANGE): 12V (9 ~ 18V)
INPUT CURRENT NO LOAD: 31mA
INPUT CURRENT FULL LOAD: 202mA
VOLTAGE RANGE: 9~18Vdc ,
SURGE VOLTAGE (100ms max.): 5Vin models : 15Vdc ; 12Vin models : 25Vdc ; 24Vin models : 50Vdc ; 48Vin models : 100Vdc
FILTER: Internal capacitor
PROTECTION: Fuse recommended. 5Vin models: 1000mA Slow-Blow Type, 12Vin models: 500mA Slow-Blow Type, 24V and 48Vin models: 250mA Slow-Blow Type
INTERNAL POWER DISSIPATION: 500mW

OUTPUT

OUTPUT VOLTAGE: ±15V
OUTPUT CURRENT: ±0 ~ 67mA
EFFICIENCY (TYP.): 83%
CAPACITOR LOAD (MAX.)^{* For each output}: *67μF
VOLTAGE ACCURACY: ±1.5%
RATED POWER: 2W
RIPPLE & NOISE^Note.2: 75mVp-p
LINE REGULATION^Note.3: ±0.5%
LOAD REGULATION^Note.4: Single output models:±0.5%, Dual output models:±1%
SWITCHING FREQUENCY (Typ.): 100KHz

PROTECTION

SHORT CIRCUIT: Protection type : Continuous, automatic recovery
OVERLOAD: Protection type : Recovers automatically after fault condition is removed
UNDER VOLTAGE LOCKOUT Start-up voltage: 5Vin : 4.2Vdc ; 12Vin : 7.3Vdc ; 24Vin : 15.5Vdc ; 48Vin : 31Vdc
UNDER VOLTAGE LOCKOUT Shutdown voltage: 5Vin : 3Vdc ; 12Vin : 5.8Vdc ; 24Vin : 12Vdc ; 48Vin : 24Vdc

FUNCTION

REMOTE CONTROL: Power ON: R.C. ~ -Vin <0.8Vdc or open circuit; Power OFF: R.C. ~ -Vin >4 ~ 15Vdc

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +90℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +100℃ max.
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.03% / ℃ (0 ~ 85℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 3sec./260℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC ( Note.5)

SAFETY STANDARDS: EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE: I/P-O/P:1.5KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 10pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) N/A
Radiated BS EN/EN55032(CISPR32) Class A
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 2, 3A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	N/A
Radiated	BS EN/EN55032(CISPR32)	Class A

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Bursts	BS EN/EN61000-4-4	Level 1, 0.5KV
Surge	BS EN/EN61000-4-5	Level 1, 0.5KV Line-Line
Conducted	BS EN/EN61000-4-6	Level 2, 3V(e.m.f.)
Magnetic Field	BS EN/EN61000-4-8	Level 2, 3A/m

OTHERS

MTBF: 2500Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 21.8*9.2*11.1mm (0.86*0.36*0.44 inch)
CASE MATERIAL: Non-Conductive black plastic (UL 94V-0 rated)
PACKING: 2.7g ; 14pcs/per tube, 2058pcs/147 tube/per carton

Test conditions and notes5

1.All parameters are specified at normal input(E:5Vdc, A:12Vdc, B:24Vdc, C:48Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 10% to 100% rated load.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

DPAN02A-15 Plug Assignment — Plug Assignment

Typical applications

Downloads

Certificates2

Certificate (SPAN02-DPAN02-CE-sec)(EN) PDF Download

Certificate (SPAN-DPAN02-UK-dec)(EN) PDF Download

Test reports1

Test Report (DPAN02A-15)(EN) PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the DPAN02A-15 for op-amp and instrumentation circuits that need ±15V rails?

Yes, it is suited to low-power analog and instrumentation sections that require ±15V output from a 9-18VDC input. Its 2W rating and 67mA output current make it a better match for signal-level circuitry than for heavier control loads.

Is the DPAN02A-15 a good fit for compact embedded control boards with dual 15V requirements?

It can fit compact embedded boards where the rail requirement is ±15V and total load stays inside the 2W limit. The 21.8 × 9.2 × 11.1 mm size is useful where board space is limited.

Can the DPAN02A-15 be used for low-power industrial sensor interface modules?

It is appropriate for low-power interface or conditioning modules that need constant-voltage ±15V output. The -40°C to +90°C operating range also makes it more suitable for industrial temperature conditions than converters limited to room-temperature use.

How does the DPAN02A-15 compare with the other DPAN02A models?

The DPAN02A-05, DPAN02A-12, and DPAN02A-15 all share 2W power, 9-18VDC input, and the same 21.8 × 9.2 × 11.1 mm dimensions. The difference is output: ±5V on the DPAN02A-05, ±12V at 83mA on the DPAN02A-12, and ±15V at 67mA on the DPAN02A-15.

Can the DPAN02A-15 be used where temperatures vary widely?

Its specified operating range is -40°C to +90°C, which supports use in equipment exposed to broad temperature variation. No IP rating is listed, so the temperature spec is clear but outdoor dust or water exposure should be managed by the host enclosure.
