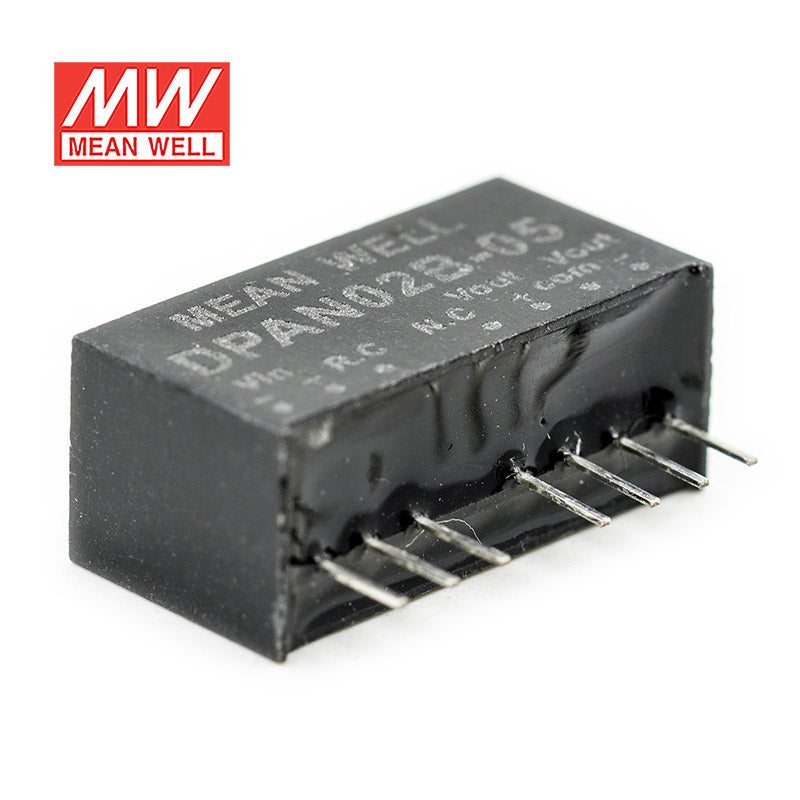

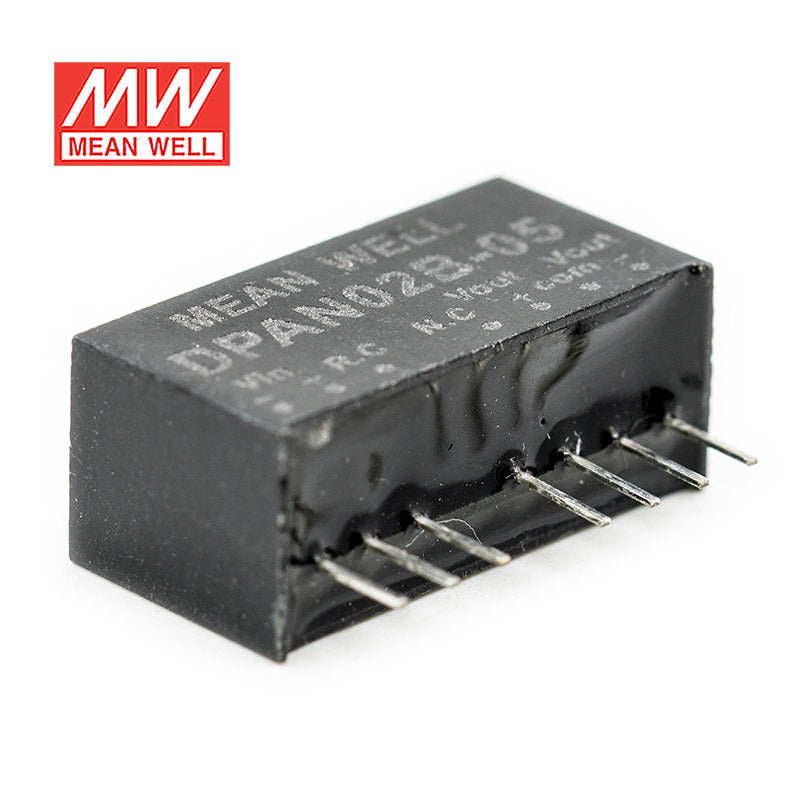

Mean Well DPAN02B-05 DC-DC Converter - 2W - 18~36V in ±5V out

SKU:

DPAN02B-05

Notify me when it's back in stock

Description

SPAN02 and DPAN02 series are 2W isolated and regulated module type DC-DC converter with SIP8 package. It features international standard pins, a high efficiency up to 85%, wide working temperature range -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, compliance to EN55032 radiated class A without additional components, overload and continuous-mode short circuit protection, etc. The models account for different input voltage 4.5~9V, 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.

Features

SIP8 package with industry standard pinout 2:1 wide input range
Operating temperature range -40 ~ +90℃
No minimum load required
Comply to EN55032 radiated Class A without additional
Hcoigmhpeofnfiecinetnscy up to 85%
Protections: Short circuit (Continuous) / Overload
1.5KVDC I/O isolation
Remote ON/OFF control
3 years warranty

Applications

Telecom/datacom system
Wireless network
Industrial control facility
Instrument
Analyzer
Detector
Data switch

Specifications

Brand

Mean Well
Series

DPAN Series
Power Rating

2 Watt
Output Voltage

5 Volt
Rated Current

0.2 Ampere
Input Voltage

18V~36V
Standards Met

CE,EAC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

3 Year
Length

2.18 cm
Width

1.11 cm
Height

0.92 cm
Weight

0 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the DPAN02B-05 to power 5V logic in industrial or embedded equipment from an 18-36VAC source?

Yes, this model is intended for low-power 5V rails where the available input is 18-36VAC. Its 2W constant-voltage design is a better fit for logic, control, or interface circuits than for loads that need more output power.

Is the DPAN02B-05 suitable for powering microcontroller or communication interface boards?

It can suit compact embedded or communication boards that need a regulated 5V output and have an 18-36VAC source available. The small 21.8 × 11.1 × 9.2 mm package also helps in tightly packed control assemblies.

Can the DPAN02B-05 be used in automation systems for low-power digital control sections?

Yes, for low-power digital sections that need 5V constant-voltage output, this converter is within the right class. The 2W rating keeps it in the low-power category, and the -40°C to +90°C operating range supports industrial temperature conditions.

What is the difference between the DPAN02B-05, DPAN02B-12, and DPAN02B-15?

All three are 2W converters with 18-36VAC input, CE and EAC certification, and the same 21.8 × 11.1 × 9.2 mm dimensions. The DPAN02B-05 is the 5V version, the DPAN02B-12 provides ±12V with 0.08A output current, and the DPAN02B-15 provides ±15V with 0.07A output current.

Is the DPAN02B-05 suitable for outdoor equipment or washdown areas?

The operating temperature range is -40°C to +90°C, so it is rated for wide temperature exposure. However, no IP rating is listed, so the product specs do not define water or dust protection for direct outdoor or washdown exposure.

Model	Power	Voltage	Current	IP Rating
Mean Well DPAN02E-15 DC-DC Converter - 2W - 4.5~9V in ±15V out	2W	15V	0.06A	Indoor	View
Mean Well DPAN02E-12 DC-DC Converter - 2W - 4.5~9V in ±12V out	2W	12V	0.08A	Indoor	View
Mean Well DPAN02E-05 DC-DC Converter - 2W - 4.5~9V in ±5V out	2W	5V	0.2A	Indoor	View
Mean Well DPAN02C-15 DC-DC Converter - 2W - 36~75V in ±15V out	2W	15V	0.06A	Indoor	View
Mean Well DPAN02C-12 DC-DC Converter - 2W - 36~75V in ±12V out	2W	12V	0.08A	Indoor	View
Mean Well DPAN02C-05 DC-DC Converter - 2W - 36~75V in ±5V out	2W	5V	0.2A	Indoor	View
Mean Well DPAN02B-15 DC-DC Converter - 2W - 18~36V in ±15V out	2W	15V	0.06A	Indoor	View
Mean Well DPAN02B-12 DC-DC Converter - 2W - 18~36V in ±12V out	2W	12V	0.08A	Indoor	View
Mean Well DPAN02A-15 DC-DC Converter - 2W - 9~18V in ±15V out	2W	15V	0.06A	Indoor	View
Mean Well DPAN02A-12 DC-DC Converter - 2W - 9~18V in ±12V out	2W	12V	0.08A	Indoor	View
Mean Well DPAN02A-05 DC-DC Converter - 2W - 9~18V in ±5V out	2W	5V	0.2A	Indoor	View
