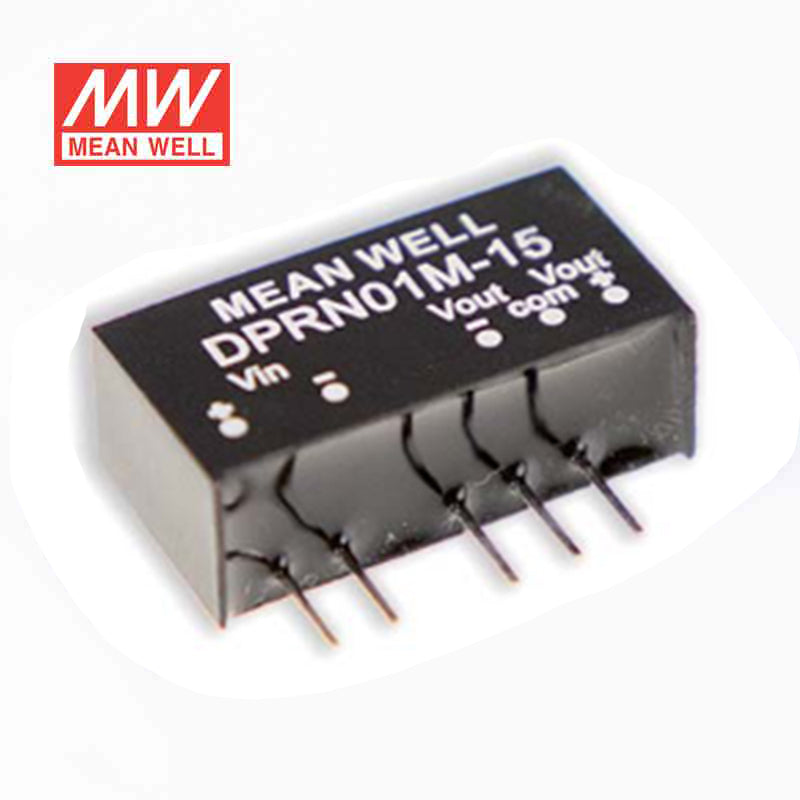

Mean Well DPRN01L-15 DC-DC Converter - 1W - 4.75~5.5V in ±15V out 34mA

SKU DPRN01L-15

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

DPRN01L-15 is the ±15V output model of this series: rated power 1W, typical efficiency 67%.

SP RN01 and DP RN01 series are 1 W isolated and regulated module type DC-DC converter with SIP 6 package. It features international standard pins, wide working temperature range -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class B without additional components, short circuit protection, etc. The models account for different input voltage 5V/12V/24V / 48 V -5~+10% , and various output voltage, 5V/12V/15V for single output and ±12V/±15V for dual outputs, which are suitable for all kinds of systems, s uch as industrial control, telecommunication field, distributed power architecture, and so on.

Features

SIP6 package with industry standard pinout
Operating temperature range -40 ~ +90℃
Comply to BS EN/EN55032 radiated Class B without additional components
Protection: Short circuit
1.5KVDC I/O isolation
Low cost
3 years warranty

Specifications

DPRN01L-15Specifications from the official datasheet (2024-08-02 edition)

INPUT

INPUT VOLTAGE (RANGE): Normal 5V (4.75 ~ 5.5V)
INPUT CURRENT NO LOAD: 45mA
INPUT CURRENT FULL LOAD: 299mA
VOLTAGE RANGE: 4.75 ~ 5.5Vdc ,
SURGE VOLTAGE (100ms max.): 5Vin models : 9Vdc ; 12Vin models : 18Vdc ; 24Vin models : 30Vdc ; 48Vin models : 60Vdc
FILTER: Internal capacitor
PROTECTION: Fuse recommended. 5Vin models: 500mA, 12Vin models: 250mA, 24Vin models: 100mA, 48Vin models: 60mA
INTERNAL POWER DISSIPATION: 600mW

OUTPUT

OUTPUT VOLTAGE: ±15V
OUTPUT CURRENT: ±0 ~ 34mA
EFFICIENCY (TYP.): 67%
CAPACITOR LOAD (MAX.): ±47μF (for each output)
VOLTAGE ACCURACY: ±3.0%
RATED POWER: 1W
RIPPLE & NOISE^Note.2: 75mVp-p
LINE REGULATION^Note.3: ±1.0%
LOAD REGULATION^Note.4: ±1.0%
SWITCHING FREQUENCY (Typ.): 110KHz

PROTECTION

SHORT CIRCUIT: SPRN01: Current limit protection 60 sec. max., DPRN01: 1 sec. max.

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +90℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +110℃ max.
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.05% / ℃ (0 ~ 71℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 3sec./260℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC ( Note.5)

SAFETY STANDARDS: EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE: I/P-O/P:1.5KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 80pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) N/A
Radiated BS EN/EN55032(CISPR32) Class B
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, ±8KV air, Level 2, ±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV at power, Level 2, 0.5KV at signal
Surge BS EN/EN61000-4-5 Level 2, 0.5KV Line-Line, Level 2, 1KV Line ground
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 1,1A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	N/A
Radiated	BS EN/EN55032(CISPR32)	Class B

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, ±8KV air, Level 2, ±4KV contact
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Bursts	BS EN/EN61000-4-4	Level 1, 0.5KV at power, Level 2, 0.5KV at signal
Surge	BS EN/EN61000-4-5	Level 2, 0.5KV Line-Line, Level 2, 1KV Line ground
Conducted	BS EN/EN61000-4-6	Level 2, 3V(e.m.f.)
Magnetic Field	BS EN/EN61000-4-8	Level 1,1A/m

OTHERS

MTBF: 1000Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 19.6*7.1*10.14mm (0.77*0.28*0.40 inch)
CASE MATERIAL: Non-Conductive black plastic (UL 94V-0 rated)
PACKING: 2.5g ; 25pcs/per tube, 4000pcs/160 tube/per carton

Test conditions and notes5

1.All parameters are specified at normal input(L:5Vdc, M:12Vdc, N:24Vdc, O:48Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 10% to 100% rated load.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

DPRN01L-15 Mechanical Specification — Mechanical Specification

DPRN01L-15 Pin Configuration — Pin Configuration

Typical applications

Downloads

Certificates3

Certificate (SPRN01-DPRN01-EMC)(EN) PDF Download

Certificate (SPRN01-DPRN01-CE-dec)(EN) PDF Download

Certificate (SPRN-DPRN01-UK-dec)(EN) PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the DPRN01L-15 to create a 15V rail from a 5V source in embedded electronics?

Yes, it is specified for a 4.75-5.5V input range and delivers a constant-voltage ±15V output. Because it is rated at 1W, it is intended for low-power embedded circuits rather than larger 15V loads.

Is the DPRN01L-15 suitable for low-power industrial interface or instrumentation boards?

It can be used where the application needs a regulated ±15V output and the load stays within 1W. The listed output current is ±34mA, which aligns with light-duty interface and instrumentation sections.

Would this converter fit compact telecom or IT boards that only have a 5V input rail available?

Yes, it is designed for systems with a 4.75-5.5V input and a modest 15V output requirement. Its 19.6 x 10.14 x 7.1 mm dimensions and 0.0025 kg weight make it suitable for space-constrained board designs.

Can the DPRN01L-15 be used in small automation modules that need 15V for signal-level electronics?

It is a fit for low-power automation electronics that need a constant-voltage ±15V output and remain within the 1W limit. This makes it more appropriate for signal and interface circuitry than for high-current devices.

How does the DPRN01L-15 compare with the DPRN01L-12?

Both models are 1W converters in the same series. The DPRN01L-12 is rated at ±12V and ±42mA, while the DPRN01L-15 is rated at ±15V and ±34mA.

Is the DPRN01L-15 suitable for outdoor locations or high-temperature equipment?

The unit has an operating temperature range of -40°C to +90°C, so it is specified for wide-temperature operation. No IP rating is shown in the provided specs, so the datasheet details here do not indicate outdoor sealing.
