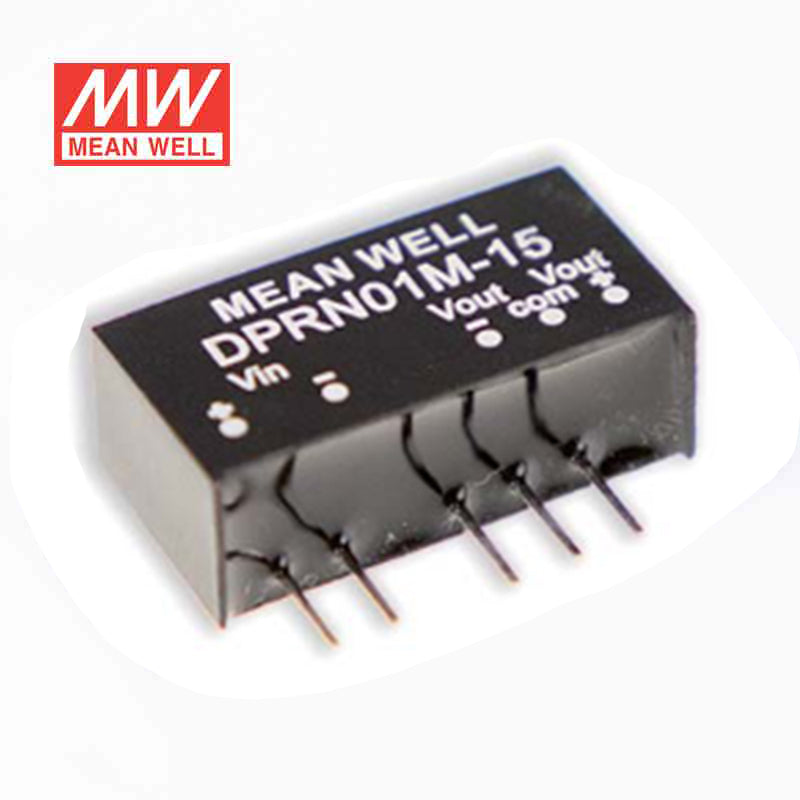

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well DPRN01O-12 DC-DC Converter - 1W - 45.6~52.8V in ±12V out 42mA

SKU DPRN01O-12

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

DPRN01O-12 is the ±12V output model of this series: rated power 1W, typical efficiency 63%.

SP RN01 and DP RN01 series are 1 W isolated and regulated module type DC-DC converter with SIP 6 package. It features international standard pins, wide working temperature range -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class B without additional components, short circuit protection, etc. The models account for different input voltage 5V/12V/24V / 48 V -5~+10% , and various output voltage, 5V/12V/15V for single output and ±12V/±15V for dual outputs, which are suitable for all kinds of systems, s uch as industrial control, telecommunication field, distributed power architecture, and so on.

Features

SIP6 package with industry standard pinout
Operating temperature range -40 ~ +90℃
Comply to BS EN/EN55032 radiated Class B without additional components
Protection: Short circuit
1.5KVDC I/O isolation
Low cost
3 years warranty

Specifications

DPRN01O-12Specifications from the official datasheet (2024-08-02 edition)

INPUT

INPUT VOLTAGE (RANGE): Normal 48V (45.6 ~ 52.8V)
INPUT CURRENT NO LOAD: 8mA
INPUT CURRENT FULL LOAD: 35mA
VOLTAGE RANGE: 45.6 ~ 52.8Vdc
SURGE VOLTAGE (100ms max.): 5Vin models : 9Vdc ; 12Vin models : 18Vdc ; 24Vin models : 30Vdc ; 48Vin models : 60Vdc
FILTER: Internal capacitor
PROTECTION: Fuse recommended. 5Vin models: 500mA, 12Vin models: 250mA, 24Vin models: 100mA, 48Vin models: 60mA
INTERNAL POWER DISSIPATION: 600mW

OUTPUT

OUTPUT VOLTAGE: ±12V
OUTPUT CURRENT: ±0 ~ 42mA
EFFICIENCY (TYP.): 63%
CAPACITOR LOAD (MAX.): ±47μF (for each output)
VOLTAGE ACCURACY: ±3.0%
RATED POWER: 1W
RIPPLE & NOISE^Note.2: 75mVp-p
LINE REGULATION^Note.3: ±1.0%
LOAD REGULATION^Note.4: ±1.0%
SWITCHING FREQUENCY (Typ.): 110KHz

PROTECTION

SHORT CIRCUIT: SPRN01: Current limit protection 60 sec. max., DPRN01: 1 sec. max.

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +90℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +110℃ max.
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.05% / ℃ (0 ~ 71℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 3sec./260℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC ( Note.5)

SAFETY STANDARDS: EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE: I/P-O/P:1.5KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 80pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) N/A
Radiated BS EN/EN55032(CISPR32) Class B
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, ±8KV air, Level 2, ±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV at power, Level 2, 0.5KV at signal
Surge BS EN/EN61000-4-5 Level 2, 0.5KV Line-Line, Level 2, 1KV Line ground
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 1,1A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	N/A
Radiated	BS EN/EN55032(CISPR32)	Class B

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, ±8KV air, Level 2, ±4KV contact
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Bursts	BS EN/EN61000-4-4	Level 1, 0.5KV at power, Level 2, 0.5KV at signal
Surge	BS EN/EN61000-4-5	Level 2, 0.5KV Line-Line, Level 2, 1KV Line ground
Conducted	BS EN/EN61000-4-6	Level 2, 3V(e.m.f.)
Magnetic Field	BS EN/EN61000-4-8	Level 1,1A/m

OTHERS

MTBF: 1000Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 19.6*7.1*10.14mm (0.77*0.28*0.40 inch)
CASE MATERIAL: Non-Conductive black plastic (UL 94V-0 rated)
PACKING: 2.5g ; 25pcs/per tube, 4000pcs/160 tube/per carton

Test conditions and notes5

1.All parameters are specified at normal input(L:5Vdc, M:12Vdc, N:24Vdc, O:48Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 10% to 100% rated load.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

DPRN01O-12 Mechanical Specification — Mechanical Specification

DPRN01O-12 Pin Configuration — Pin Configuration

Typical applications

Downloads

Certificates3

Certificate (SPRN01-DPRN01-EMC)(EN) PDF Download

Certificate (SPRN01-DPRN01-CE-dec)(EN) PDF Download

Certificate (SPRN-DPRN01-UK-dec)(EN) PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the DPRN01O-12 in a 48V-class industrial system that needs a ±12V rail?

Yes, this model is intended for low-power constant-voltage conversion when the input is in the 45.6 ~ 52.8Vdc range. It provides ±12V output at 1W with ±0 ~ 42mA output current, which makes it suitable for light-duty control, interface, or analog sections.

Is the DPRN01O-12 appropriate for compact embedded or automation boards on 48V equipment?

It can be used where a small embedded or automation board needs a ±12V rail from a 45.6 ~ 52.8Vdc source. The 19.6 × 7.1 × 10.14 mm size supports compact layouts, while the 1W rating keeps it in the low-power category.

Can this converter power low-power instrumentation or interface circuitry in telecom or control hardware?

Yes, if the target circuitry needs a constant-voltage ±12V output and stays within 1W and ±0 ~ 42mA output current. It is a better match for small instrumentation or interface stages than for heavier subsystem loads.

Is the DPRN01O-12 suitable for outdoor enclosures or exposed installations?

No IP rating is listed in the provided specifications, so it should be treated as a protected internal component rather than an exposed outdoor product. The operating temperature range is -40°C to +90°C.

How does the DPRN01O-12 compare with the DPRN01O-15?

Both are 1W models in the DPRN01O series. The DPRN01O-12 provides ±12V output at ±0 ~ 42mA, while the DPRN01O-15 provides ±15V output at ±0 ~ 34mA.
