Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

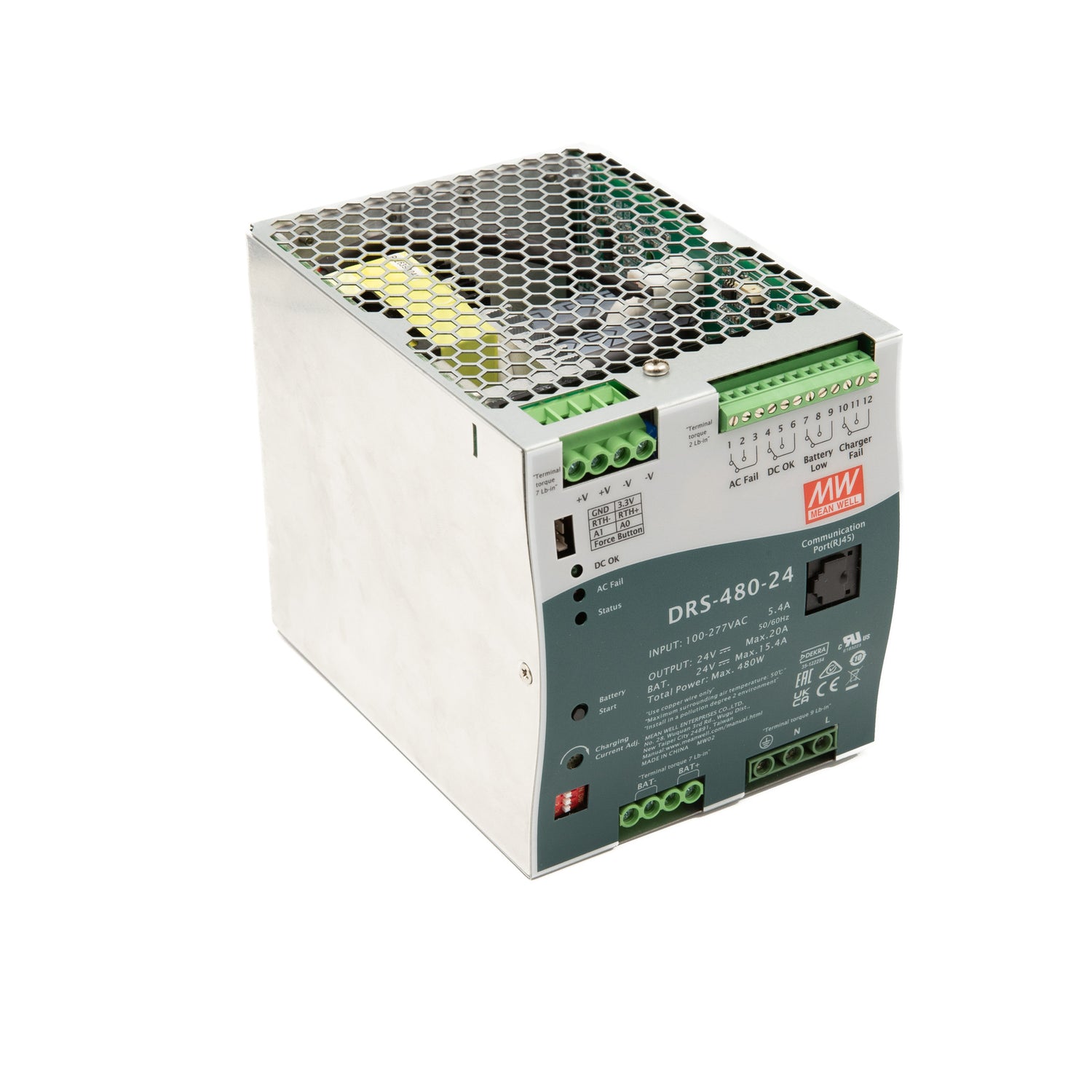

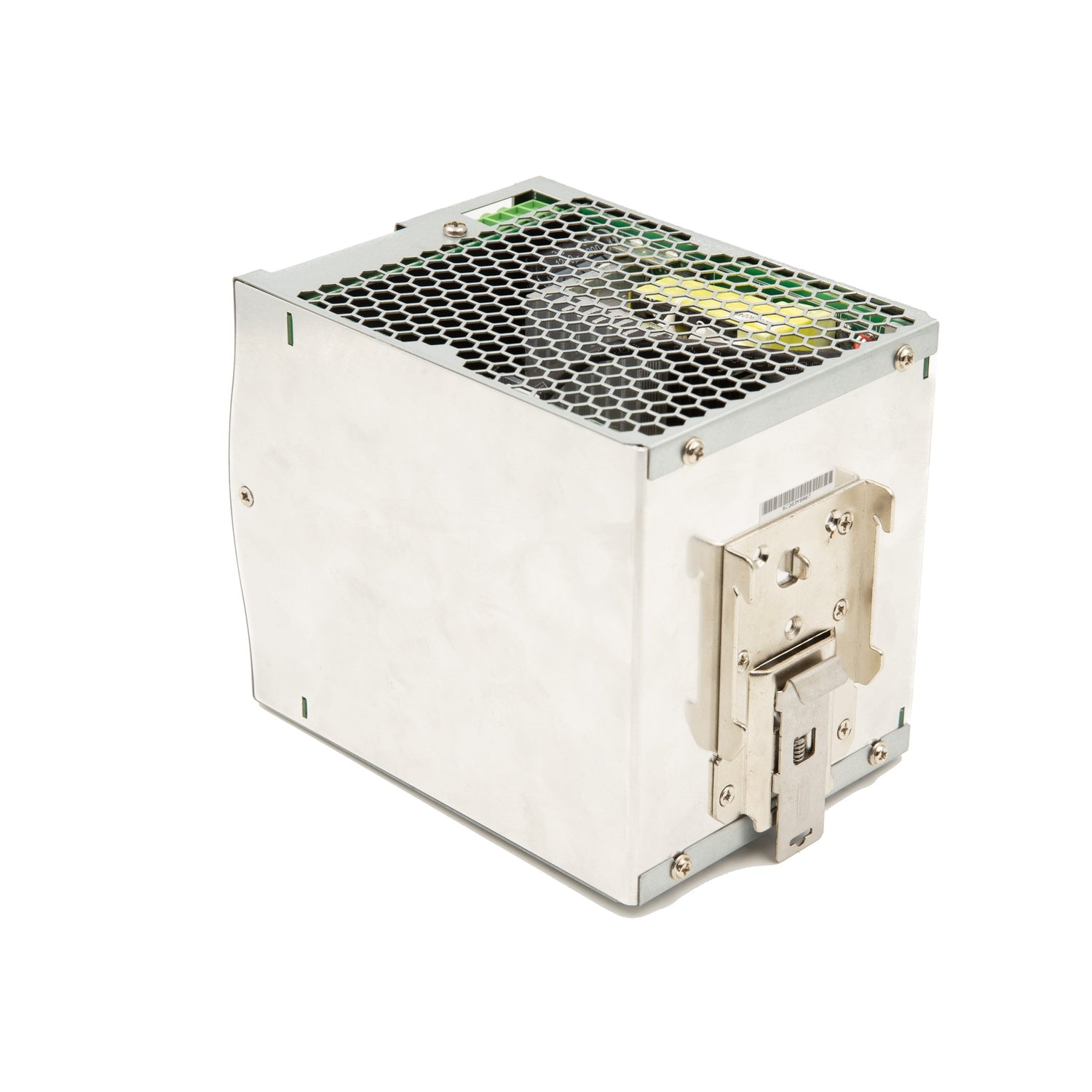

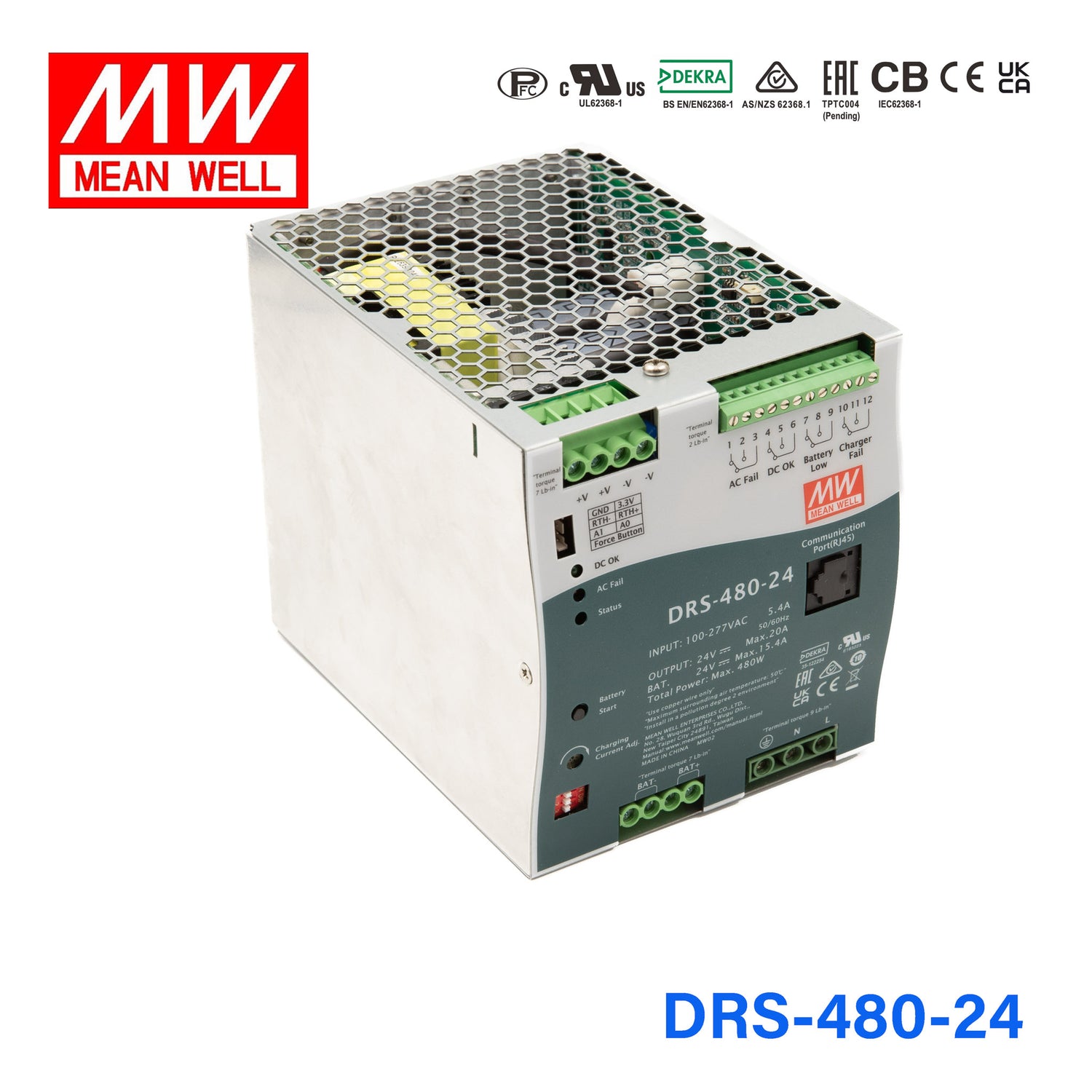

Mean Well DRS-480-24 All-In-One Intelligent Security Power 480W
Please Login for Pricing
Description
Description
Features
| Universal input 90~305VAC(277VAC available) |
| All-in-one function with Power supply, DC-UPS, battery charger and status monitoring in ONE compact unit |
| Signal and alarm design meet UL2524, NFPA 1221, BS EN/EN54-4 and GB17945 requirement, with adjustable parameters configurable by communication interface |
| Form C relay contacts and LED indicators for AC Fail, Battery Low, Charger Fail, and DC-OK |
| Load-dependent high speed battery charging |
| Built-in MODBus Protocol, CANBus optional |
| Protections: Short circuit/Overload/Over voltage/Over temperature(auto derating)/Battery reverse polarity/Battery cut off |
| Cooling by free air convection |
| Charging curve can be set with SBP-001 |
| 2 or 3-stage selectable by DIP S.W |
| 20~100% charging current adjustable by VR |
| Suitable for lead acid and lithium-ion batteries |
| 3 years warranty |
General Specification
| AC input voltage range | 90~305VAC; 127~431VDC |
| AC inrush current | Cold start 30A at 115VAC, 60A at 230VAC |
| Adjustment charging current | 20%~100% charging current adjustable by VR |
| Overload protection | 105%~135% rated output power |
| Over voltage protection | 135%~155% rated output voltage |
| Setup, rise, hold up time | 2400ms, 1000ms, 16ms at 230VAC |
| Withstand voltage | I/P-O/P:4kVAC, I/P-FG:2kVAC, O/P-F-G:1.5kVAC |
| Working temperature | -30~+70°C |
| Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min. Each along X, Y, Z axes |
| Safety standards | UL62368-1, RCM AS/NZS 62368.1 approved |
| EMC standards | EN55032 class B, EN61000-3-2, EN61000-4-2,3,4,5,6,8 |
| Connection | I/P: 3 poles, O/P: 4 poles screw DIN terminal |
| Dimension (LxWxH) | 85.5x125.2x129.2 |
| Packing | 8pcs / 12.5kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesDRS Series
-
Power Rating480 Watt
-
Output Voltage24 Volt
-
Rated Current15.4 Ampere
-
Input Voltage90V~305V
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length11 cm
-
Width12.52 cm
-
Height15.07 cm
-
Weight1.65 kg
