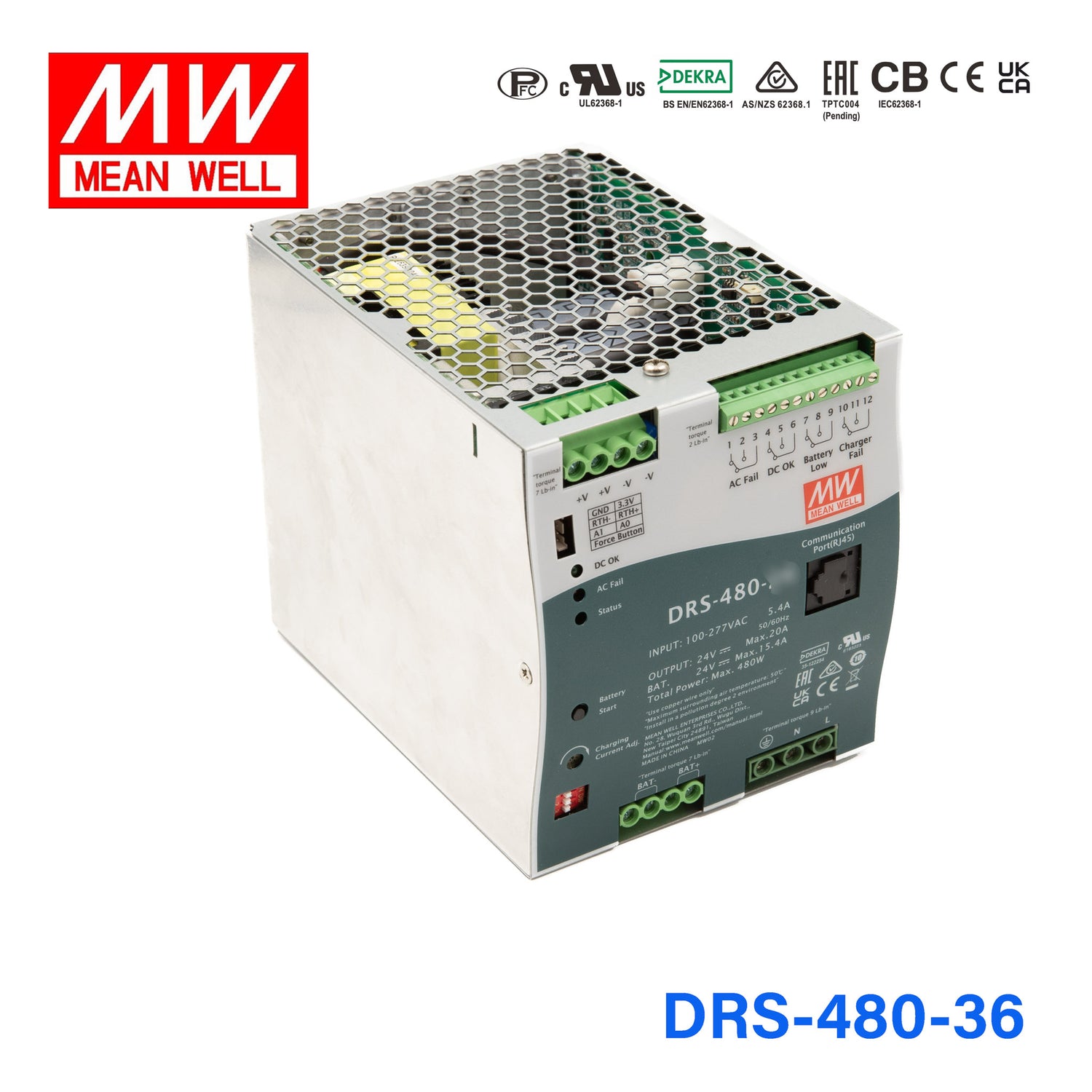

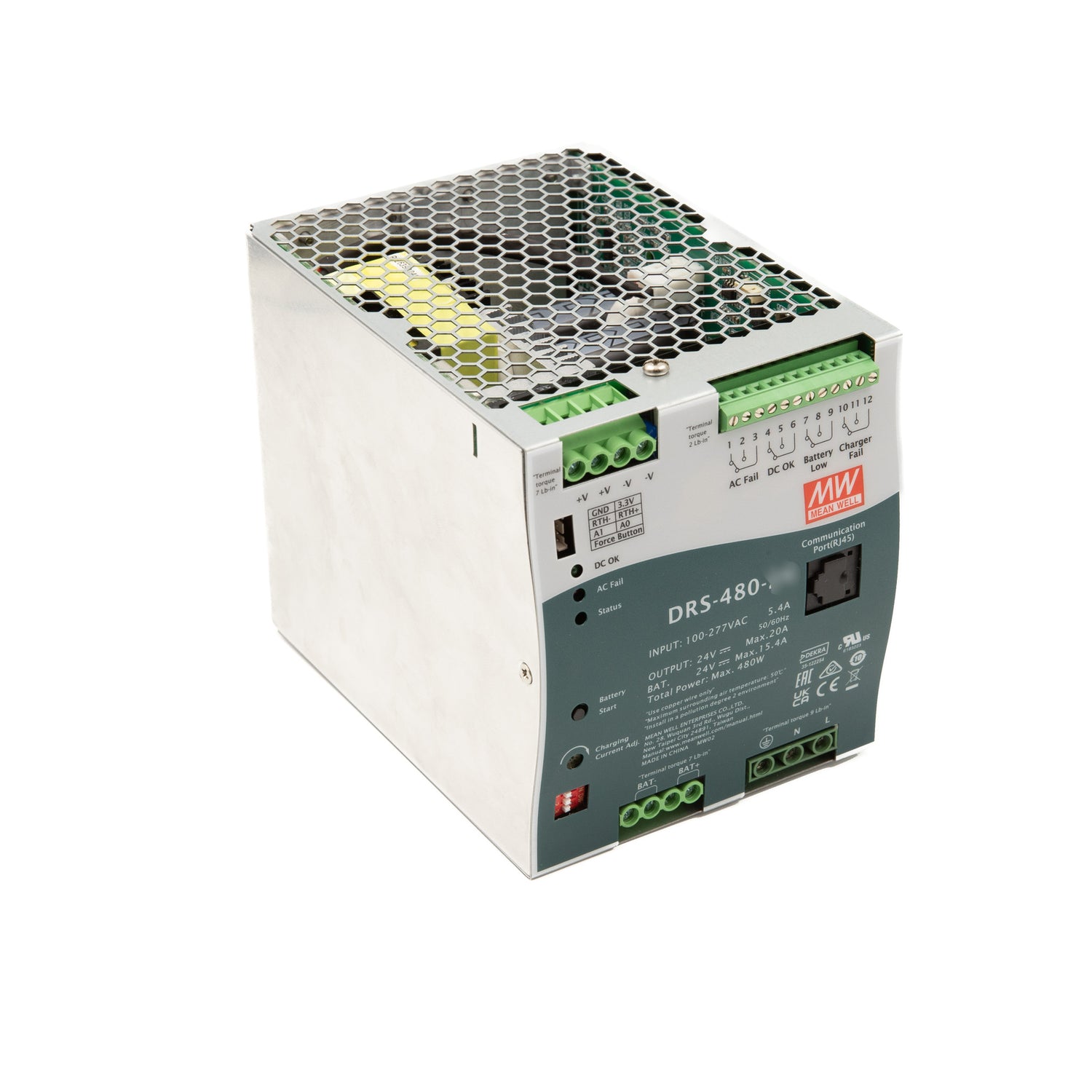

Mean Well DRS-480-36 All-In-One Intelligent Security Power 480W
Please Login for Pricing
Description
Description
The DRS-480 is a 480W Mean Well power converter.
Key Features
- ✓ 4KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature / Reverse polarity
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: UL62368-1, Dekra BS EN/EN62368-1, RCM AS/NZS 62368.1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesDRS Series
-
Power Rating480 Watt
-
Output Voltage36 Volt
-
Rated Current10.2 Ampere
-
Input Voltage90V~305V
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length11 cm
-
Width12.52 cm
-
Height15.07 cm
-
Weight1.65 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well DRS-480-36 designed for?
The DRS-480-36 is an all-in-one intelligent security power unit that combines a 480W power supply, DC-UPS, battery charger, and status monitoring in one compact DIN rail form factor. It is suited to security and related backup-power applications where continuous 36V DC output and battery-supported operation are important.
What are the main electrical ratings of the DRS-480-36?
This model is rated for 480W output at 36V DC with a rated current of 10.2A. It accepts a wide 90 to 305VAC input range, with 127 to 431VDC also supported on the input side.
How is the DRS-480-36 different from a standard DIN rail power supply?
Unlike a standard DIN rail PSU that only provides DC output, the DRS-480-36 also integrates DC-UPS functionality, battery charging, and status monitoring. It includes relay contacts and LED indicators for AC fail, battery low, charger fail, and DC-OK, making it more suitable for monitored critical-power applications.
Is the DRS-480-36 compatible with different battery types?
Yes, the DRS-480-36 is suitable for both lead acid and lithium-ion batteries. It also supports selectable 2-stage or 3-stage charging, and the charging current is adjustable from 20% to 100% by VR.
Can the DRS-480-36 be used in demanding temperature conditions?
This model has a working temperature range of -30 to +70 degrees C. It uses free air convection cooling and includes over-temperature protection with auto derating, which helps it operate in tougher industrial and security environments.
What monitoring and communication features does the DRS-480-36 include?
The DRS-480-36 includes built-in ModBus protocol support, with CANBus available as an option. It also provides Form C relay contacts and LED status indication for key power and battery conditions, which is useful where remote status visibility matters.
What protection features are built into the DRS-480-36?
This unit includes protection for short circuit, overload, over voltage, over temperature with auto derating, battery reverse polarity, and battery cut off. Its overload protection is specified at 105% to 135% of rated output power, and over-voltage protection is specified at 135% to 155% of rated output voltage.
What approvals and warranty does the DRS-480-36 have?
The DRS-480-36 is approved to UL62368-1 and RCM AS/NZS 62368.1 safety standards. It also carries a 3-year warranty from Mean Well.
